What's the best way to set up karaoke system at home?

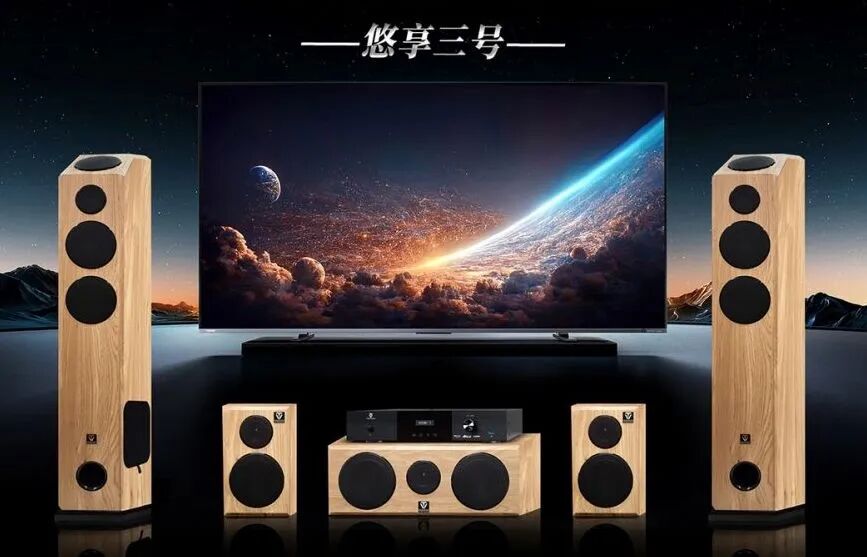

The YX-03 is presented as a leading, high-quality 5.1.2 home entertainment system, featuring immersive cinema audio, professional karaoke, Hi-Fi music, and gaming capabilities. It streamlines circuit design and installation, balancing function and value, making it ideal for the entertainment needs of modern family living rooms.

YX-03 Amplifier

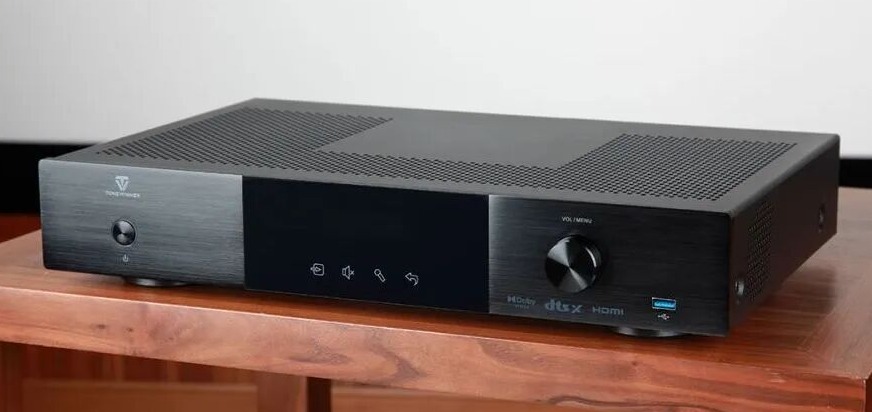

As the core of the YX-03 system, this standalone dual-decoding amplifier exemplifies "small size, big power": Its brushed aluminum alloy panel and sleek controls convey luxury and professionalism. The rear panel hosts comprehensive interfaces, including four HDMI inputs, one HDMI output, optical, coaxial, USB, and microphone input. The custom flat six-pin speaker connector reduces wiring complexity for the 5.1.2 setup, enhancing usability for households.

YX-03 Speaker Set

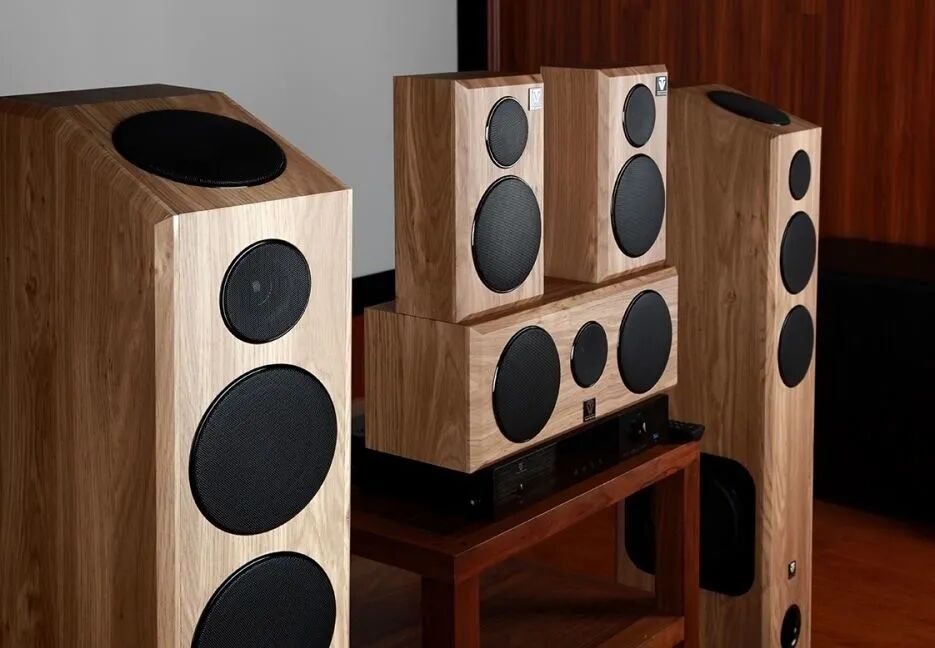

The YX-03 speakers are designed according to the immersive 5.1.2 specification, and the complete set includes 5 speakers: a pair of integrated main speakers, a center speaker, and a pair of surround speakers.

The core highlight is the pair of 110cm tall main speakers, which organically integrate the main channel, subwoofer, and overhead channel reflector enclosures. This saves space, reduces wiring complexity, and enables independent sound production from the three components, allowing them to collaboratively create a three-dimensional sound field. The enclosures operate independently, resulting in pure and authentic sound quality.

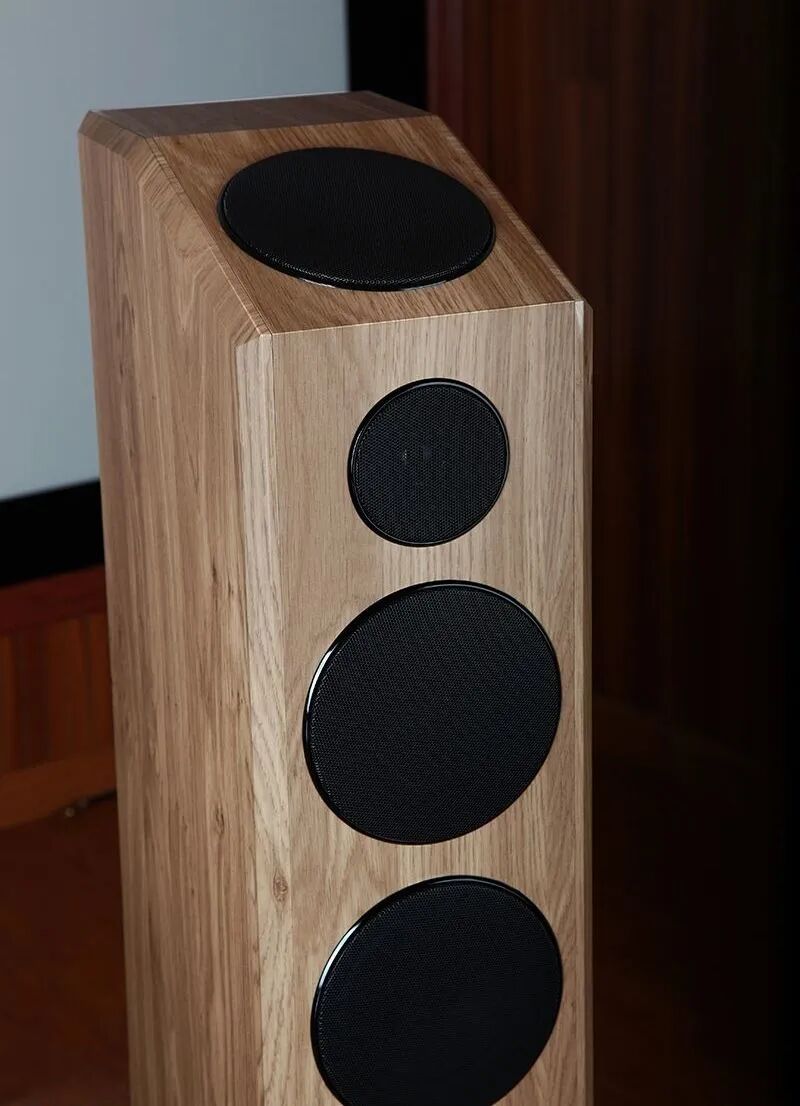

The main speaker's upper enclosure features two 5-inch full-range drivers angled at 30°, reflecting sound off the ceiling to create an overhead channel. Its central module is an independent dual 5-inch bookshelf system, paired with a 1-inch silk dome tweeter and two 5-inch mid-woofers, utilizing a Batears two-way crossover for high-fidelity sound. The lower compartment houses an 8-inch woofer with a polypropylene cone, 35-core oxygen-free copper voice coil, and a high-magnetic-excursion design for high sensitivity and driveability.

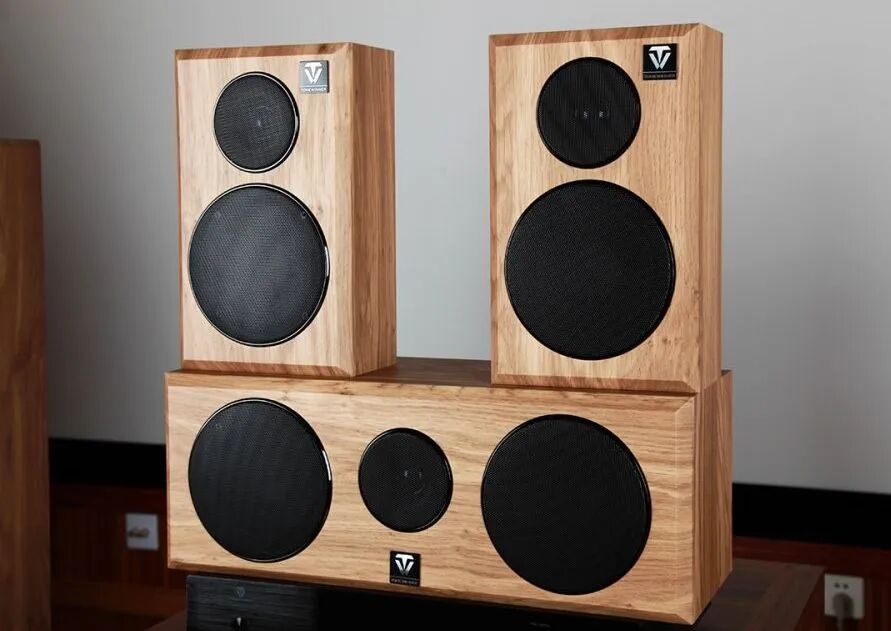

The center speaker shares the 1-inch silk dome tweeter and dual 5-inch mid-woofers. The compact surround speakers also feature the same tweeter and mid-woofer, with built-in wall mounts for easy installation. Both models are space-efficient: the center speaker fits easily into TV cabinets, while the surrounds can be mounted discreetly with hook-based hardware.
