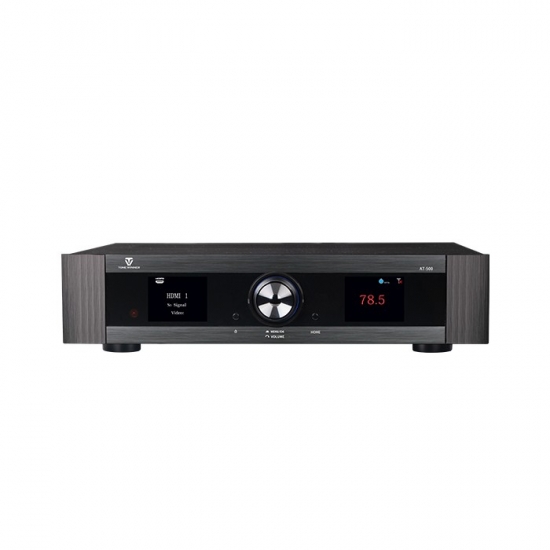

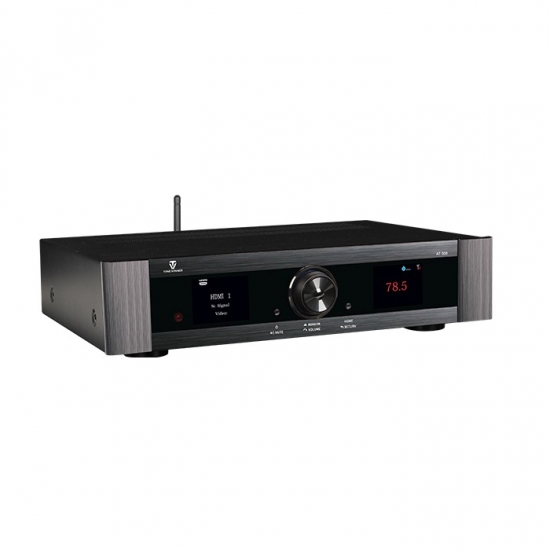

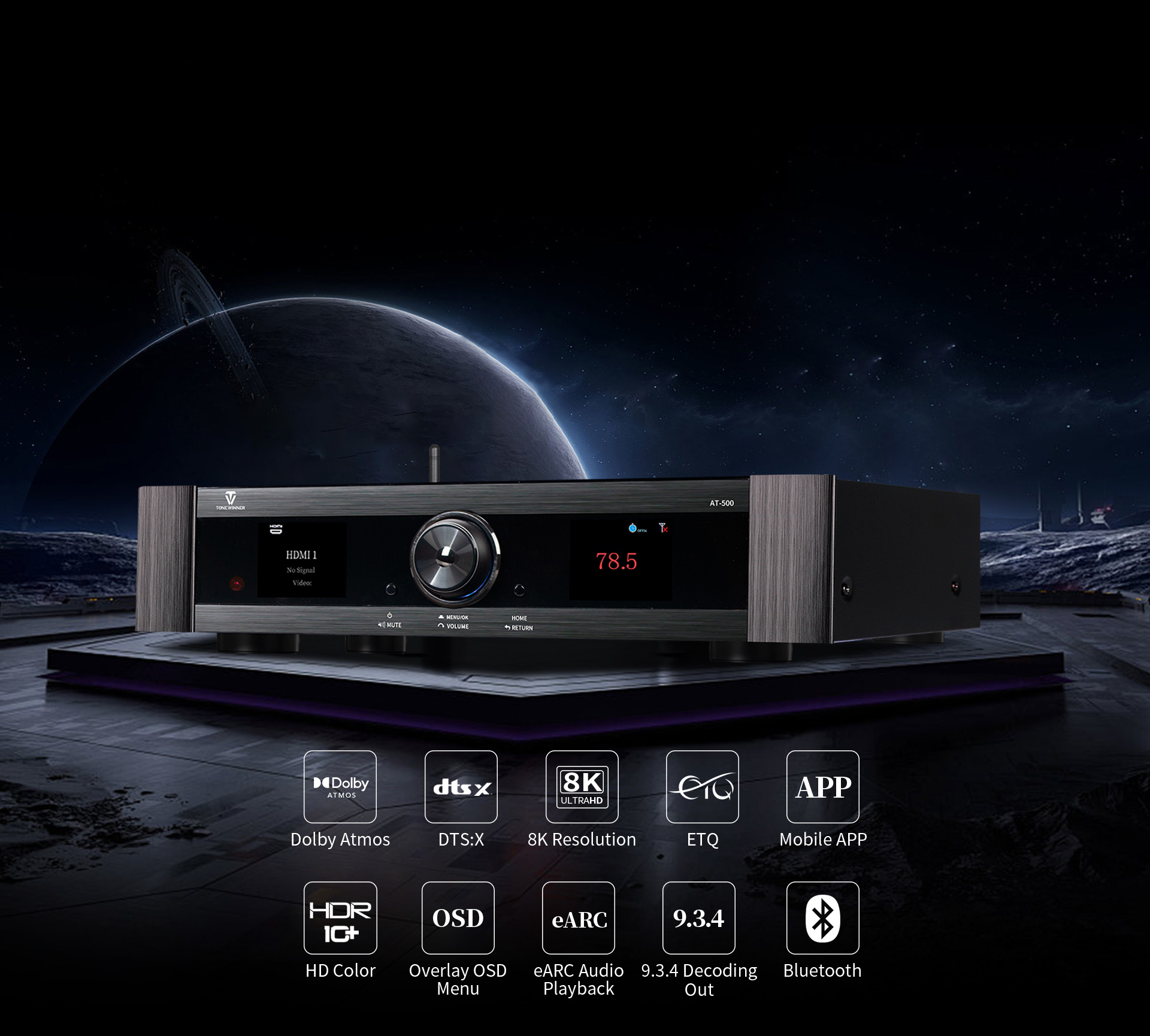

Tonewinner AT-500 8K Dolby Atmos Processor

AT-500

8K Atmos Cinema Decoding AV Processor

One machine controls the whole situation, to decode the future of audio-visual

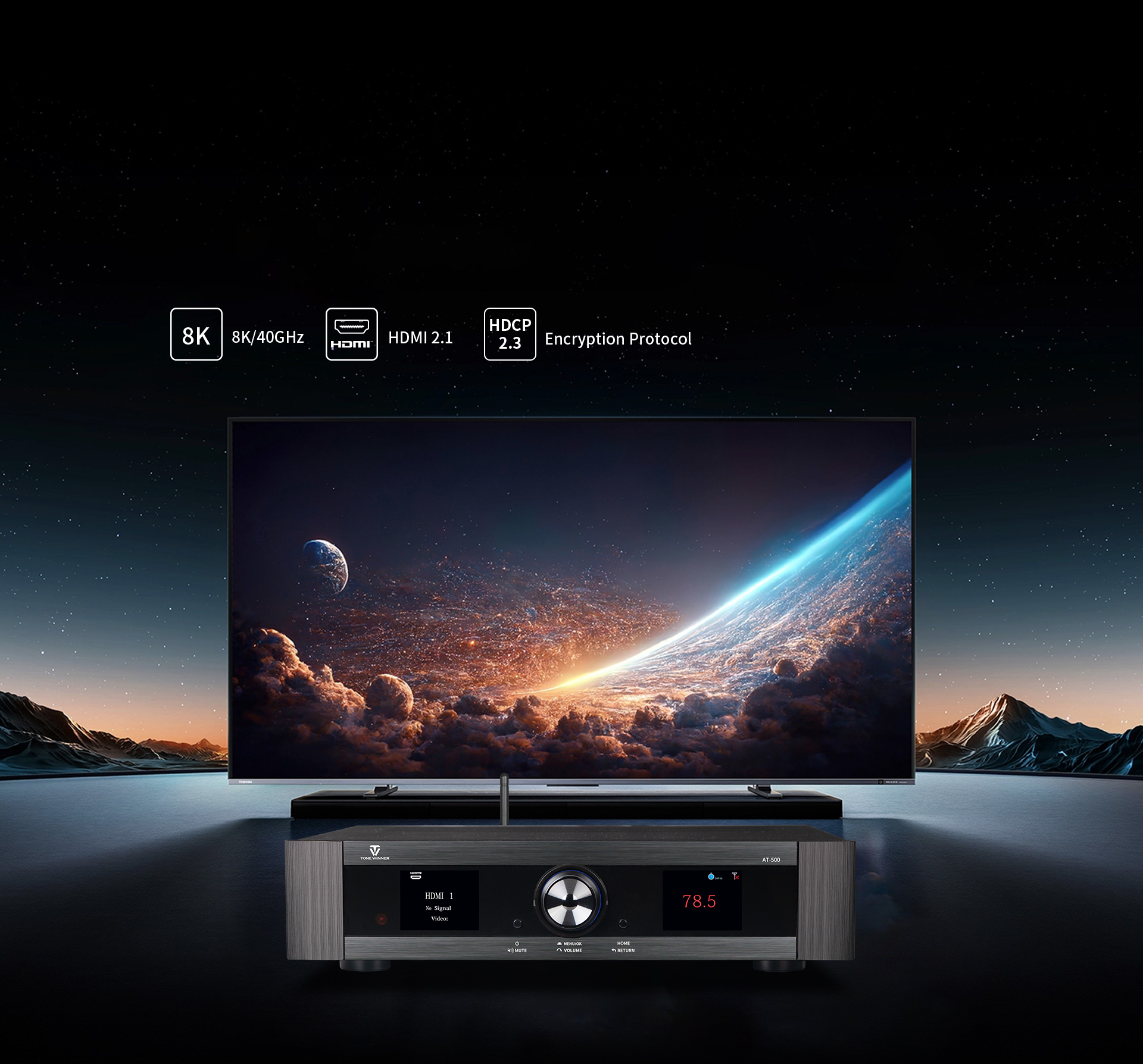

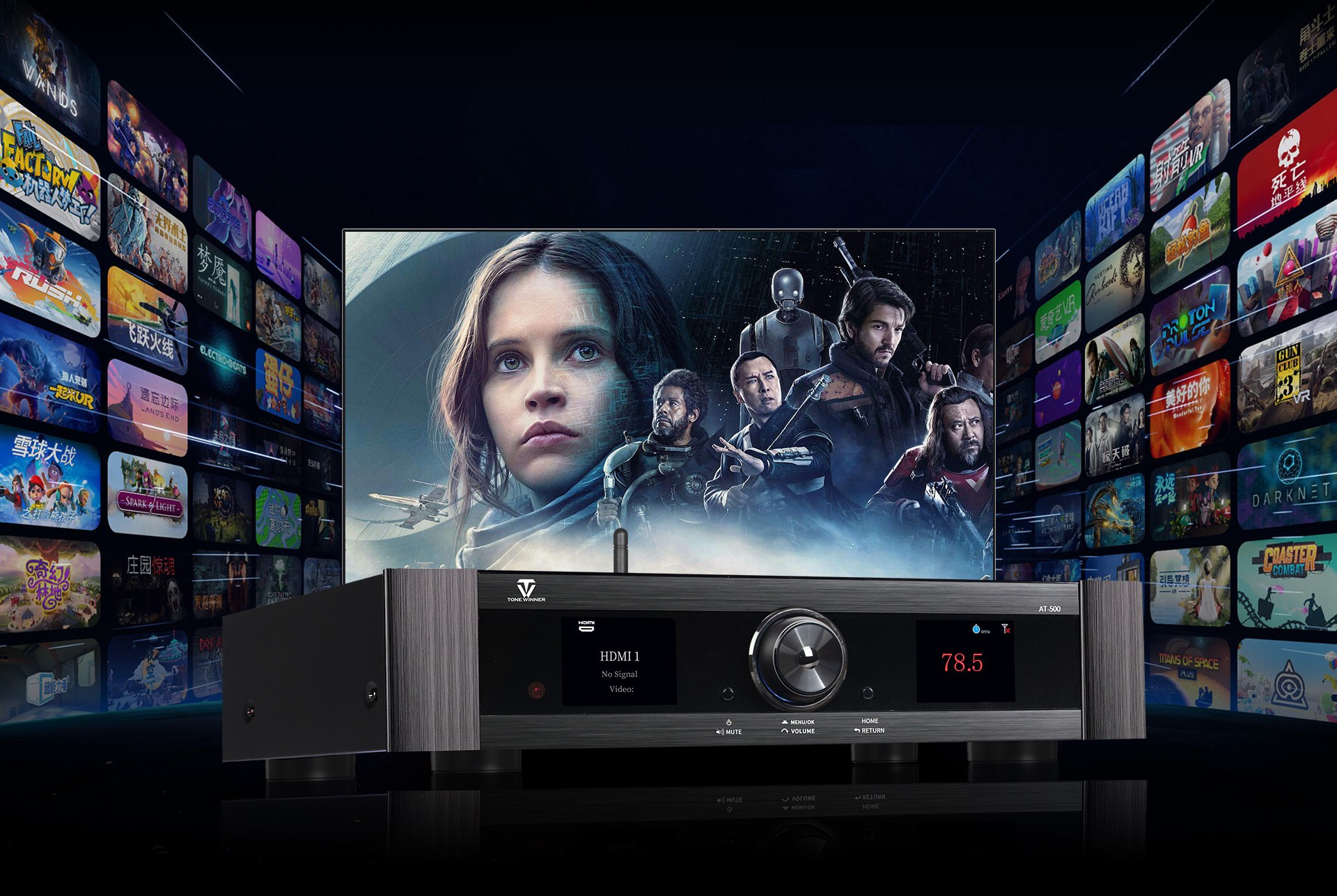

8K Vision  Every detail is Clear

Lossless transmission of ultra-high-definition image quality

It supports 6 HDMI inputs and 2 HDMI outputs, among which HDMI 1 to 3 interfaces support native 8K signal pass-through and upscaling, and lossless transmission of ultra-high-definition picture quality.

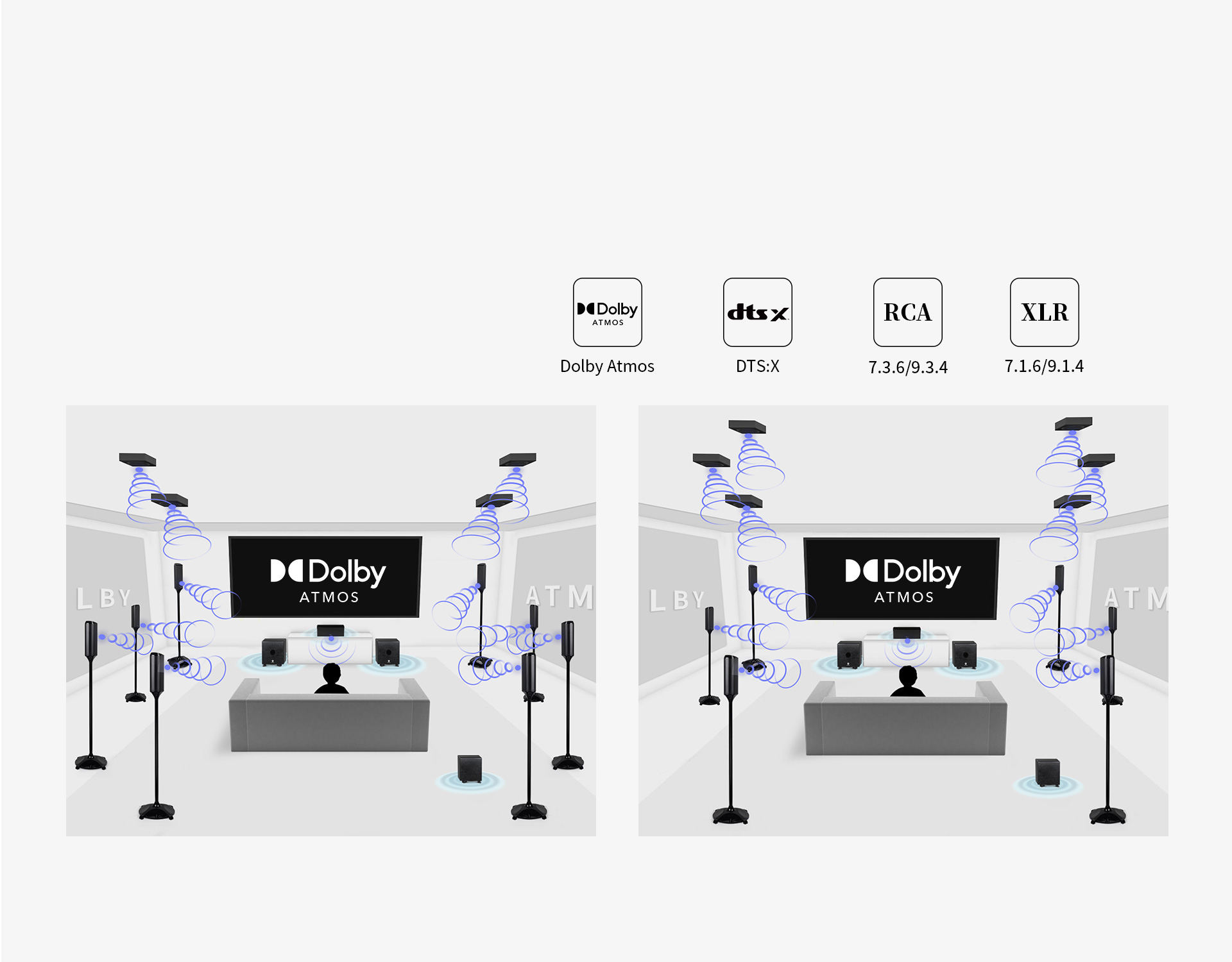

9.3.4/7.3.6 decoding output

It supports 7.3.6/9.3.4, a total of 16 channels of Dolby Atmos sound decoding output, and can independently control 3 subwoofers to create shocking low frequencies, achieve precise layering of the sound field and immersive surround.

Dolby Atmos, DTS:X dual decodings

The new Dolby Atmos and DTS:X sound effects are backward compatible with all Dolby and DTS audio formats, support Dolby Atmos upmixing technology, and physical-level 360° sound field reconstruction, bringing a truly immersive audio-visual feast.

eARC Dolby Atmos audio playback

Using the HDMI2.1 high-specification video format, uncompressed full-resolution sound signals (including Dolby Atmos, DTS:X and other formats) are transmitted back and forth between the TV and the amplifier, ensuring high-quality sound effects.

(*Note: This function also requires the video receiving device to support eARC function)

Full format HDR pass-through original image quality

Features HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR pass-through

The signal is processed losslessly throughout the process, refusing compression and conversion, and retaining every detail of the original image quality.

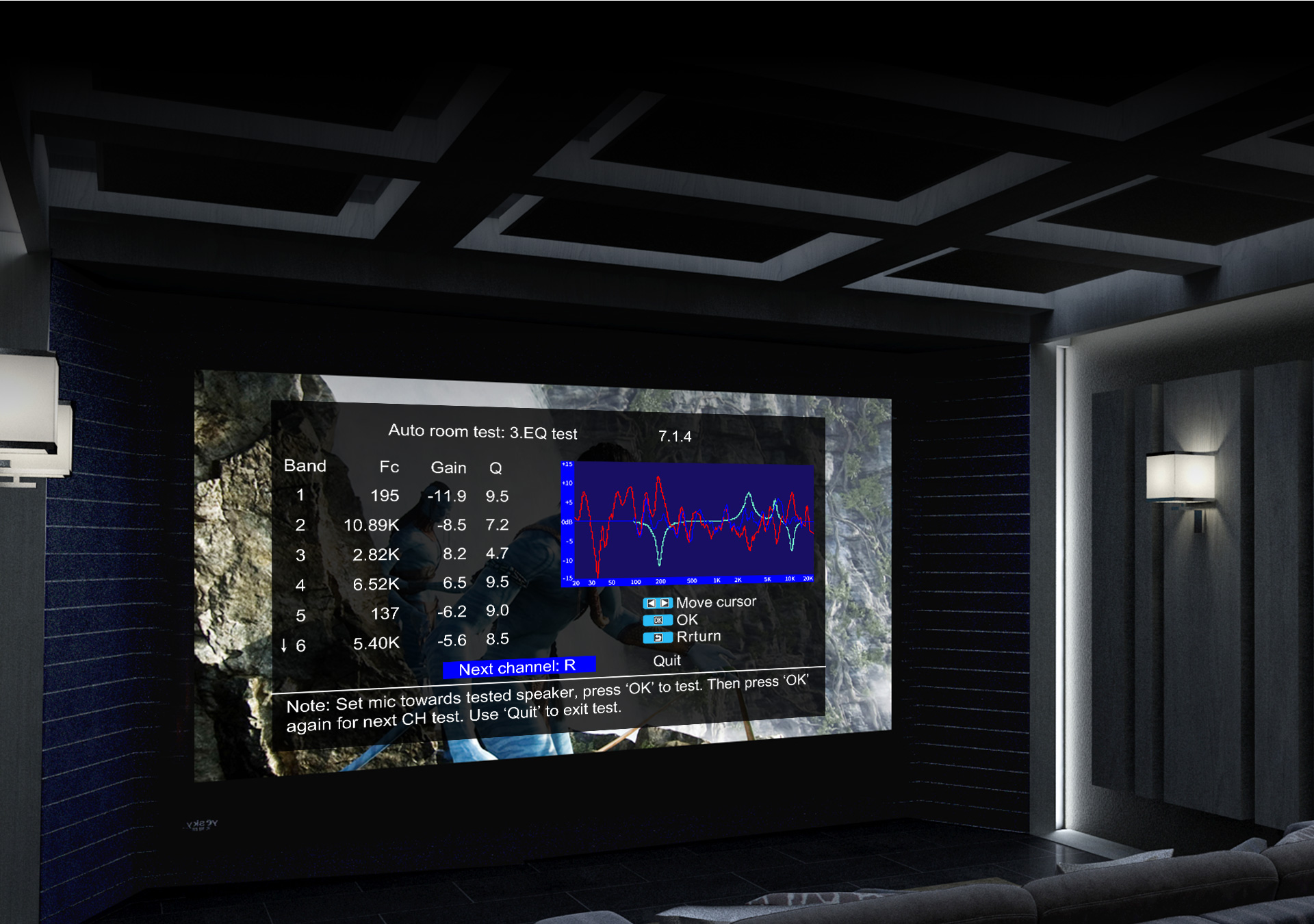

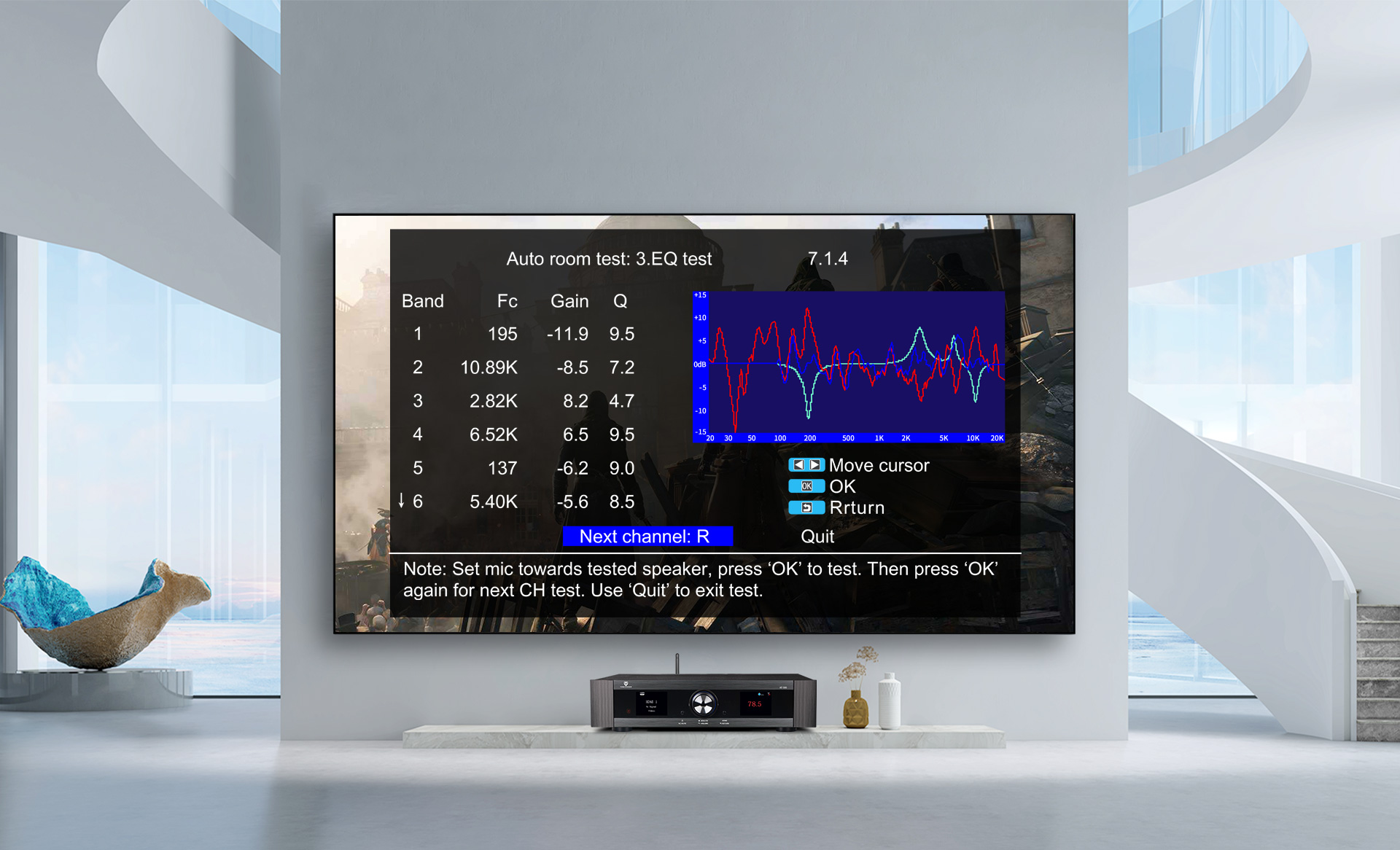

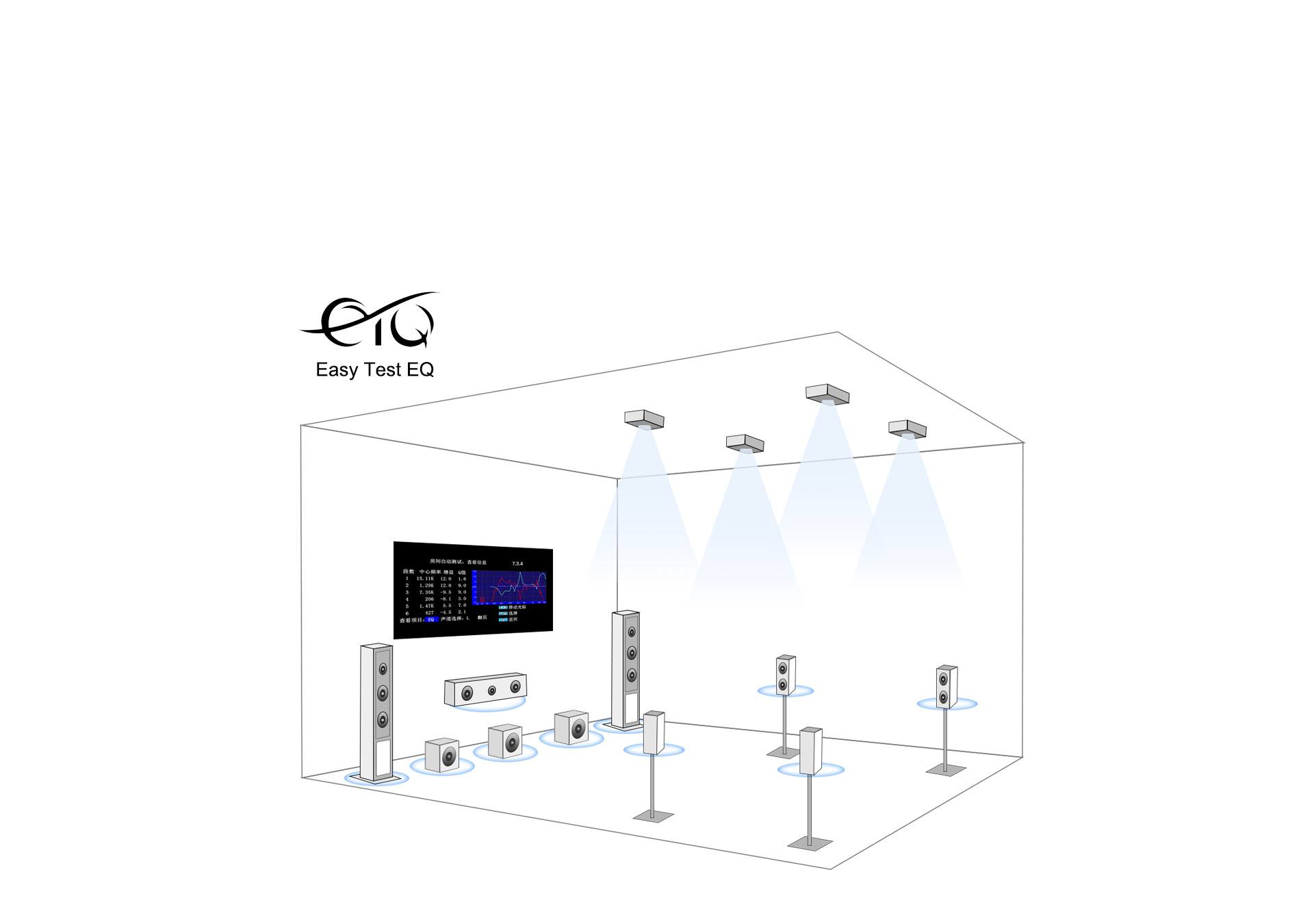

ETQ-Fully automatic sound field test and calibration

Easy Test EQ is Tonewinner's self-developed sound field calibration system, one of the world's top five fully automatic audio testing and correction systems. It is quick to respond, easy to use, has accurate algorithms and precise calibration, and is highly recognized by many brands and distributors in Europe, America and Asia.

*Note: This function must be used with the test microphone ETM-3

Intelligent following of sound effects scenes

Independent audio and video matrix grouping, one-click switching can achieve audio and video synchronization, easily meeting complex scene applications.

Visualized parameters and graphic EQ adjustments

It is equipped with automatic and manual multi-band parametric EQ, with 11 bands for the left and right main speakers and the center channel, 5 bands for the surround and overhead channels, and 5 bands for the bass channel.

No need for extra computer debugging, it can be completed on the display screen.

Volume memory, user-friendly design

Personal settings, get the state you want as soon as you turn on

• Independent volume memory for each channel
• Independent volume settings for power on and off
• Music maximum volume limit
• Power off volume memory

Multiple speakers configuration for different rooms

It can be used as 3.0/3.1/5.1/7.1/5.1.2/5.1.4/

7.1.2/7.1.4/7.1.6/9.1.4/7.3.4/7.3.6/9.3.4

configurations to match environmental features of different rooms.

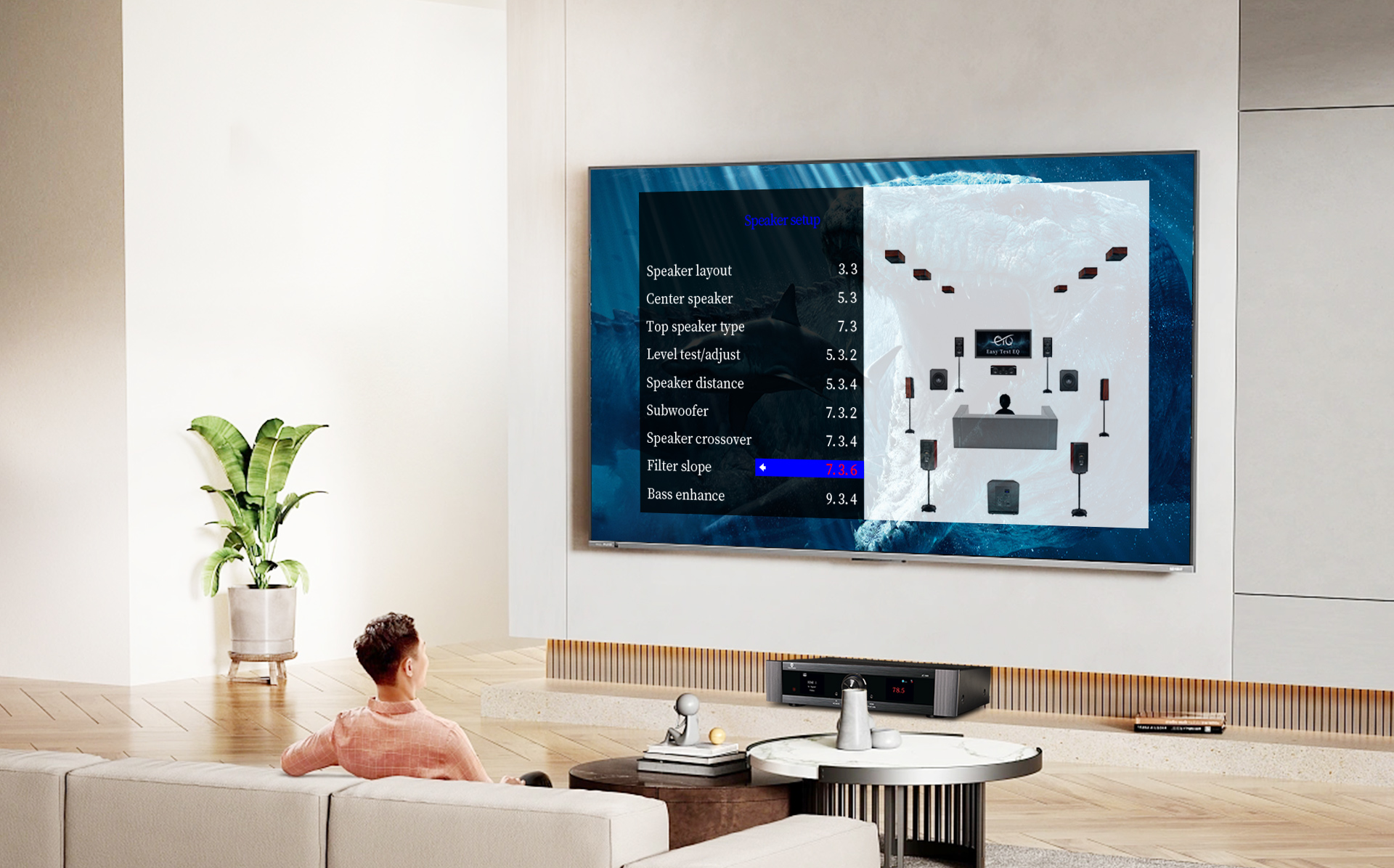

Overlay OSD menu

• Real-time display of audio changes: the audio curve is dynamically displayed when adjusting the EQ, and the sound effect adjustment is visible.
• Parameter adjustment and refinement: center frequency, gain, and frequency response amplitude can be adjusted arbitrarily until you are satisfied.
• Instant effect preview: watch, listen and adjust at the same time.

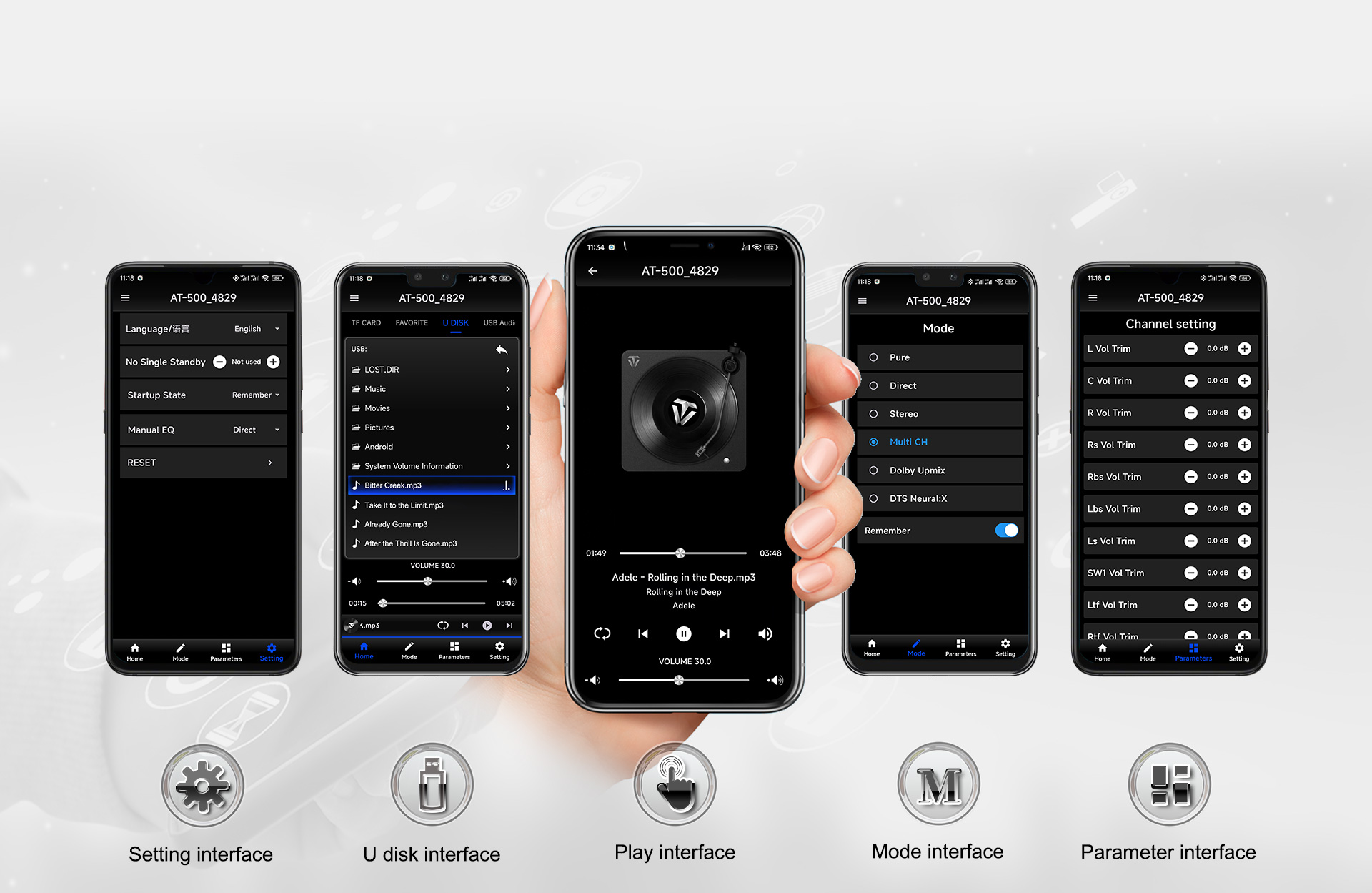

Intelligent Mobile APP control

The unique music playback center and management interface supports 8-layer folder management, and the USB disk/TF card song list is clearly displayed. You can adjust parameters, switch audio sources, and manage songs. without any hassle.

Home Audiophile Music Manager

• 128g USB flash drive and TF card reading, multiple lossless formats can be played at will, and personalized music can be loaded freely.
• Built-in Bluetooth transmission, one-touch direct push of lossless audio source from your mobile phone/tablet, allowing you to enjoy high-quality music at any time.
• USB-Audio input, watching movies on your computer is effortless.

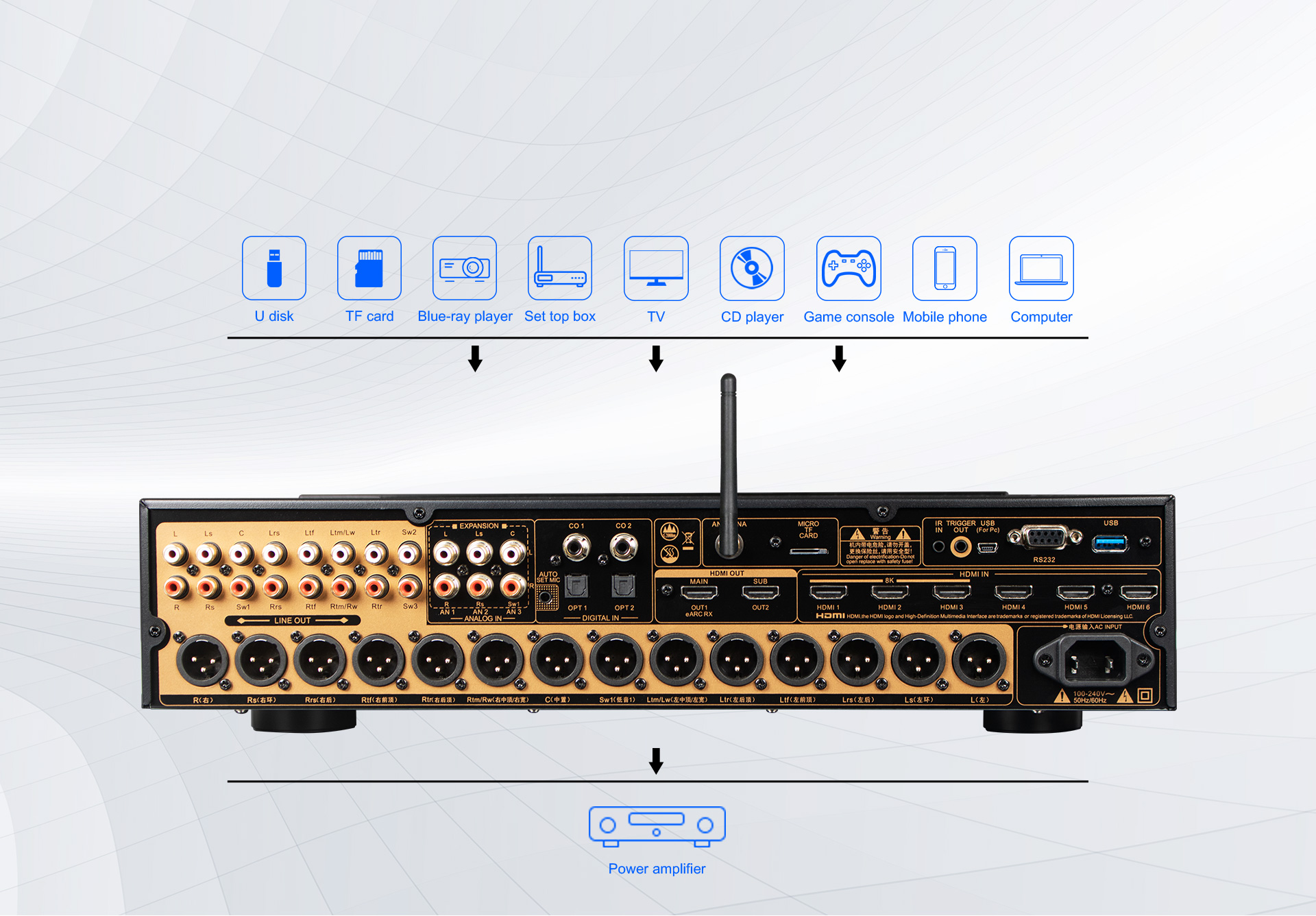

Home Theater Entertainment Center

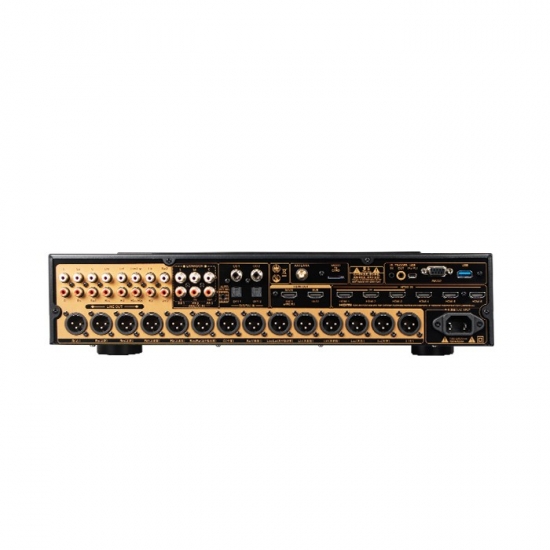

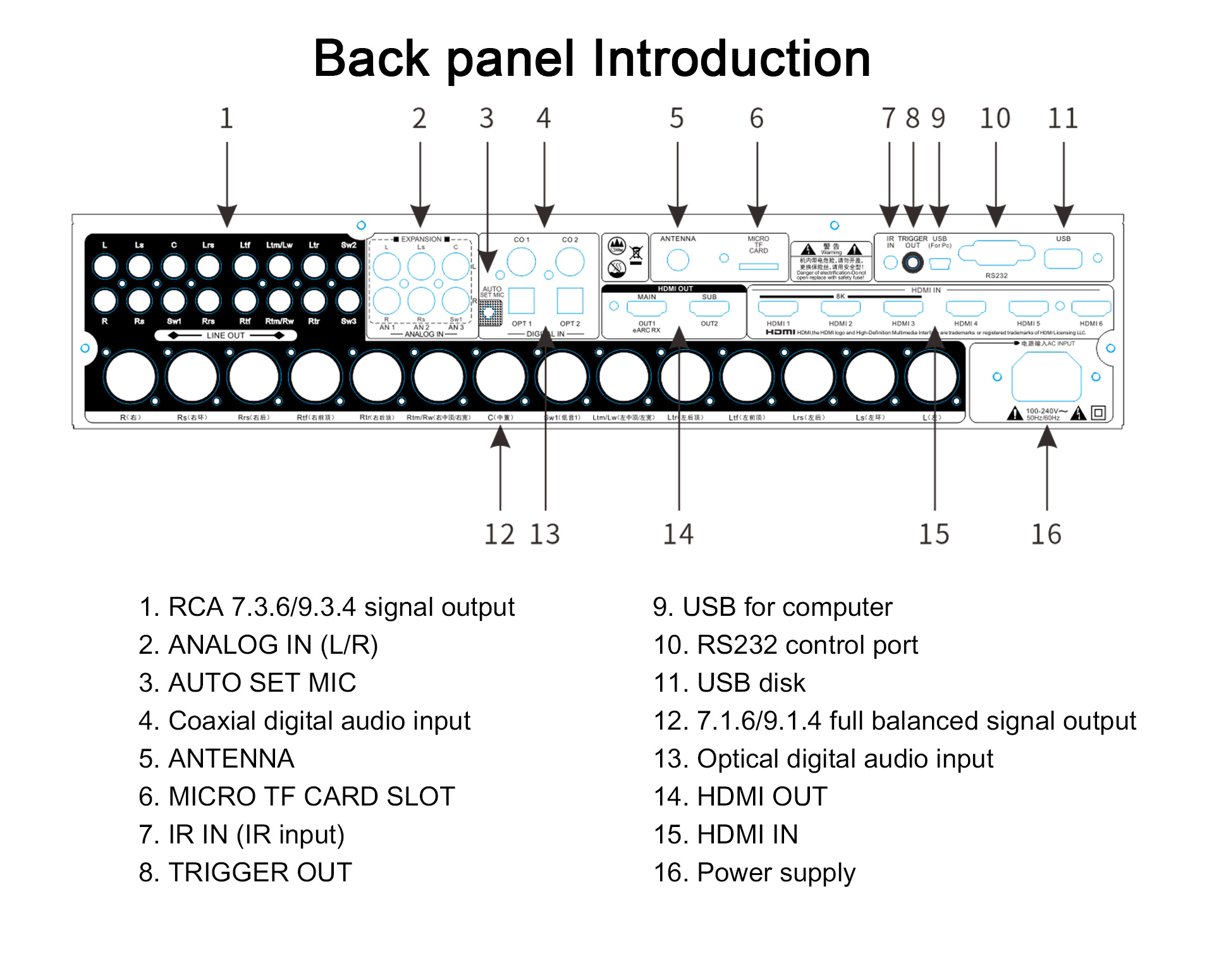

HDMI 6 in 2 out, support eARC audio playback, optical/coaxial digital input, U disk/TF card/PC AUDIO input, Bluetooth,5V trigger output, infrared IR input, RS232 standard control port.

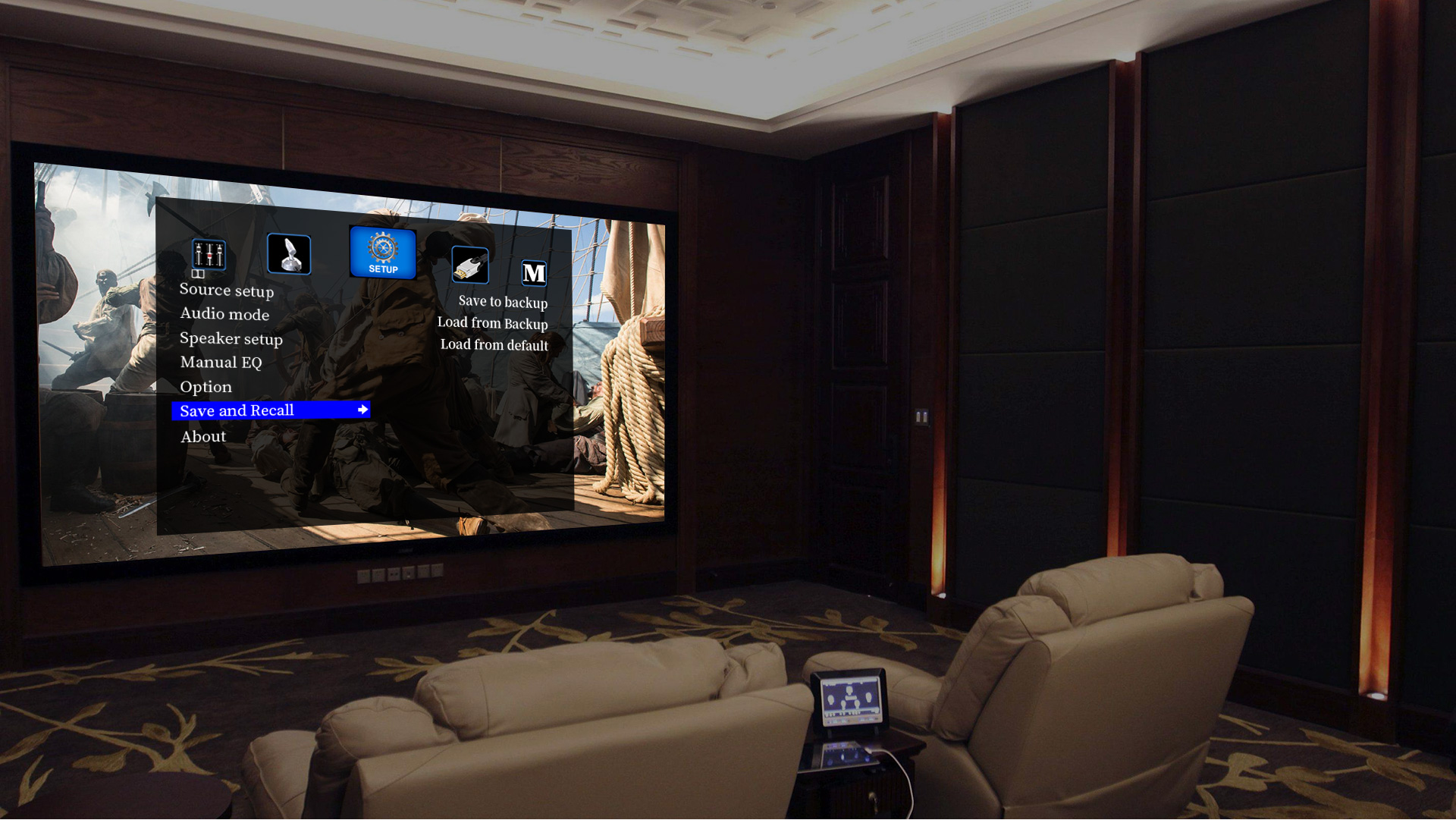

Parameter backup/restore One-touch lock

Suitable for both commercial and home use

The well adjusted user parameters can be saved in the system a

nd can be called up at any time with one click after setting.

Once set, it will take effect permanently.

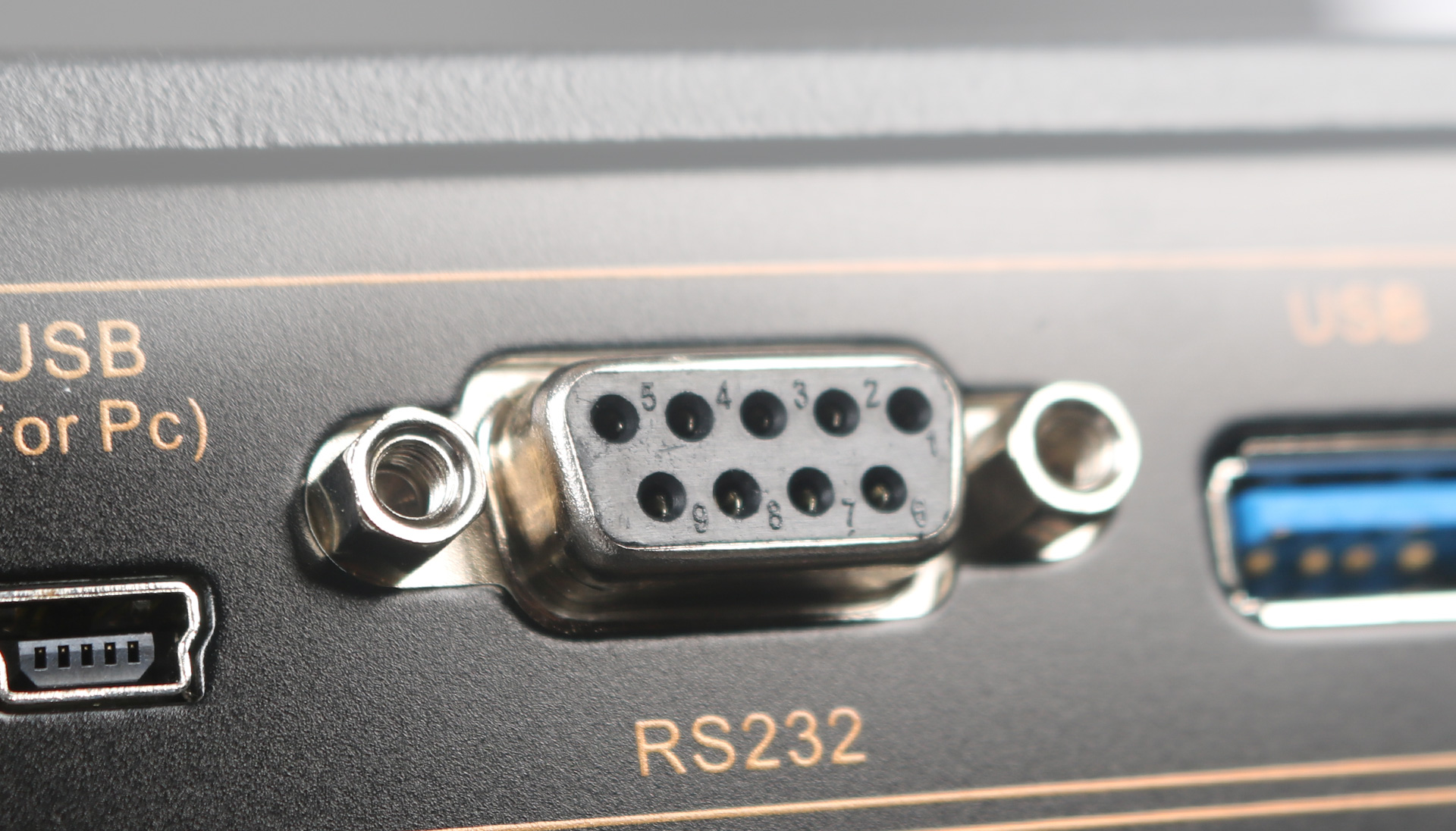

RS232 — Intelligent control interface

Connect to external central control equipment to coordinate the overall situation

RS232 + IR infrared + CEC control + 5V trigger, linking all the devices in the house.

Global Quality Certification

•  Independent design and development of operating system!
•  Same decoding solution as other big brands, double the performance, halved the price !
•  The most comprehensive technology for home theater preamplifier in audio industry !

1 year research  2 years development
