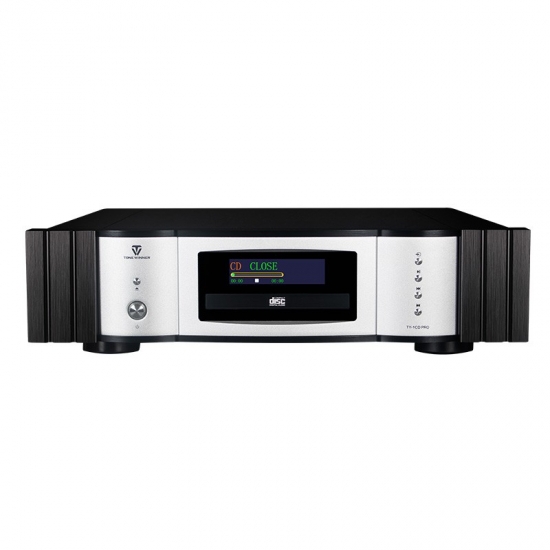

TY-1CDPRO HI-END CD Player
The TY-1CDPRO is Tonewinner's falgship CD player. It offers both analog and digital outputs and supports multiple audio formats such as CD, HDCD, MP3, and WMA. Constructed from classic black and white all-aluminum alloy, it boasts a simple yet sophisticated design; numerous elegant curves and sharp angles exude a refined elegance.
Model
TY-1CDPROG.W.
12.4KGTHD
≤0.001%SNR
≥123TY-1CDPRO HI-END CD Player
Flagship & True Classics, Limitless Horizons
TY-1CDPRO: Simple in form, exquisite in craftsmanship; rich in flavor, setting a new standard.

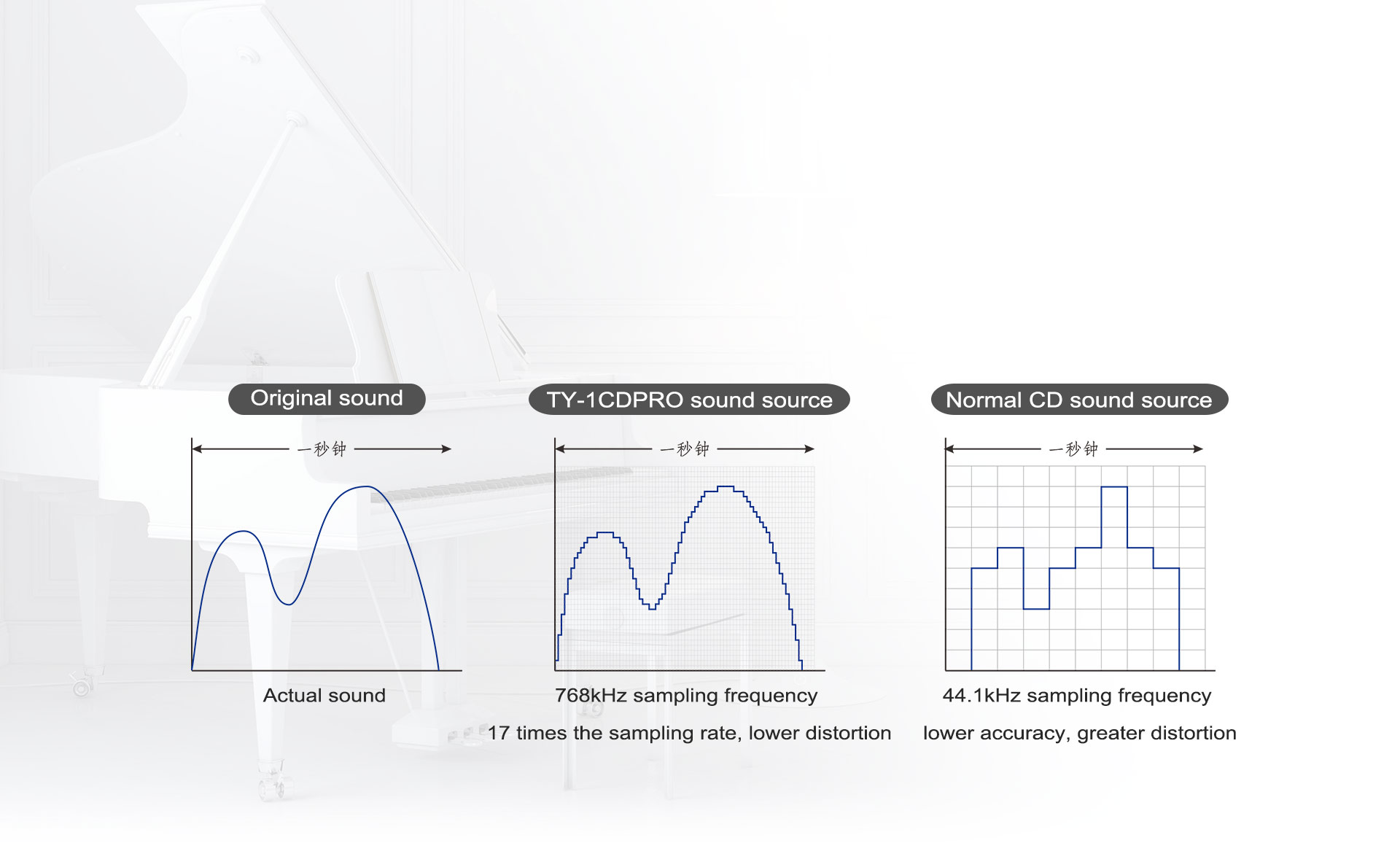

768kHz high sampling rate 17 times more information
With an ultra-high sampling rate of 768kHz/32Bit, it captures rich details far exceeding the CD standard (44.1kHz). It makes subtle reverberation, instrument texture, and the singer's breath clearly discernible in the recording, making every familiar record feel like it has been reborn.

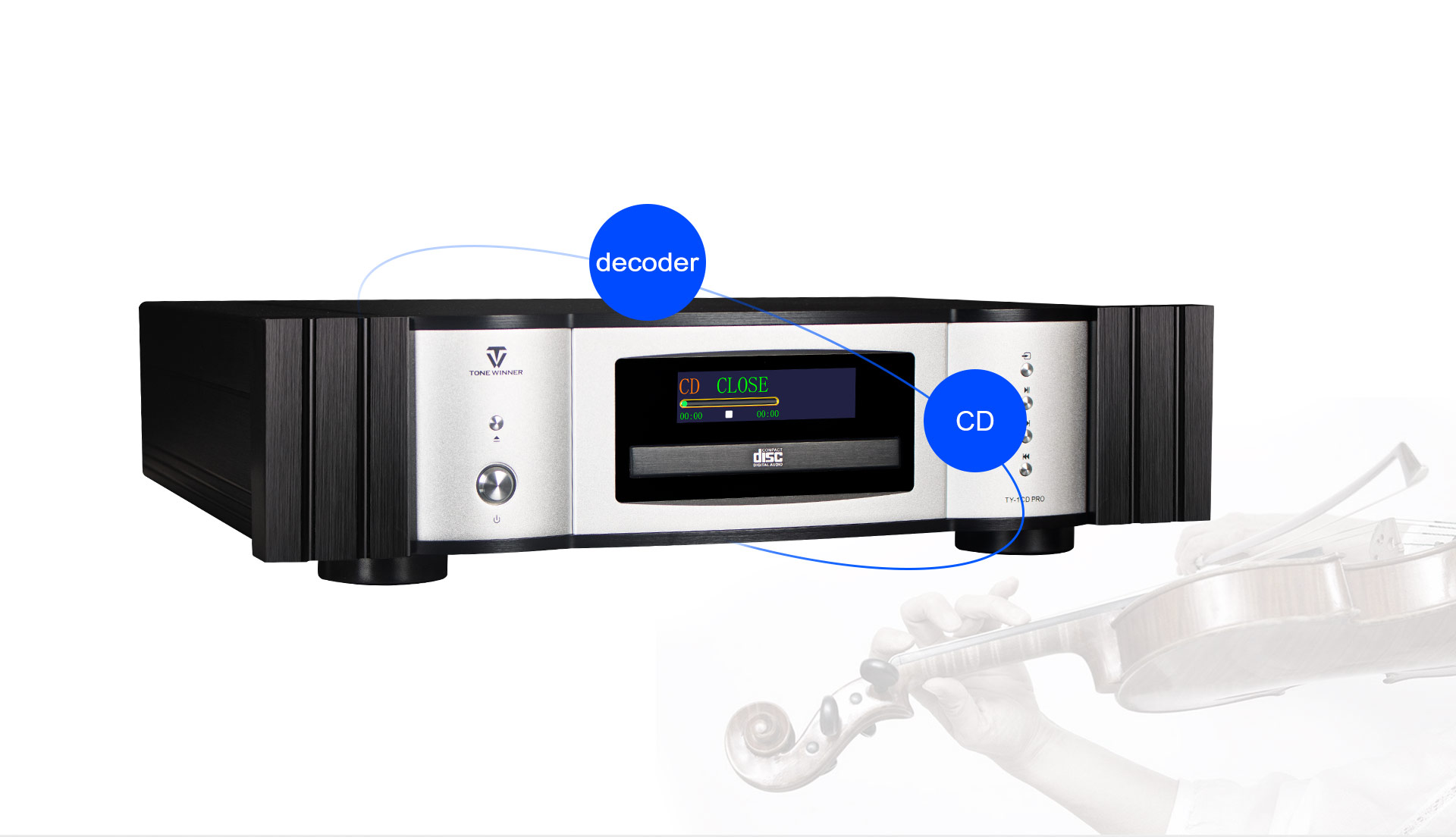

One machine for two purposes
It's a CD player, but also a high-performance decoder.

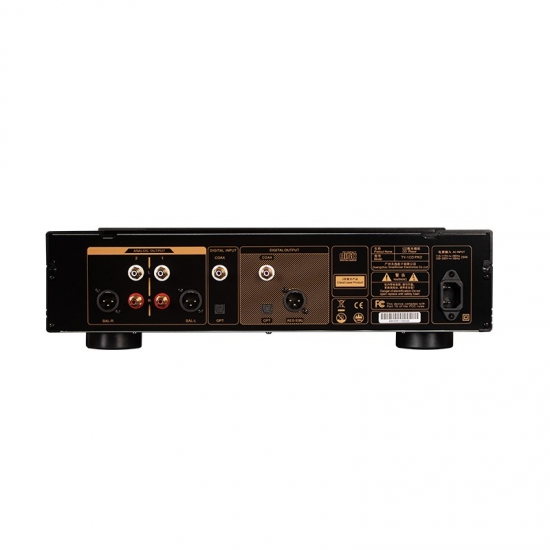

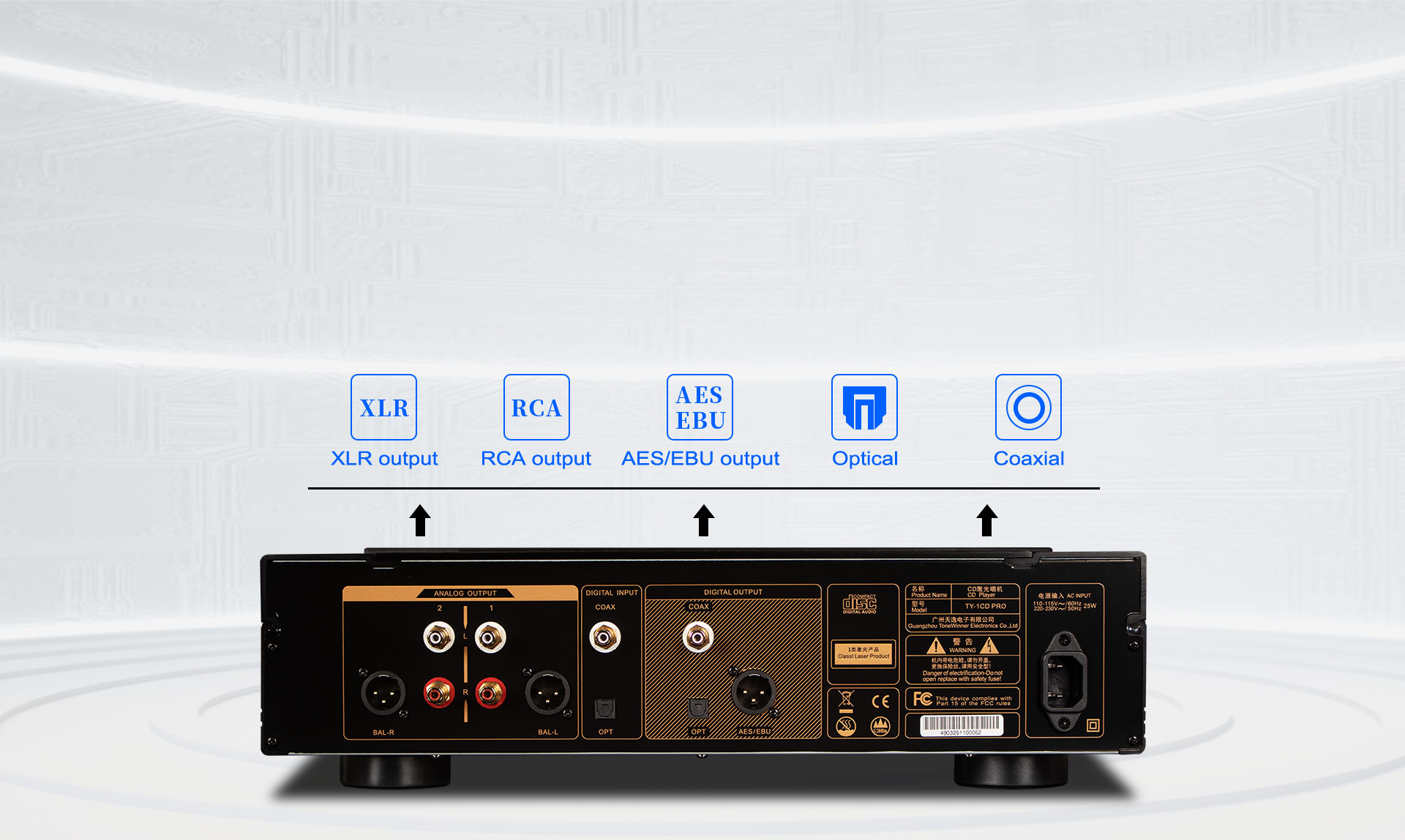

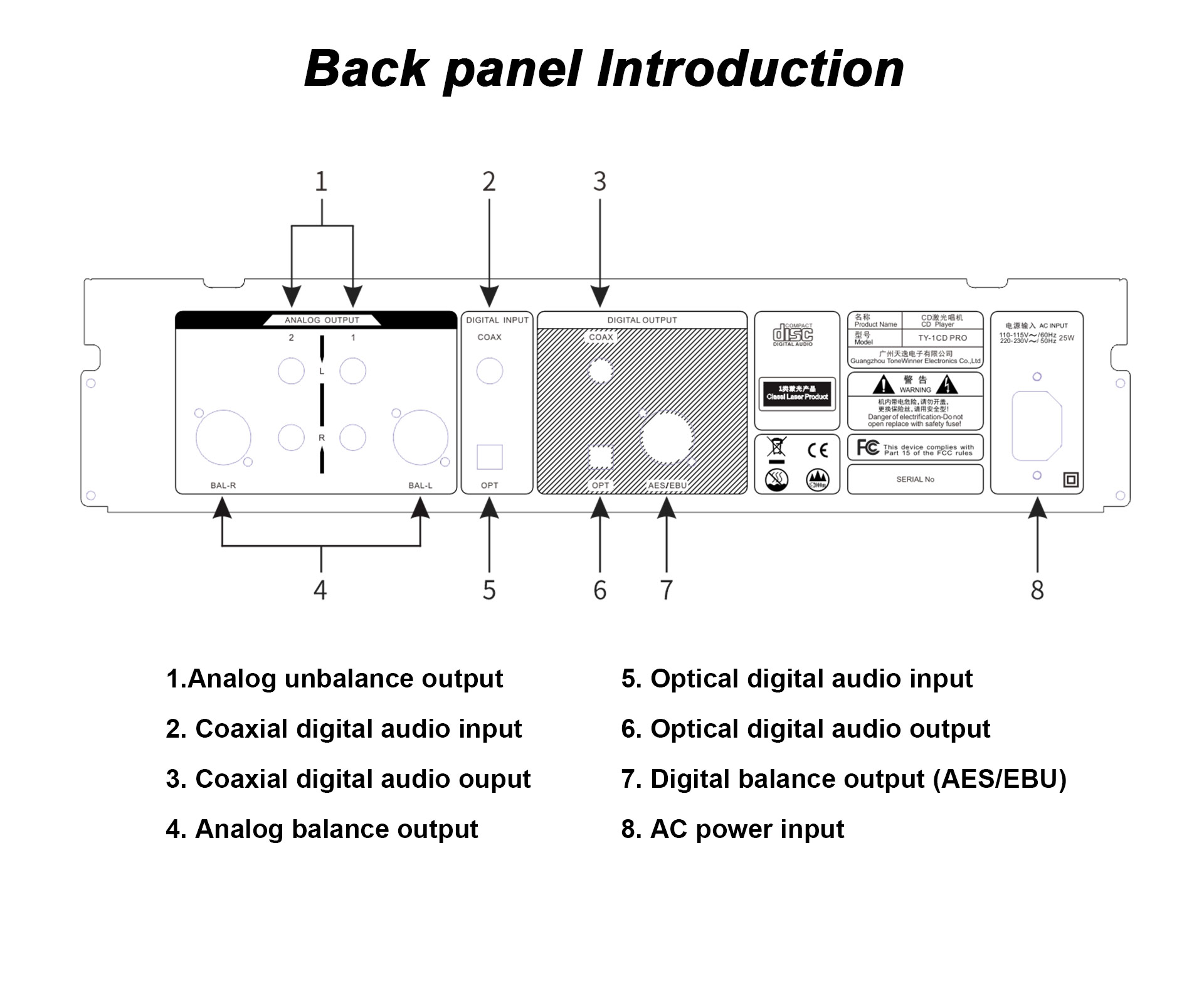

Abundant interfaces
The XLR balanced output separates the signal and cancels noise, creating a transparent and solid soundstage; the AES/EBU digital interface provides low-jitter, long-distance professional-grade digital transmission, laying a pure foundation for Hi-End systems.

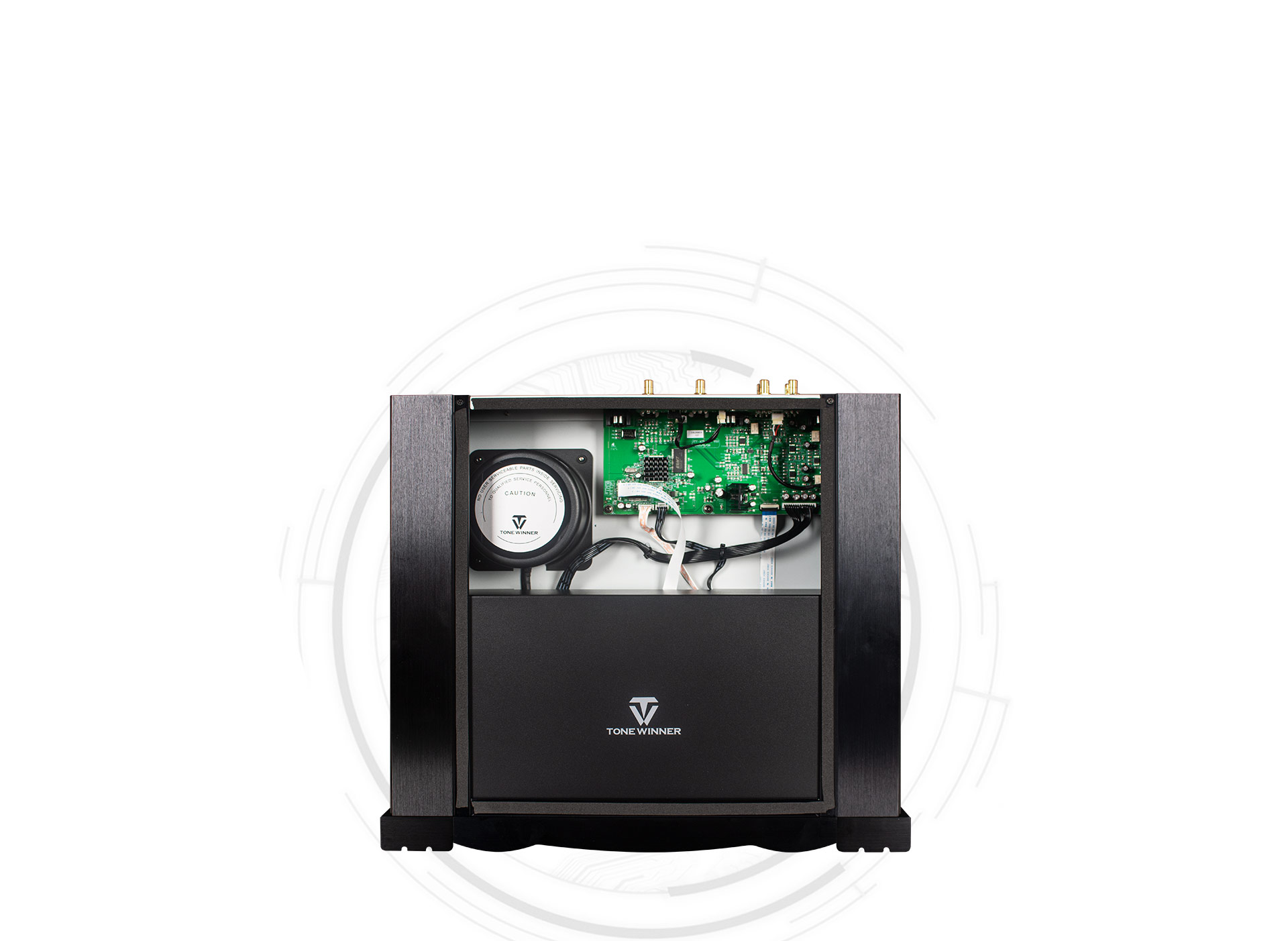

Separated chambers design
Fully shielded compartmentalized structure
The power supply/mechanical components, D/A converter, and transformer are placed in different chambers, and each area is fully shielded, which greatly improves signal purity.Receiver

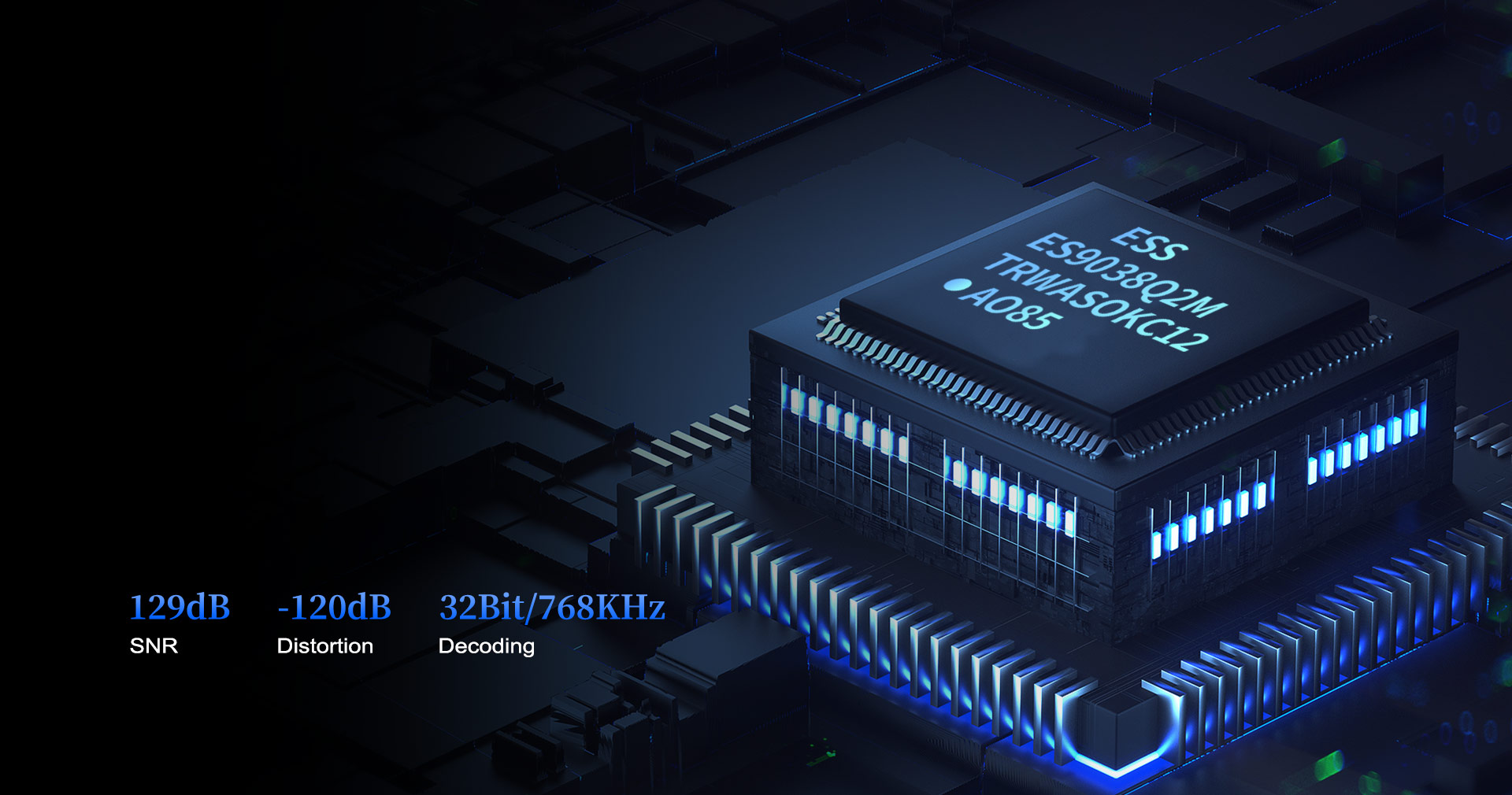

ES9038 Core Decoding
The sound is clear and detailed, with a distinct sense of presence, full and three-dimensional sound, distinct layers, rich musicality, rich texture, and strong low-frequency performance.

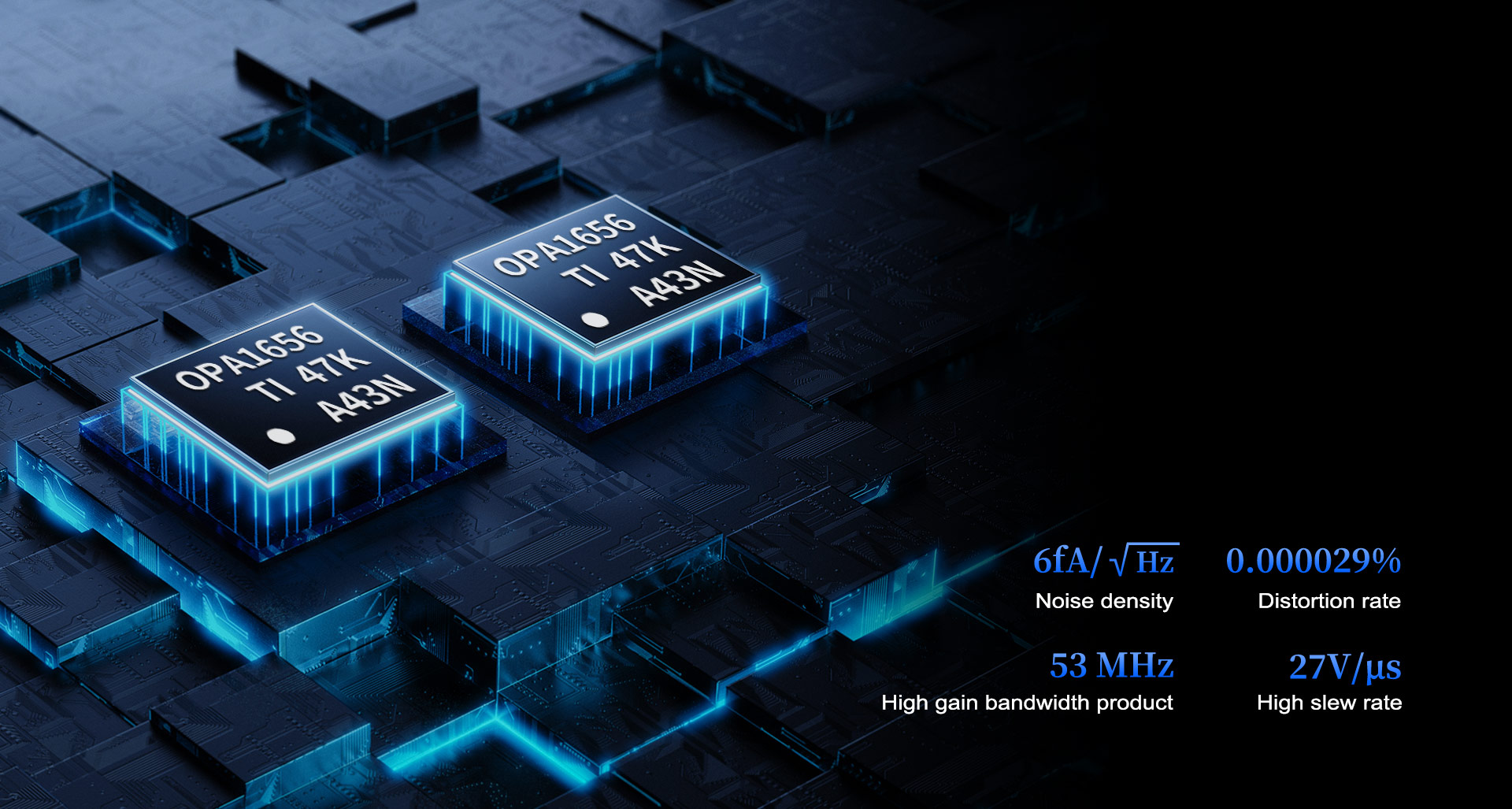

OPA1656 High performance op amp array
The I/V conversion circuit and balanced-to-unbalanced circuit are handled by multiple OPA1656 chips. Its unique bipolar input design faithfully transmits signals with extremely low noise and distortion.

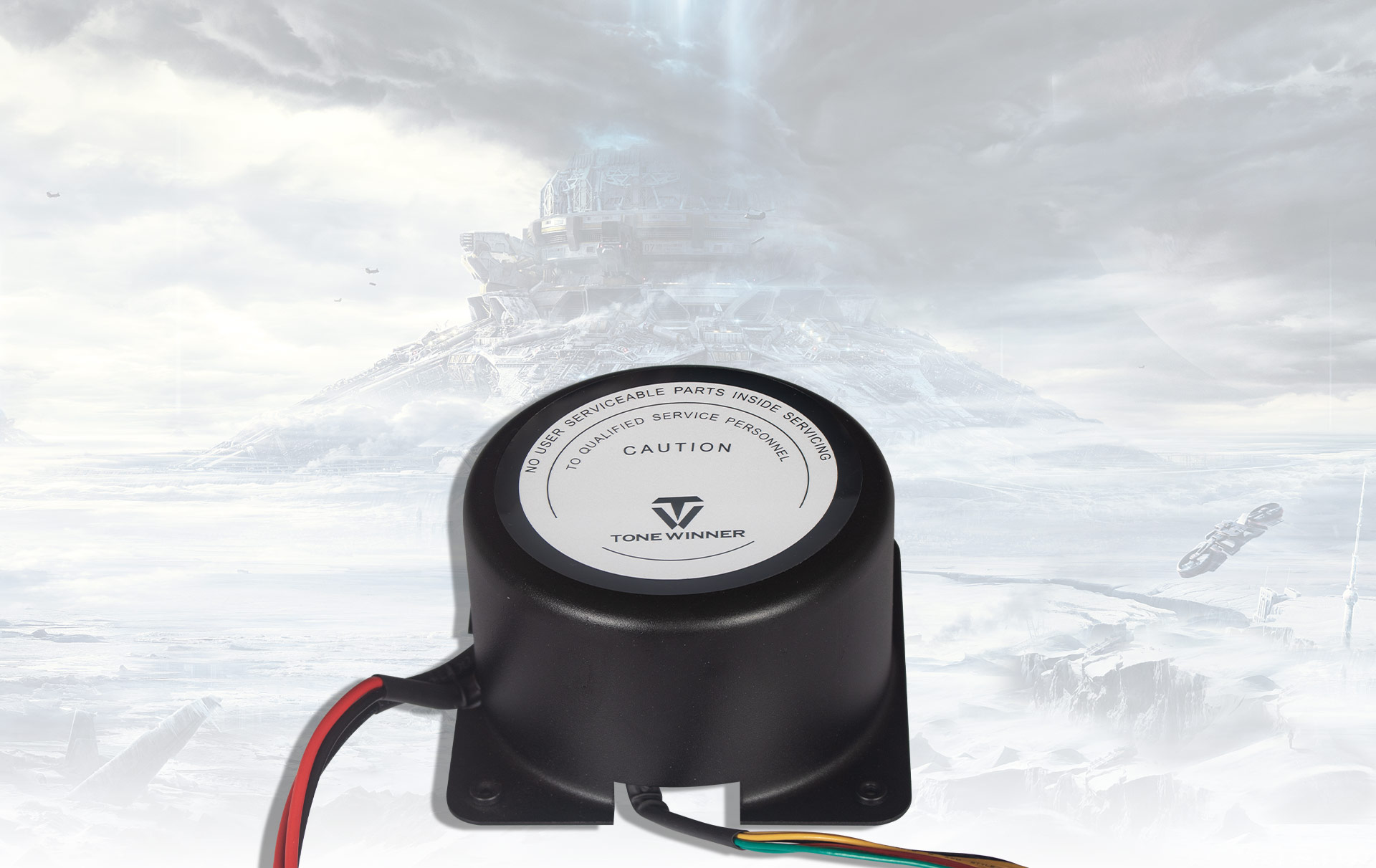

50W toroidal transformer
High-quality large-scale electrolysis — surging power

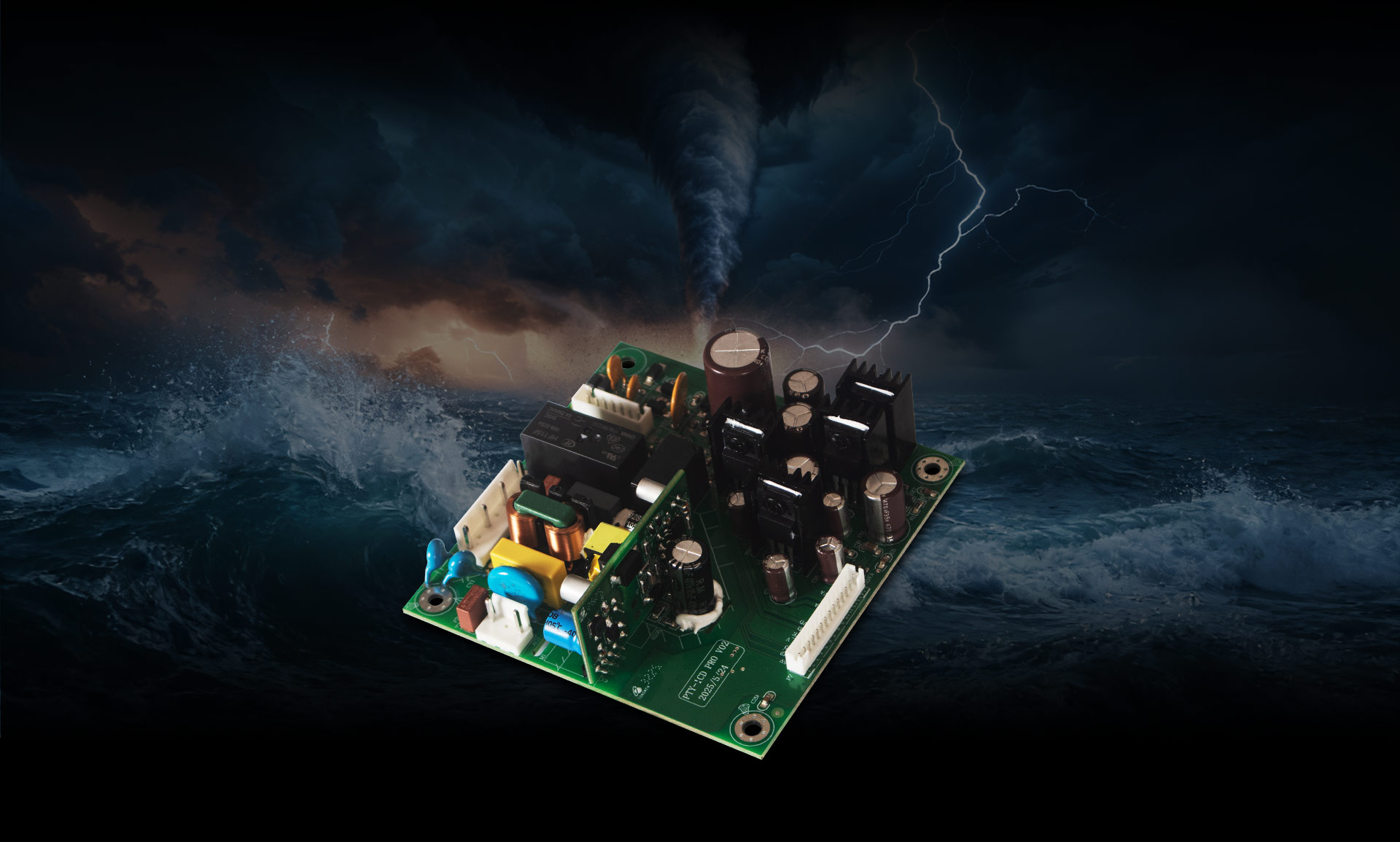

A 50W high-quality toroidal transformer, paired with a large-capacity, high-quality electrolytic capacitor, forms a multi-channel high-precision linear analog power supply. Independent power supplies for digital and analog circuits isolate interference at the source.
High-end customized capacitors
Tonewinner's custom-designed large-capacity capacitors ensure a soft and elastic low frequency, a pure and warm mid frequency, and a delicate and transparent high frequency.
Selected high-end custom movements
Featuring a premium custom-designed movement from Tonewinner, incorporating a magnetic levitation turntable, and enhanced support structure, upgraded shock-absorbing materials, and precise servo circuit tuning, it achieves ultra-high operational stability.
Globalized product design & patented power technology
With an ultra-low standby power consumption of 0.5W, it supports 110-115V~/220-230V~ voltage input and adopts Tonewinner's patented power management technology.

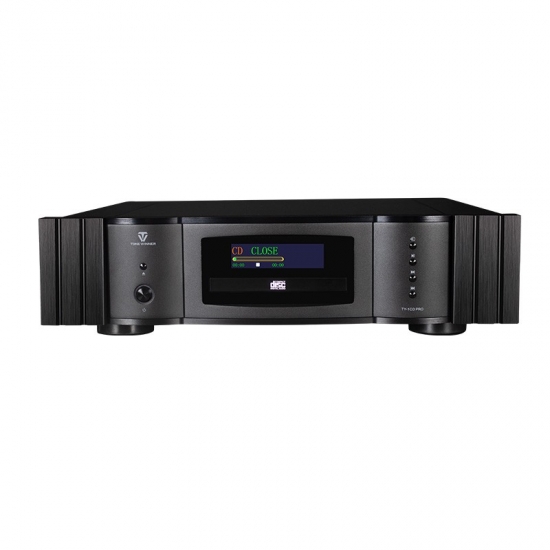

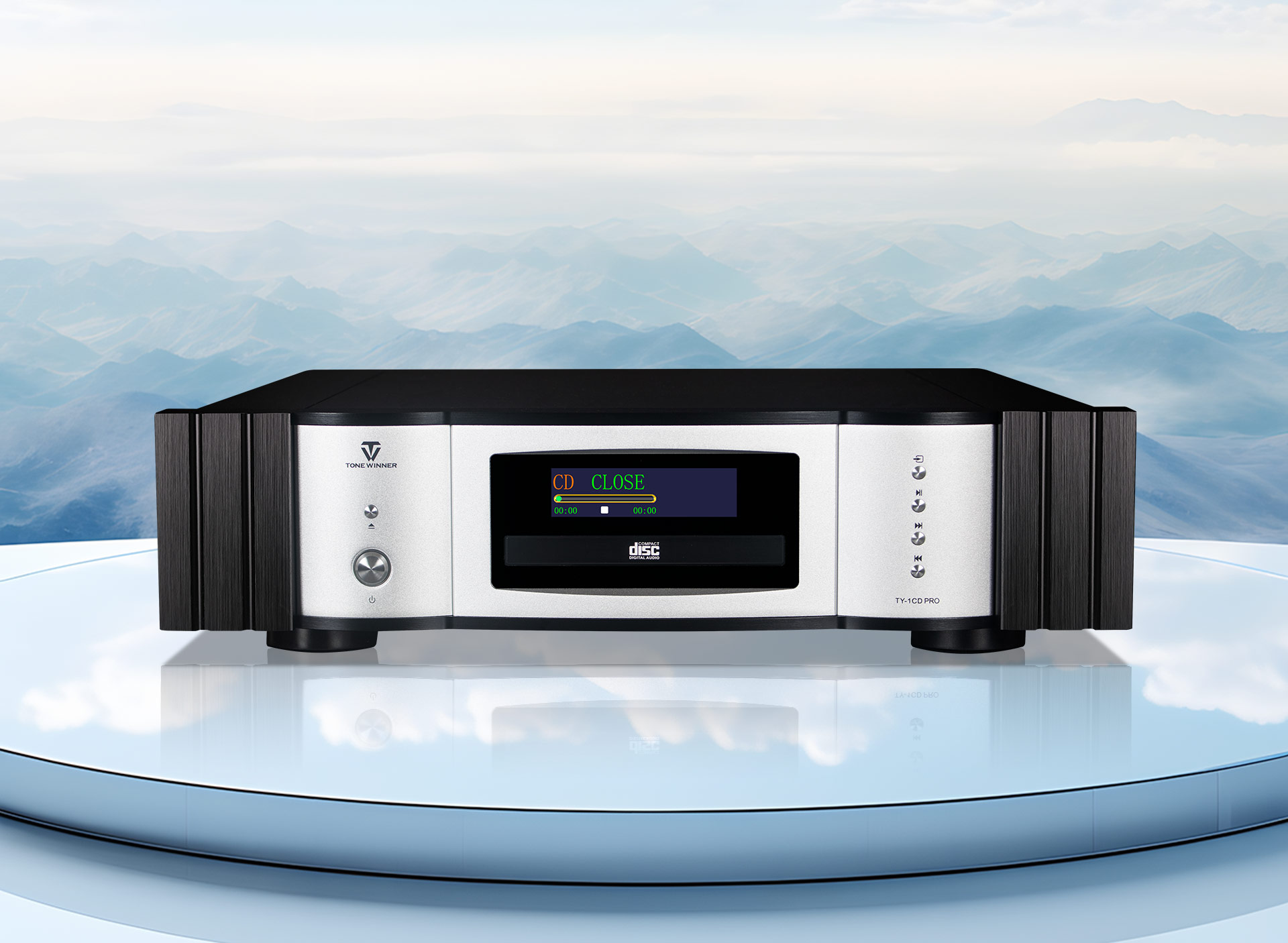

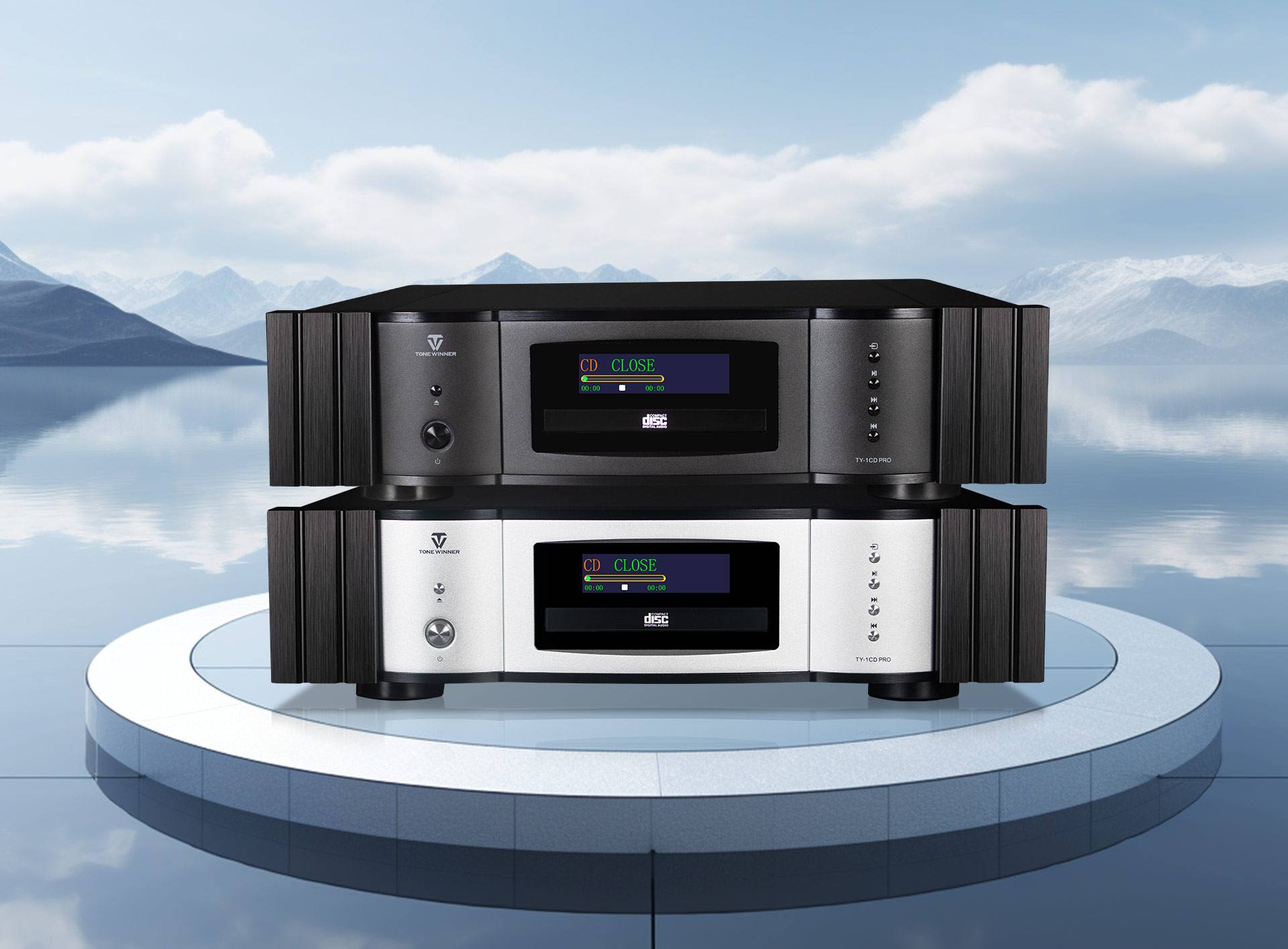

Two colors for your options

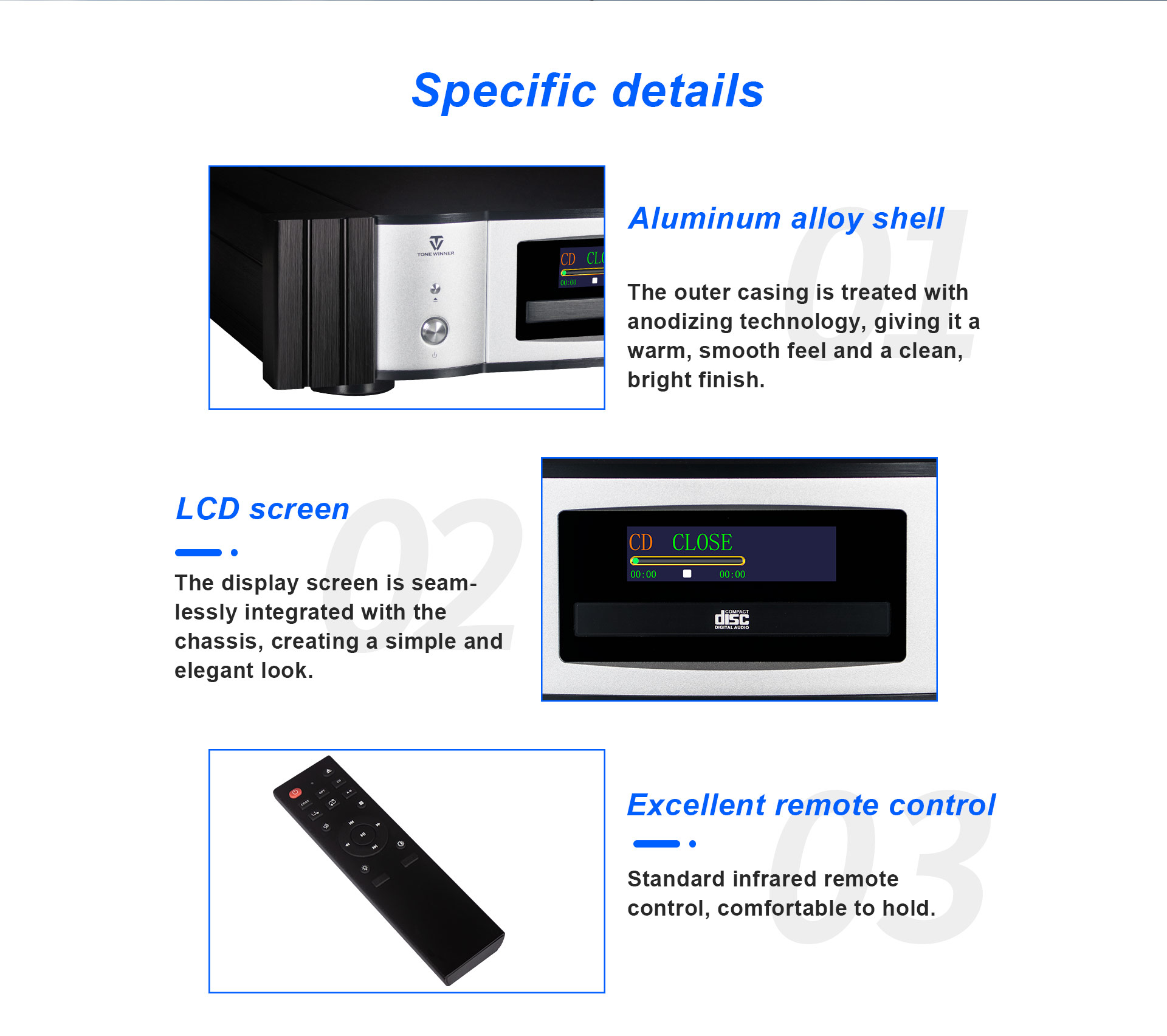

Available in silver and black, the all-aluminum alloy body features rounded curves that showcase a high-end feel in every detail.

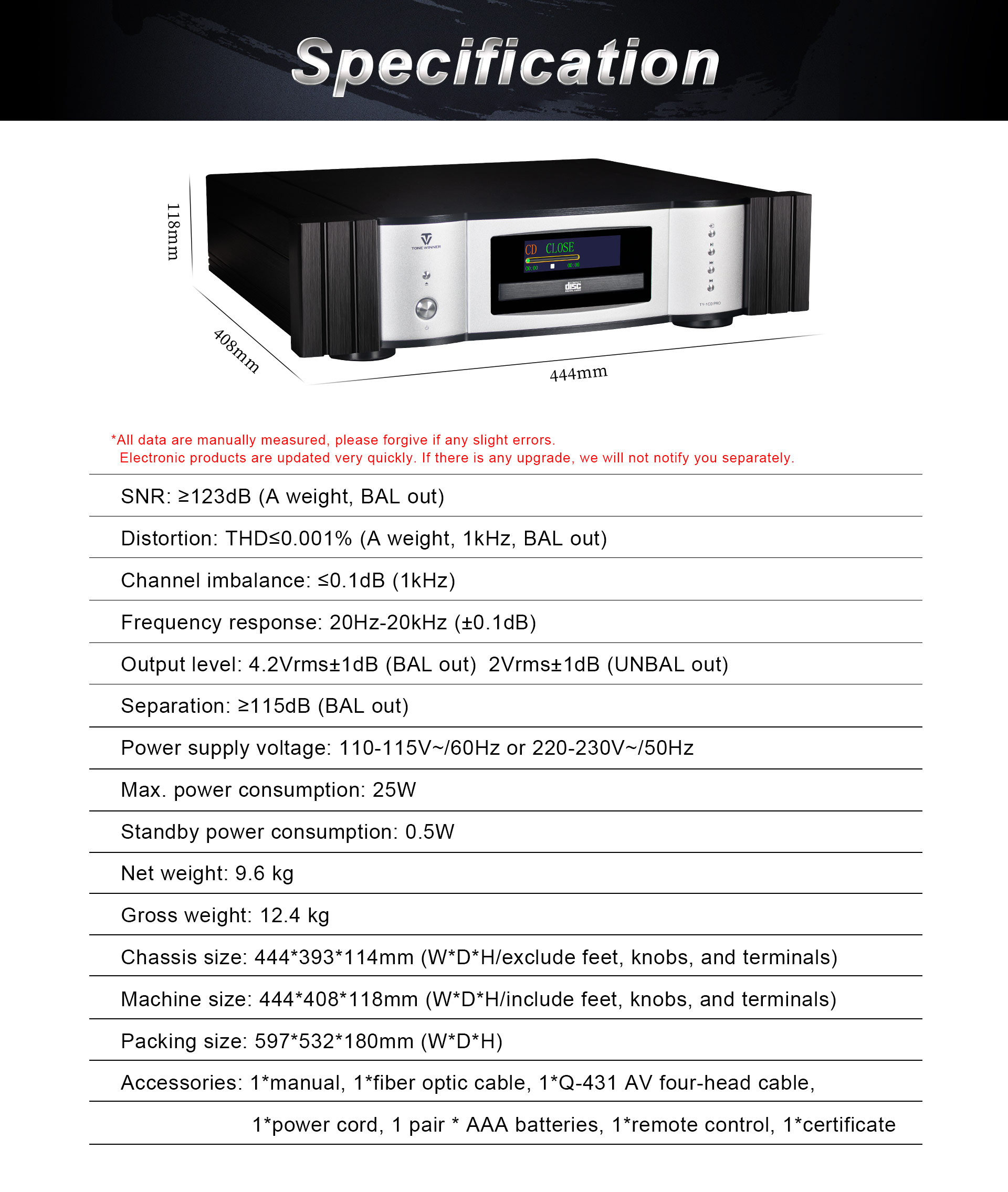

| Model | TY-1CDPRO | Material | Aluminium Alloy |
| SNR | ≥123（BAL out） | Output Level | 4.2Vrms±1dB(BAN); 2Vrms±1dB(UNBAL) |
| Frequency range | 20Hz~20KHz (±0.1dB） | Net weight | 9.6kg |
| THD | ≤0.001% (A weigh,1KHz) | Gross weight | 12.4 kg |
| Unit size | 444*408*118mm (W*D*H) | Package size | 597*532*180mm (W*D*H) |
I. Appearance Features
The Tonewinner TY-1CDPRO features a choice of silver and black, with an all-aluminum alloy body that combines a solid feel with robust performance. The smooth, rounded lines subtly soften the coldness of the metal, resulting in an elegant and sophisticated overall design. The rigorous structure and meticulous craftsmanship showcase a high-end feel in every detail.
II. Materials and Circuit Design
1. The decoding chip uses the industry-renowned ES9038 chip, boasting a signal-to-noise ratio of up to 129dB and a total harmonic distortion as low as -120dB. It supports up to 32Bit/768KHz input signals and decodes various high-definition audio formats, delivering superior performance.
2. It employs the OPA1656 high-performance operational amplifier, with a distortion as low as 0.000029% and a noise density as low as 6fA/√Hz, maximizing high-fidelity signal performance and laying a stable foundation for overall sound quality.
3. A military-grade clock system ensures precise signal synchronization.
4. High-end custom capacitors provide robust power reserve.
5. High-end custom mechanism with a magnetic levitation turntable, featuring a reinforced support structure, upgraded vibration-damping materials, and precise servo circuit tuning for superior operational stability.
6. Fully shielded, compartmentalized structure: power supply/mechanics, D/A converter, and transformer are housed in separate compartments, each fully shielded, significantly improving signal purity.
III. Features
1. Supports multiple audio formats including CD, HDCD, MP3, and WMA.
2. Analog output interfaces: two unbalanced outputs and one balanced output.
3. Digital output interfaces: one optical, one coaxial, and one AES/EBU output.
