YX-03 5.1.2 home theater and karaoke system

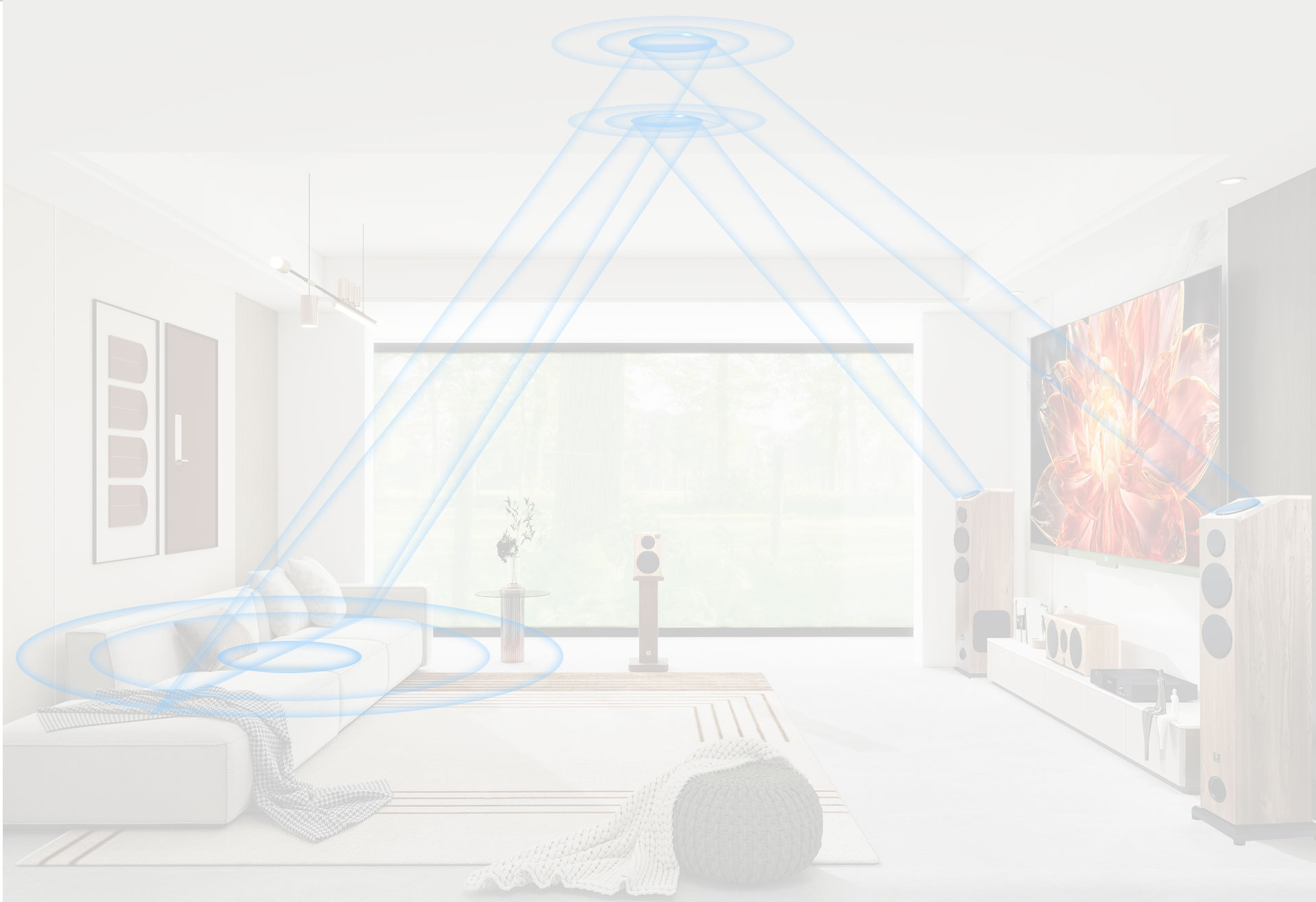

YX-03 is a fashionable home cinema and Karaoke speaker system,hich support Dolby Atmos and DTS:X. It is specially designed for modern family living rooms. The device perfectly integrates 5.1.2 system with a seperated amplifier, center speakers, surround speakers and floorstanding L+R main speakers.

  • Model

    YX-03
  • Product origin

    China, Guangdong
  • Channels

    5.1.2

   YX-03 is a fashionable home cinema and Karaoke speaker system, which support Dolby Atmos and DTS:X . It is specially designed for modern family living rooms. The device perfectly integrates 5.1.2 system with a seperated amplifier, center speakers, surround speakers and floorstanding L+R main speakers.

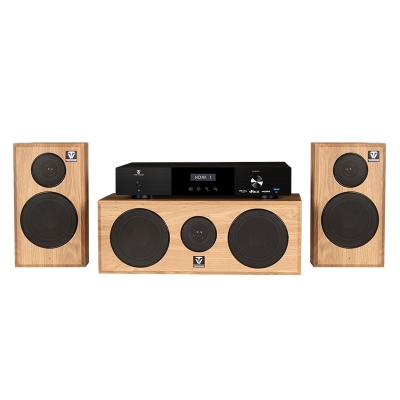

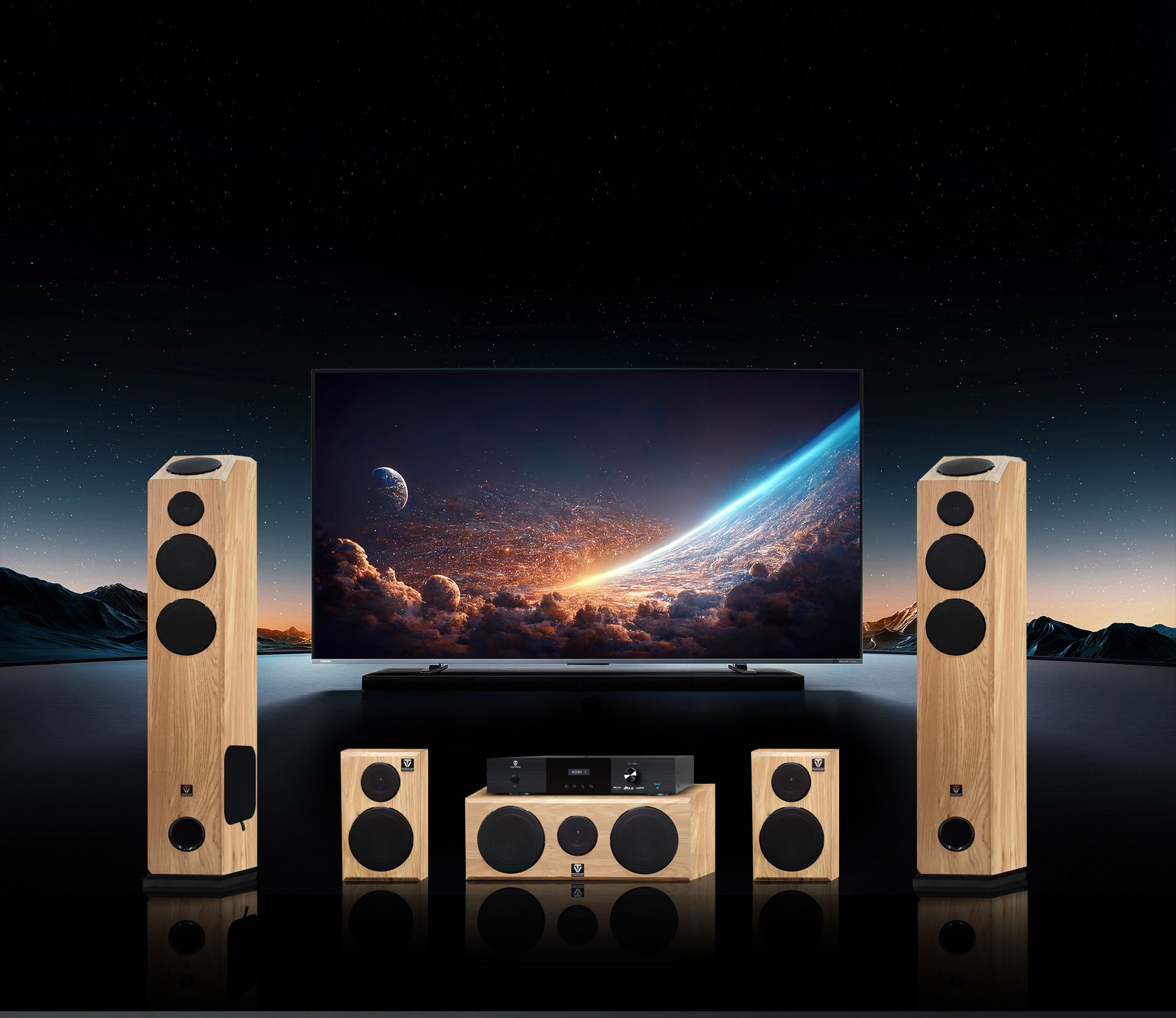

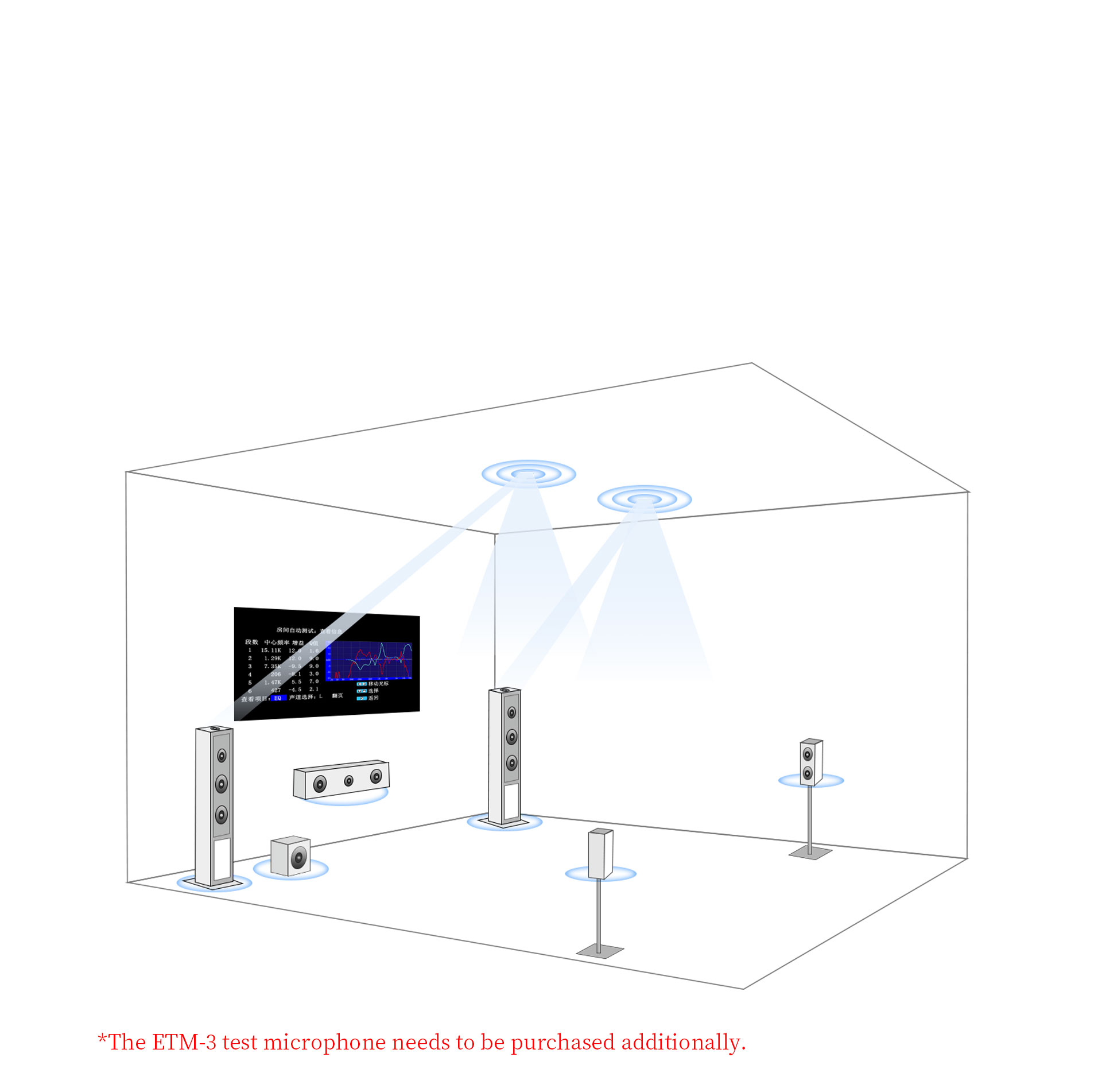

5.1.2 system package includes:

  • 1x decoding amplifier

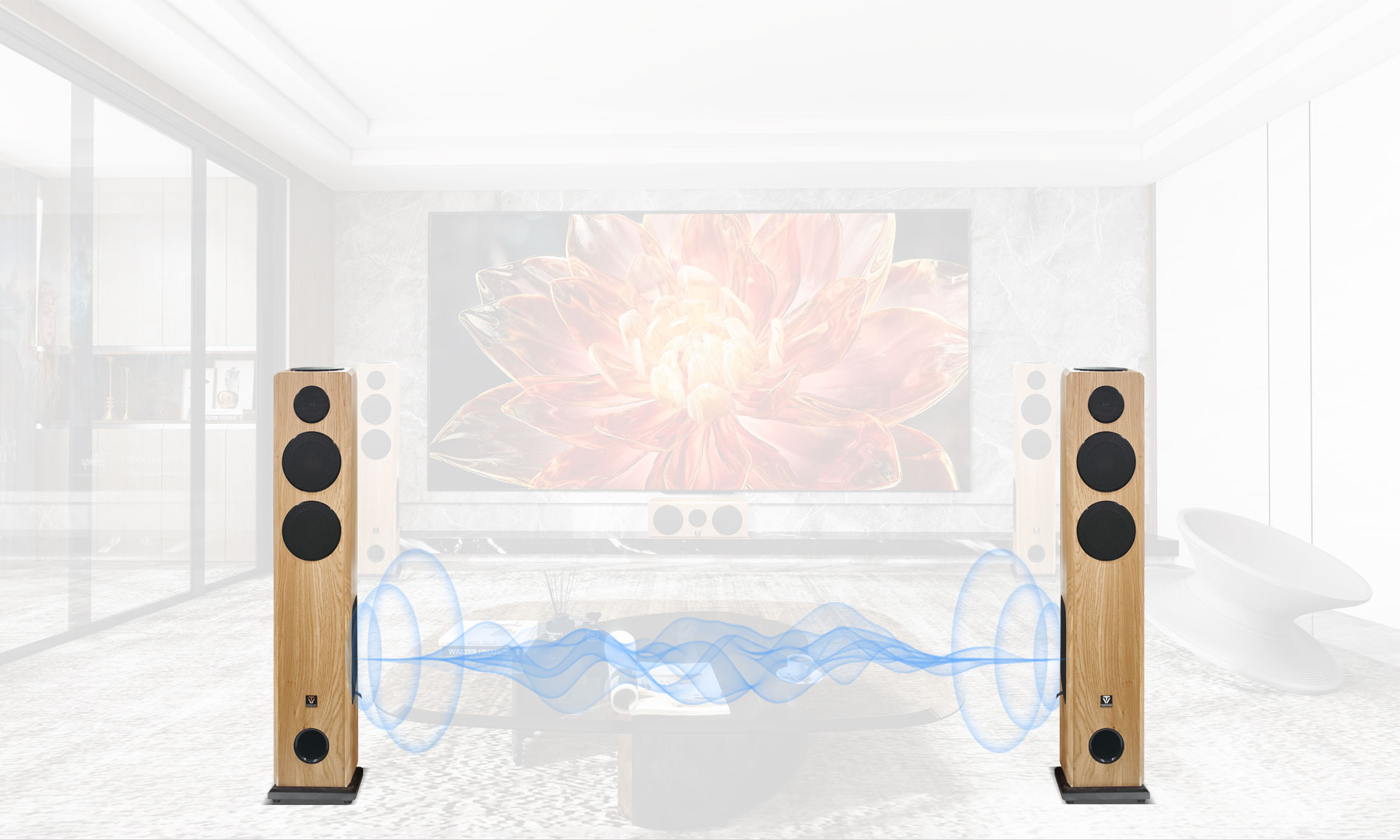

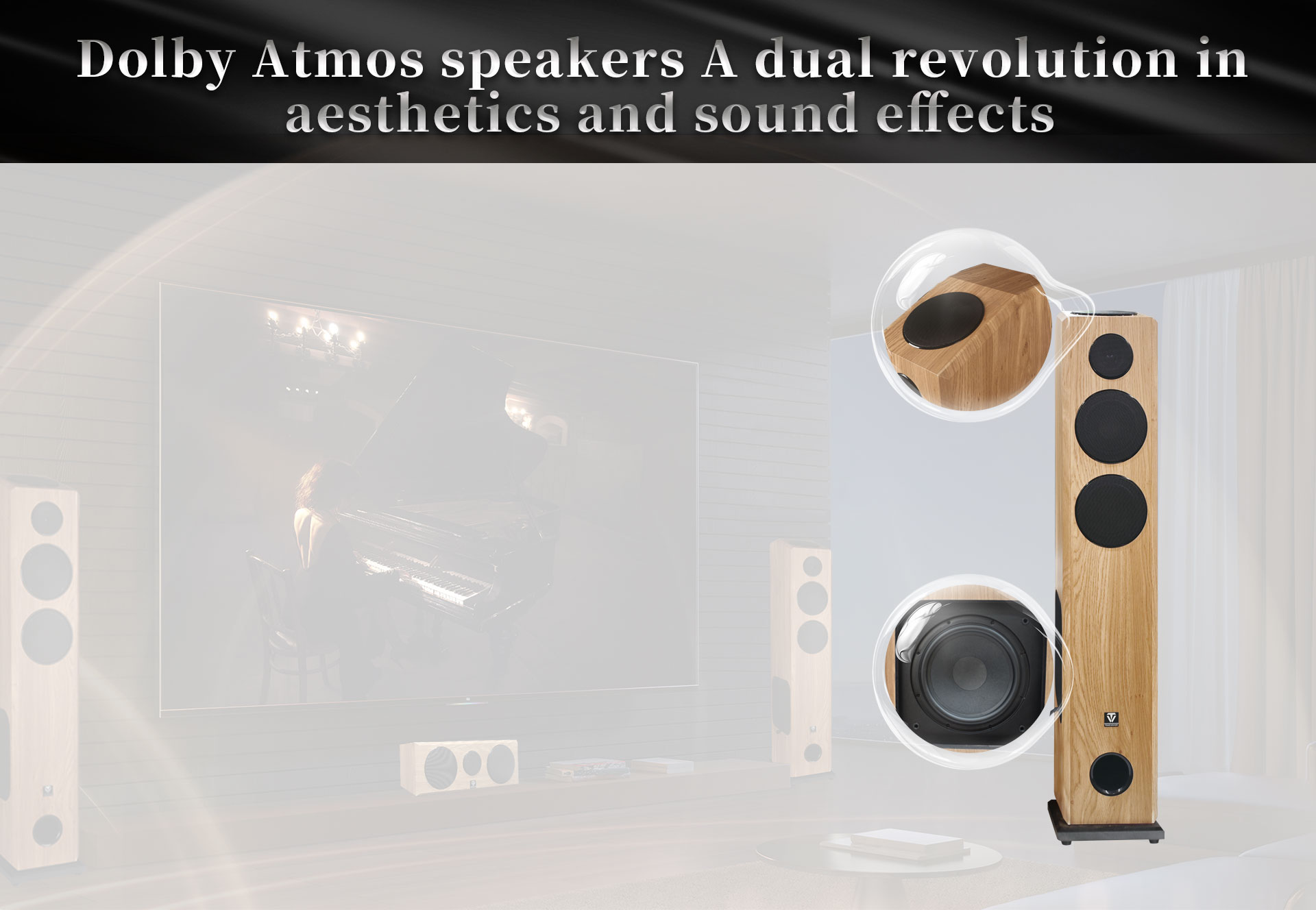

  • 2x floorstanding speaker, which build-in with main channel, top channel and sub channel.
  • 1x center speaker
  • 2x surround speaker

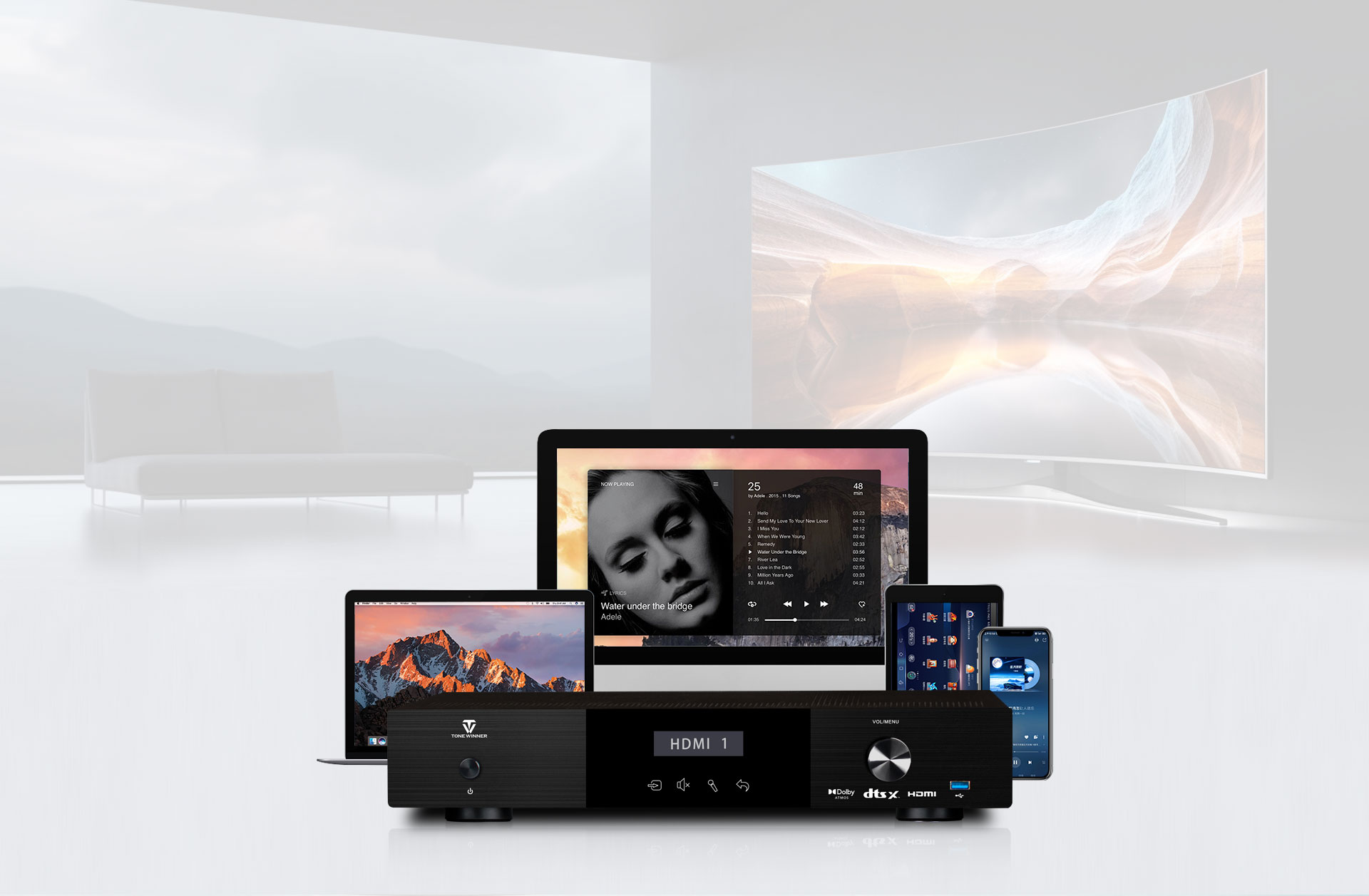

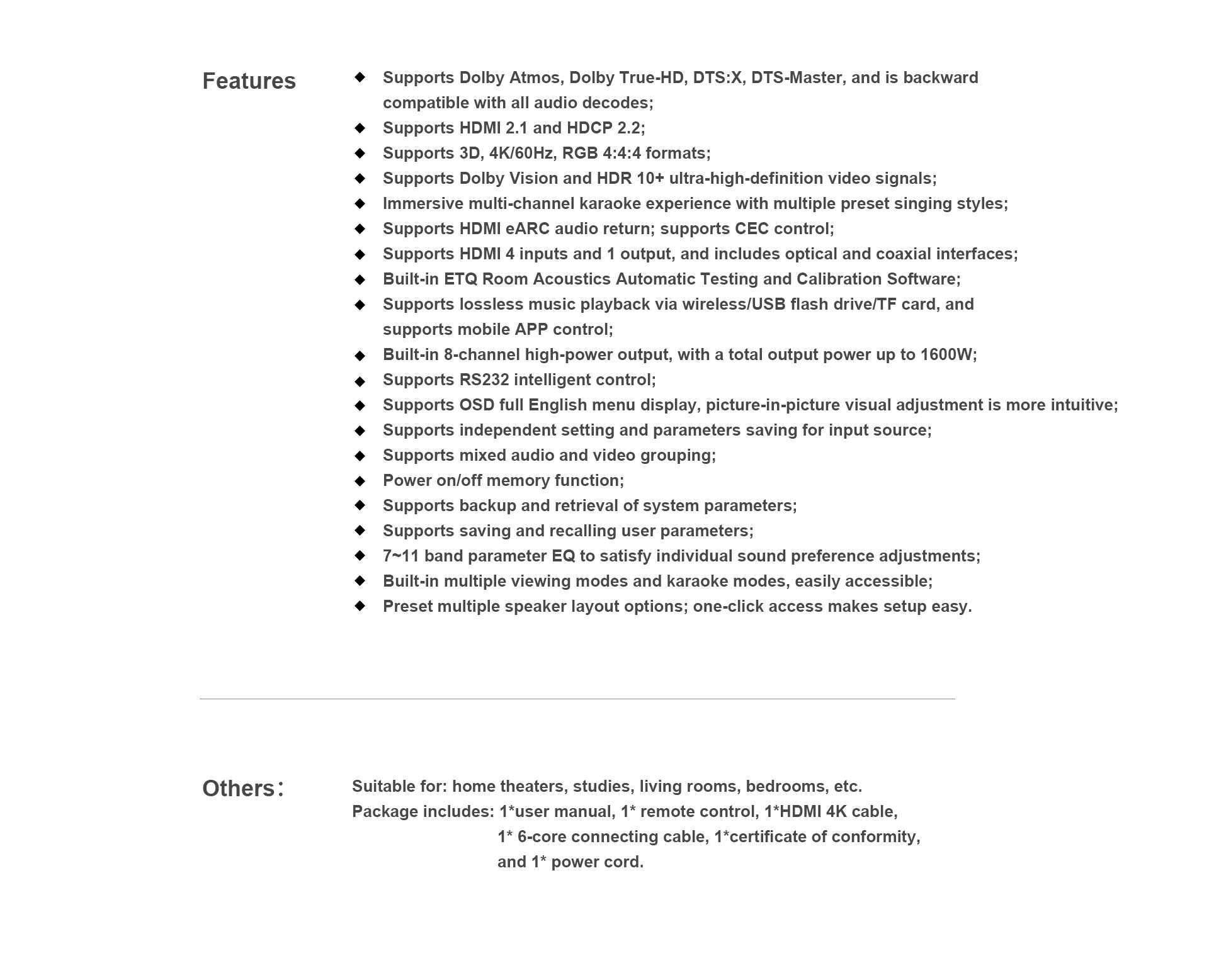

Amplifier features:

  • Support Dolby Atoms/DTS:X decoding, Max. 5.1.4.

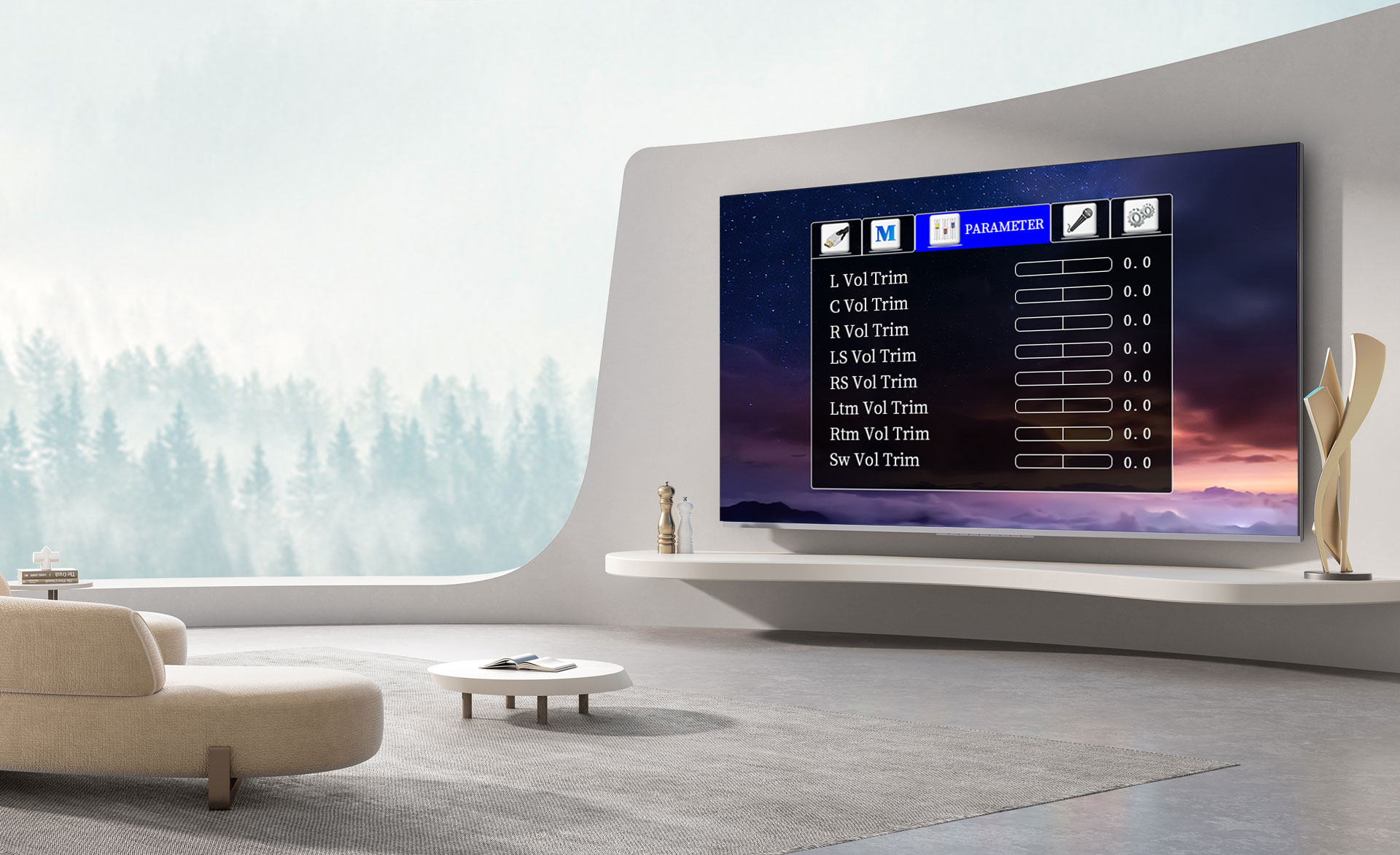

  • TV OSD and front panel LCD display.

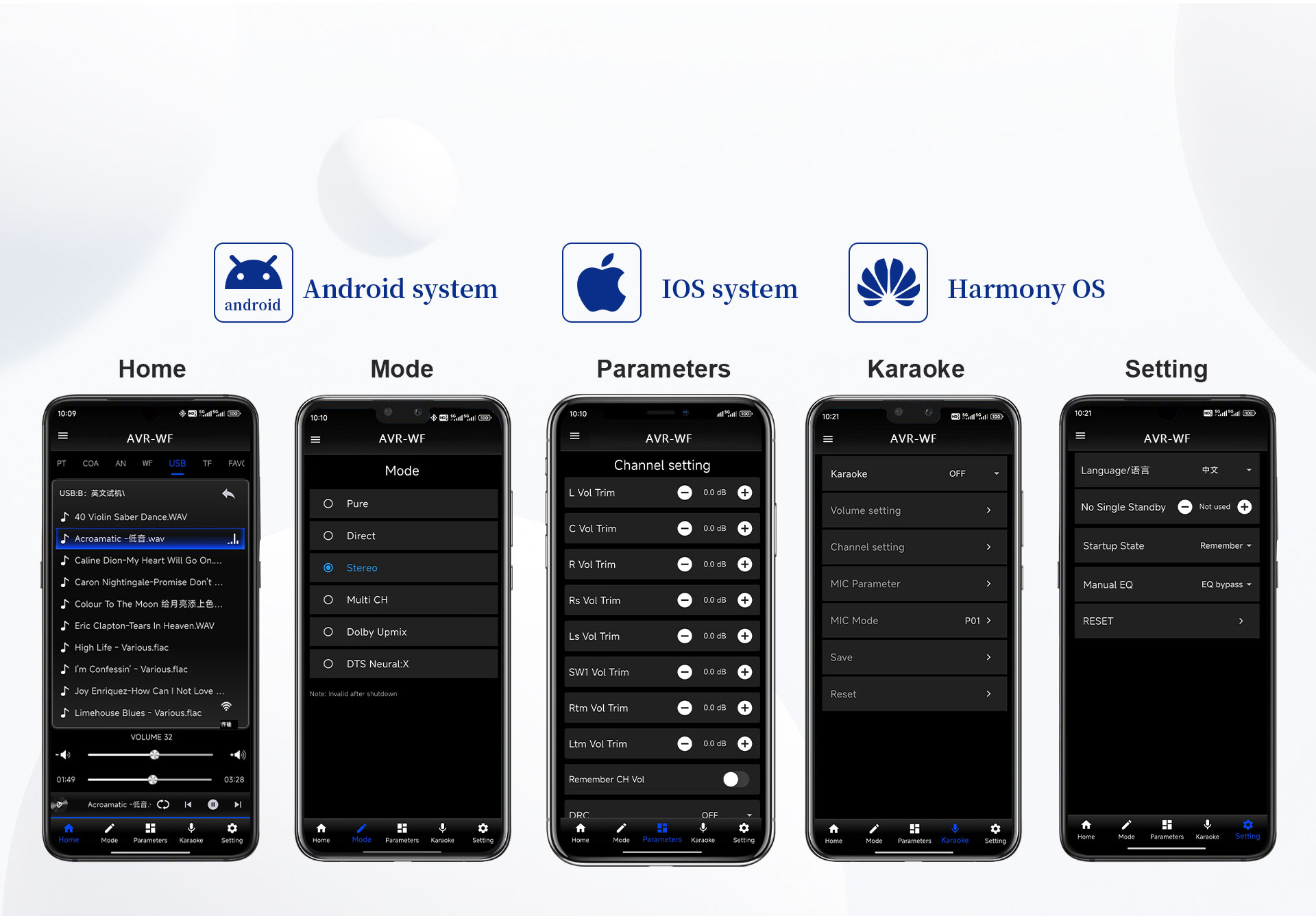

  • APP control,IR Remote control and RS232 control.
  • Support Bluetooth Audio, USB Audio, U disk and TF card local play.
  • OPT and COAX audio input, analog 2ch input.

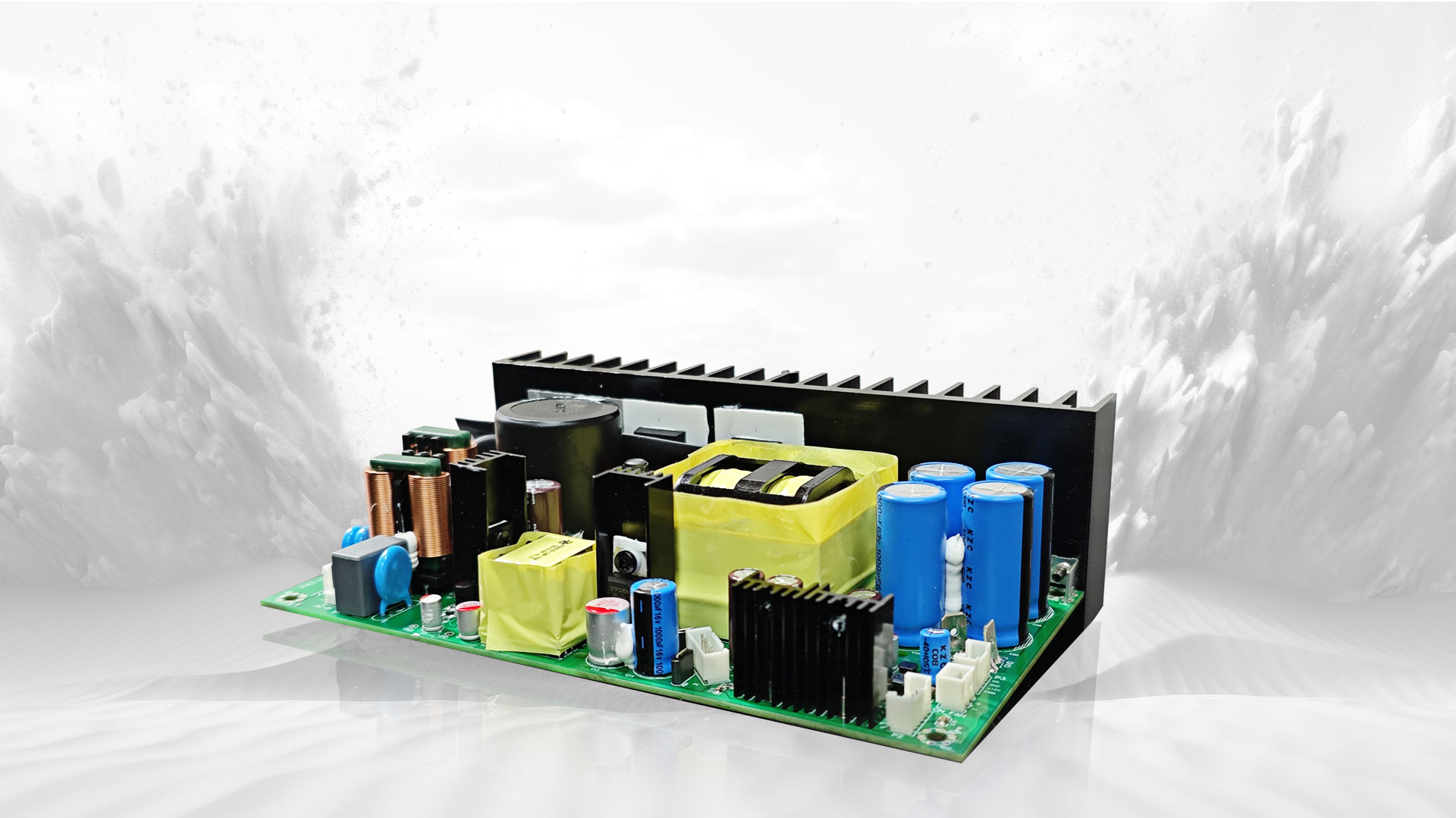

  • Built-in 5.1.2 totally 8 channel amplifier, power:7x100W/8Ω+1x200W/4Ω.
  • Can extend two more wireless surround speaker into 5.1.4 configuration.

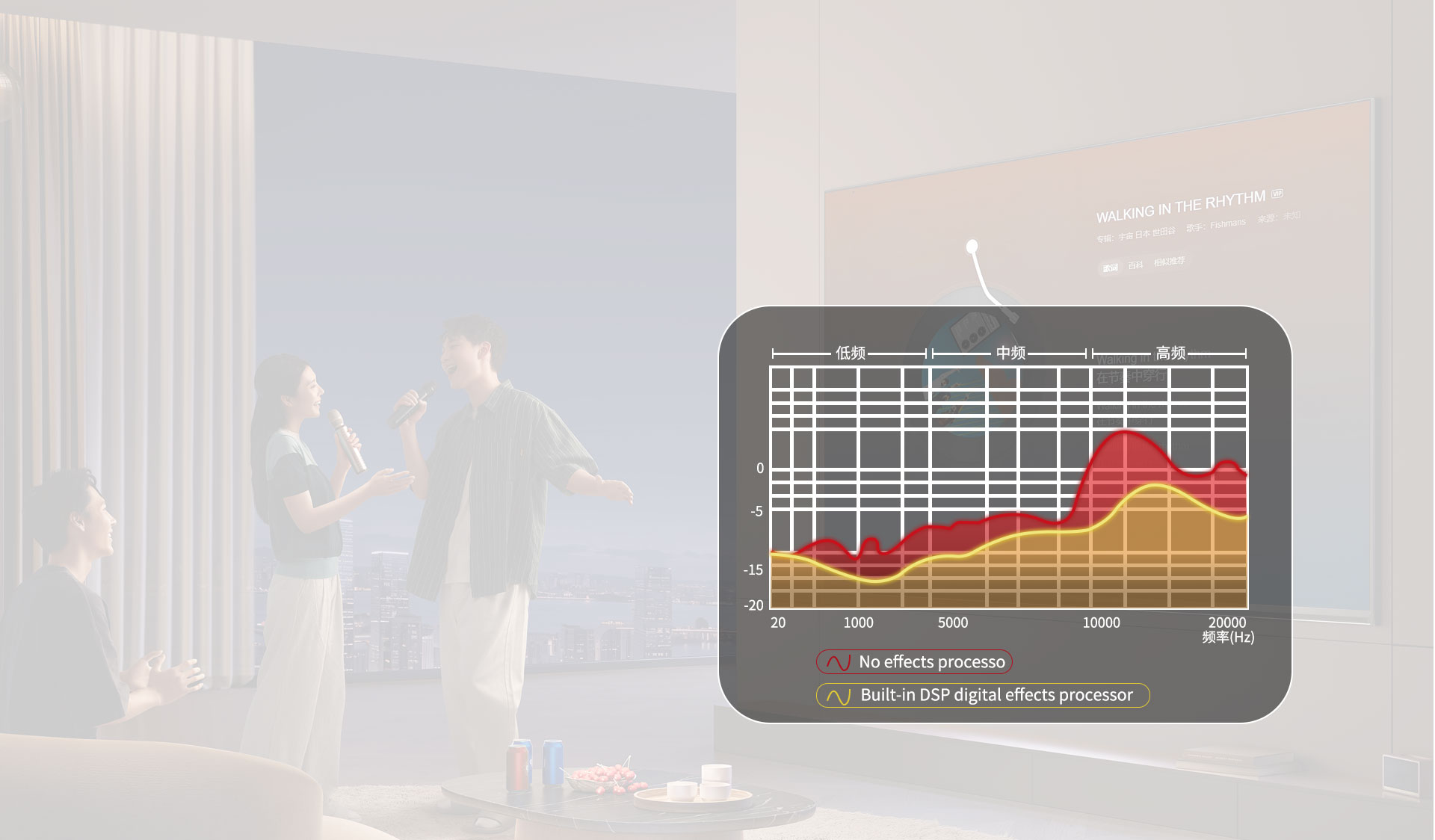

  • Built-in Karaoke, wireless mic. receiver.

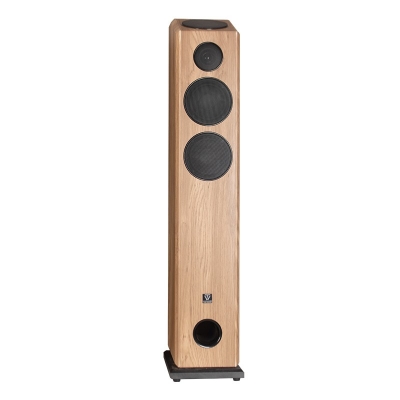

Speaker:YX-03L/R

  • Drivers: 1"x1+5"x3+8"x1
  • Power handling: 300W
  • Frequency range: 20-20kHz(±3dB)
  • Rated impedance: 8Ω
  • Weight: 18kg
  • Size:194x1110x305 mm

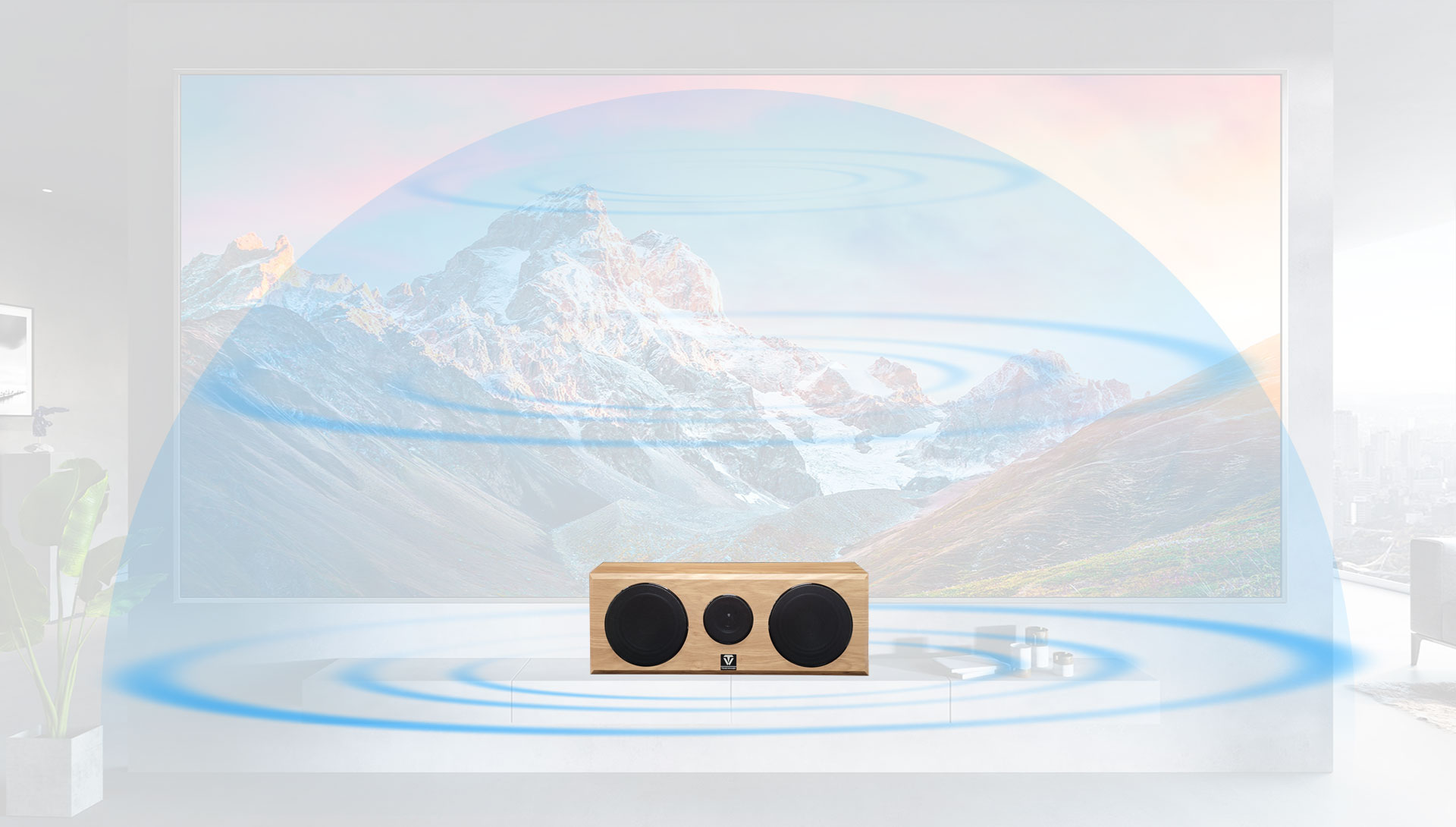

Speaker:YX-03C

  • Drivers: 1"x1+5"x2
  • Power handling: 100W
  • Frequency range: 75-20kHz(±3dB)
  • Rated impedance: 8Ω
  • Weight: 6kg
  • Size: 500x182x257 mm

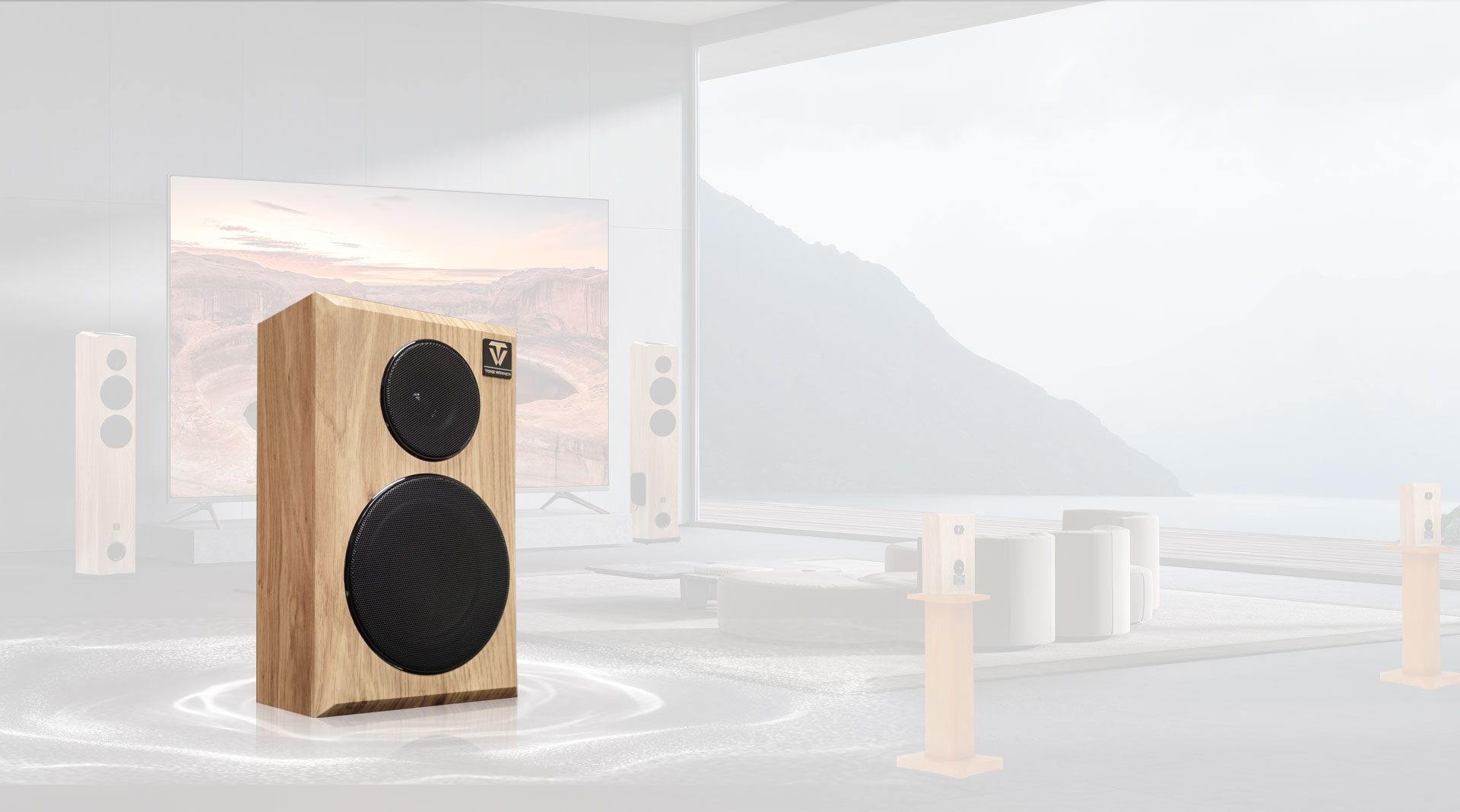

Speaker:YX-03S

  • Drivers: 1"x1+5"x1
  • Power handling: 100w
  • Frequency range: 75-20kHz(+3dB)
  • Rated impedance: 8Ω
  • Weight: 2.5kg
  • Size: 182x295x105 mm



Colors:

Wood colour stock available

Big quantity order accept colour change, black or brown.

Part No.

 AT-05S(amplifier)

Power output

8×200W(4Ω,THD=1%, 1kHz)

S/N

≥85dB (A weighted)

Distortion

 ≤0.03% (1kHz,normal working status)

Impedance

4-8Ω

Power voltage

220V~/50Hz

Dimension

431x270x69mm   ( W x D x H)

Net weight

5.5 kg/piece

Gross weight

7 kg/piece

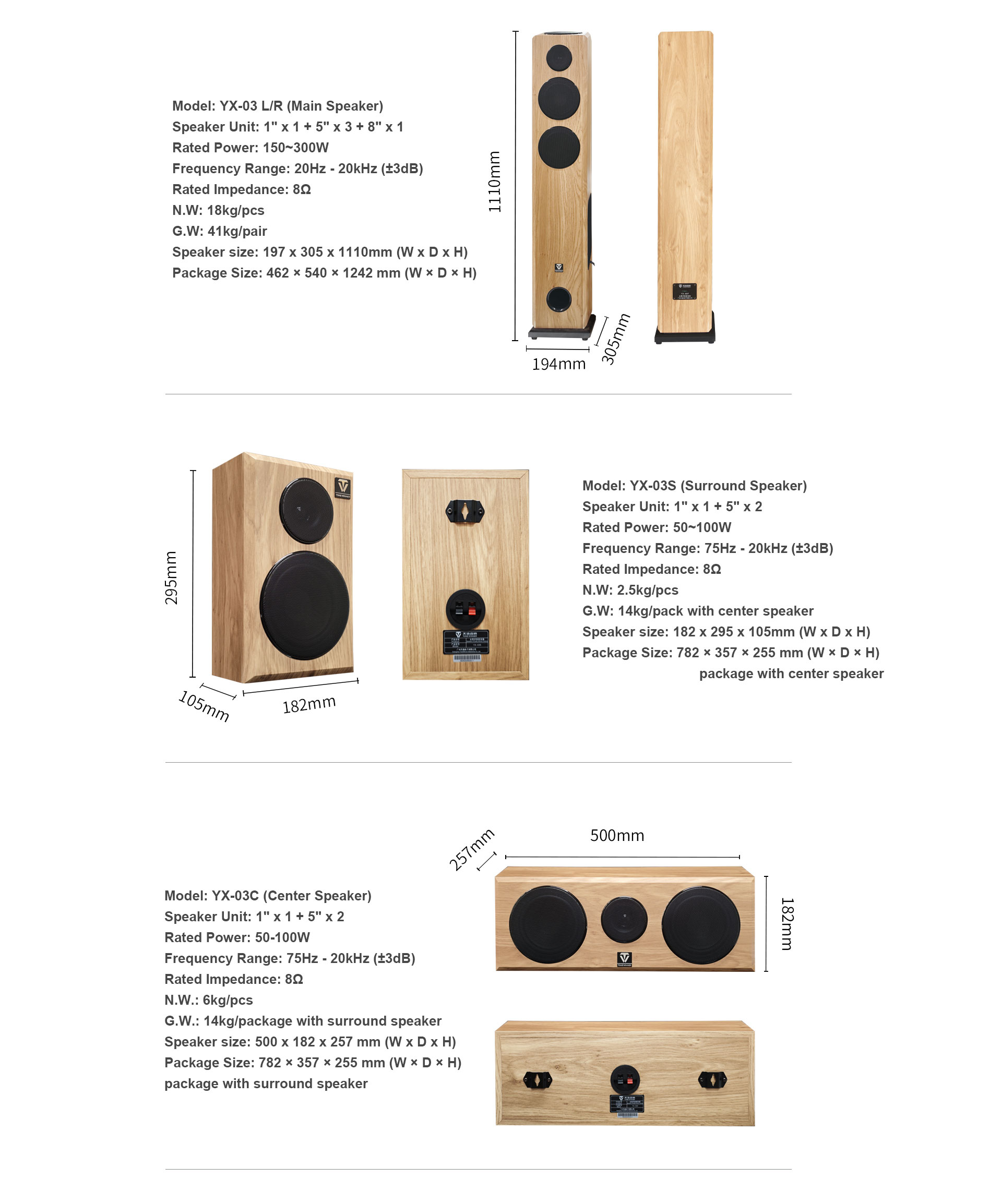

Part No.

YX-03 L/R speaker

Driver size

1" x 1+5"×3+8"×1

Rated power

150-300W

Frequency response

20Hz-20kHz(±3dB)

Impedance

Dimension

194x1110x305mm( W x D x H)

Net weight

16 kg/piece

Part No.

YX-03 S speaker

Power

50-100W

Frequency response



75Hz-20kHz(±3dB)

Impedance

 8Ω

Driver size

1" x 1+5" x 2

Dimension

182x295x105mm ( W x D x H)

Net weight

2.5kg/piece

Part No.

YX-03 C speaker

Power

50-100W

Frequency response

75Hz-20kHz

Driver size

1" x 1+5" x 2

Impedance

 8Ω

Dimension

500x182x1160257mm ( W x D x H)

Net weight

6kg/piece
