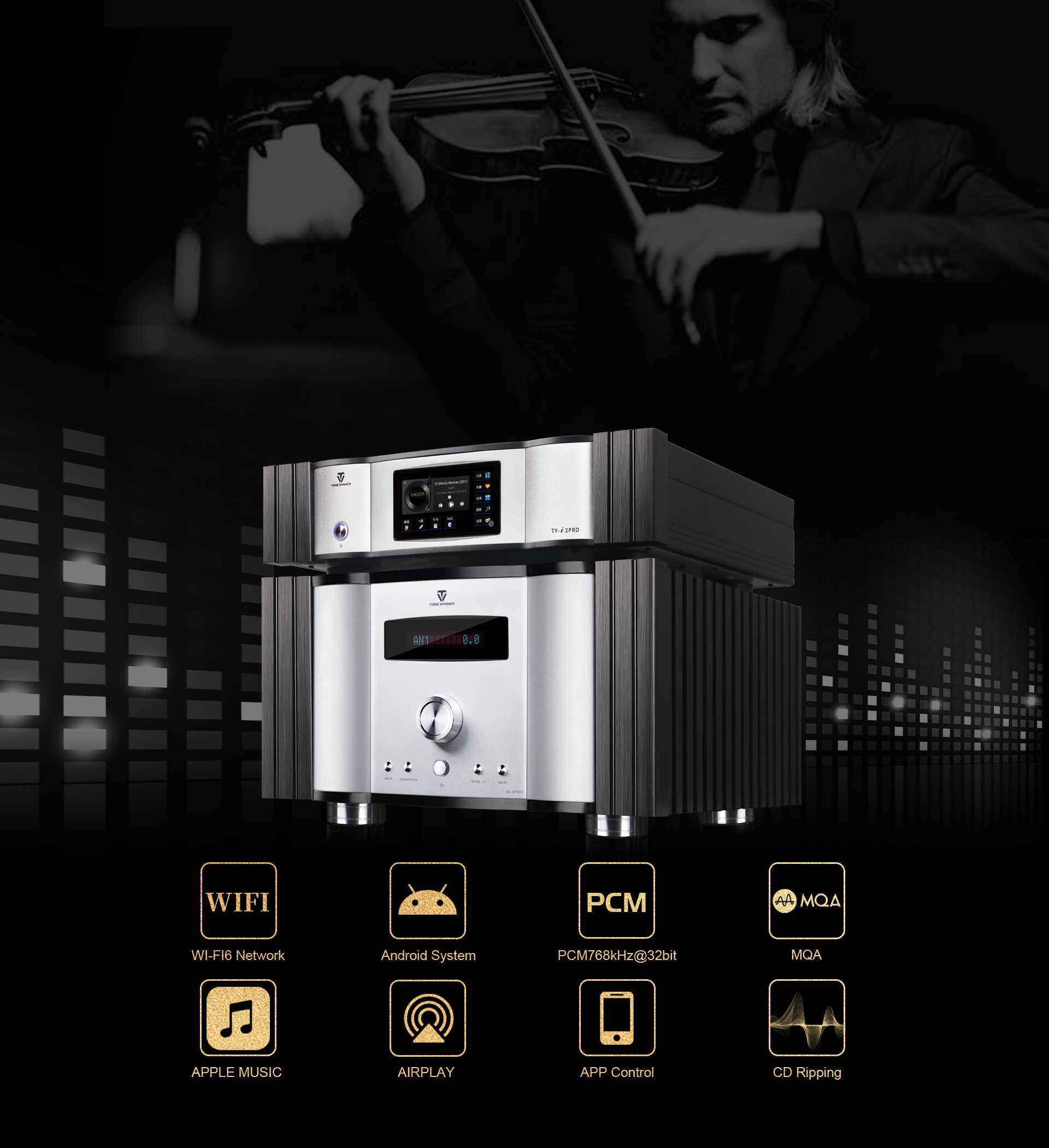

Flagship · High-End TY-i2PRO
Digital decoding music player
TY-i2PRO is a powerful and comprehensive network streaming player, and it is a High End Hi-Fi audio player use Tonewinner’s own Hi-Fi technology to make audio signals output directly, which means the audio signal from TY-i2PRO will not be affected by the system clock, and the audio from TY-i2PRO is still in lossless HiFi audio level.
Model
TY-i2PROG.W.
13.5kgTHD
≤0.000063%SNR
≥130dB
Flagship · High-End TY-i2PRO
Digital decoding music player
Dolby Atmos AV Receiver
ISO Initial Sampling Output Engine
Original source output for perfect sound
Tonewinner's own design ISO engine (Initial Sampling Output Engine)
Support audio signal original output, keep away from the limit by SRC system to sample rate and clock.
To explore the true nature of music

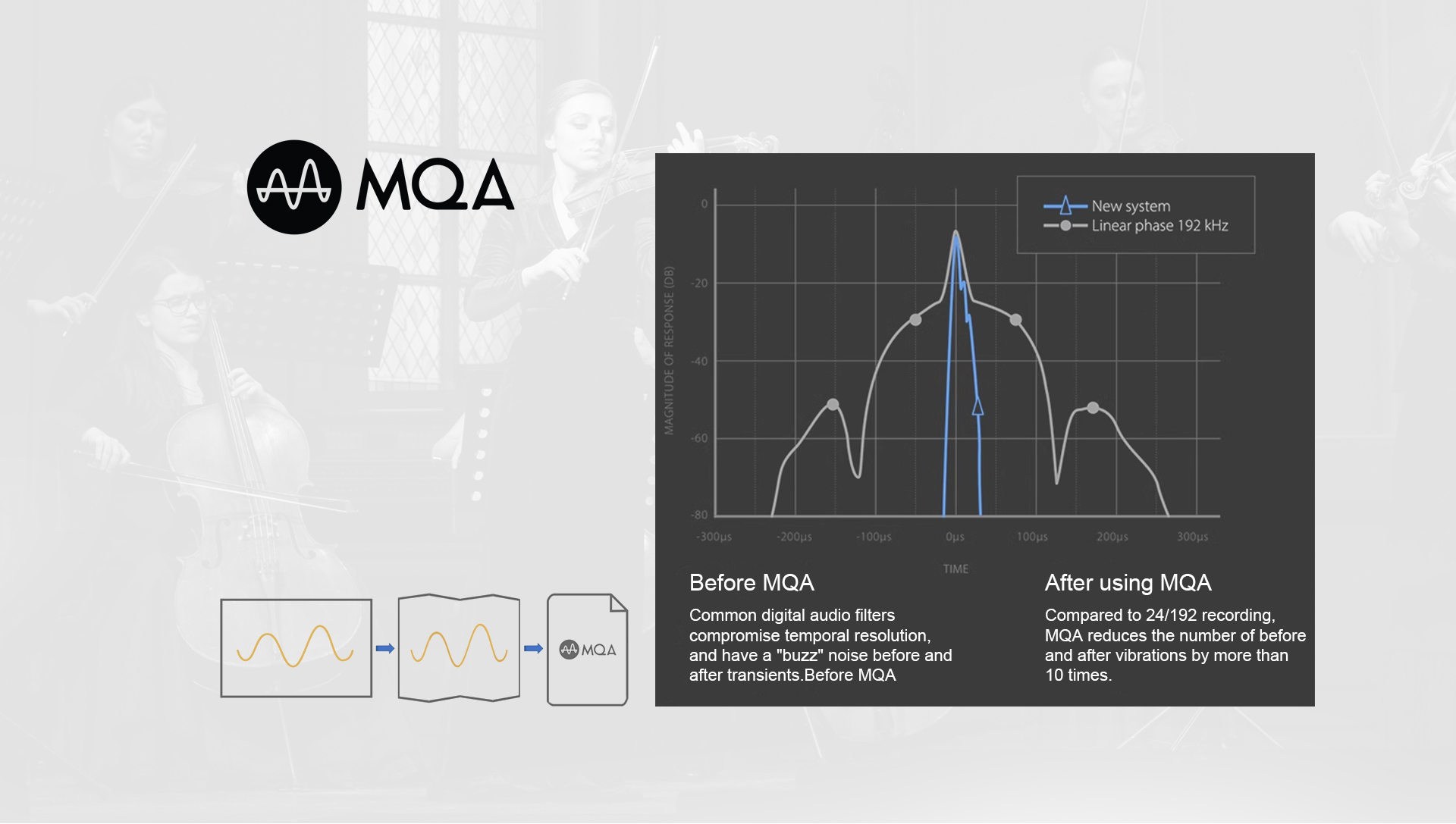

Support MQA(Master Quality Authenticated) decoding technology.
Small file size is easy to store, ensuring that every melody retains the purity and authenticity of the studio master tape, restoring accurate 3D recording scene.

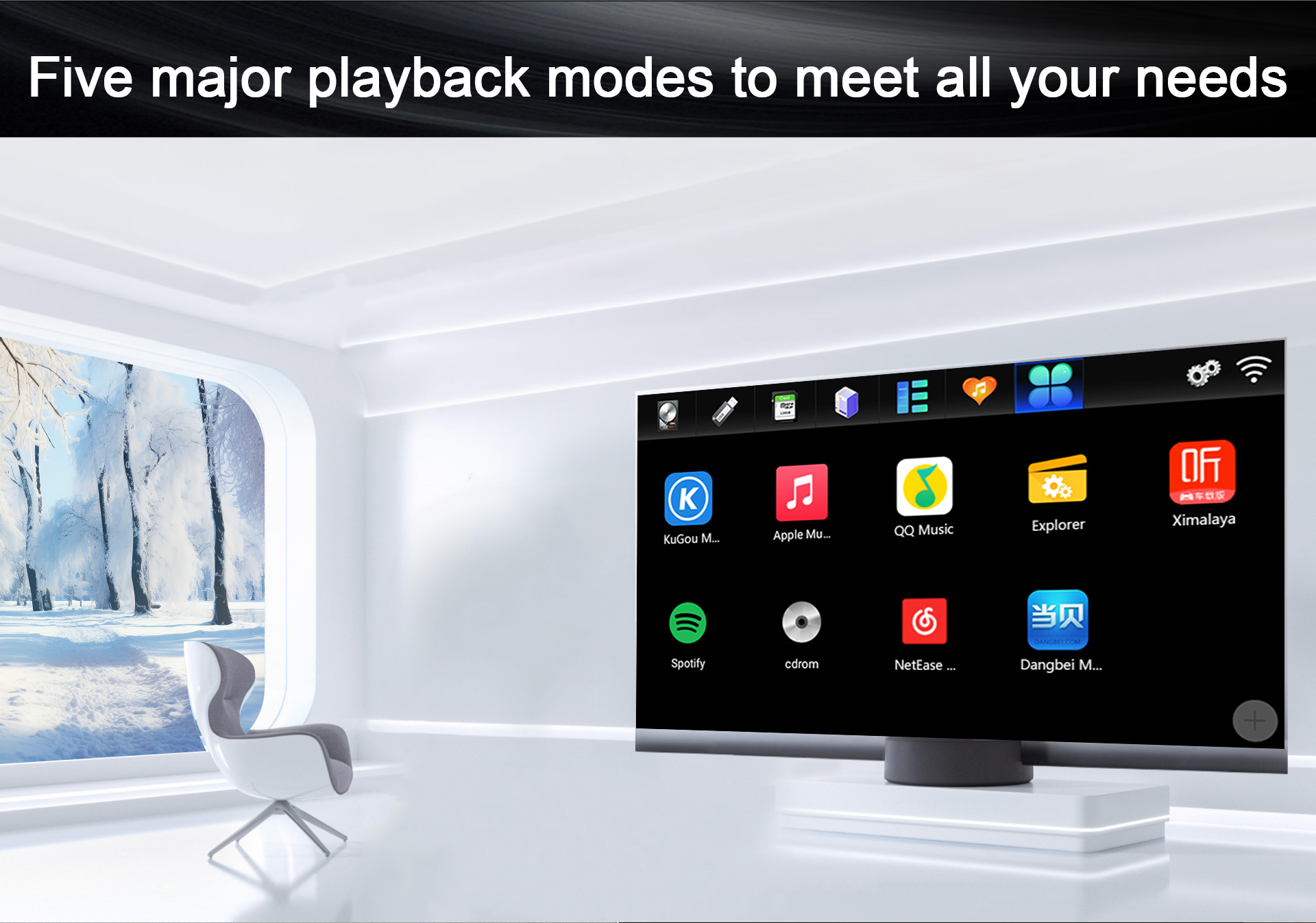

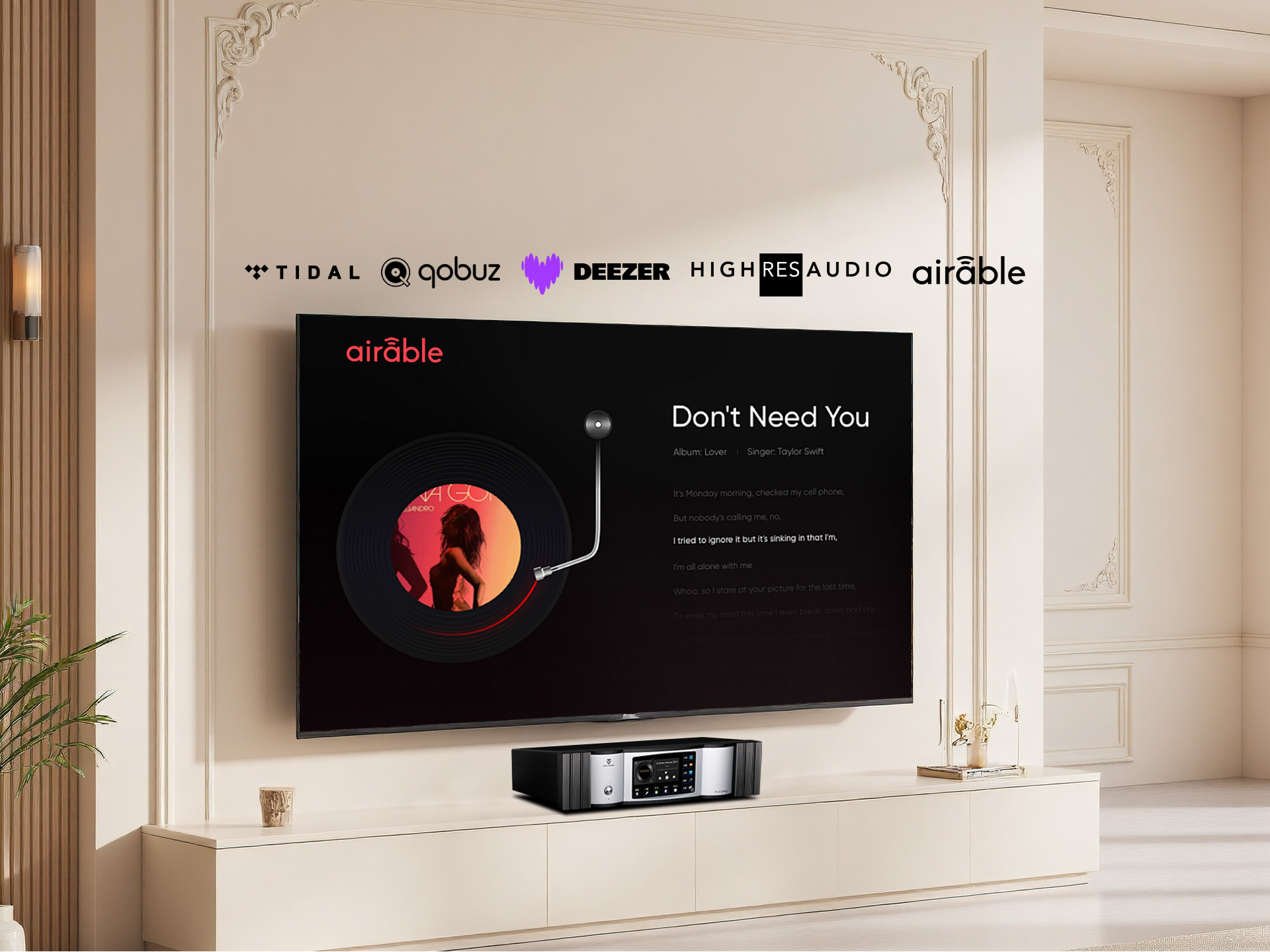

Install multiple applications at will to expand your music
It has built-in mainstream music playback applications from home and abroad, and various genuine applications are free to expand, further enriching the functions and uses of this machine.
Apple Music
Massive high-quality lossless music source code direct output
Supports Direct output, achieving high-resolution lossless sound quality source code direct output

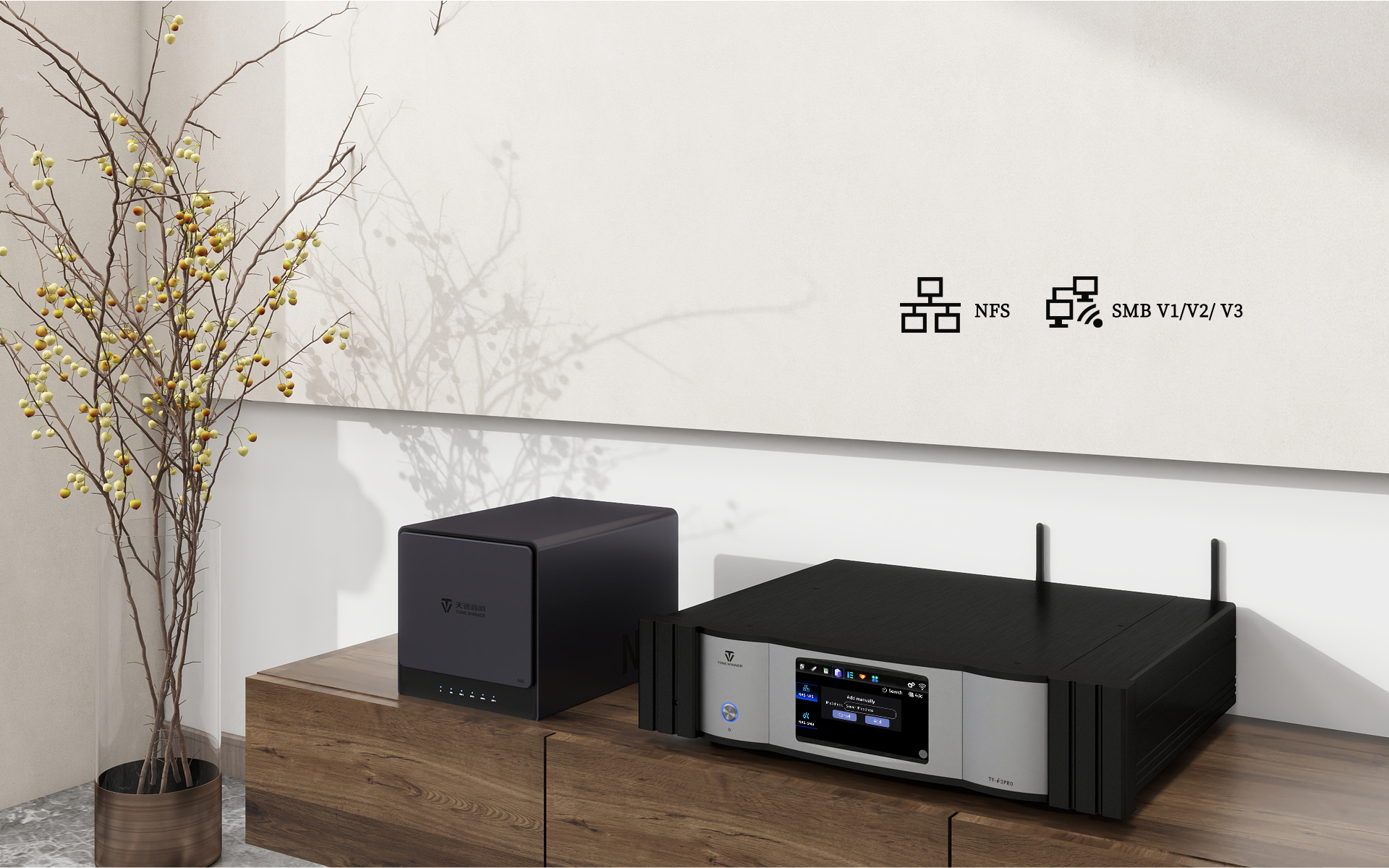

NAS private cloud storage
Each player is a private cloud storage NAS. Files between users can be transferred in real time, in batches, shared, played and downloaded. Breaking through transmission barriers, easily achieving file exchange.
(*NAS network storage needs to be equipped by yourself)

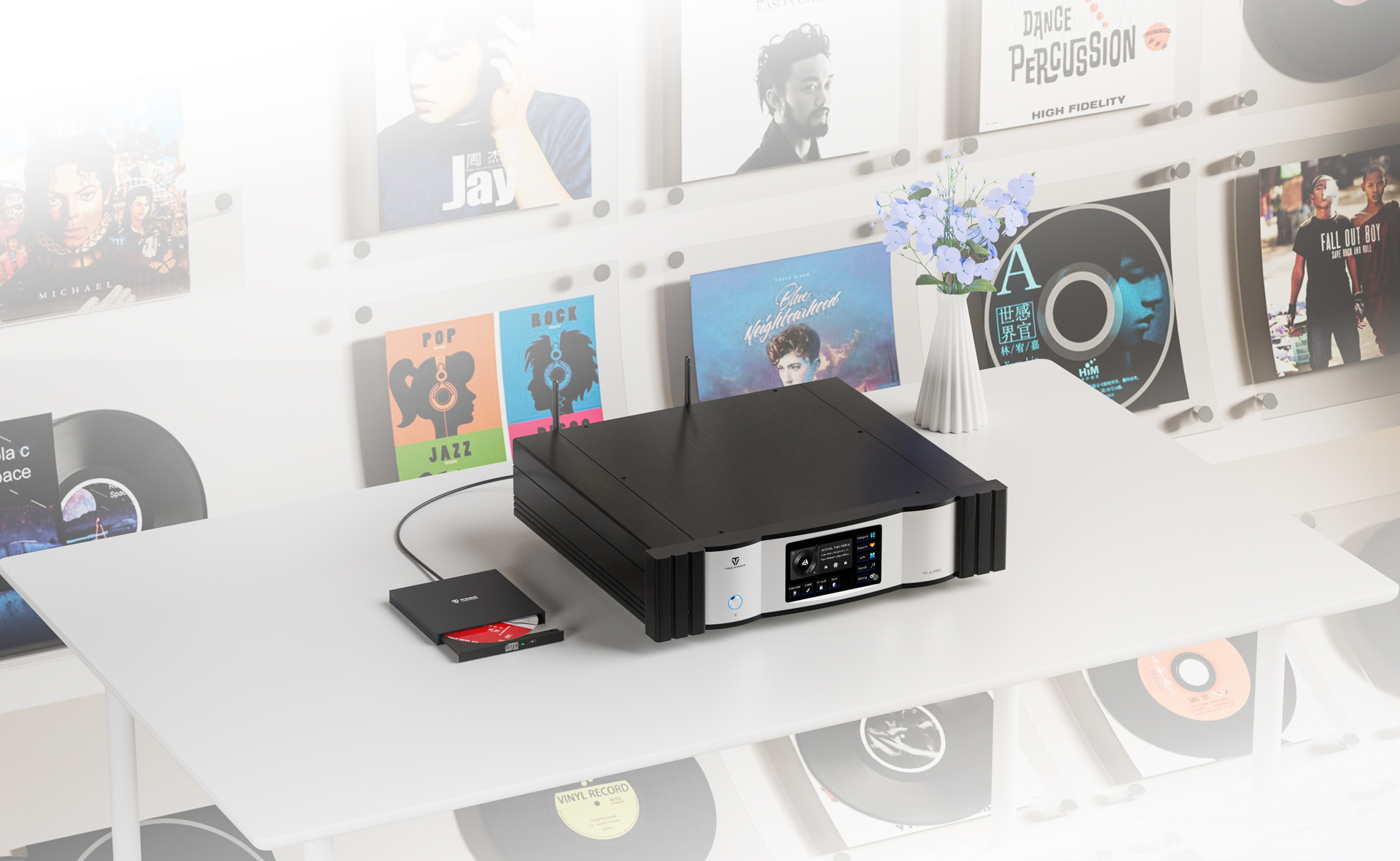

External CD-source code ripping
Through an external USB mobile optical drive, it not only supports the playback of CD discs, but also can perform lossless ripping of CD contents, modify track names, etc., automatically generate album and artist information, and support saving to local mobile storage devices.
(*Mobile optical drive needs to be provided by yourself)

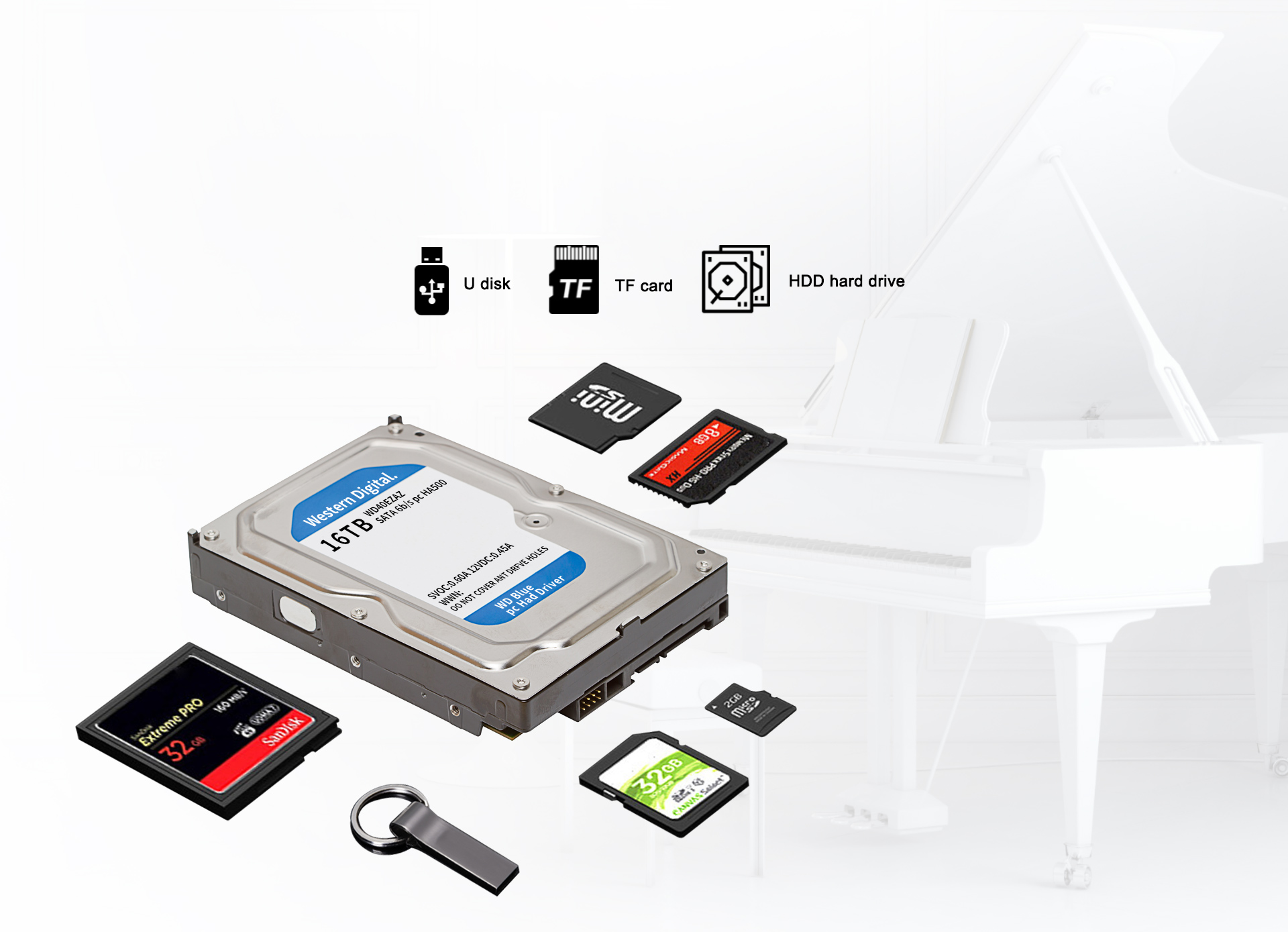

Convenient local playback,
One hard drive can easily load 100,000+ music masterpieces.

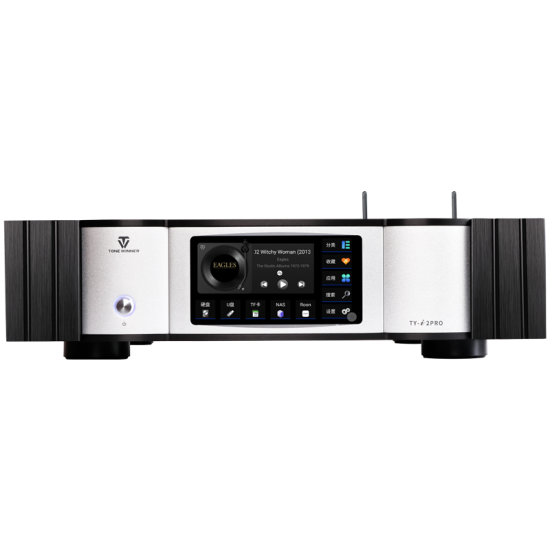

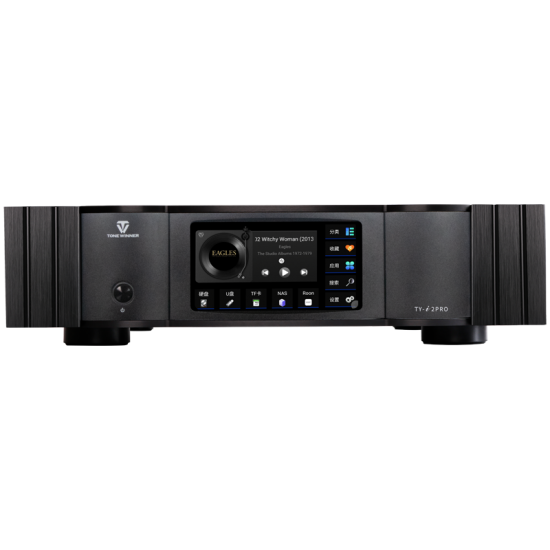

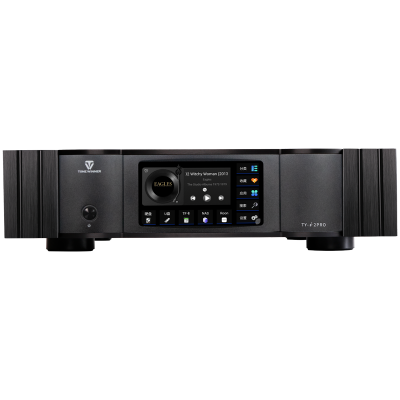

Multi-function partition display
5-inch high-definition touch color screen
System settings, directories, song formats, album covers and other information are clearly visible.

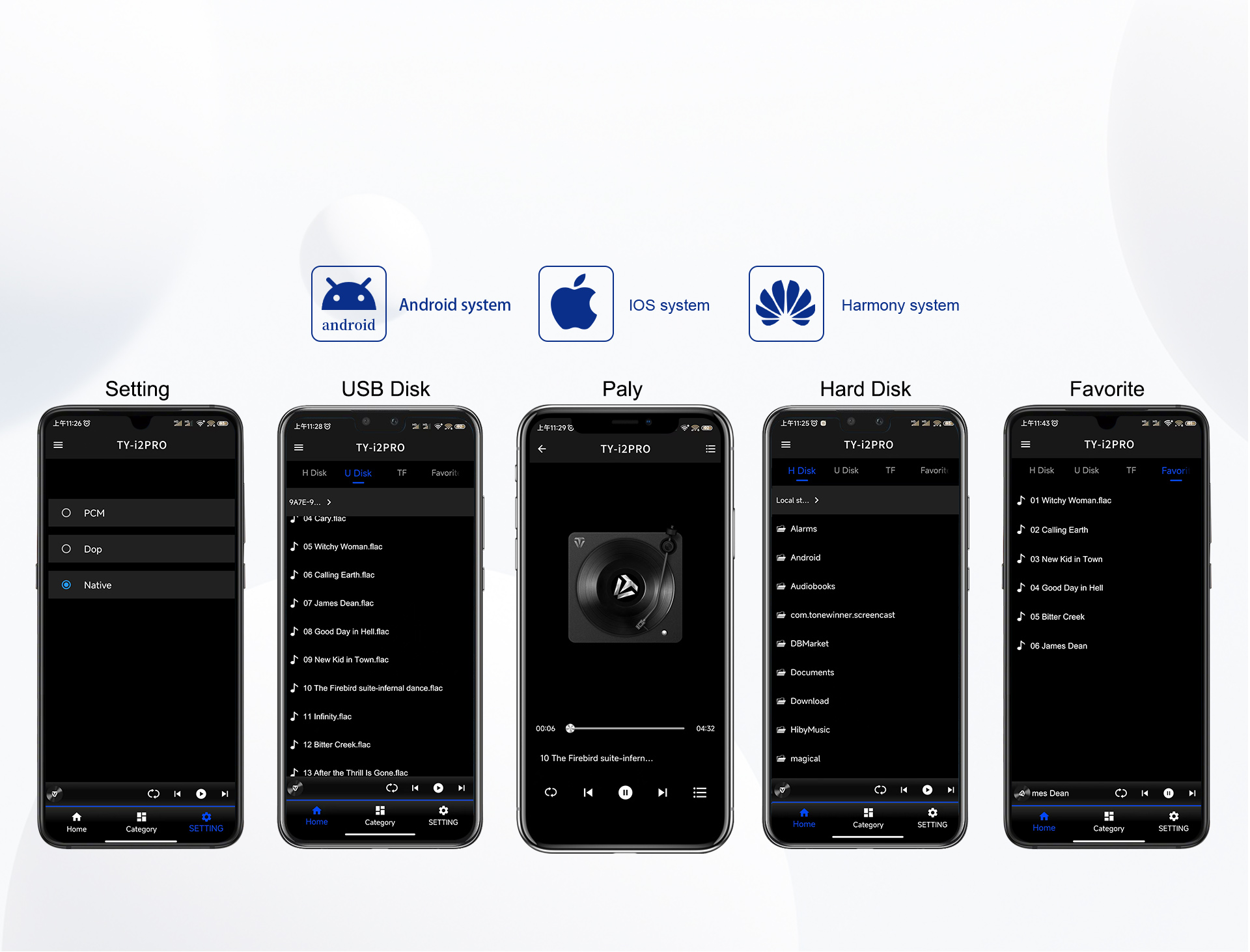

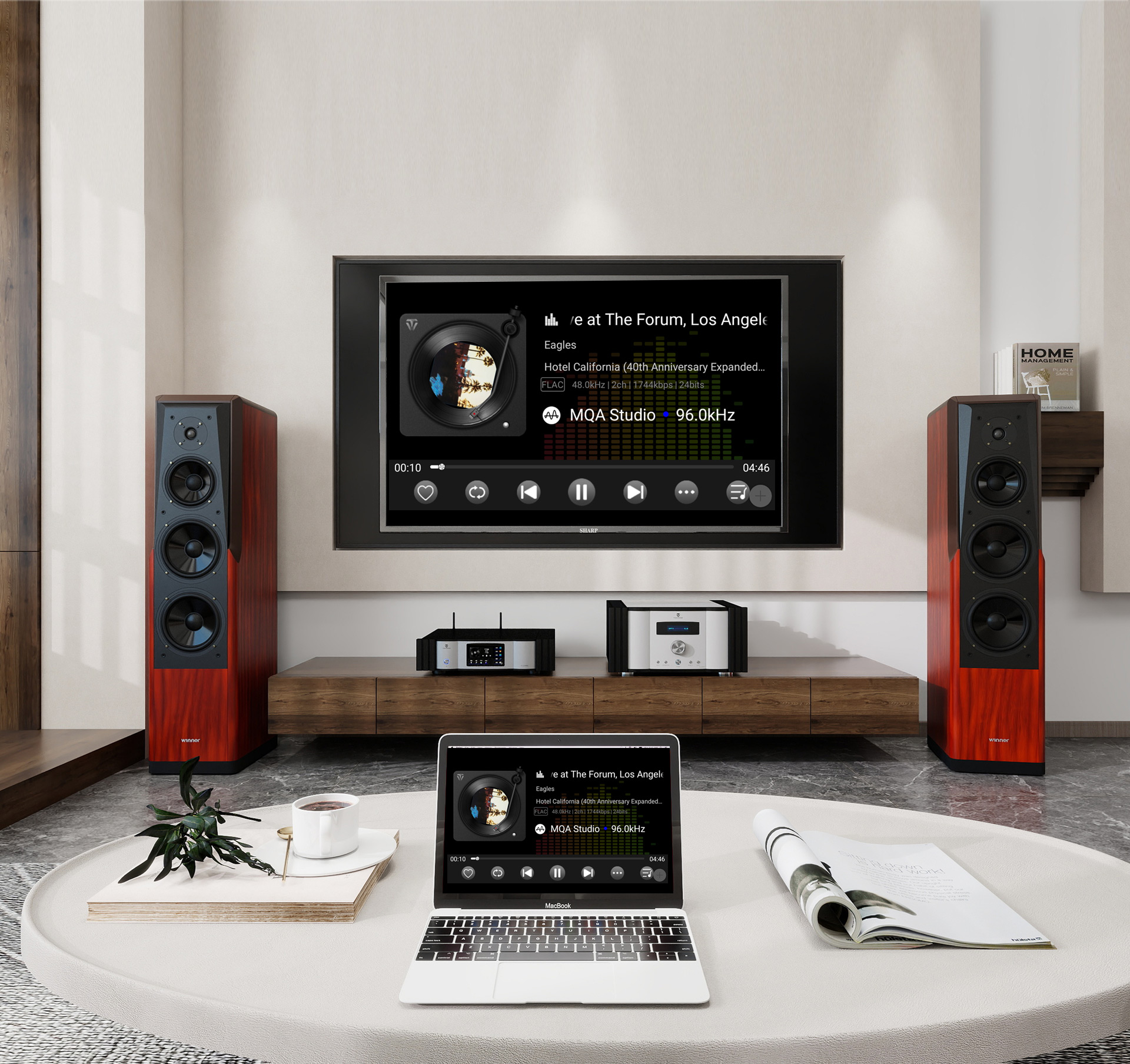

Convenient APP Control
Convenient network and local file management
Multi-function file editing management: Comes with a powerful media file management system that supports regular file operations such as copy, paste, cut and delete on local hard disks and network storage devices.
Plug and play USB OTG function: Configure with USB OTG port, TY-i2PRO supports connecting computer through USB cable for quick copy and management of local files.
Wi-Fi6
supports 2.4GHz and 5.8GHz dual-frequency connection,
fast transmission speed and strong anti-interference ability.
Internet port
support speed up to 1000Mbps for fast transmission speed
and strong anti-interference ability
Full balance circuit, first choice for Hi-Fi
Hi-Fi XLR analog signal output better noise resistance for the whole machine.
AK4191EQ AK4499EXEQ
Flagship dual chips, excellent performance

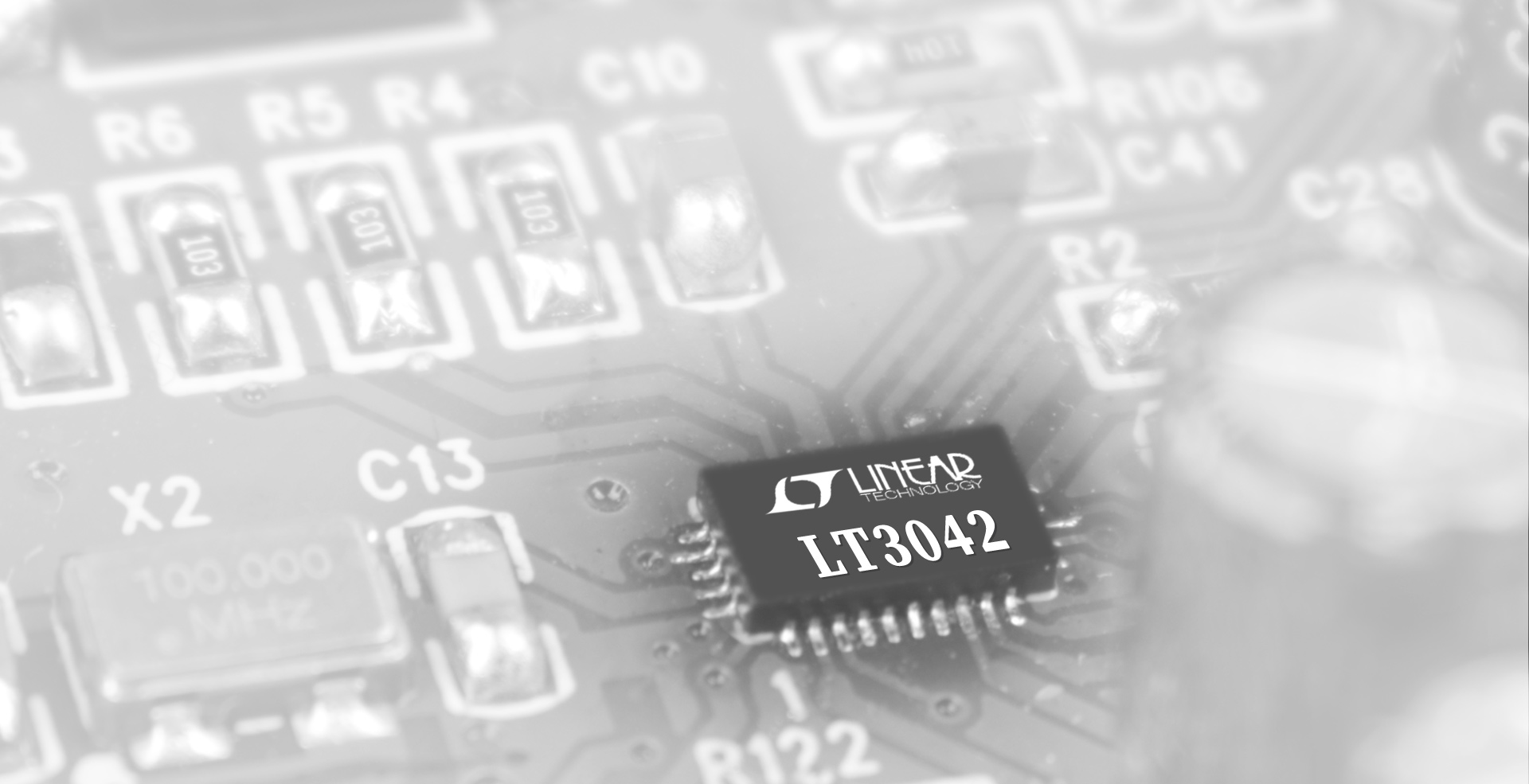

Ultra low noise LDO regulator
Seven ultra-low noise LDO voltage regulator chips are deployed to provide stable low-voltage output for the power management of analog/digital converters to ensure the accuracy and reliability of digital signals.
Noise <0.8µVrms (10Hz-100kHz)

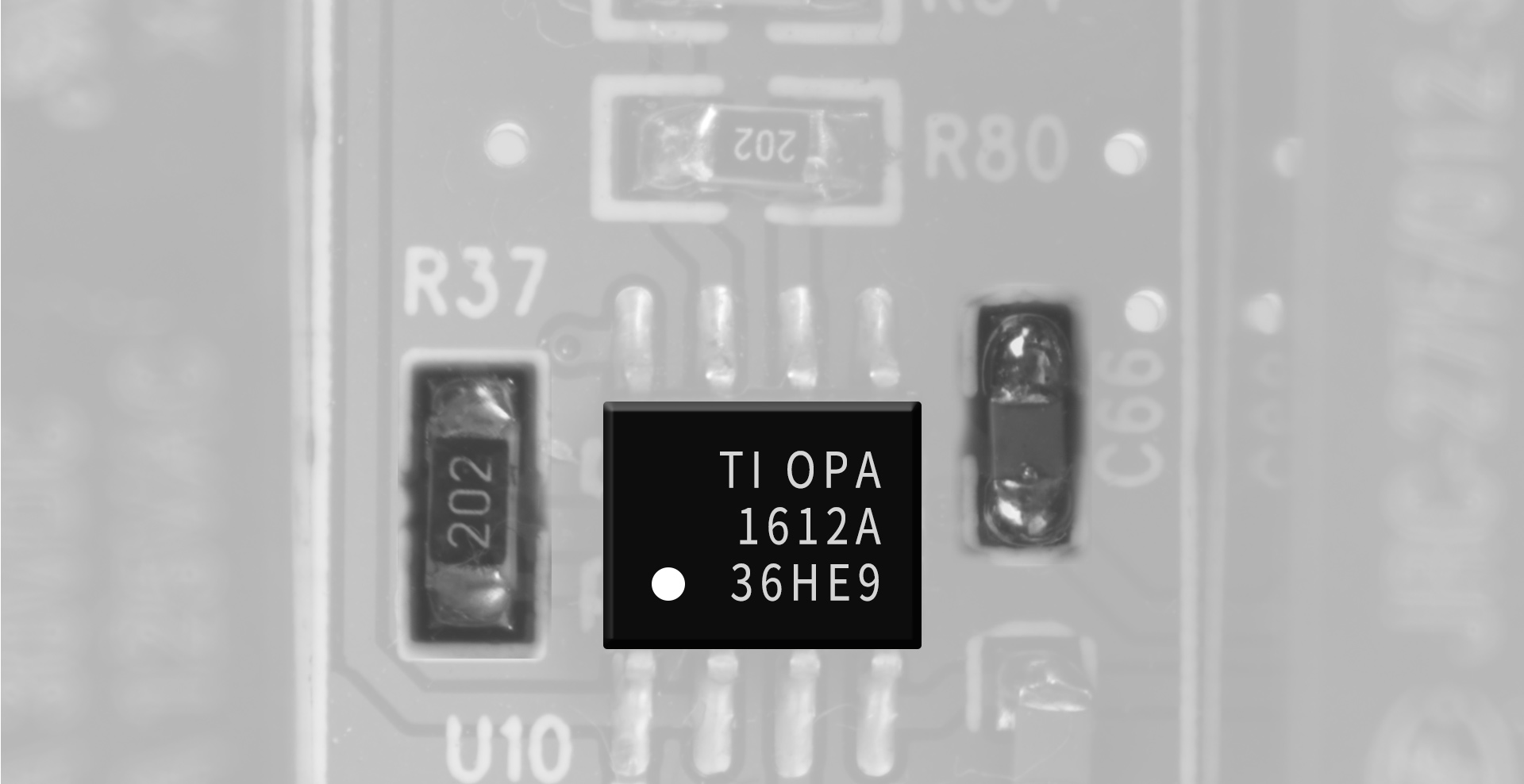

Op Amp OPA1612
The whole machine adopts 3 op amps, with the characteristics of low distortion, low noise, and large signal broadband, which bring purer sound and better dynamic range to the whole machine.
Super Low Phase Noise Femtosecond Clock System
Equipped with two femtosecond high-precision clocks, it effectively suppresses jitter, provides ultra-high dynamics and resolution, and reproduces the real sound field and sound details of the music recording scene.

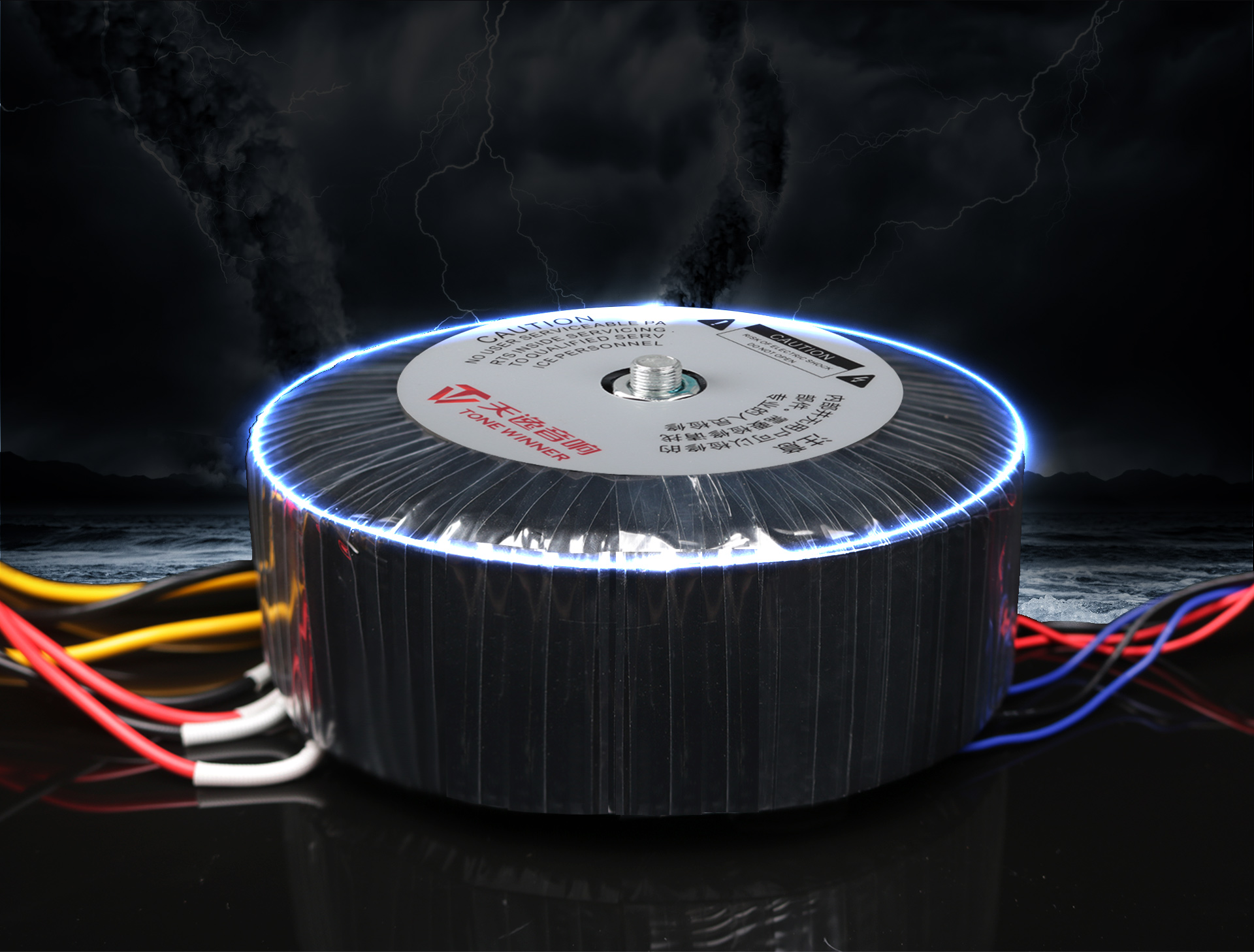

Magnetic Shielded Linear Dual Power Supply
Anti-interference, magnetically shielded high-quality power transformer and audiophile-grade analog linear power supply provide a stable, reliable and pure sound power source.
Global adaptive power supply 100V~240V, 0.5W low standby consumption

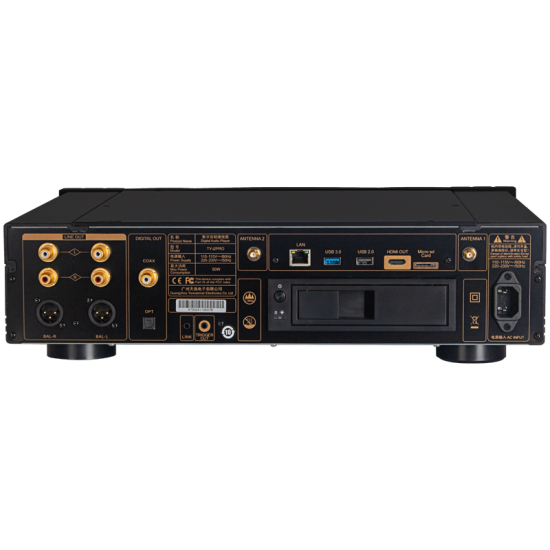

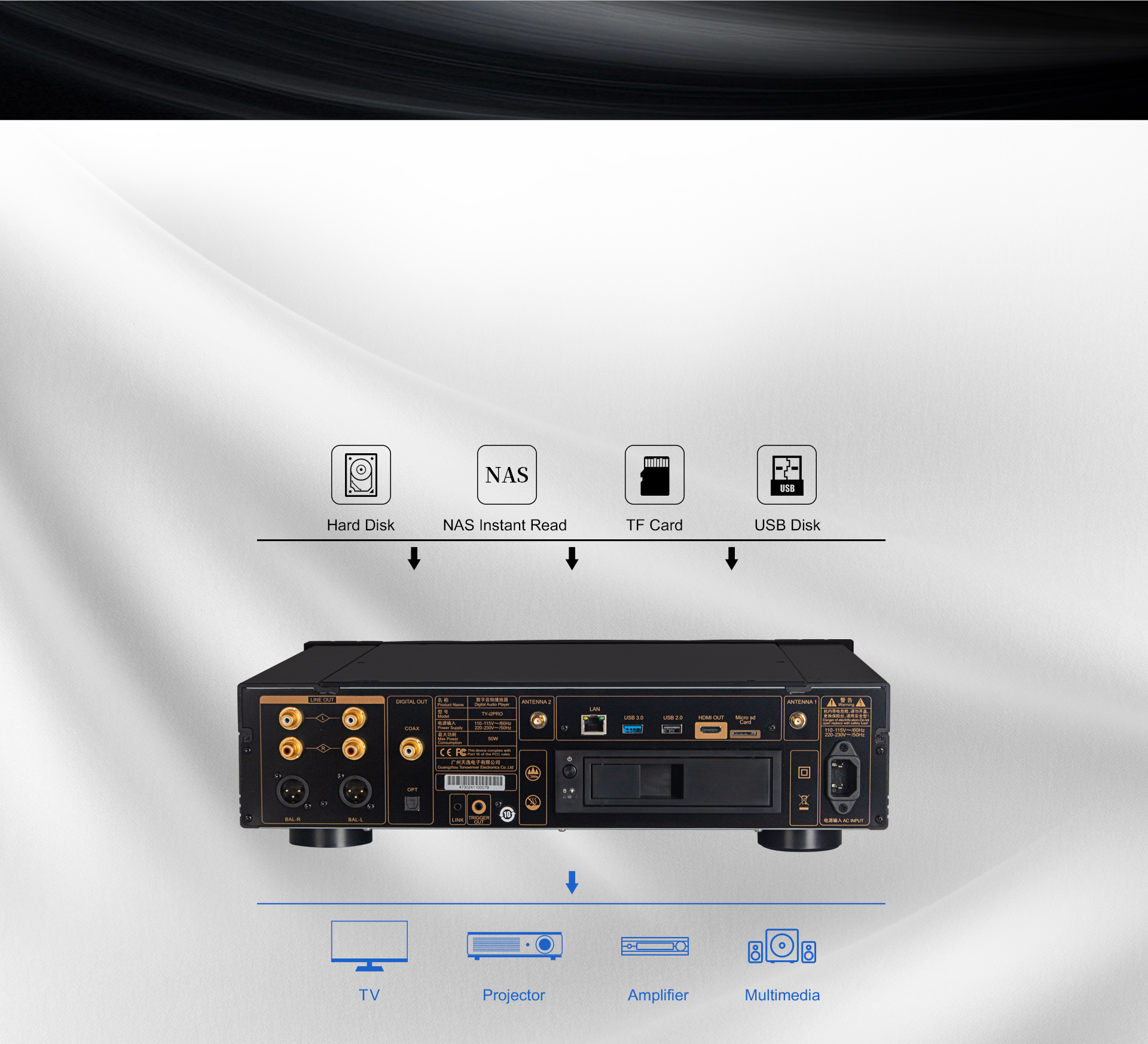

Complete input & powerful output
Local playback interface: 1*USB3.0, 1*USB2.0(support OTG), 3.5-inch hard disk bay, 1*Micro SD Card;
Network input: 1*RJ45 network interface, supporting wireless Wi-Fi connection;
Digital audio output: 1*coaxial, 1*optical;
Analog audio output: 2 sets of RCA, 1 set of XLR;

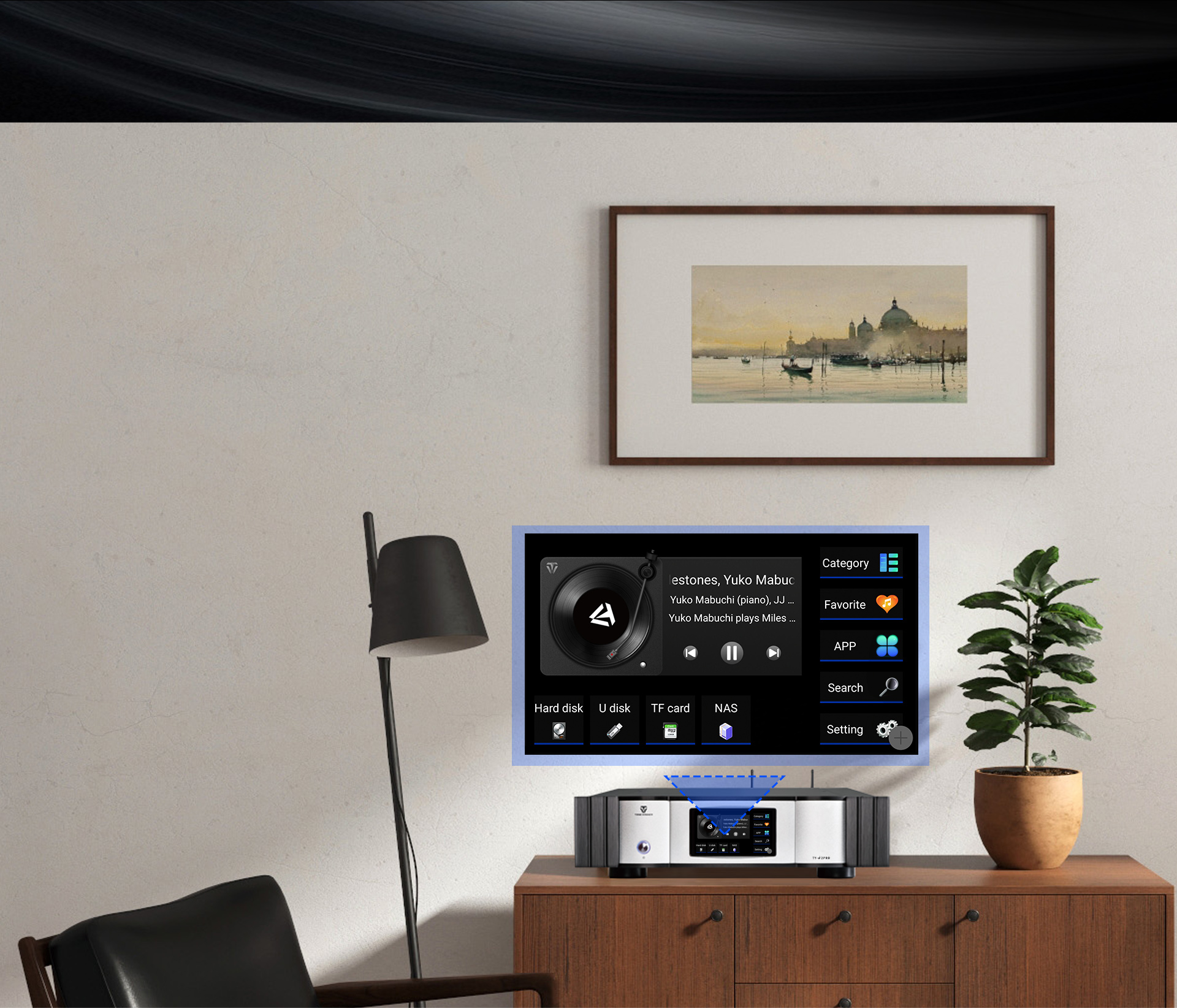

Video output: 1*HDMI high-definition video output interface;

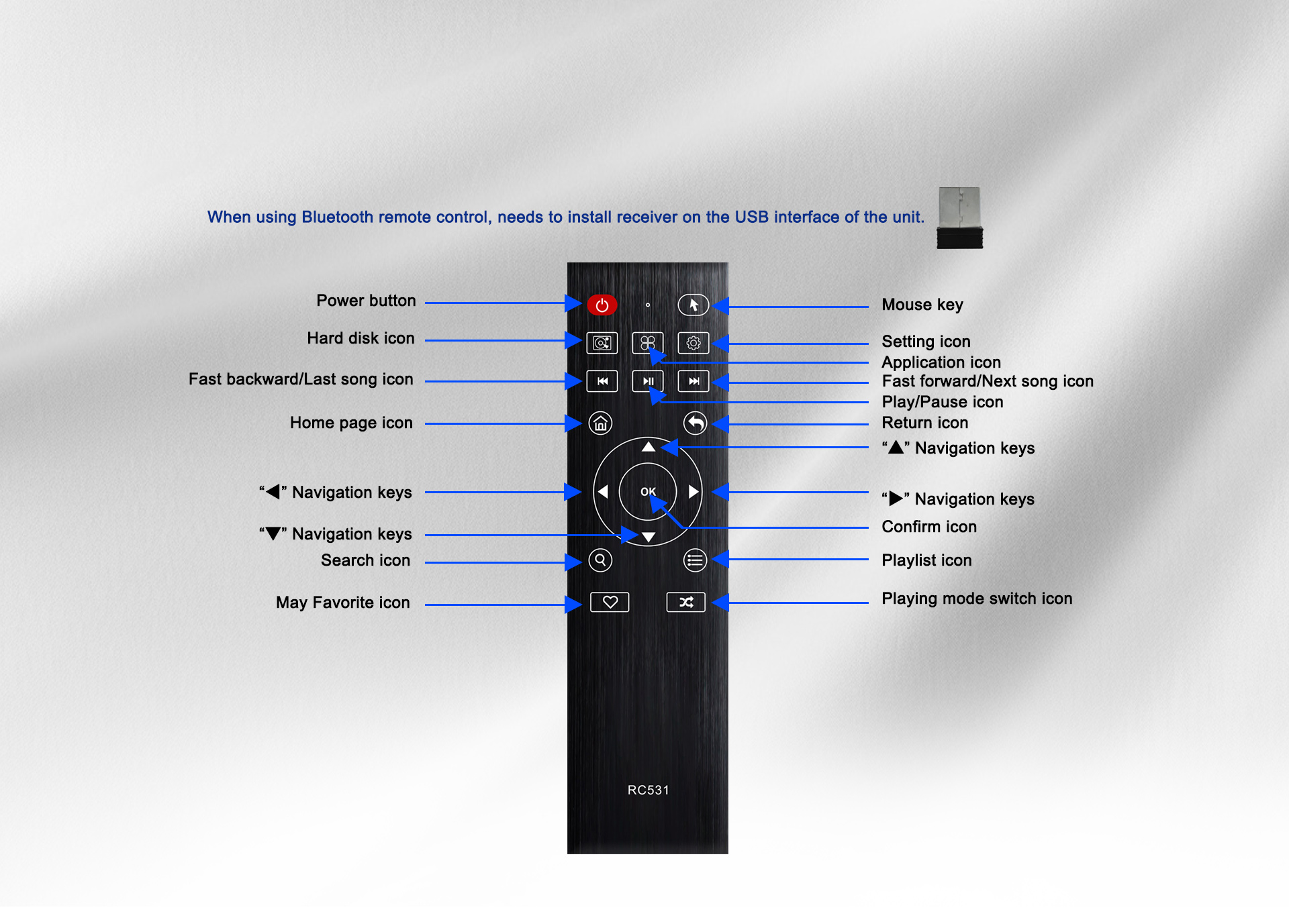

Bluetooth * IR * Air mouse three in one remote
Recommendation

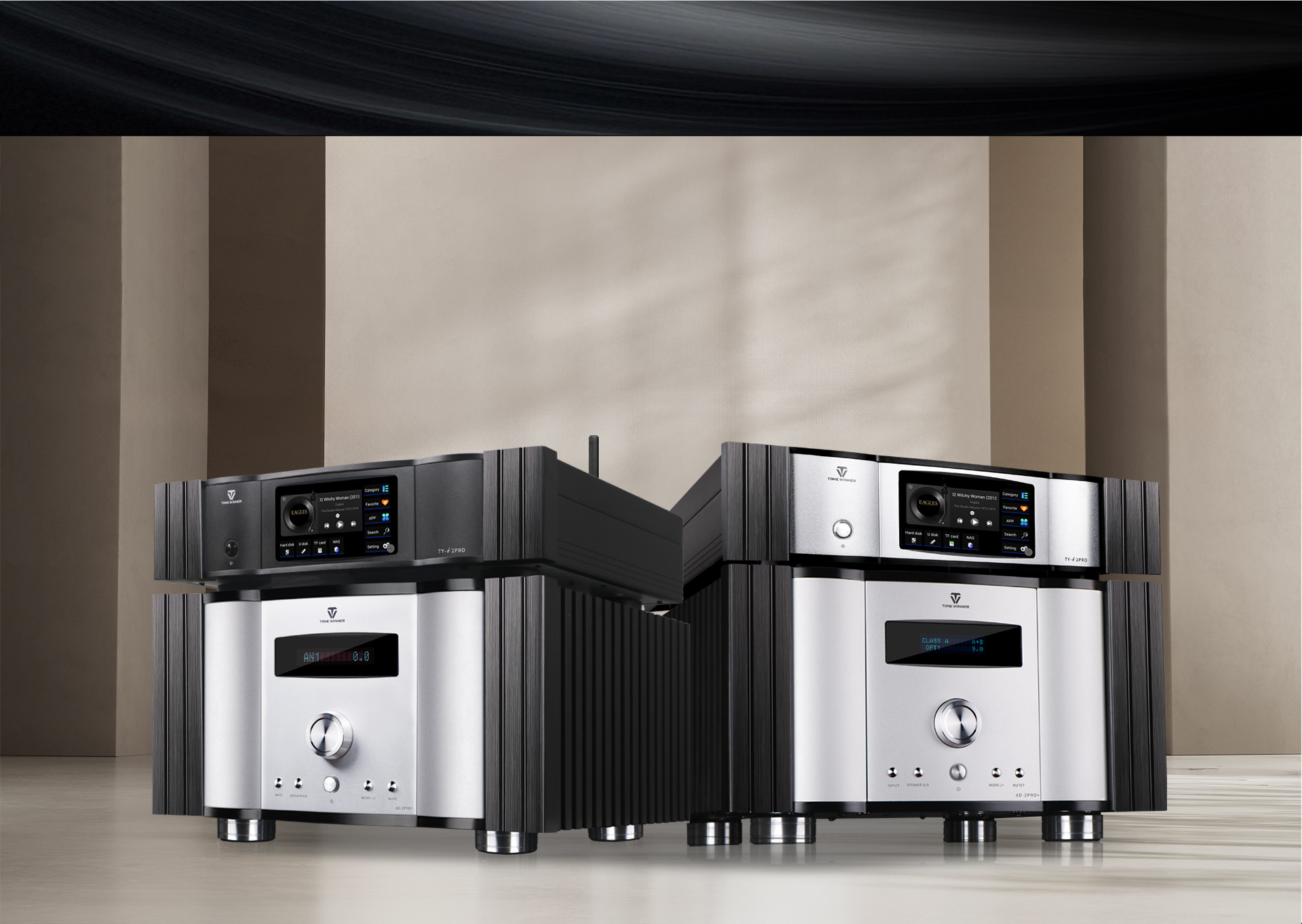

TY-i2PRO & AD-2PRO+
TY-i2PRO & AD-1PA+ /AD-1PRE+ & TD-9

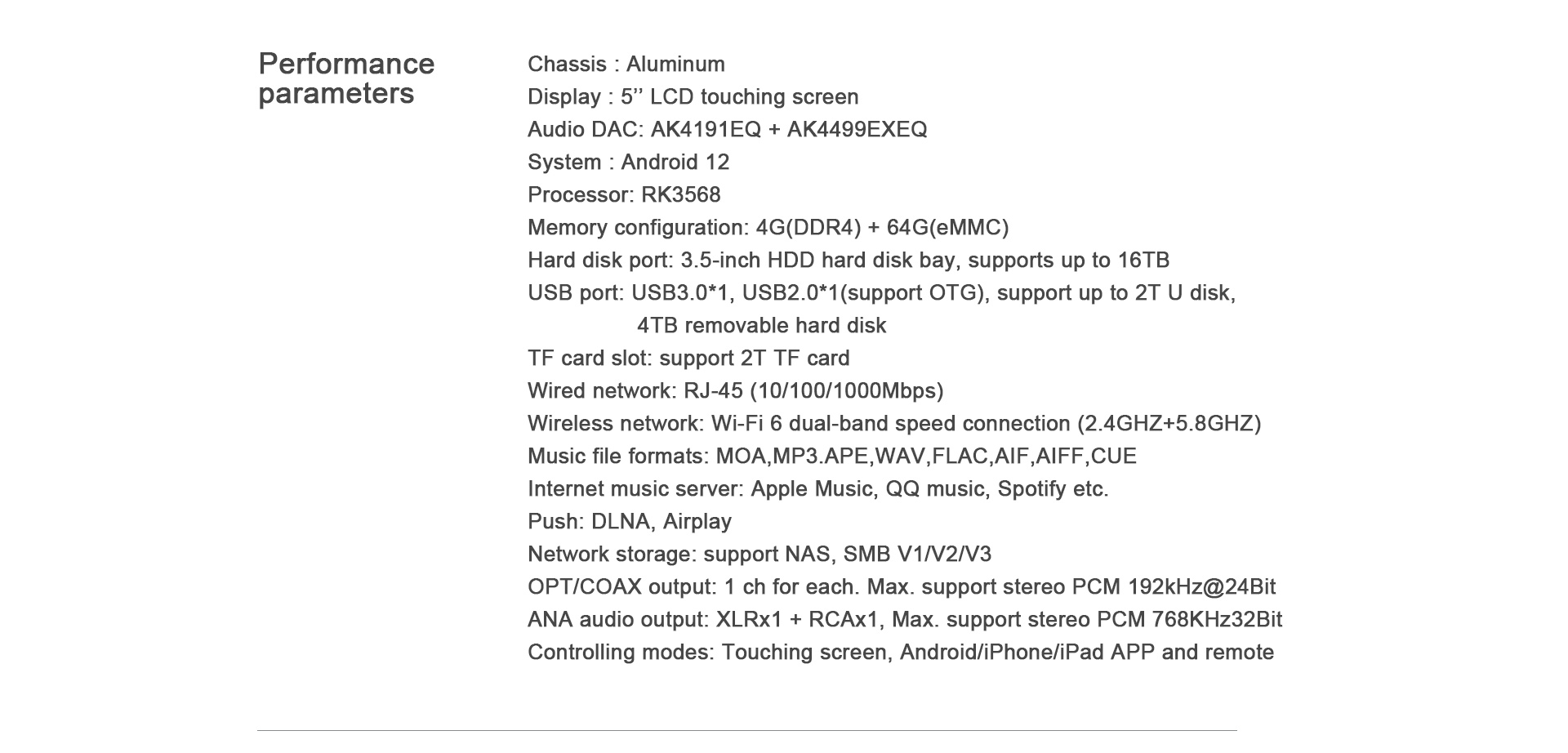

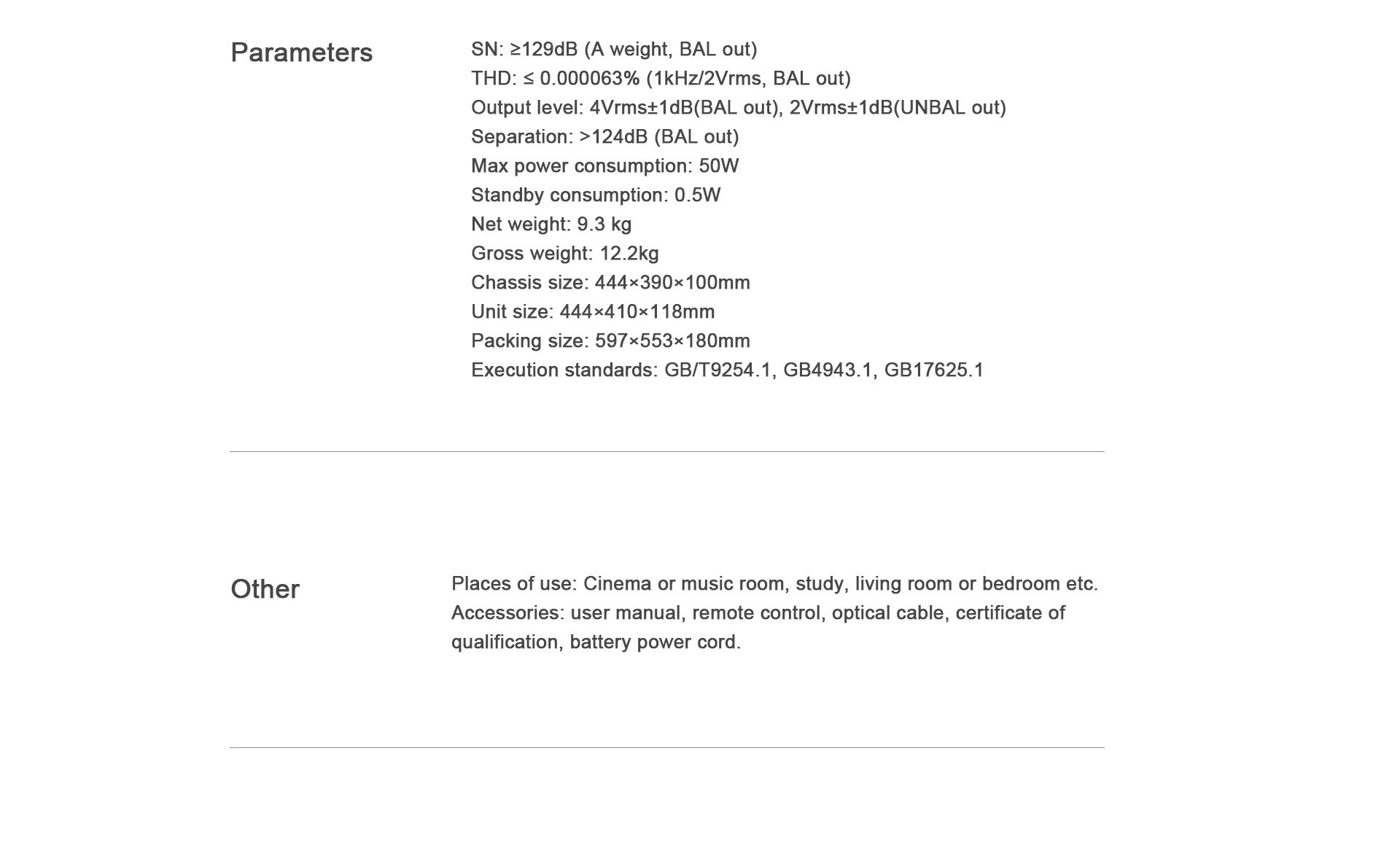

Model | TY-i2PRO | SNR | >129dB |
Output level |
2Vrms +/-1.5dB |
THD |
≤0.000063%(1kHz/2Vrms, BAL out) |
Separation | >124dB( BAL out) |
Max power consumption |
50W |
Net weight | 9.3kg | Standby consumption | 0.5W |

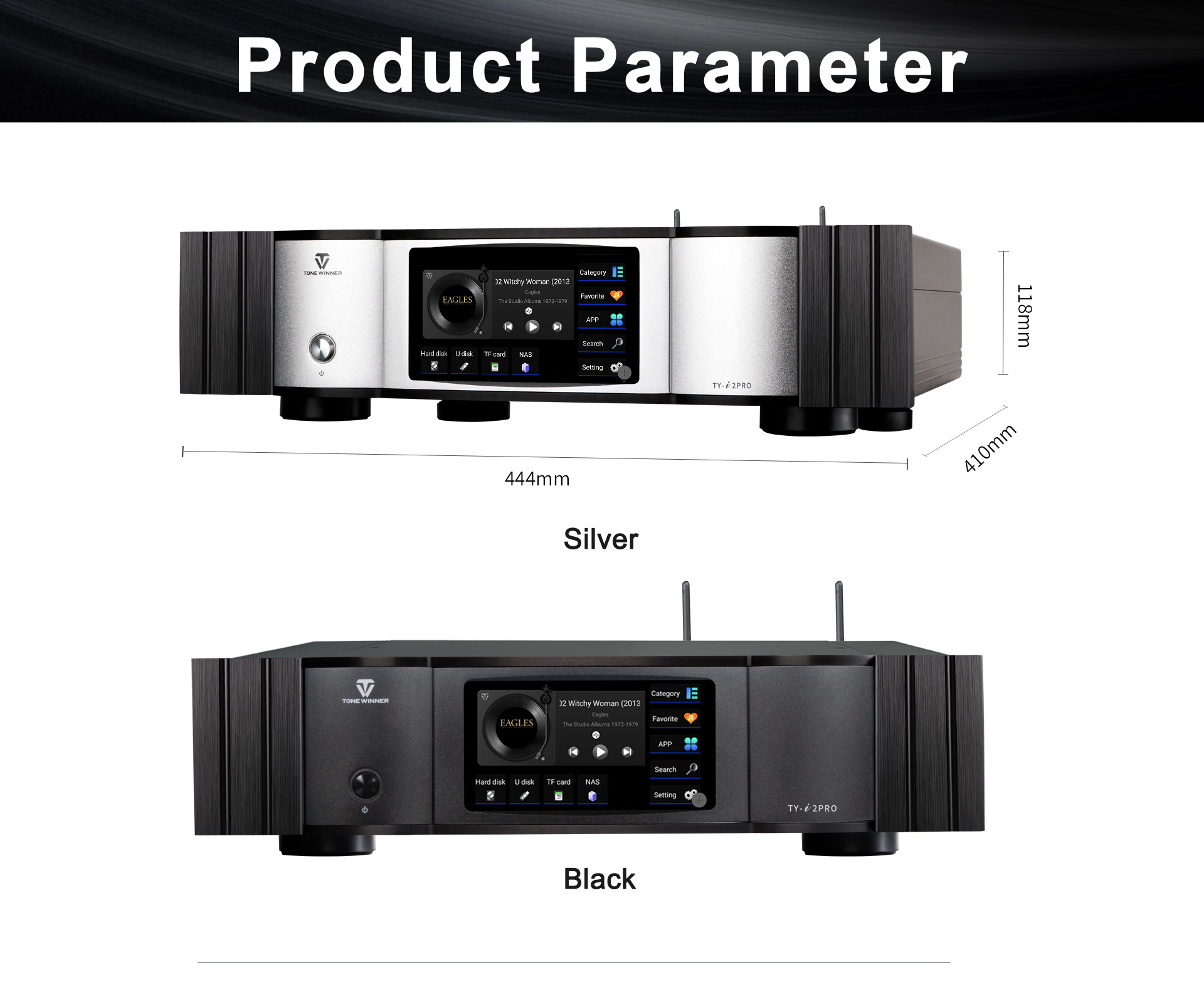

Gross weight | 12.2kg | Unite size | 444*410*118mm |
Package size | 597*532*180mm | Execution standards | GB/T9254.1,GB4943.1,GB17625.1 |
