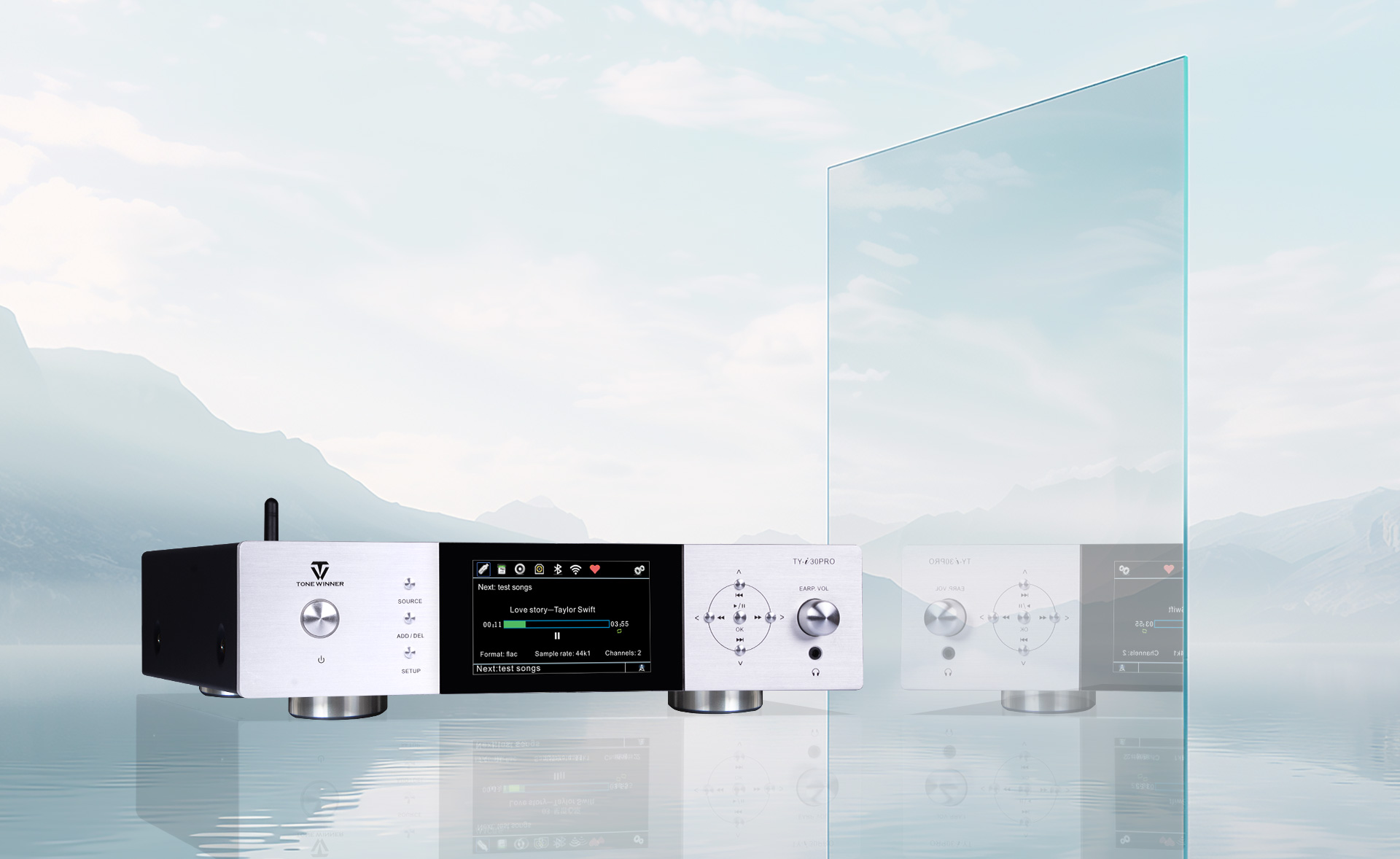

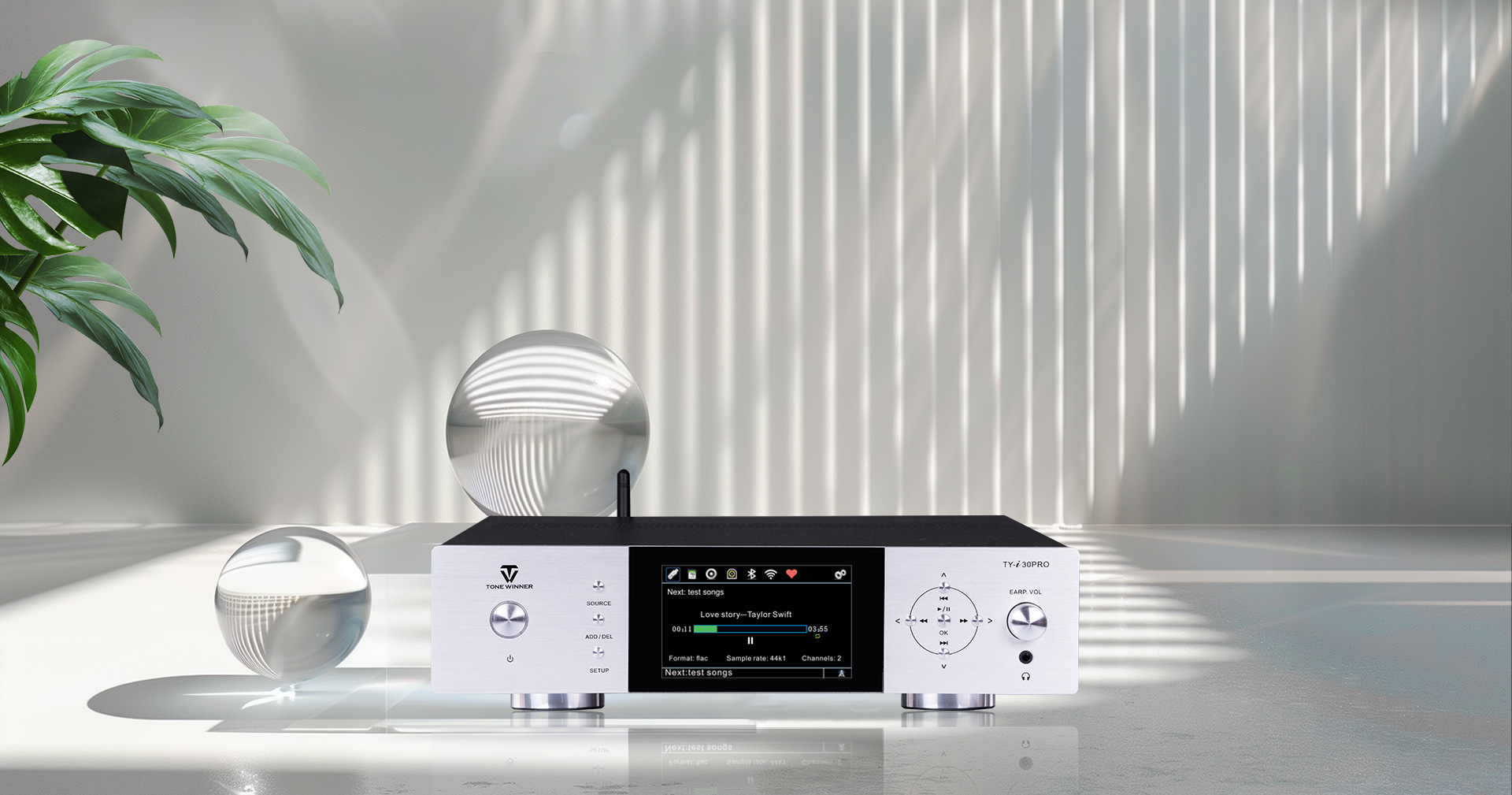

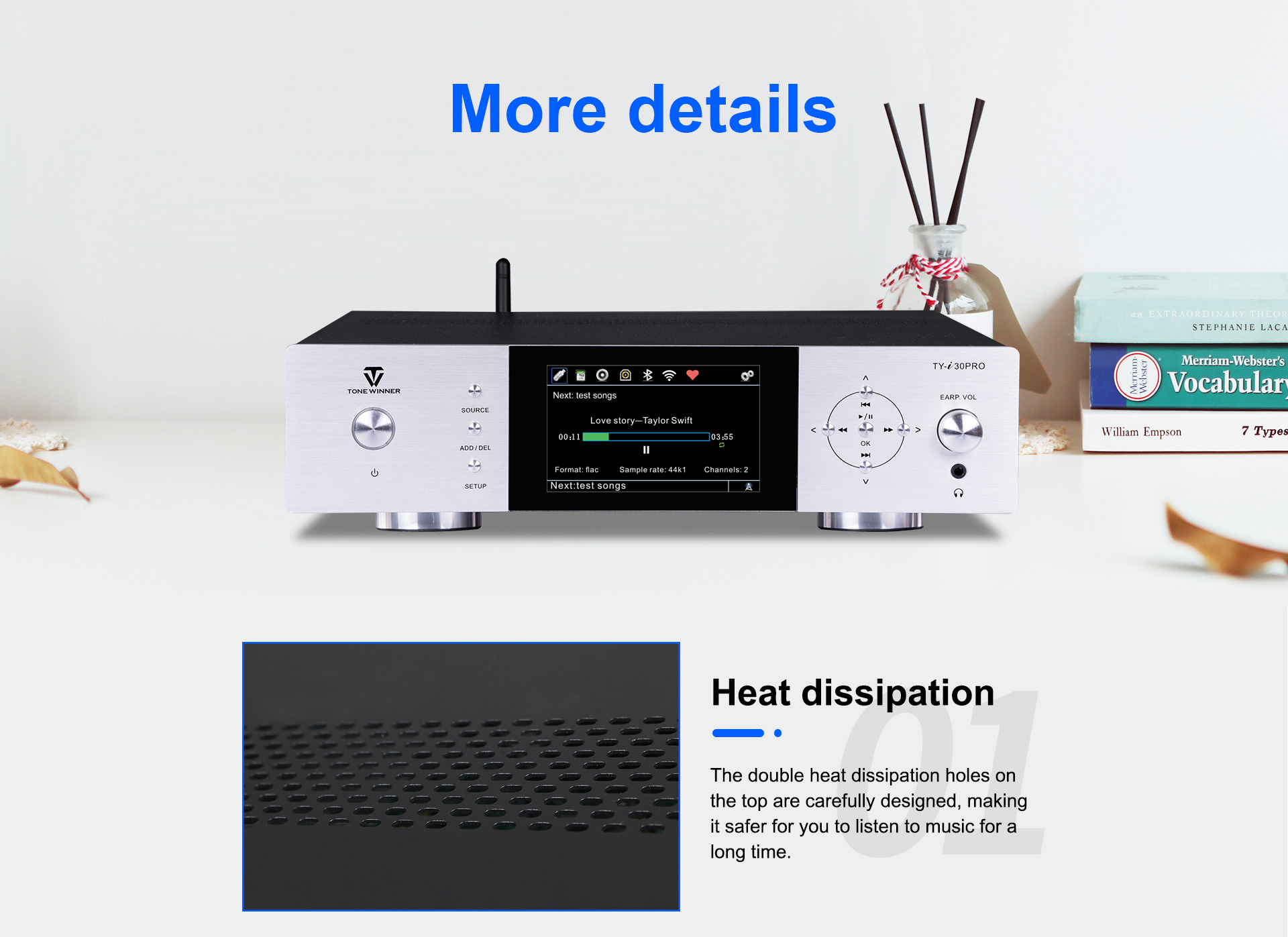

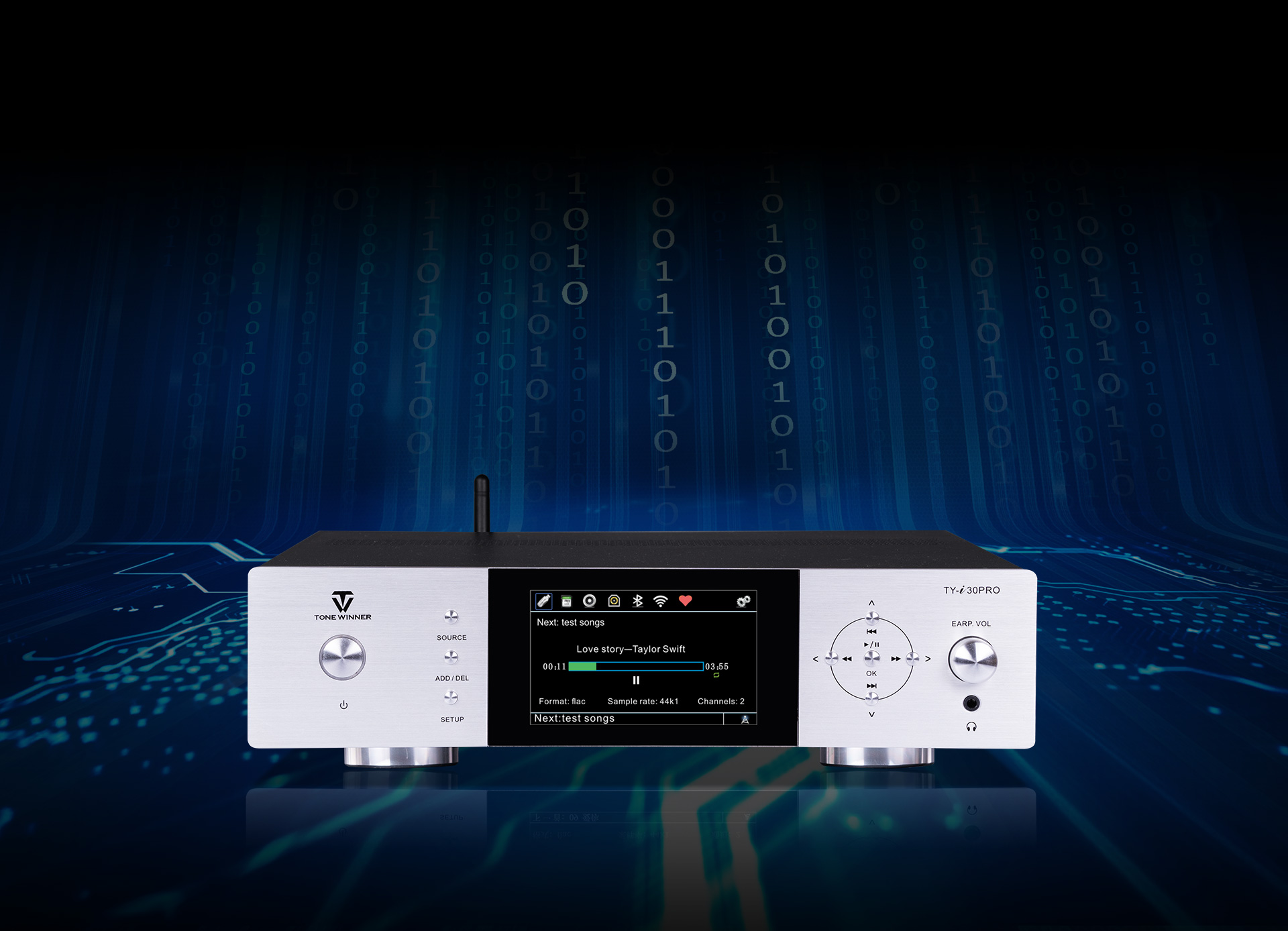

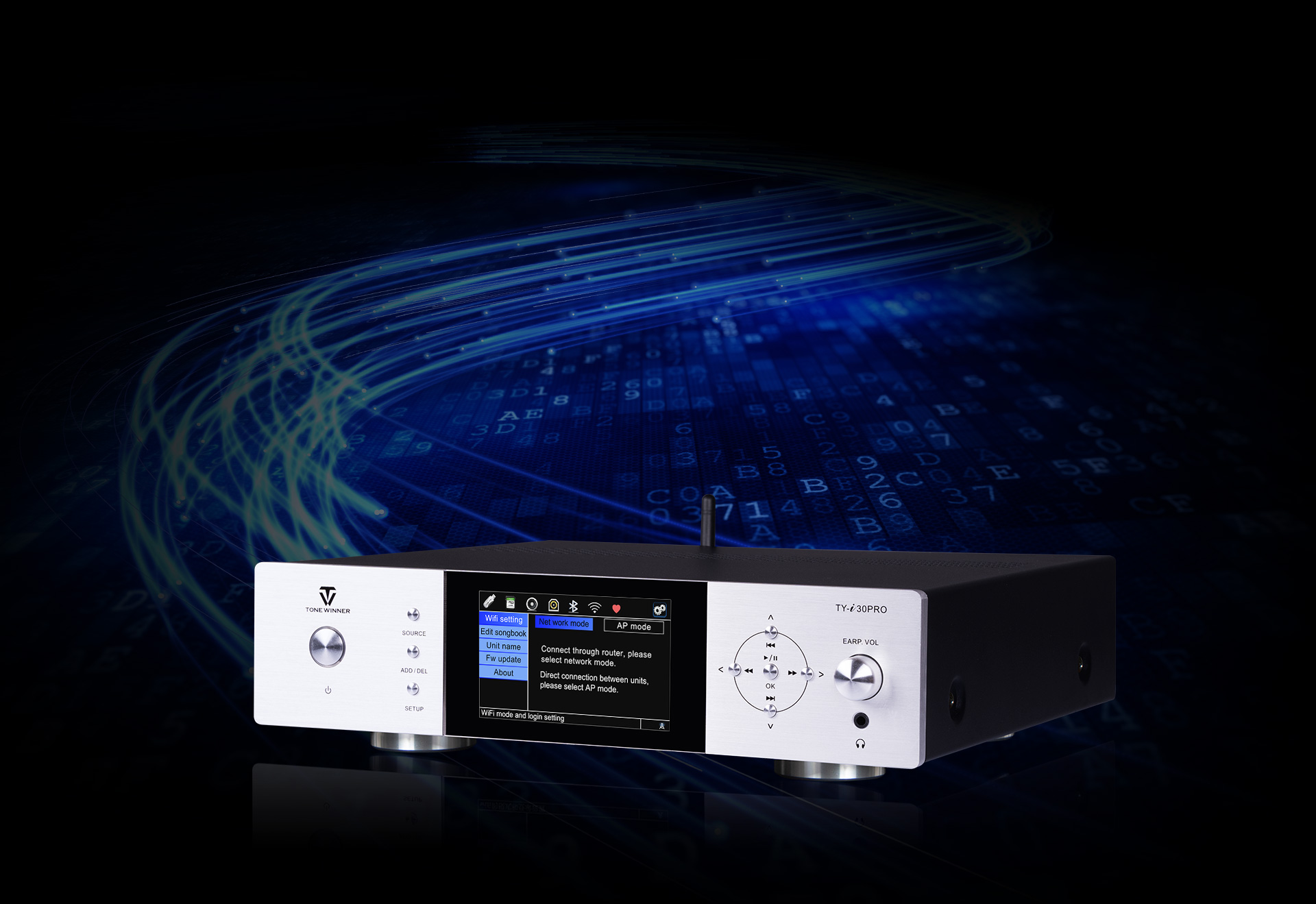

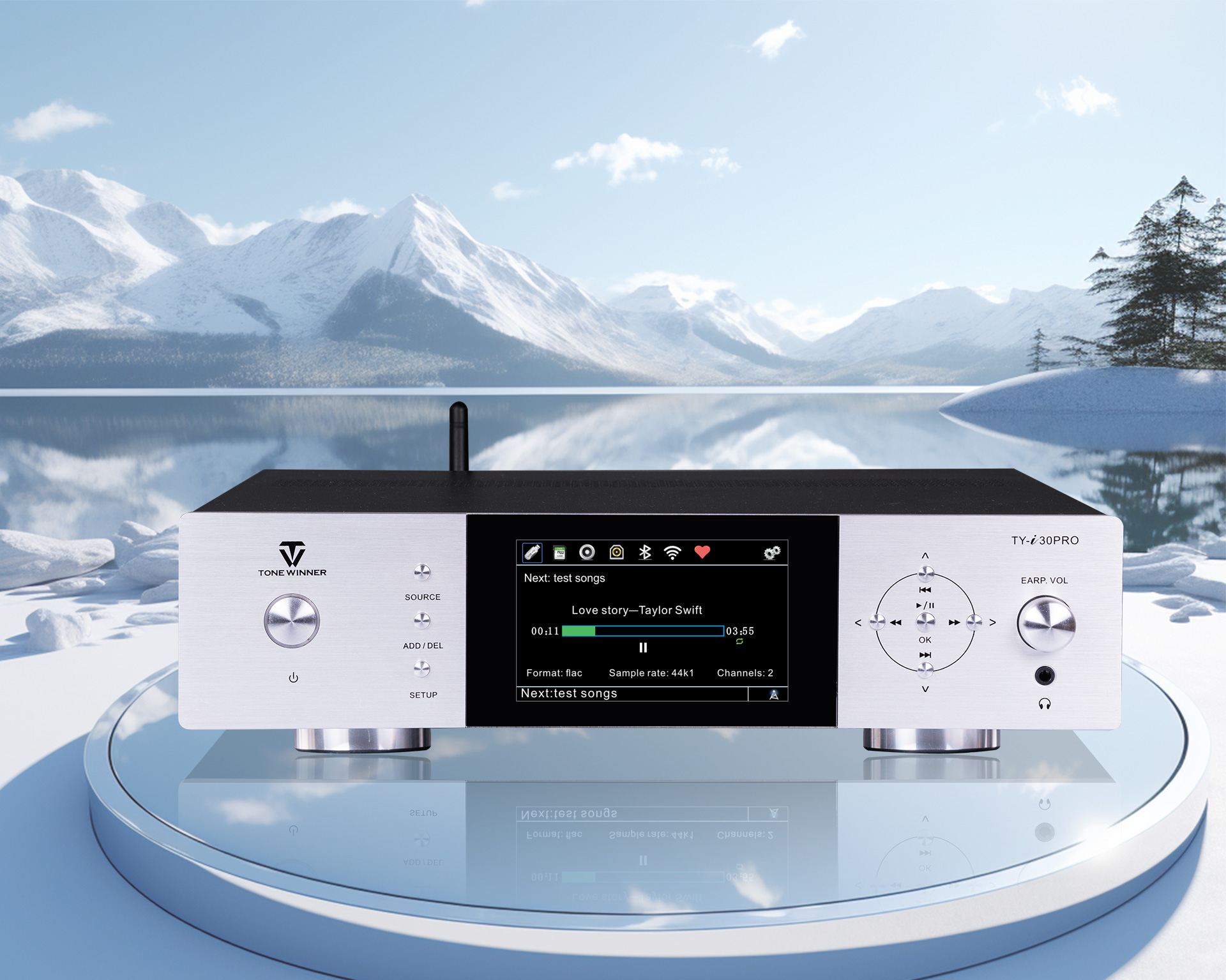

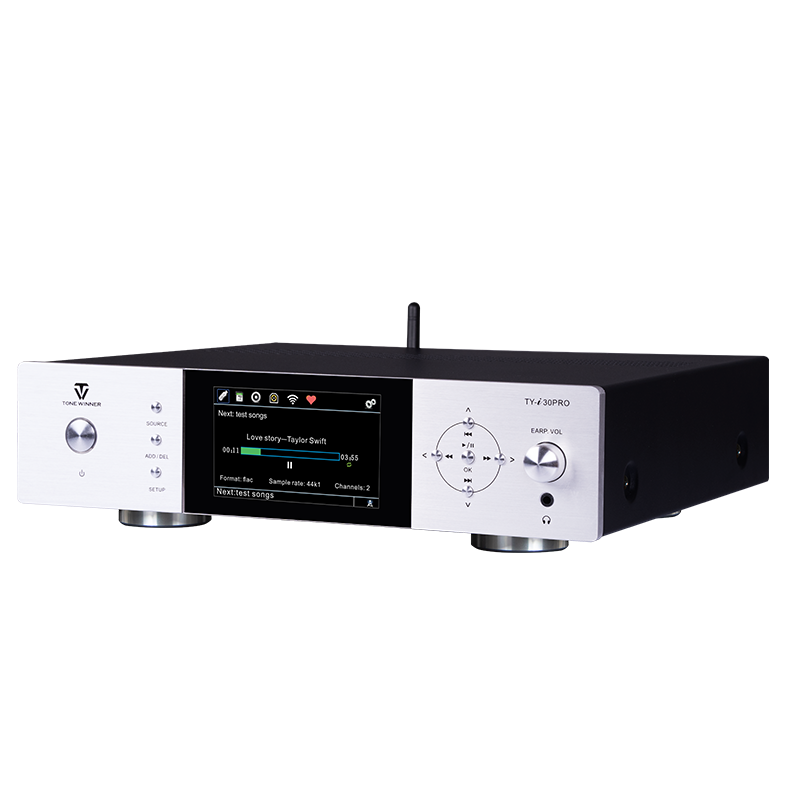

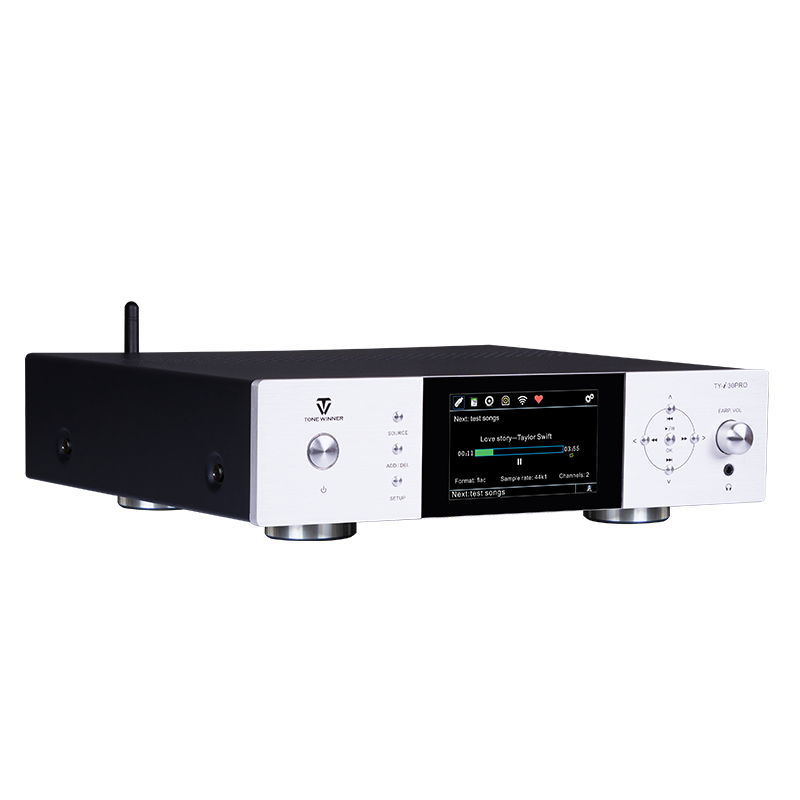

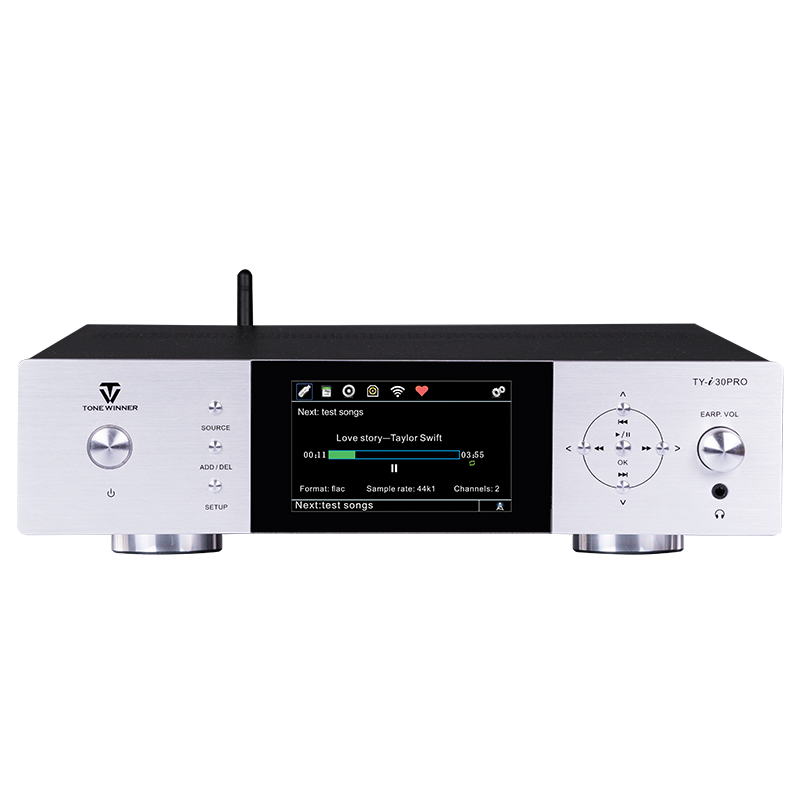

Tonewinner TY-i30PRO multi-function media player

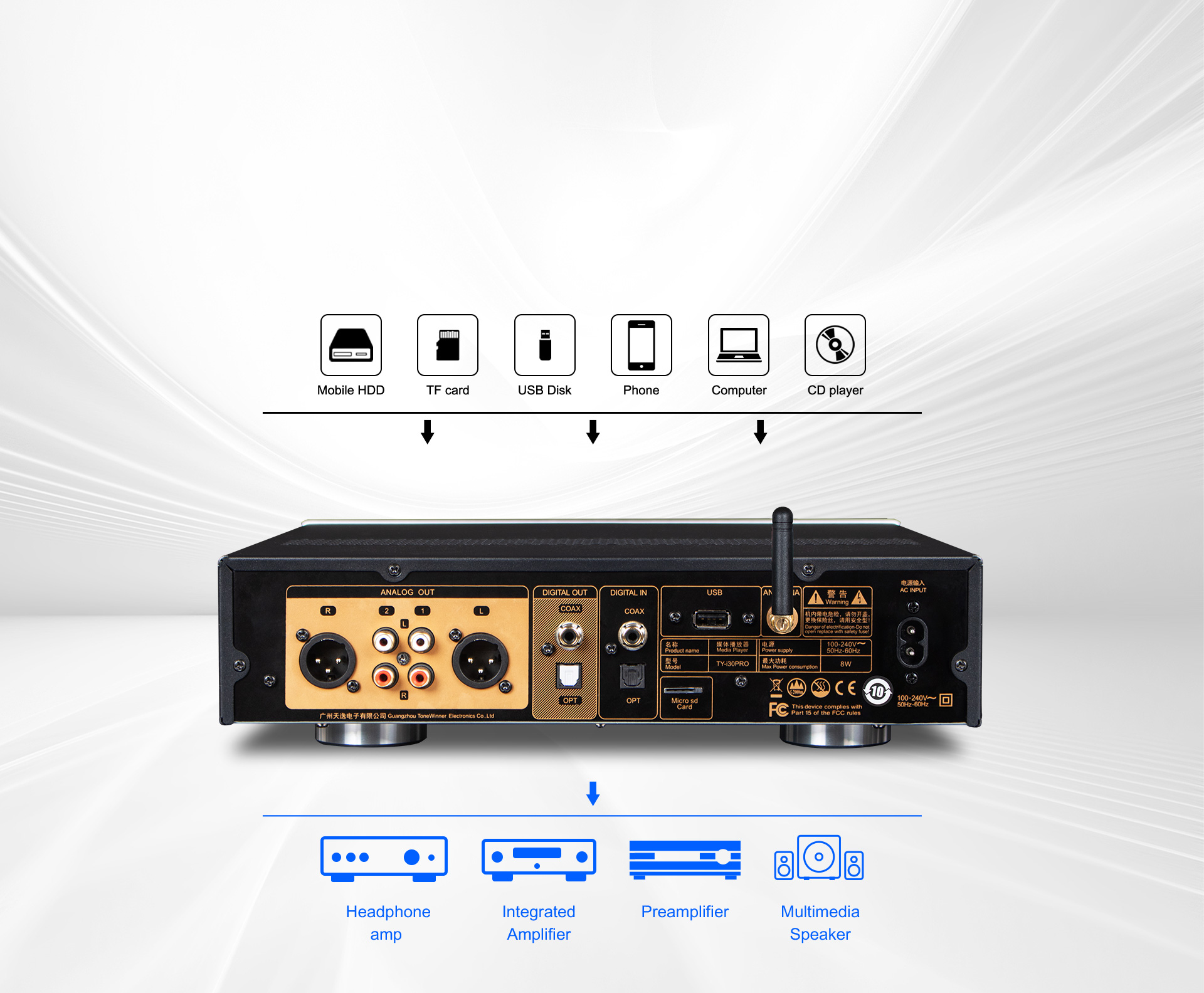

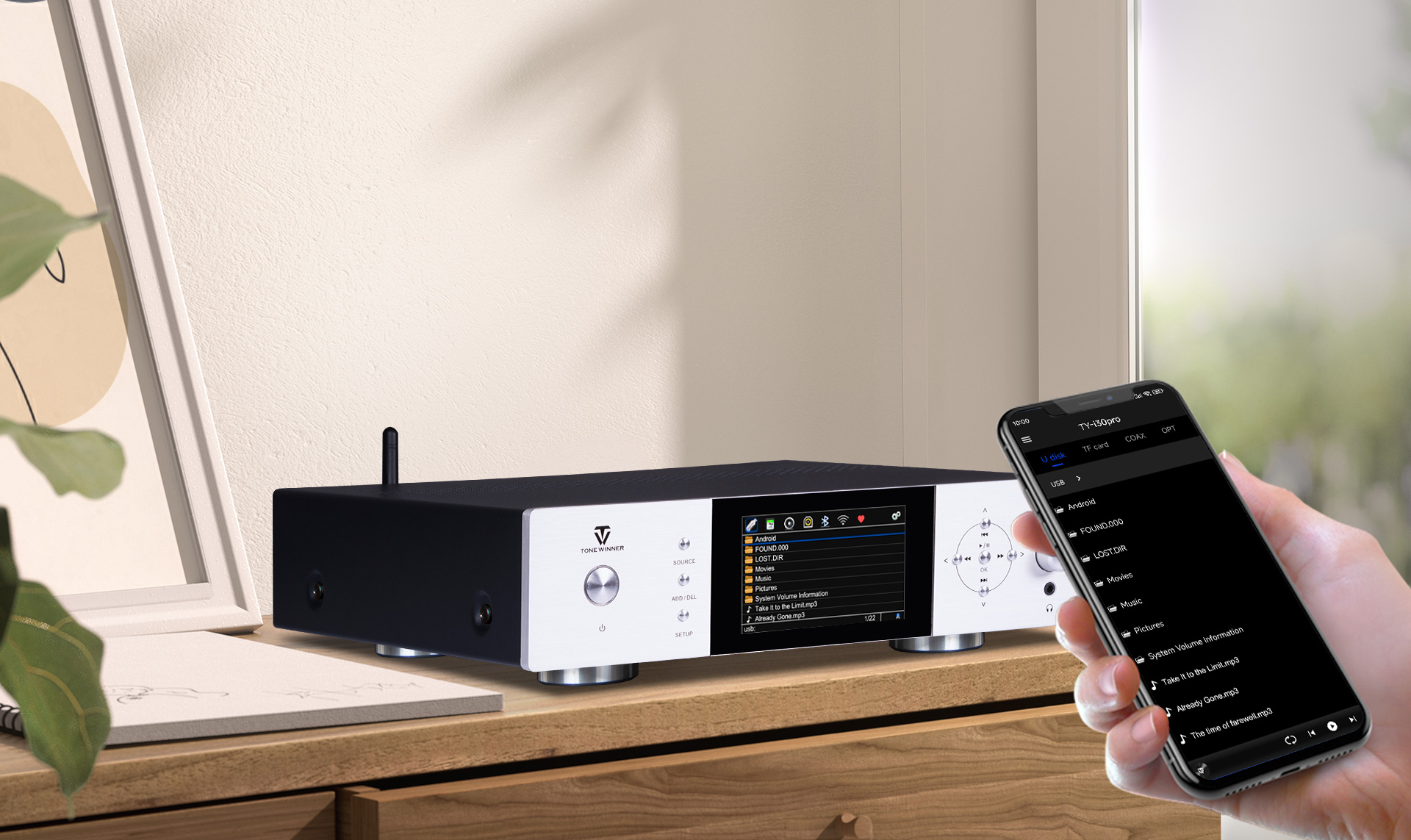

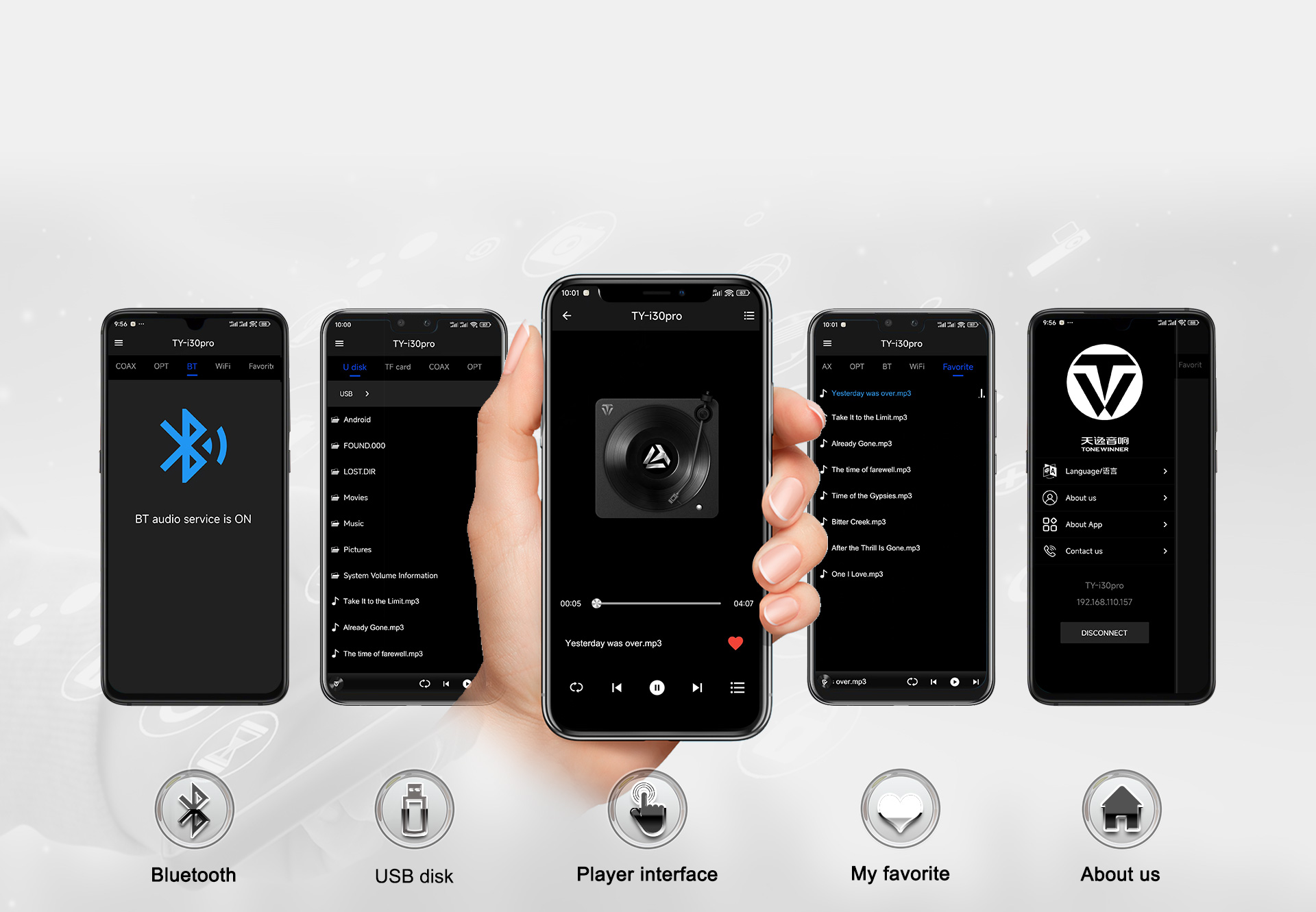

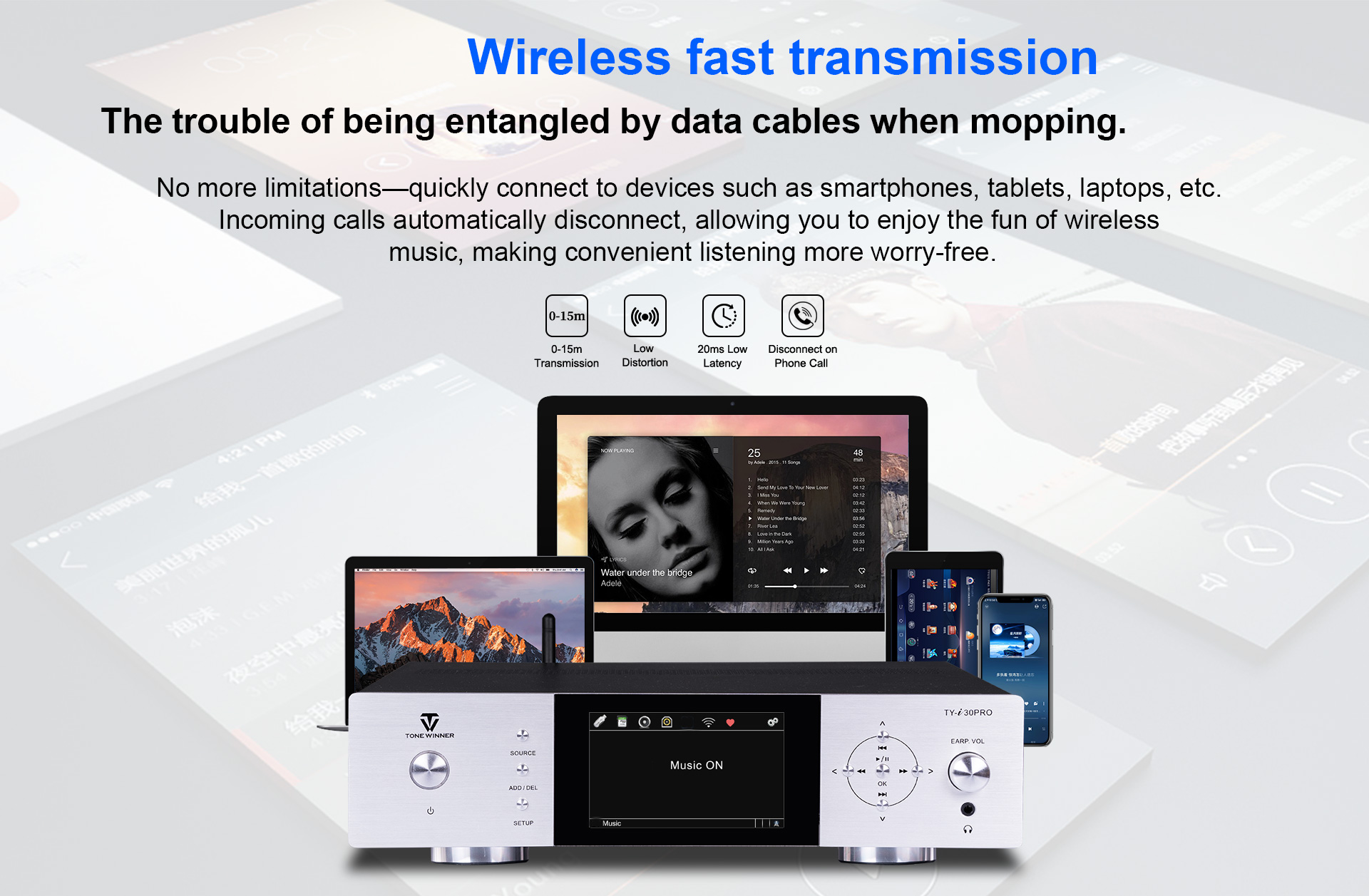

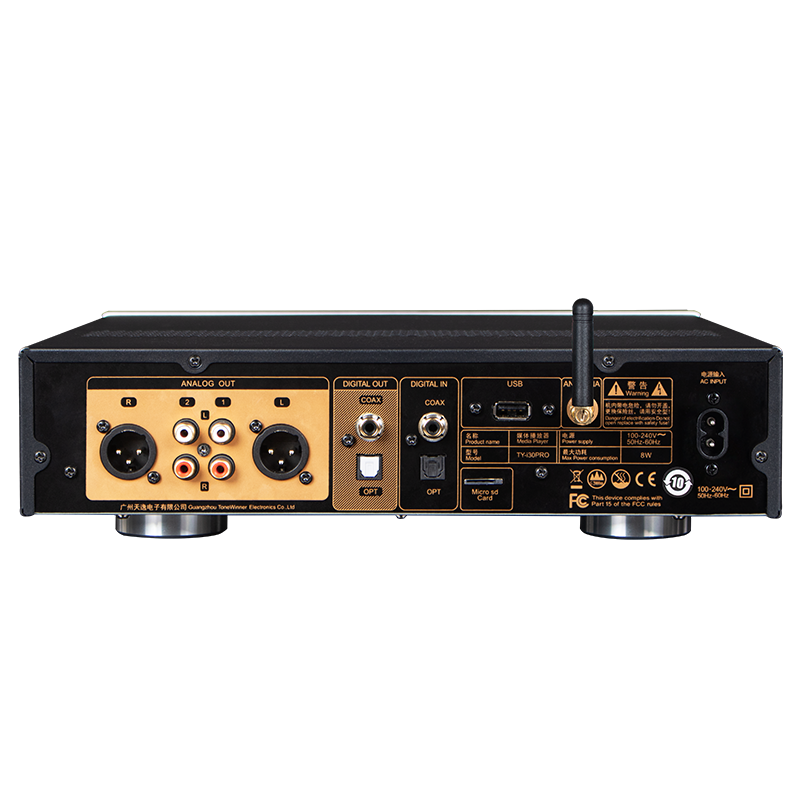

TY-i30PRO is a new multi-functional media player launched by ToneWinner. It can receive songs pushed by mobile phone, IPAD, notebook and other devices through DLNA, AIRPLAY or wireless connection. TY-i30PRO supports local playback of 2TB mobile hard disk, TF cards and USB flash drives, supports lossless music formats such as WAV/FLAC and APE, and has a front 3.5mm headphone jack, and supports optical, coaxial, 192kHz/24Bit PCM digital stream format input and output.

  • Model

    TY-i30PRO
  • G.W.

    3kg
  • THD

    ≤0.008%
  • SNR

    ≥102dB

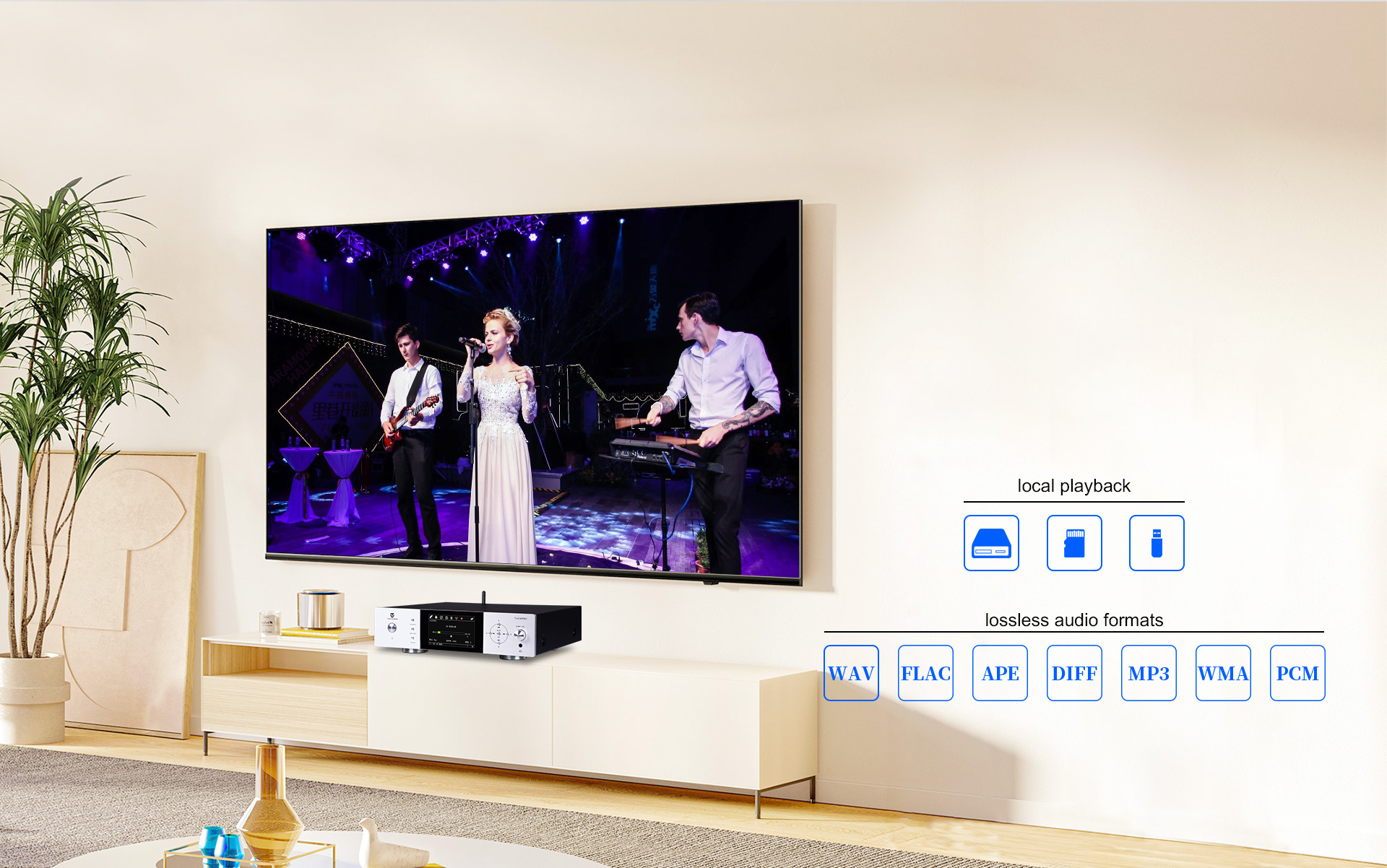

USB Drive / TF Card

Local lossless playback—CD quality sound

Supports 2TB HDD, USB drives and TF cards local play

Headphone Amplifier

Transforms into a Headphone Amplifier

Enjoy Music Late at Night Without Disturbing Neighbors.



Put on your headphones and easily dive into your personal music world.

With a front-facing 3.5mm headphone jack, just plug in and listen.







Dolby Atmos AV Receive

It's an amplifier, but it's a processor too.

Multiple functions, one device

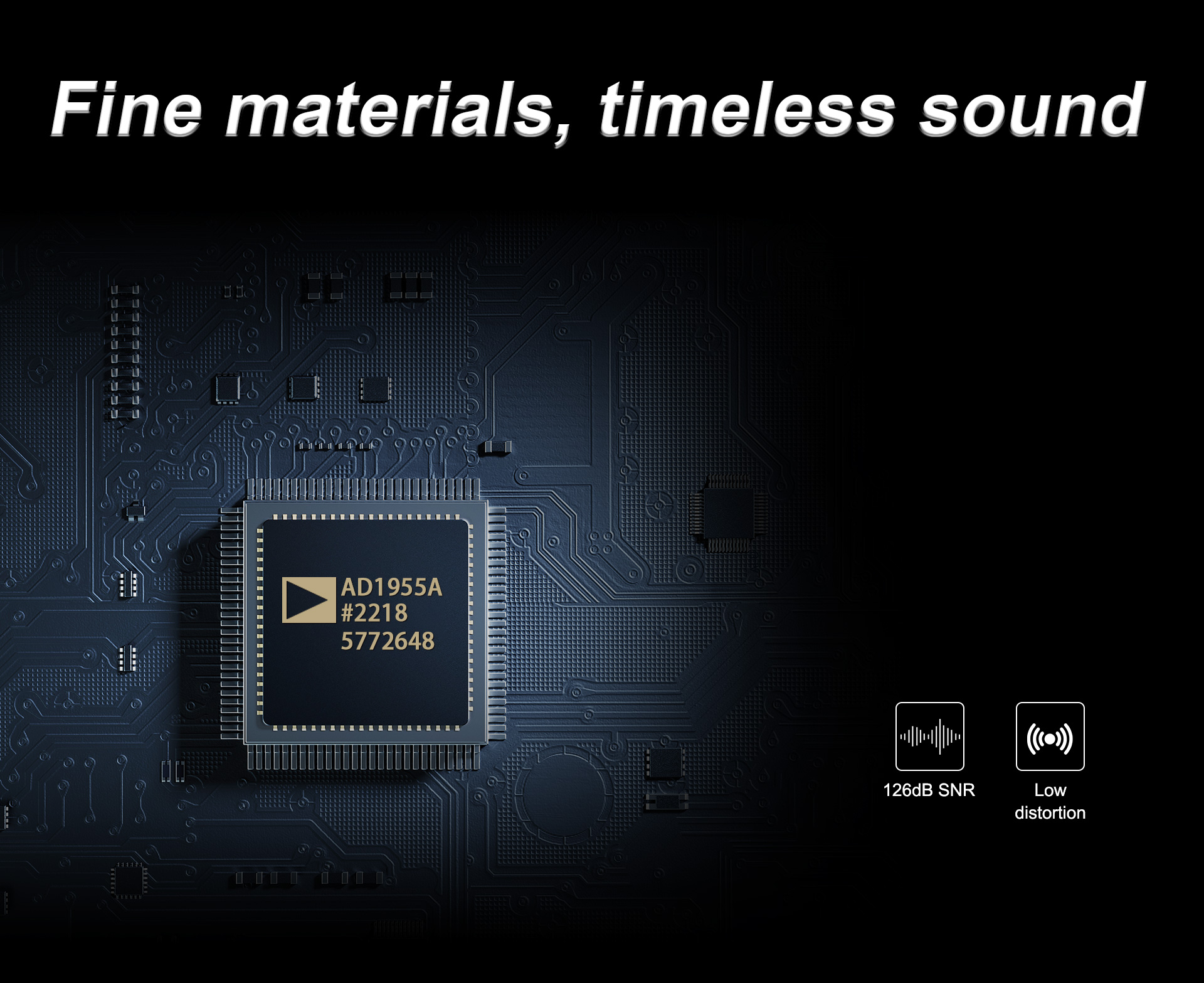

Classic Decoding AD1955

Utilizing the AD-1955 audio DAC chip from the audiophile community, it achieves an impressive dynamic range and signal-to-noise ratio of 126dB, with total harmonic distortion as low as -110dB. Additionally, it is compatible with 108 application products.

High-End Operational Amplifier OPA2134

Featuring the audiophile-grade operational amplifier OPA2134, this chipset is a widely adopted configuration in the preamplifier stage of audio decoders. Highly acclaimed by audiophiles, it delivers an exceptionally low total harmonic distortion (THD) of 0.008%.

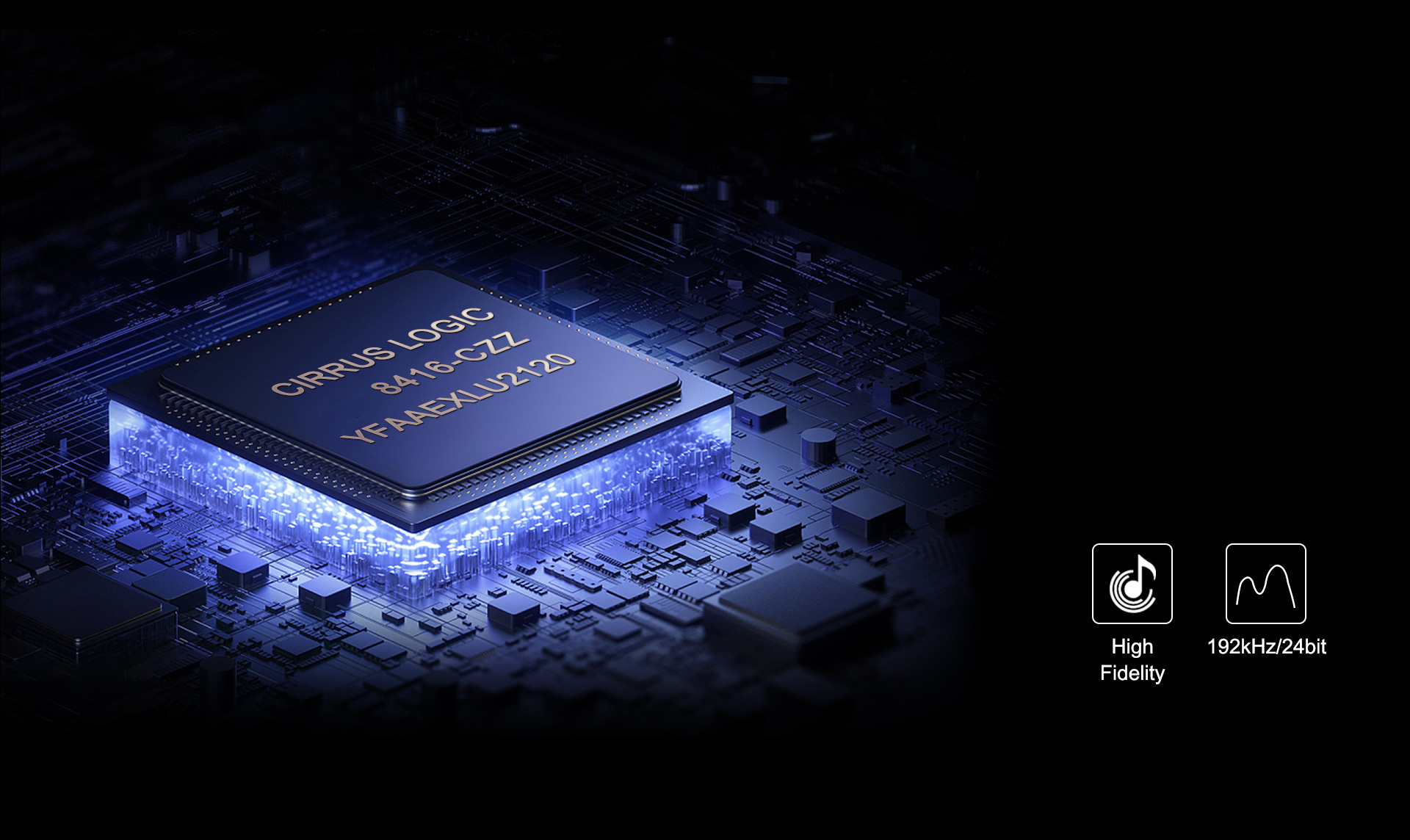

Digital audio receiving chip CS8416



The digital audio receiving chip uses the CS8416 chip, which supports 192kHz/24Bit audio digital stream input to retain more rich and beautiful music details and reproduce the music scene.









Global design

Bilingual manual in Chinese and English, barrier-free at home and abroad. Tonewinner patented power management technology, adaptive 100-240V wide voltage working environment.

32 Years of Artisan Heritage

Million-Level Precision Tuning

Across four oceans and five continents  Create a classic Chinese sound

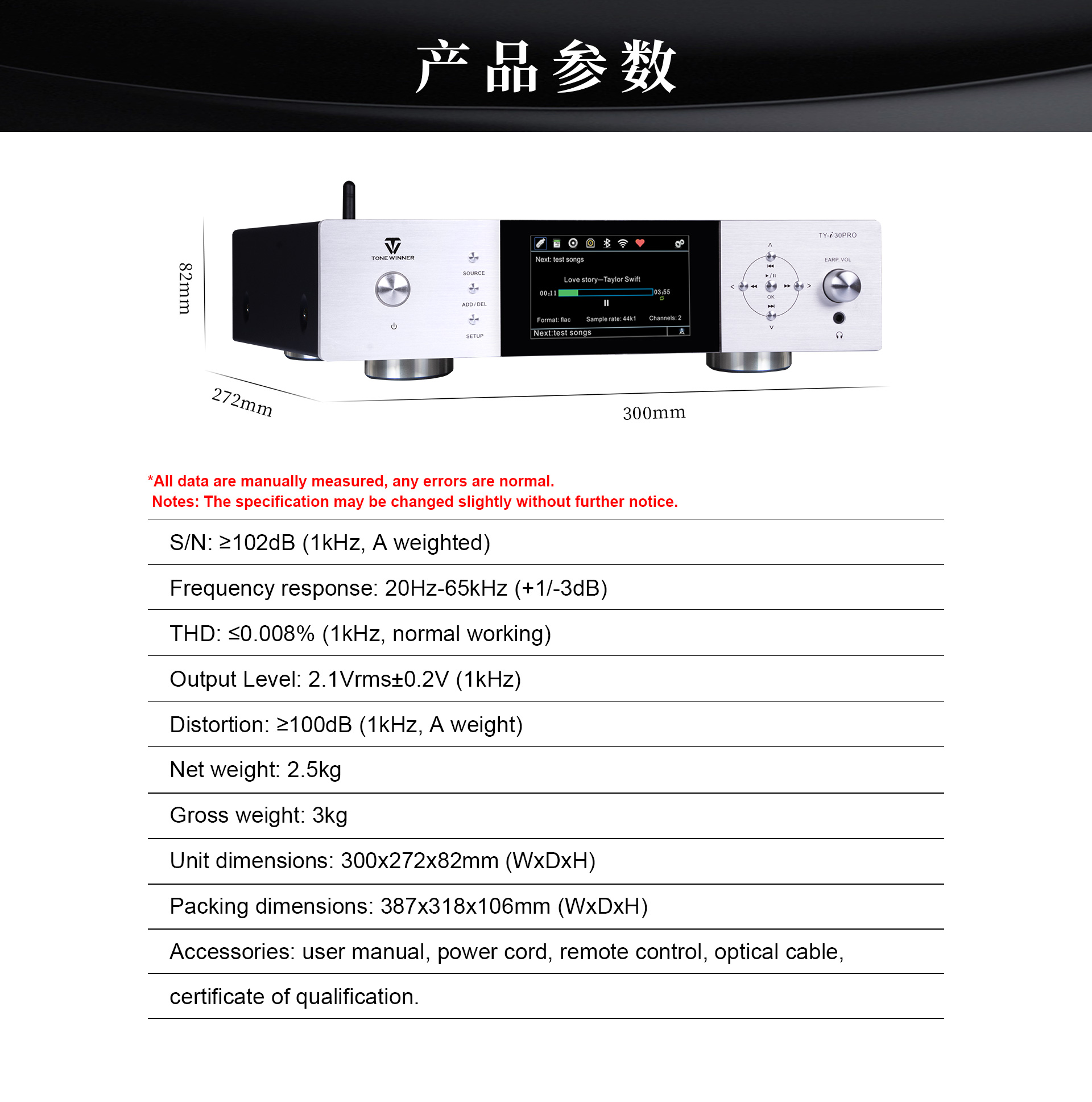

Model
TY-i30PRO THD
≤0.008%
SNR
≥102dB(A weight)
Material
Aluminum alloy
Frequency Range
20Hz~65KHz(+1/-3dB)
Whole Unit Consumption
8W
N.W.
2.5kg
Output Level
2.1Vrms±0.2V(1kHz)
G.W.
3kg
Package Size
387x318x106mm(W×D×H)
