SW-D6000
15 Inch DSP Powered Subwoofer
SW-D6000 is a 15 inch DSP powered subwoofer, with 800 watts RMS and over 3500 watts peak power to fill a room with strong and deep bass. It has built-in Bluetooth connectivity and supports Tonewinner subwoofer App to adjust the parameters including the gain, phase and listening mode. It has an XLR input, a RCA input and a subwoofer output. The solid MDF cabinet, LCD touch screen and wireless software upgrade lead you to a more convenient and pulse-racing bass experience.
Model
SW-D6000Power
800W (3Ω RMS)Driver
15"x1SW-D6000
15 Inch DSP Powered Subwoofer
15 Inch Subwoofer Driver
The driver is made by high quality cone, aluminum casting frame,
elastic surround and 75mm voice coil to deliver reliable,
massive and deep bass.
Dolby Atmos AV Receiver
Double Magnet
Dual magnet design brings stronger driving
for high performance bass.
Class D Amplifier 4000W Peak Power
The subwoofer supports up to 4000 watts peak power at 3 ohms with Class D efficiency.
Professional Circuit Protection
Professional DSP
The built-in DSP has perfect performance in low frequency
adjustment for intelligent bass appreciation.

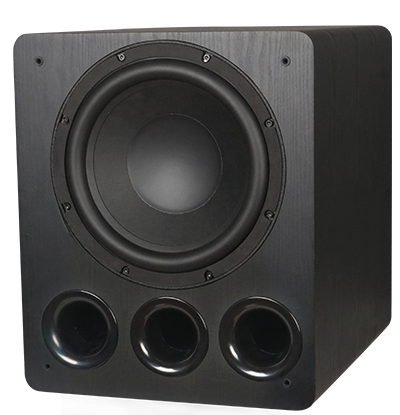

Triple Bass Reflex Ports
The three bass reflex ports on the front help to add more stunning bass to fill your room with immersive bass.
Dolby Atmos AV Receiver
Sealed Mode to Close Bass Reflex Ports
You can choose open mode or sealed mode to open or close the front bass reflex ports through App or touch screen.
MDF Cabinet
The MDF enclosure is sturdy for high power bass performance and suitable for most room designs.
Upside Down LCD Screen
Peak over from the top of subwoofer and look down to make adjustments on the screen.
Sensitive Touch Screen
The four touchable buttons on the screen will bring more convenient adjustments.
Four Frequency Modes
It supports four modes to meet different scenes, including deep, normal, strong and user modes.
7 bands Parametric EQ
It supports 7 bands parametric EQ adjustments
for more frequency adjustments.

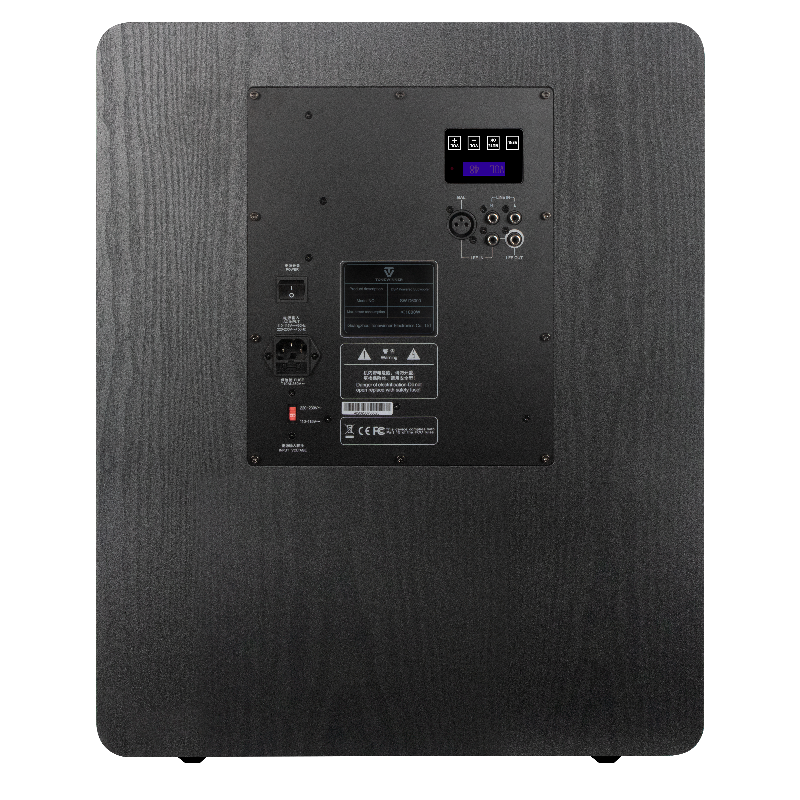

XLR RCA Input Output Jacks
It offers balance & unbalance input jacks and one subwoofer output jack to meet different possibilities.

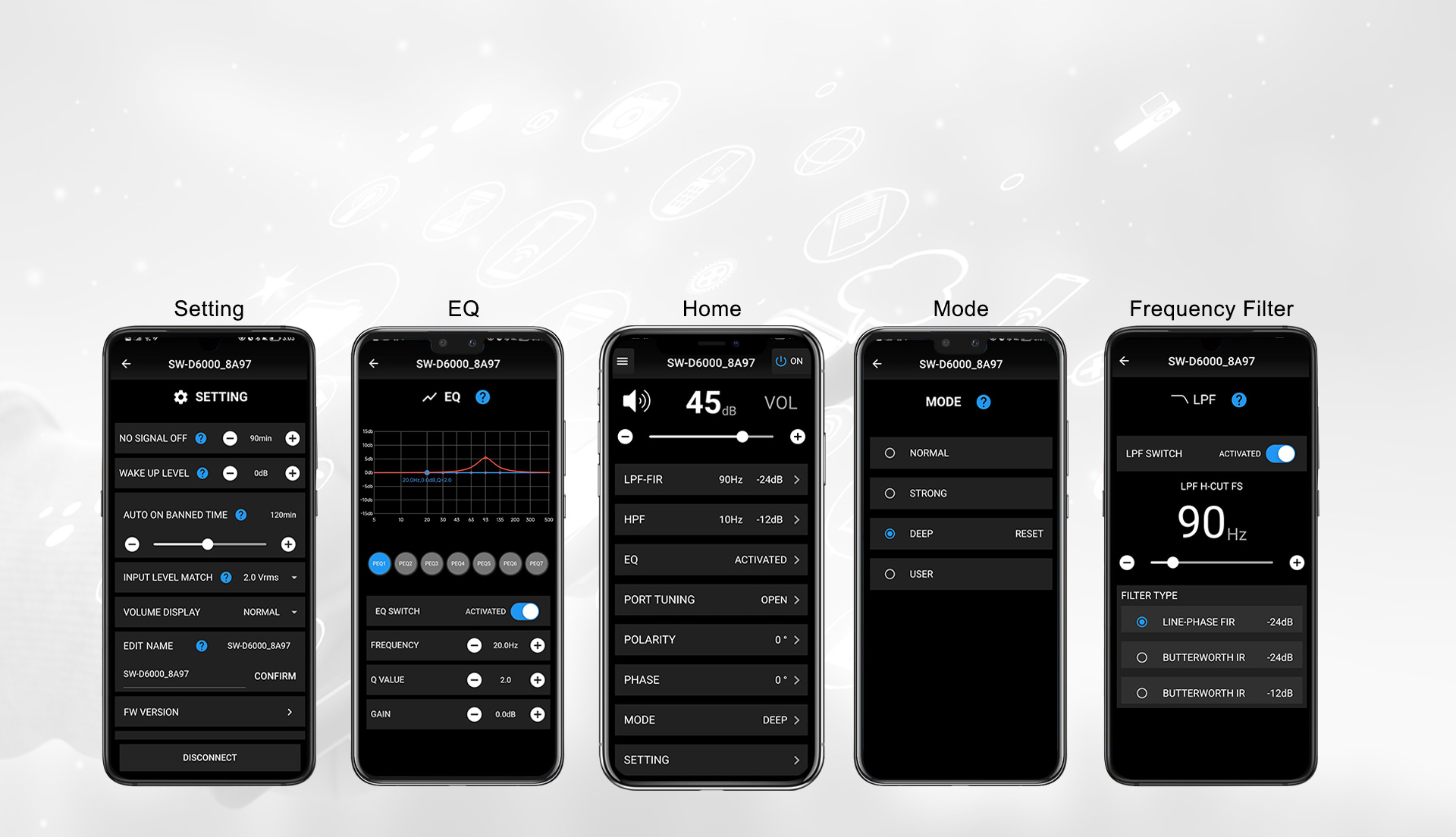

Mobile Phone App Control
Make adjustment and software update through Tonewinner subwoofer App and enjoy wireless convenience.
Power Supply Voltage
It suits AC 110-115V and 220-230V electricity grid to deliver bass to the global world.
| Model | SW-D6000 | Driver | 15''×1 |
| Amplifier output power | 800W | Rated impedance | 3Ω |
| Frequency range | 15-220 Hz | Peak power/ 3Ω | 4000W |
| N.W | 42kg/piece | G.W | 47kg/piece |
| Subwoofer dimensions | 480×598×628 mm (W×H×D) |
Package dimensions | 632×715×773mm (W×H×D) |
Features:
DSP digital processing, LCD display, touch buttons, App control, wireless upgrade, EQ adjustment, frequency range adjustment, 0°/180° phase switching, balanced input, automatic power saving without signal.
