 /Tonewinner new arrival high speed Hi-Fi circuit stereo amplifier
low distortion high speed Hi-Fi circuit.
low distortion high speed Hi-Fi circuit.
low distortion high speed Hi-Fi circuit.

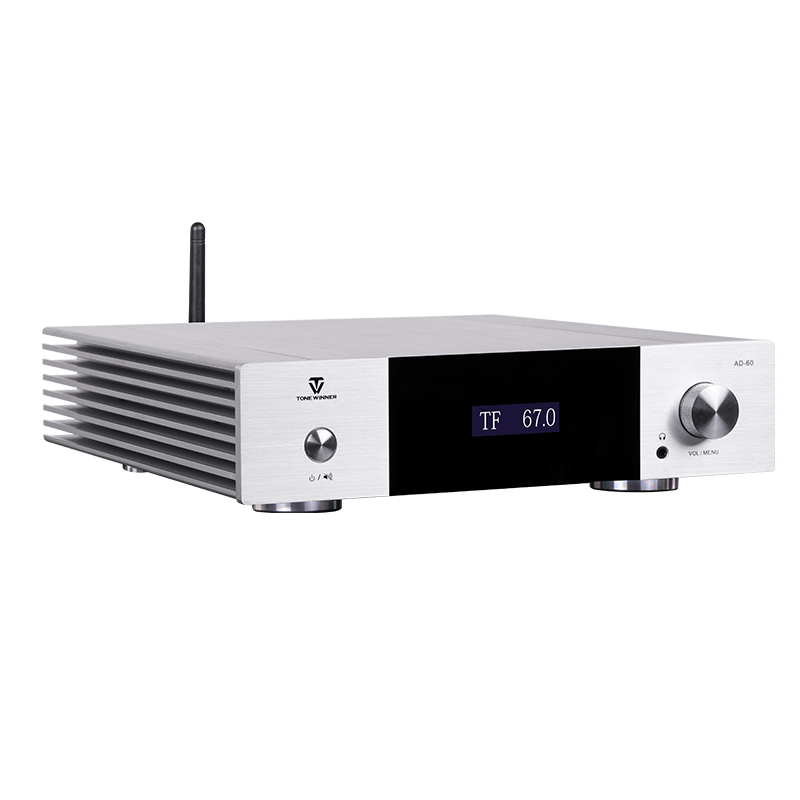

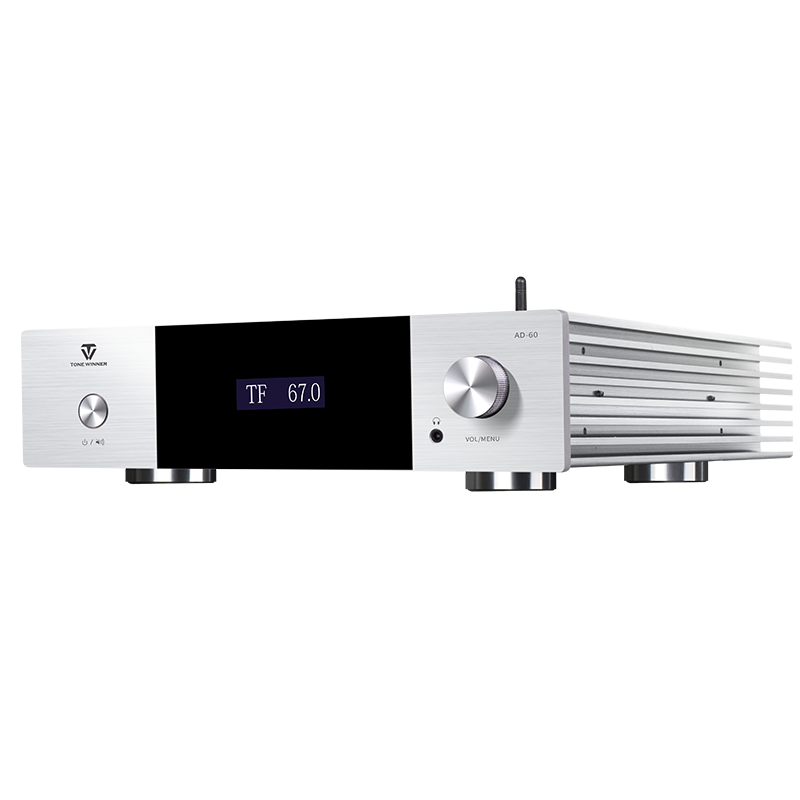

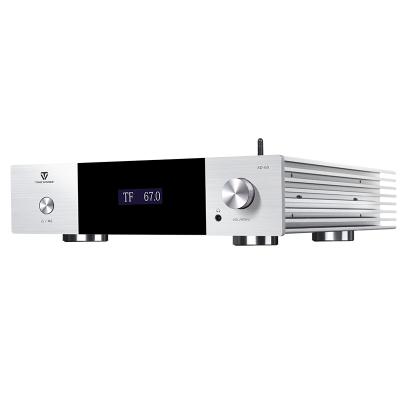

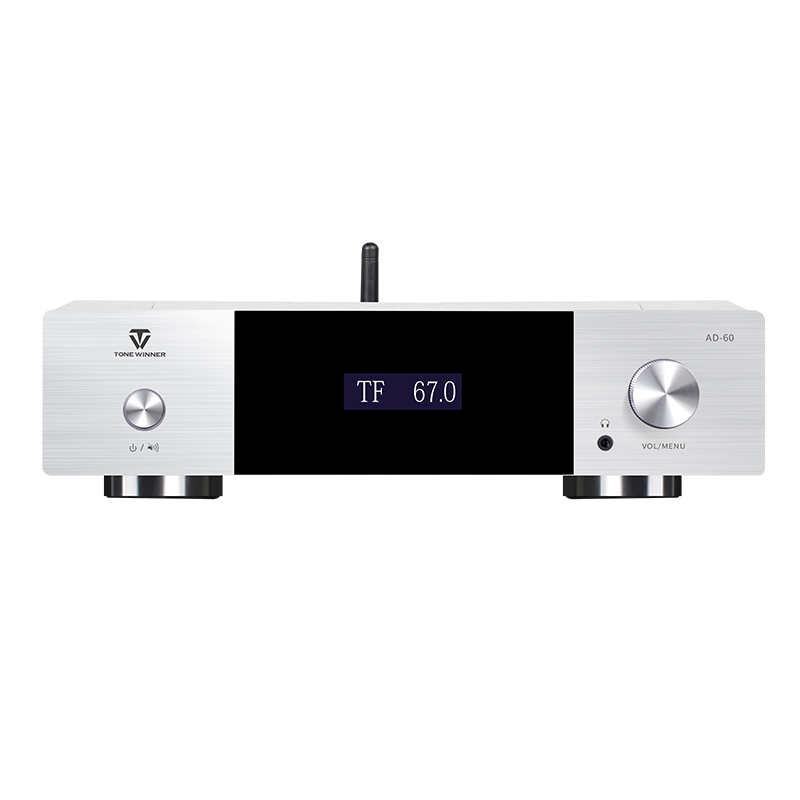

Tonewinner new arrival high speed Hi-Fi circuit stereo amplifier

AD-60 is a Class AB integrated power amplifier to support 2.1 system. It combines pre-amp decoding, power amplifier, digital playing, and earphone amp, to support Bluetooth 5.0, USB stick, TF card, smart phone App control, and digital inputs including optical, coaxial and PC USB-Audio. It’s originally designed and made of quality materials and components to reveal analytical sound. It’s a fashionable and cost-effective power amplifier for your high fidelity sound entertainment.

  • Model

    AD-60

  • Power

    50W (8Ω RMS)

  • G.W.

    6.7kg

  • THD

    ≤0.025%

  • SNR

    ≥100dB
Inquire now

AD-60

Class AB Hi-Fi Amplifier

High Quality for High Fidelity

Bluetooth 5.0

via ATS2835 BT Audio SoC

Smart Phone App & Remote Control

HDMI ARC

Connect your TV to enjoy more audio video entertainment

Build 2.1 Mini Home Cinema

Connect the amp to a TV that supports ARC via HDMI cable or optical, coaxial & analog inputs and add a powered subwoofer to get a joyful 2.1 home cinema.

Copper Toroidal Transformer

100W high quality transformer to bring amp power

High Quality Components

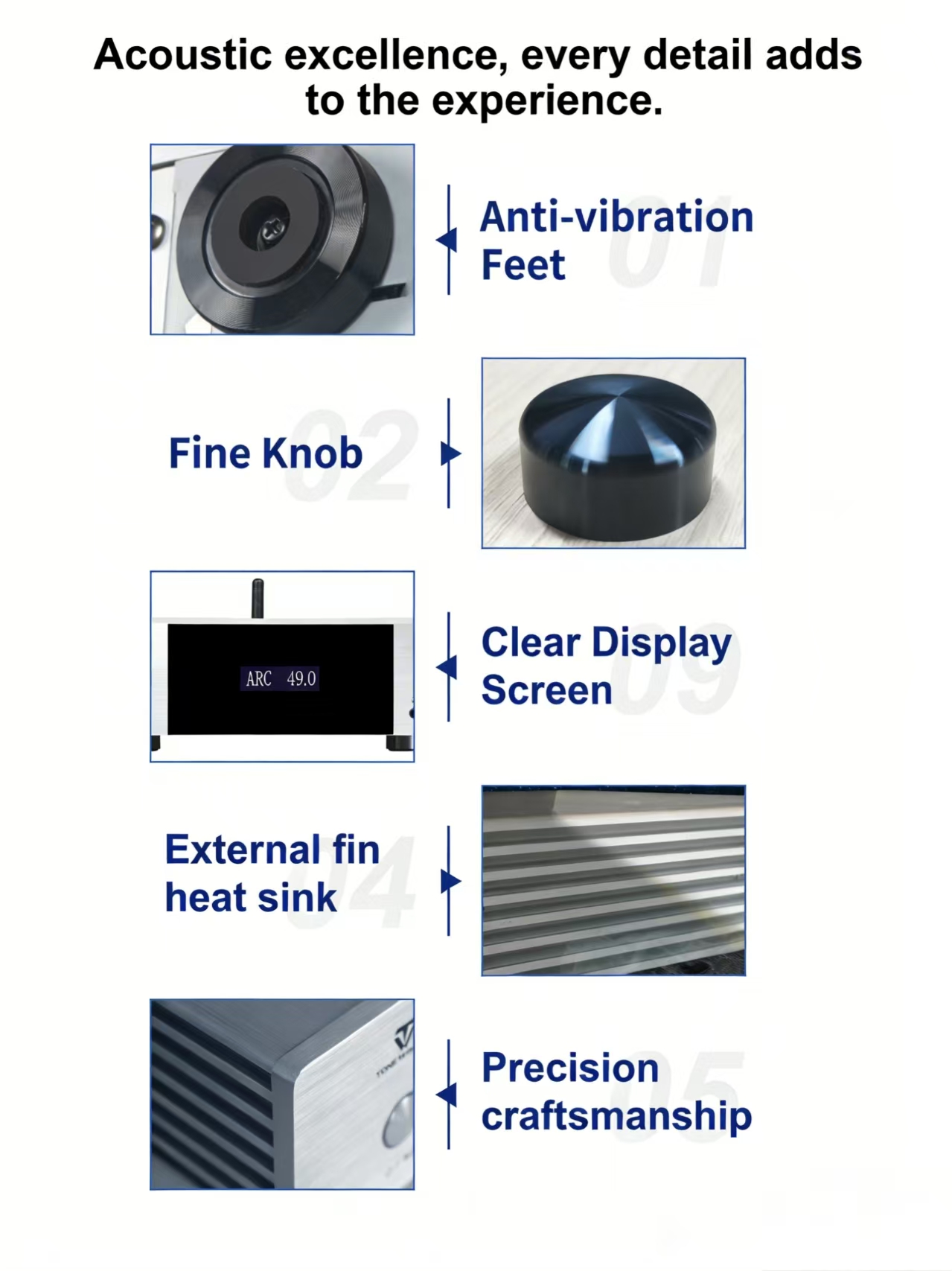

Comb Shape Heat Sink

Aluminium heat sink on both sides are best choice for Hi-Fi audiophiles.

Fashionable & Modern Design



The aluminum alloy cabinet is in classical silver black or all black color with anodized design to keep the surface polished and bright for long-term appreciation.

More Details

Recommended Configuration











Model AD-60 THD ≤0.025%(1KHz, nomal working )

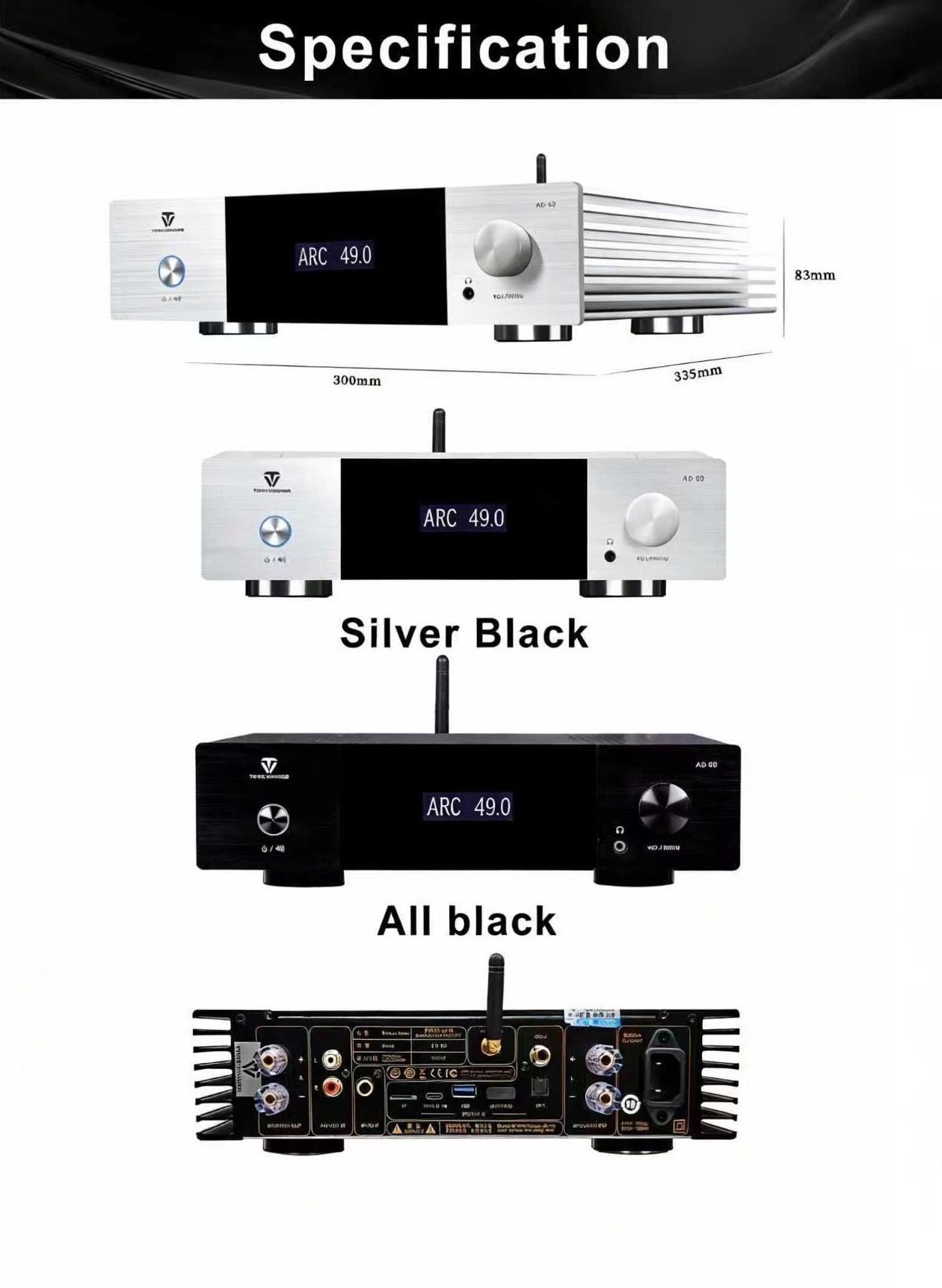

Unit dimensions 300x335x83mm(WxDxH) Packing dimensions 390x386x131mm(WxDxH)
S/N
≥100dB/ A weighted
 Net weight 5.5kg
Frequency response

20Hz-100kHz (+1/-3dB)

Gross weight

 6.7kg
Standby power consumption ＜ 0.5W Rate impedance 8 ohm
Max power consumption ＜300W Output power

50W/8 Q(1 channel driven, 1kHz, THD=1%)

80W/4 Q(1 channel driven, 1kHz, THD=1%)





Overviewof Functions

          • Support TF card or USB disk local play, support Bluetooth 5.0.
          • Supports PC USB audio input, can be used as an external sound card for computers.
          • Supports WAV, FLAC, and APE lossless formats, and MP3 compressed audio formats.

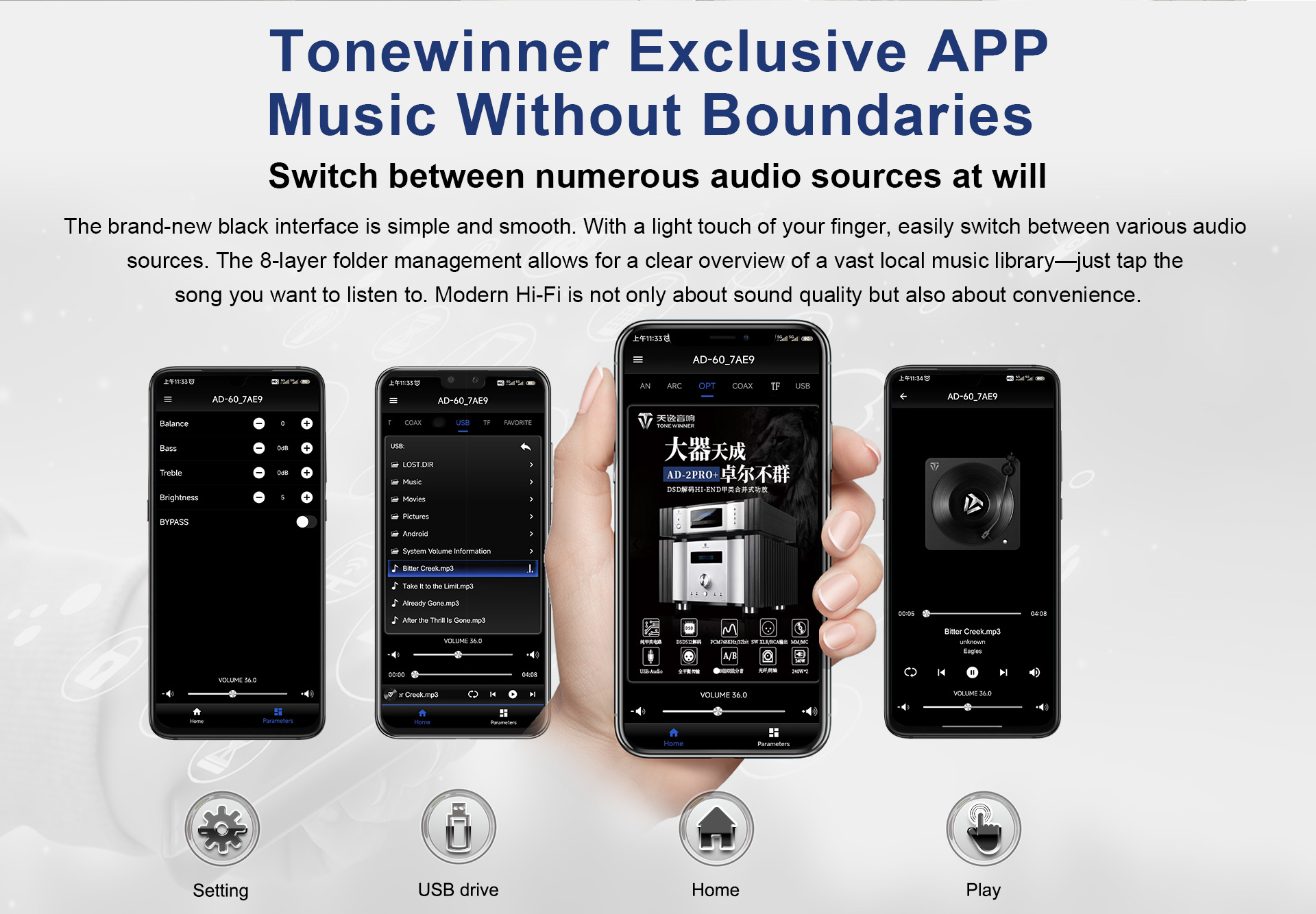

          • Supports all-function operations on Android and lOS Apps.
          • Low distortion high speed Hi-Fi circuit.
          • Large toroidal transformer, large capacity filter capacitor, energy is abundant.
          • Hi-Fi audiophile circuit.
          • Power amplifiers use high-power high-frequency Hi-Fi tubesLCD screen with 5 levels of brightness adjustable; Acryliclens; microcomputer intelligentoperating system,aluminum panel.
          • Supports remote control.

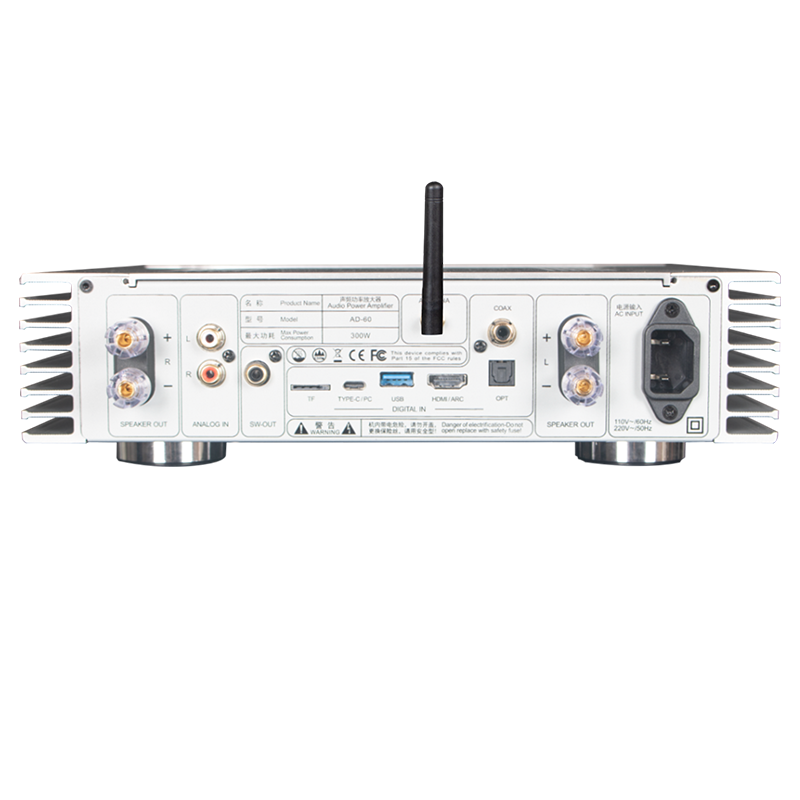

          • Inputs: 1x coaxial, 1x optical digital (all support 24bit/192KHz), 1xTF card input,1xTYPE-C/PC input, 1xUSB disk input, and 1x HDMI/ARC input.Adopt famous electronic volume chip, multi-functional volume knob, imported well knowncoupling capacitor, filter capacitor.
          • High-grade gold-plated input socket; High-end copper output terminal.

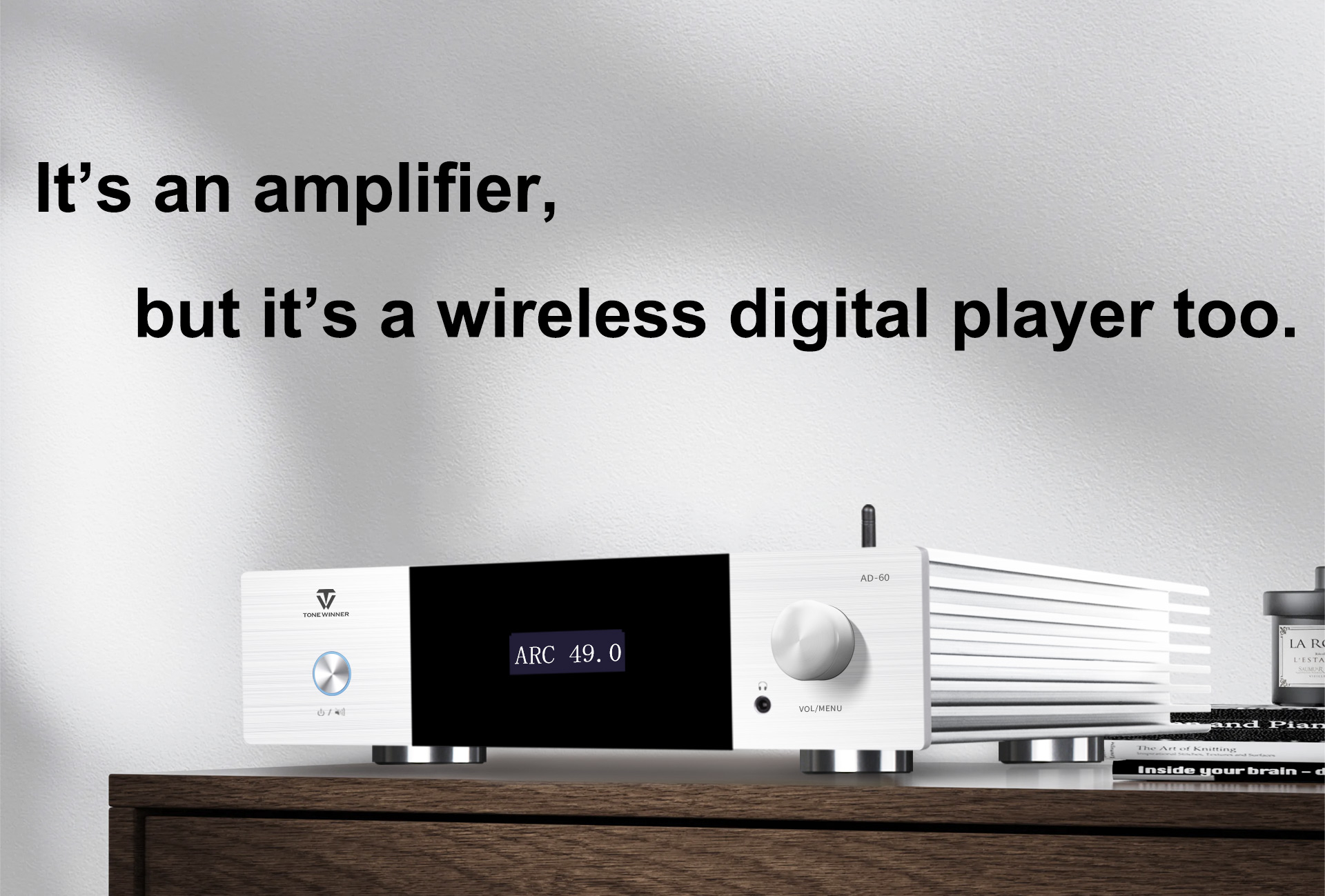

          • Built-in high-quality digital player.
          • eDual power management system.
          • 115V~/60Hz and 230V~/50Hz power supply auto-adaptation function.
          • CE/FCC certified.
          • Supports high-fidelity headphone amp.
