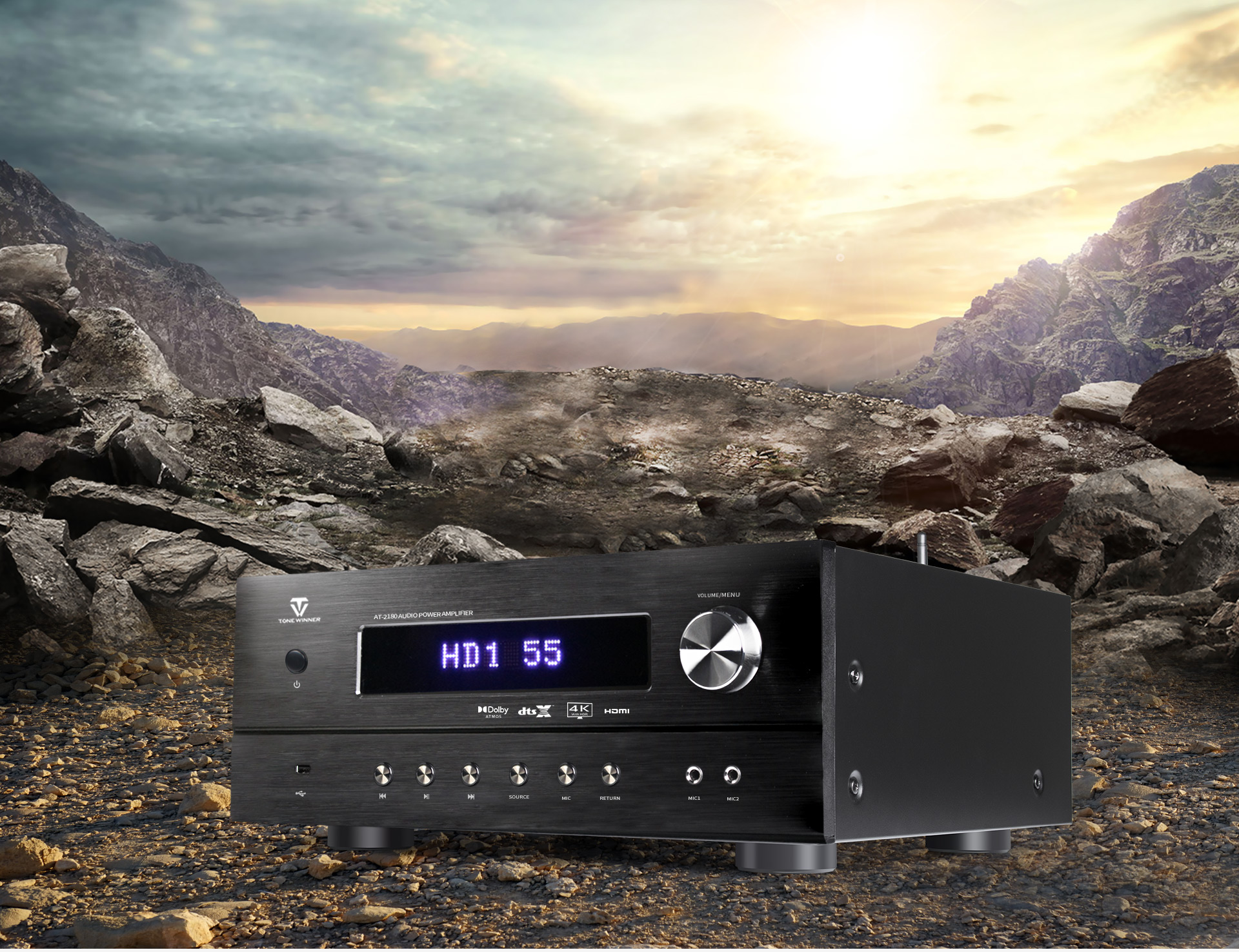

Tonewinner AT-2180 AV theater receiver amp

AT-2180 is a professional 7 channels home theater AV processor that supports the latest immersive audio formats, including Dolby Atmos, DTS:X and smart phone apps control. It is with an abundant of input and output ports.

  • Model

    AT-2180
  • Channels

    7
  • Power

    130W
  • G.W.

    14.5kg

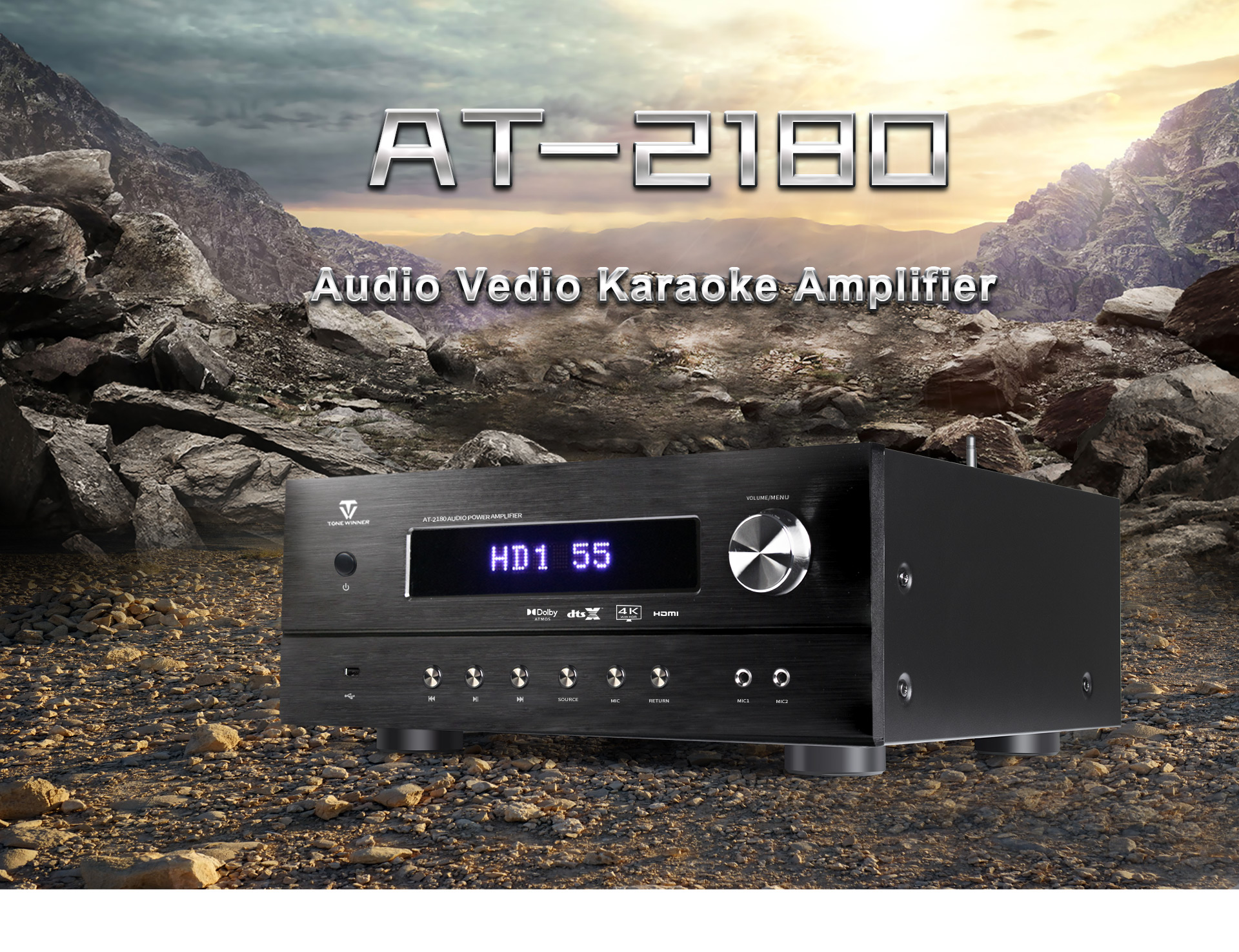

AT-2180

Audio Vedio Karaoke Amplifier

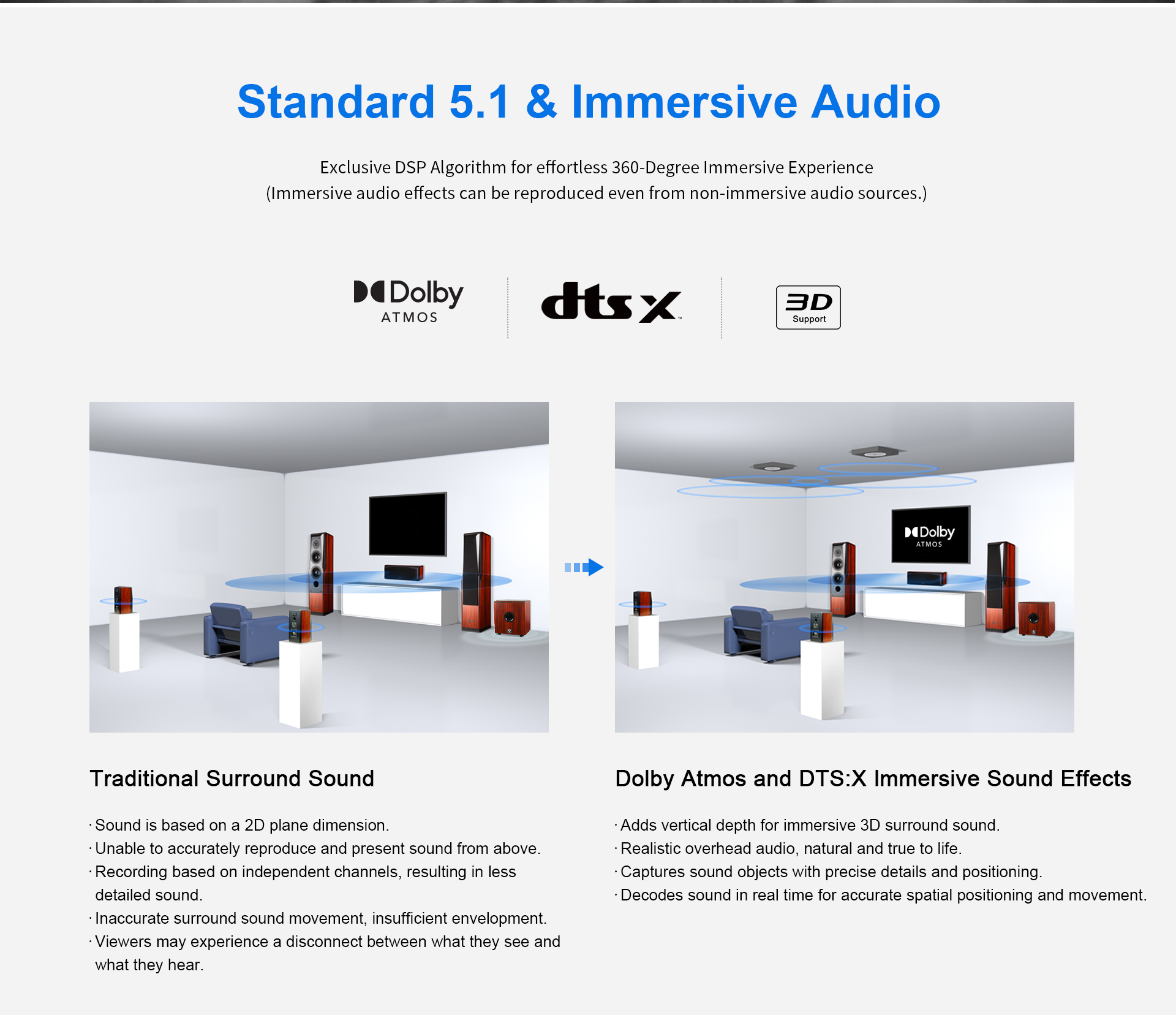

Dolby Atmos and DTS:X Dual Decoding

The 7.3.4-channel (14 channels in total) Atoms audio decoding line output allows it to function independently as a pre-amplifier decoder. It can connect to dedicated power amplifiers and 3 subwoofers, enabling the creation of a more immersive audio system.



HDR Ultra Color Vision

Compatible with HLG, HDR10, and Dolby Vision technologies,it showcases clear details in both light and dark areas, transforming your viewing experience in cinemas and TVs with breathtaking brightness, contrast, and color.

4K ultra-clear imaging

Image contrast and brightness are significantly improved, better release the potential of sound quality and image quality in movies and games.

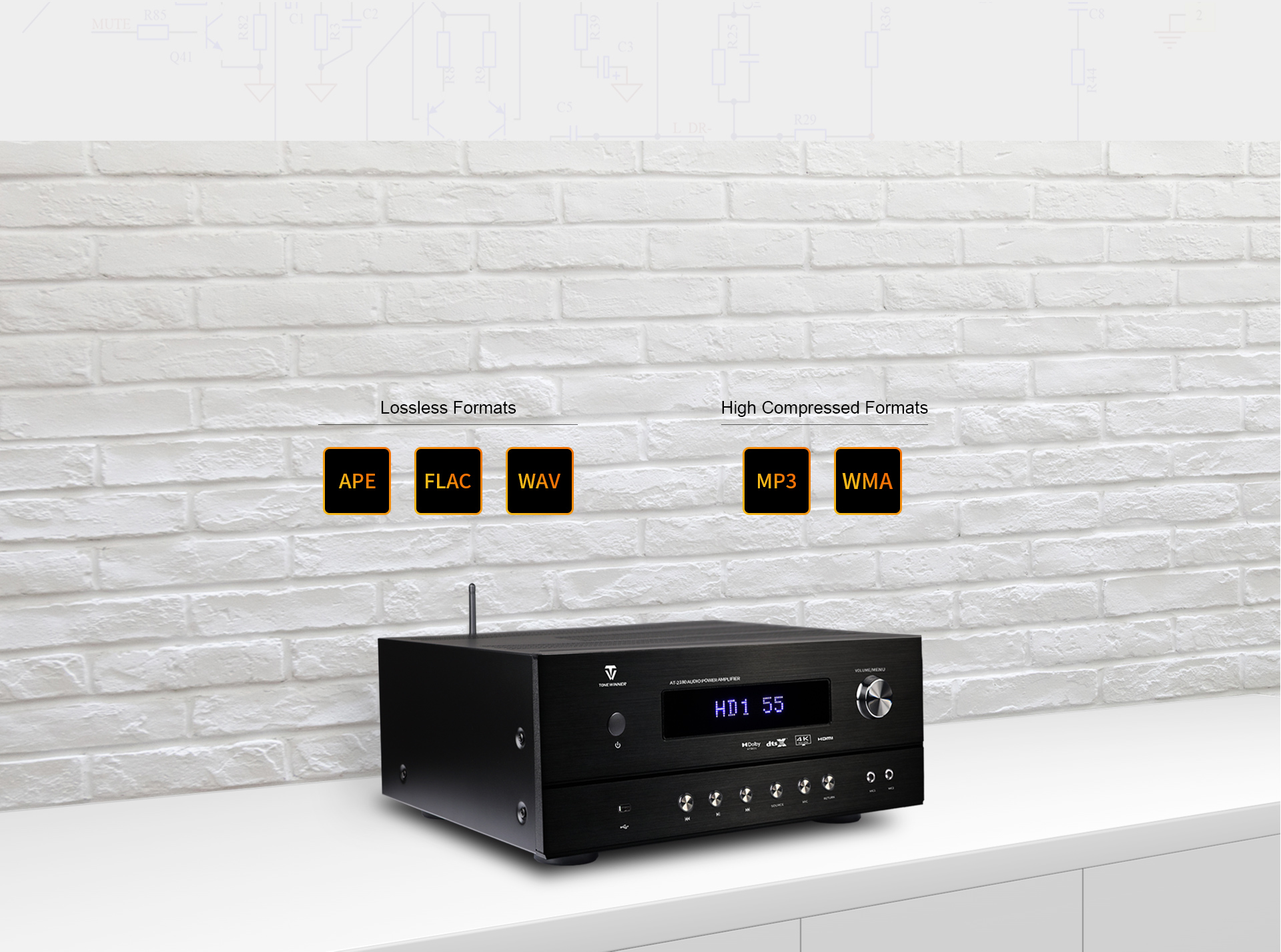

Local Music Playback

Enjoy the Unique Quality of Lossless Audio



Supports local playback from 128GB USB drives and TF cards, compatible with mainstream lossless music formats such as APE, FLAC, and WAV, as well as compressed music formats like MP3 and WMA, restoring the true beauty of music.

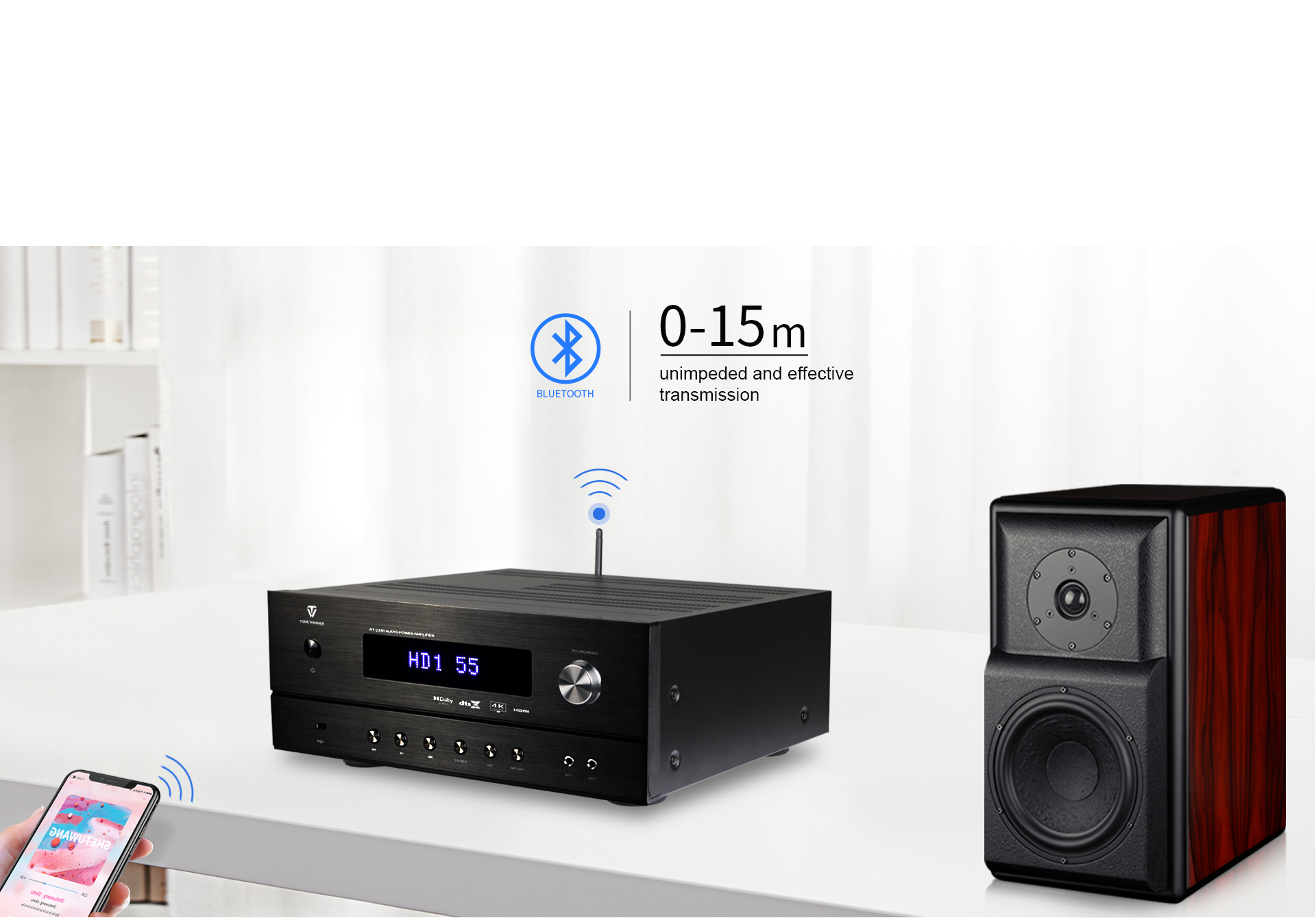

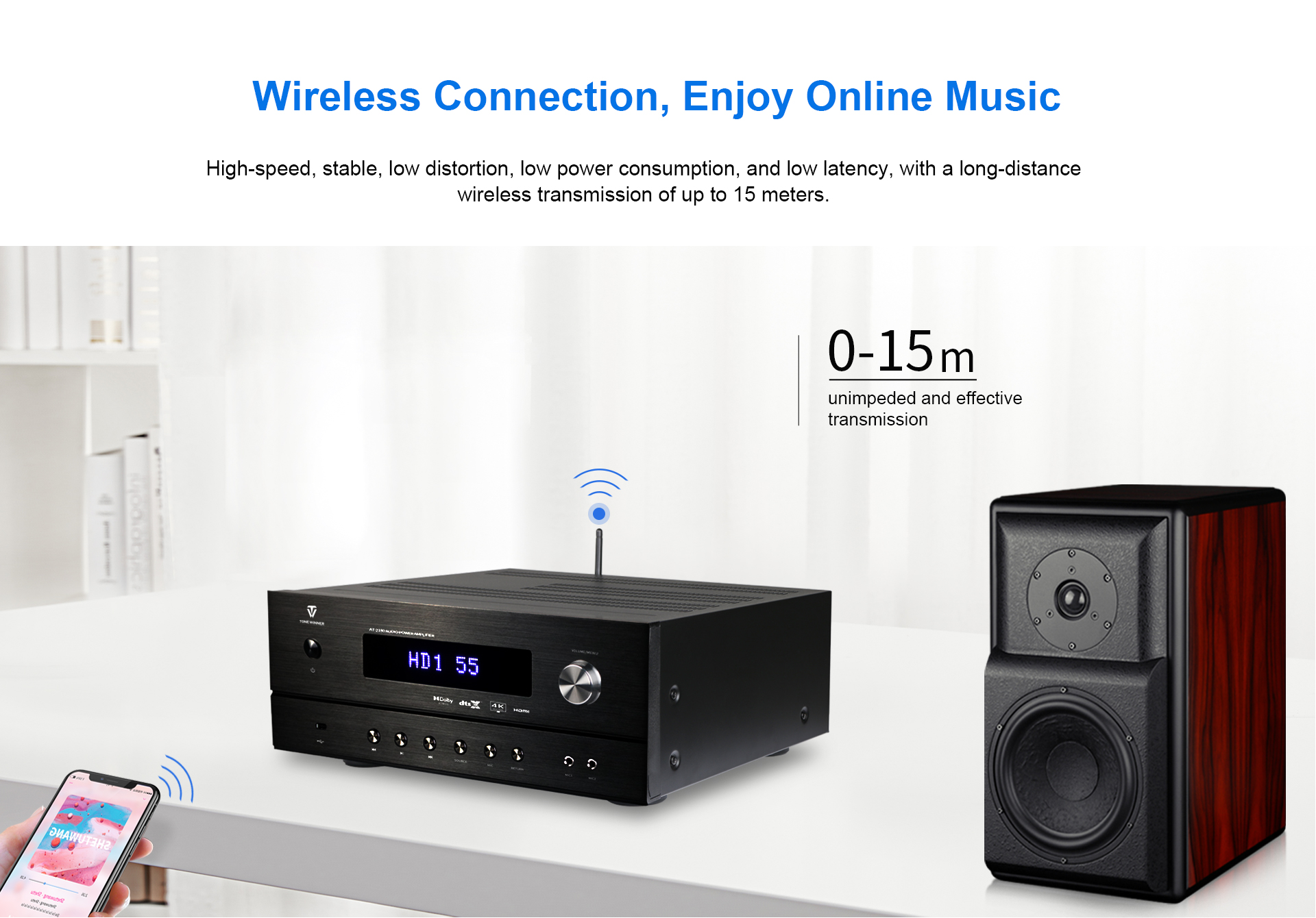

Wireless Bluetooth, Enjoy Online Music

High-speed, stable, low distortion, low power consumption, and low latency, with a long-distance wireless transmission of up to 15 meters.

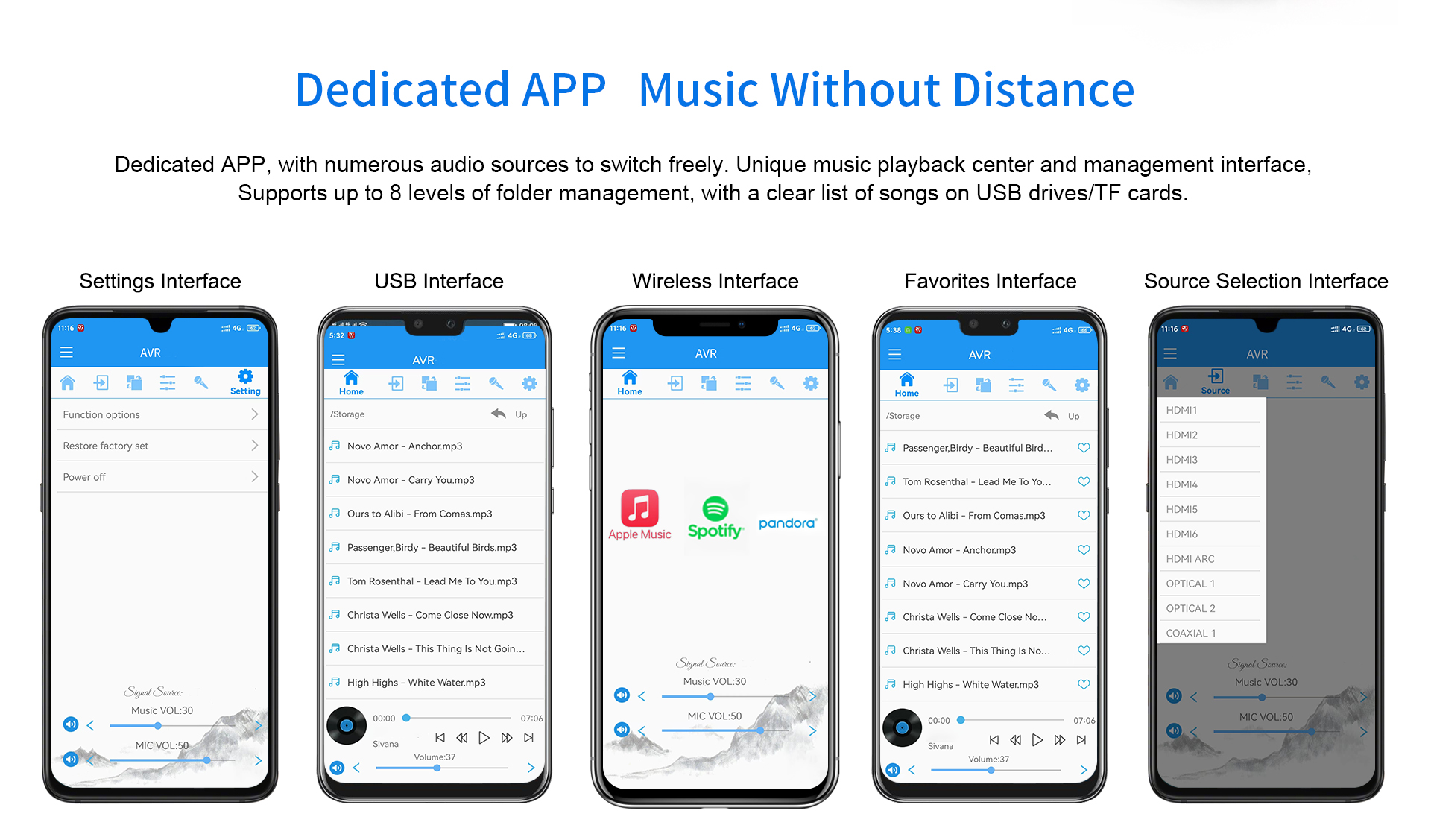

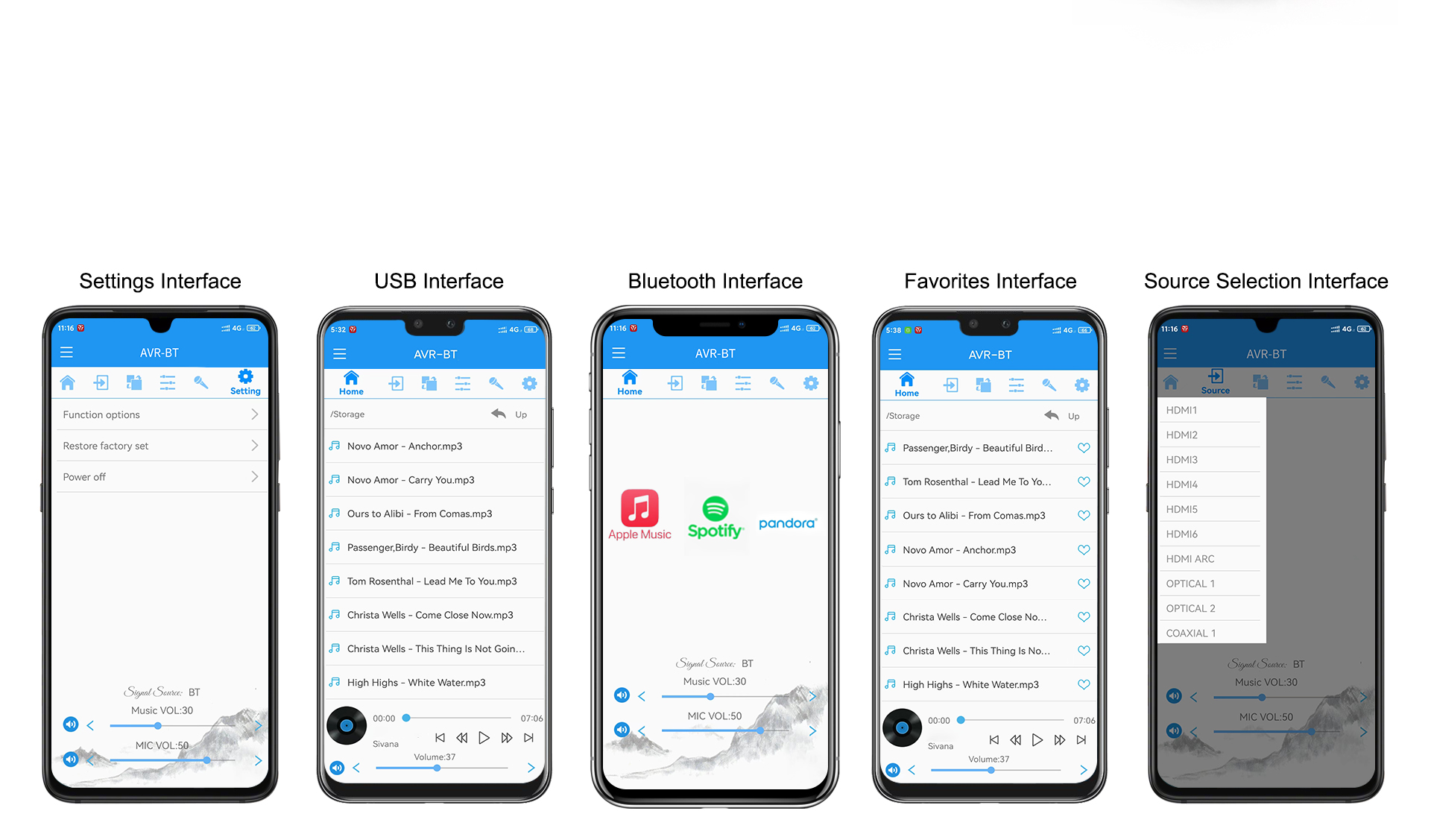

Dedicated APP   Music Without Distance

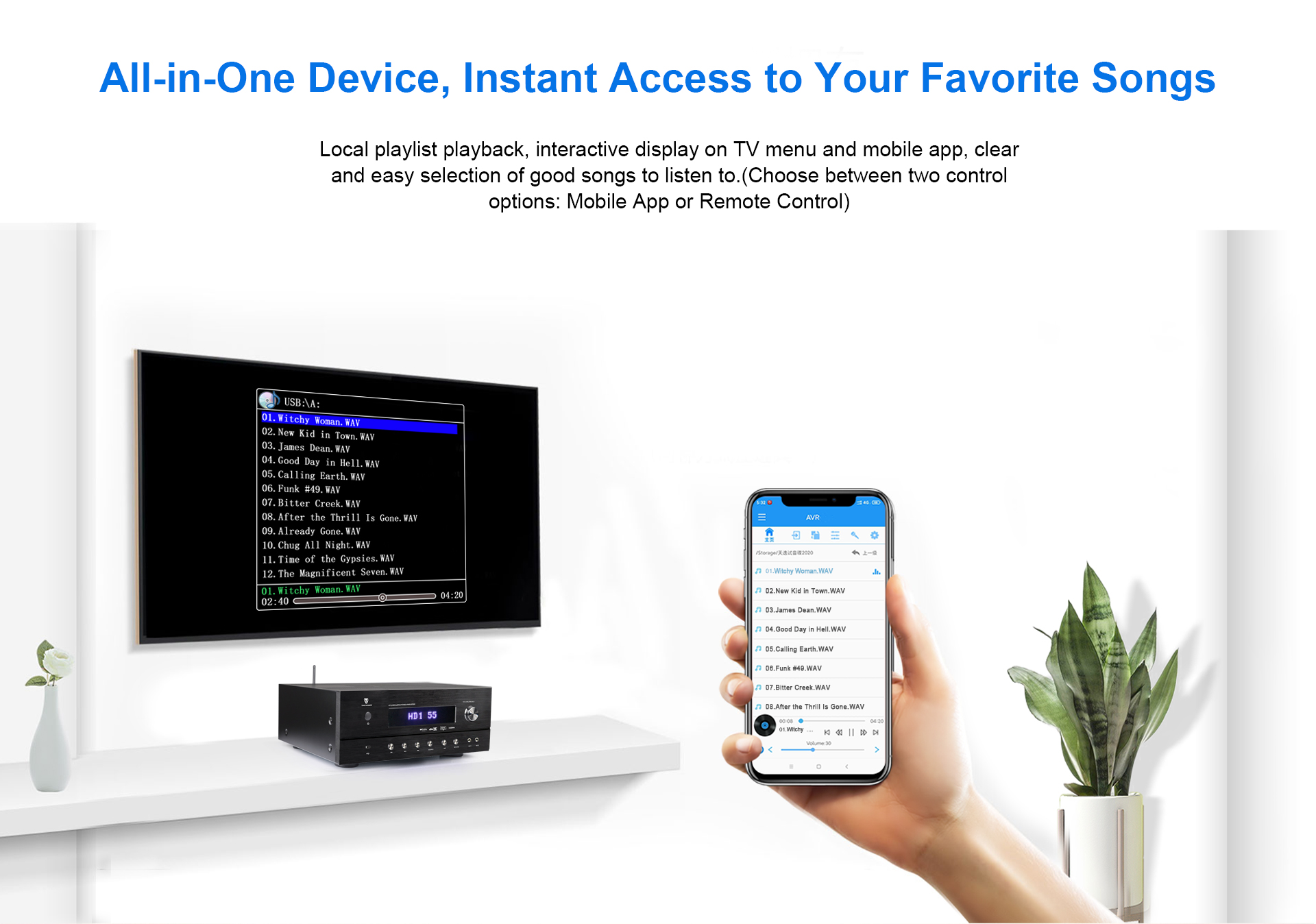

All-in-One Device

Instant Access to Your Favorite Songs

(Choose between two control options: Mobile App or Remote Control)

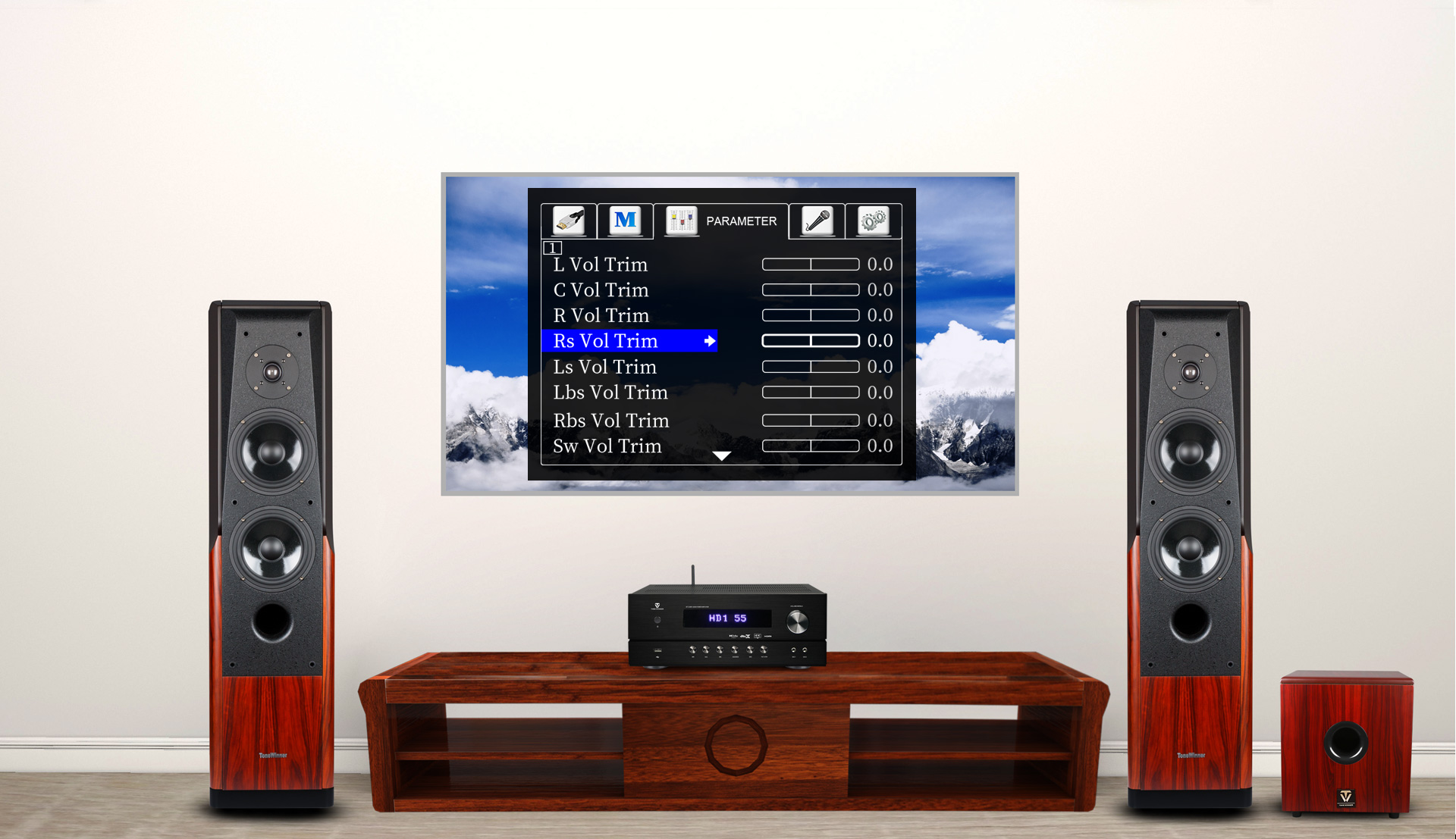

Full English OSD Menu  Convenient Operation

The OSD menu, entirely in English, makes your operation more intuitive and convenient. Various settings are clear at a glance, allowing you to get started quickly with well-coordinated and thoughtful features.

Optical, Coaxial, and USB Audio Digital Inputs

 Experience the Power of Multichannel Music.



Supports multi-channel music formats like DTS 5.1, authentically recreating the recording environment of large symphonies, creating a realistic and natural stereo sound field.

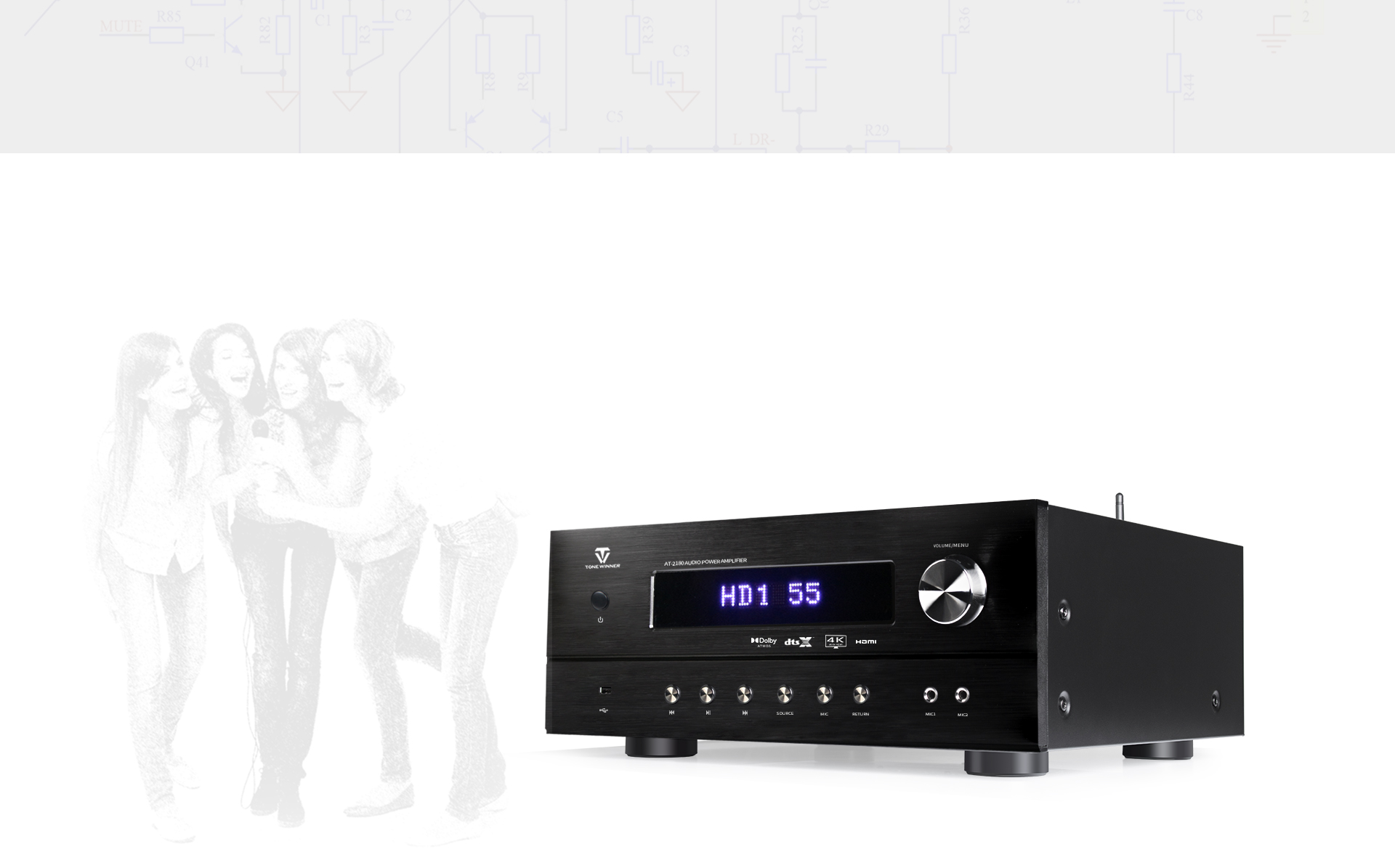

5.1.2 Professional Digital Karaoke





Pre-set with various professional karaoke sound effects, an all-encompassing three-dimensional music space, allowing you to experience the joy of a personal concert in minutes.

Nine-level Anti-Feedback Function

Built-in efficient feedback suppression module, automatic feedback suppression algorithm, and function effectively prevent sharp noise in various settings.

Professional DSP Reverb Processing Technology



Built-in multi-tap DSP reverb processor,

Intelligent reverb, multi-level tuning, etc.,

Professional DSP karaoke algorithm,

Providing strong and reliable support for great sound.

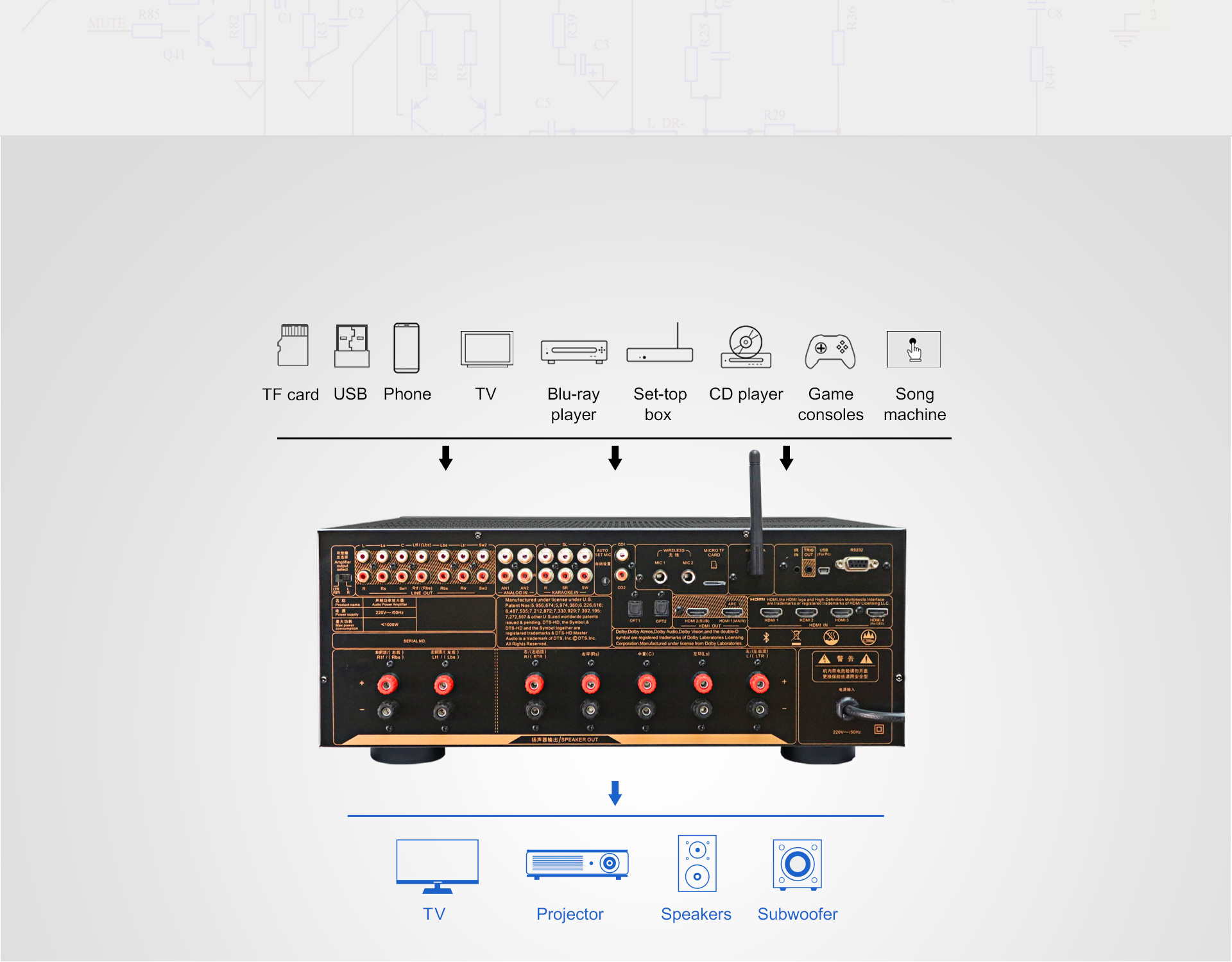

Comprehensive Solutions

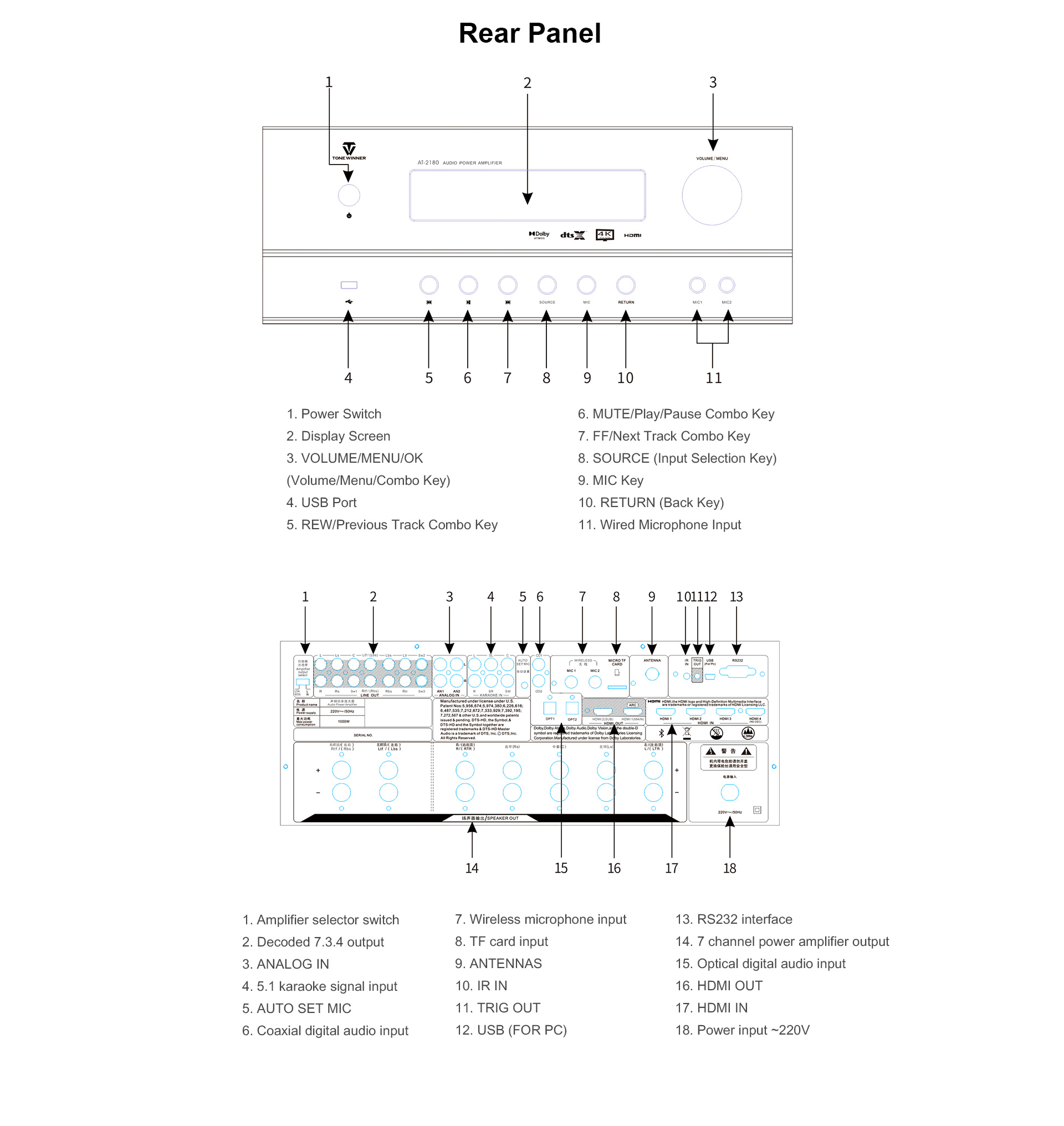

HDMI 4-in 2-out, supports ARC, optical/coaxial digital inputs, USB drive/TF card/PC audio inputs, Bluetooth lossless transmission, 5V trigger output, IR input, and RS232 standard control port.

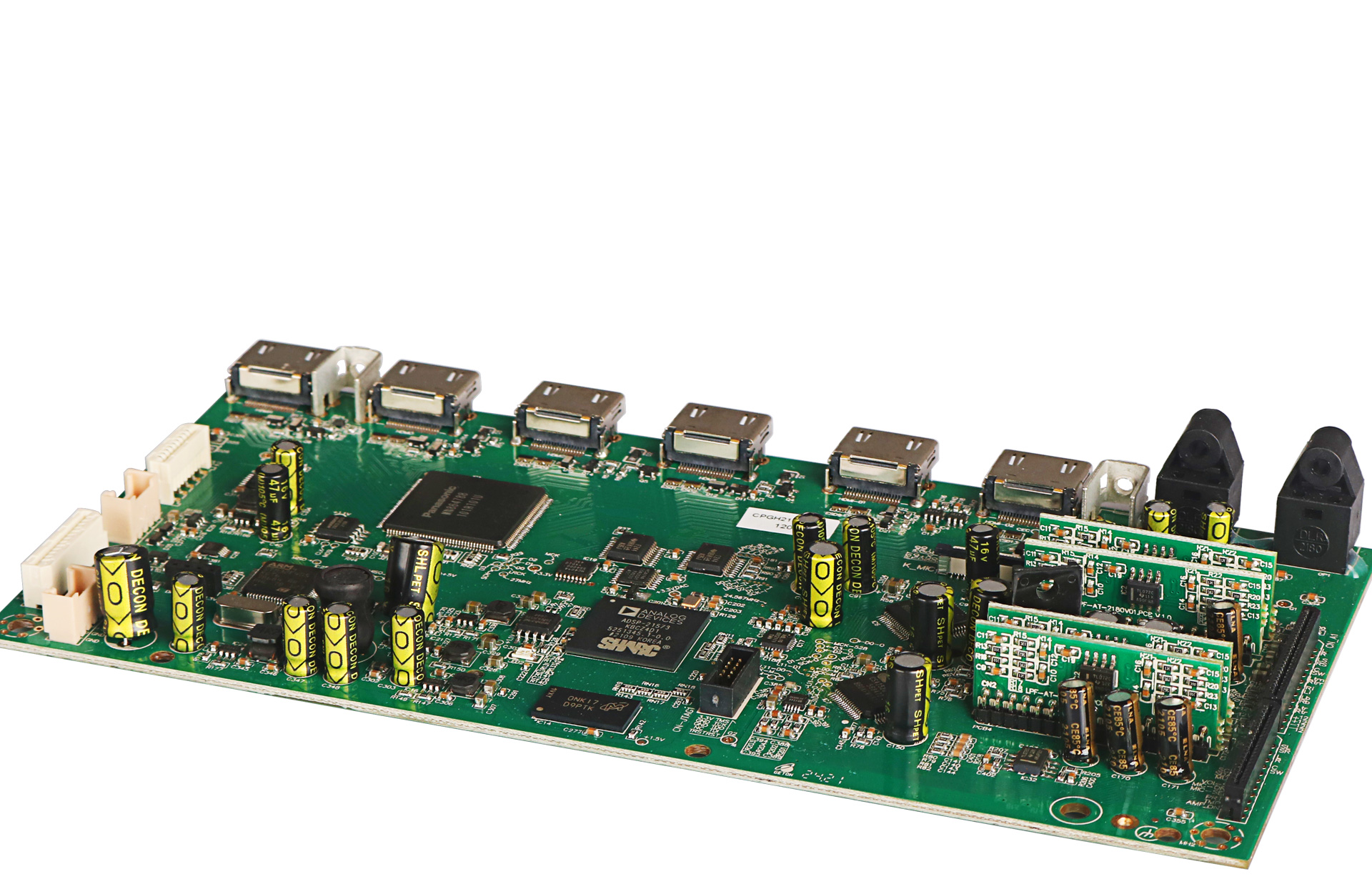

Features A High-End Circuit Design



Carefully selected integrated components and multi-layer gold-plated circuit boards lay a solid foundation for delivering cinema-grade sound effects.

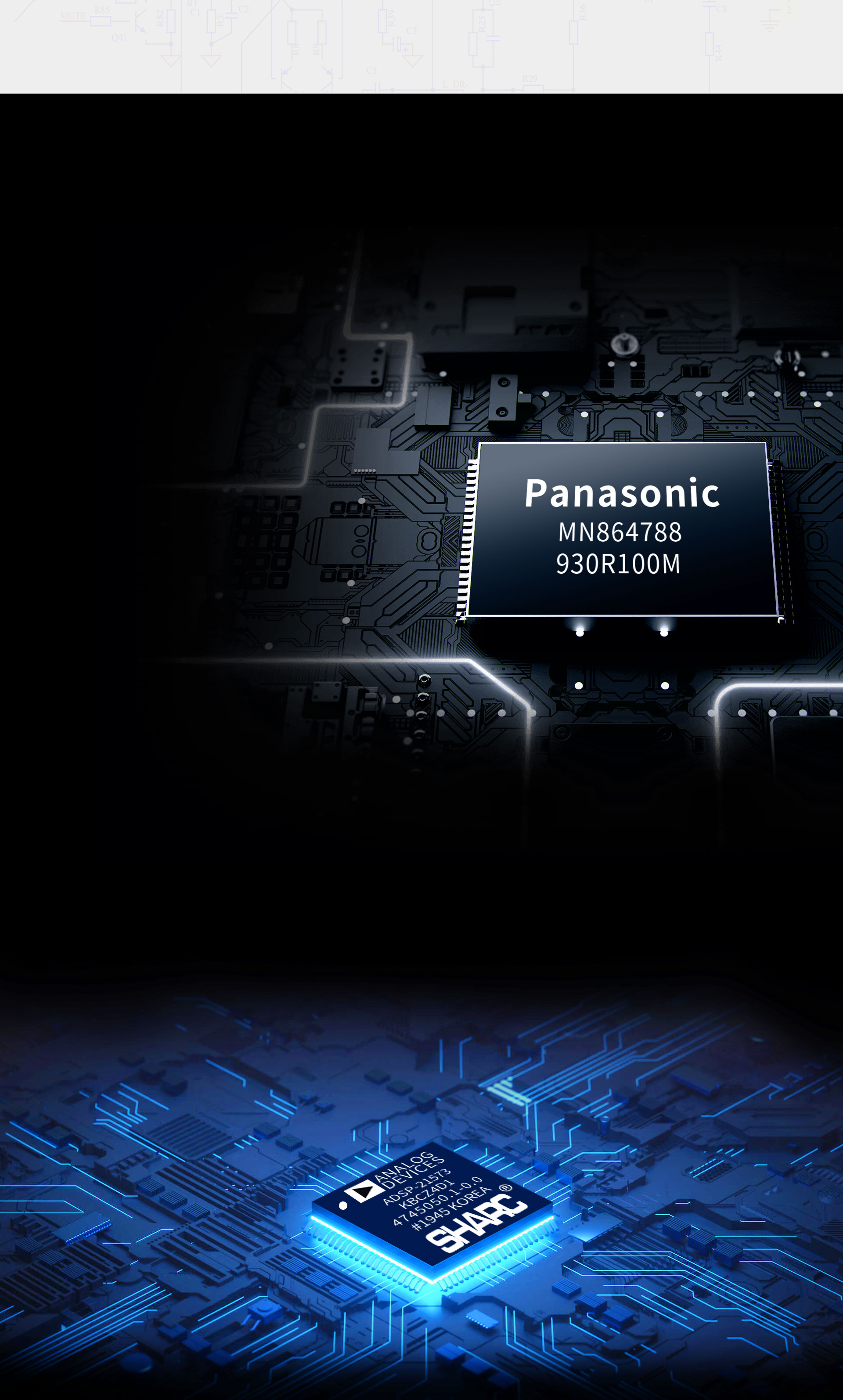

Professional Chip Powerhouse, Unmatced Performance









Panasonic MN864788 Professional Video Processing Solution

Supports up to 32 channels of object audio

Supports 3840*2160 4K/60Hz ultra-clear video pixels

Support RGB4:4:4, YUV4:4:4 technology

Supports overlay OSD menu to ensure uninterrupted display during system settings











Analog Devices ADSP 21573

The DSP audio field processing uses Analog Devices' 4th-generation SHARC floating-point audio field processor ADSP 21573, capable of generating and processing:

Dolby Atmos decoding,

DTS:X immersive audio decoding

Virtual sound field simulation



Sound field expansion effects

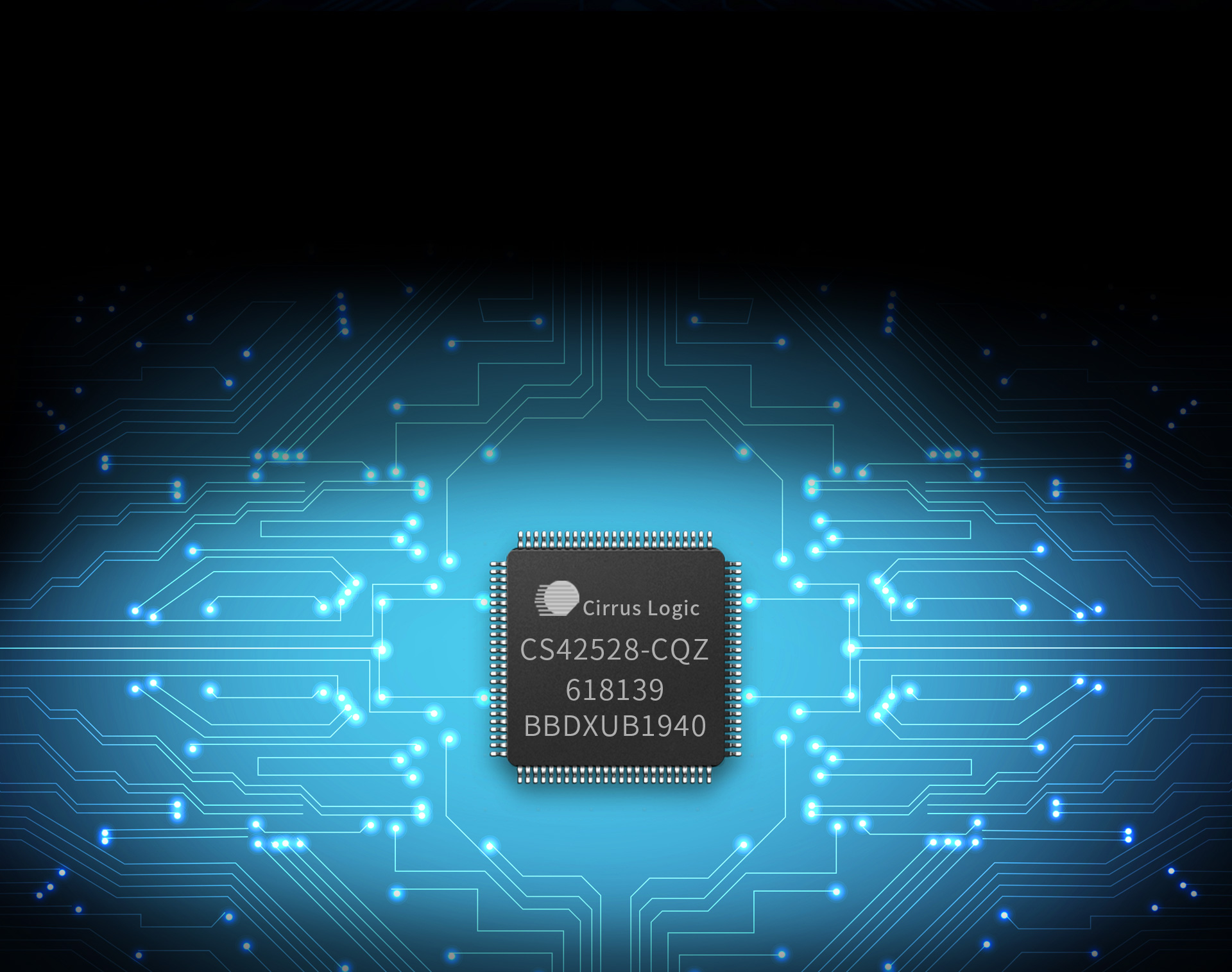

Cirrus Logic CS42528 Professional Integrated Audio Processor

An integrated audio processor Cirrus Logic CS42528, with ADSP 21573



Together they complete the sound effect adjustment, speaker frequency response curve adjustment, and timbre correction to ensure the separation of the sound field and the continuity of the surround sound.Receiver

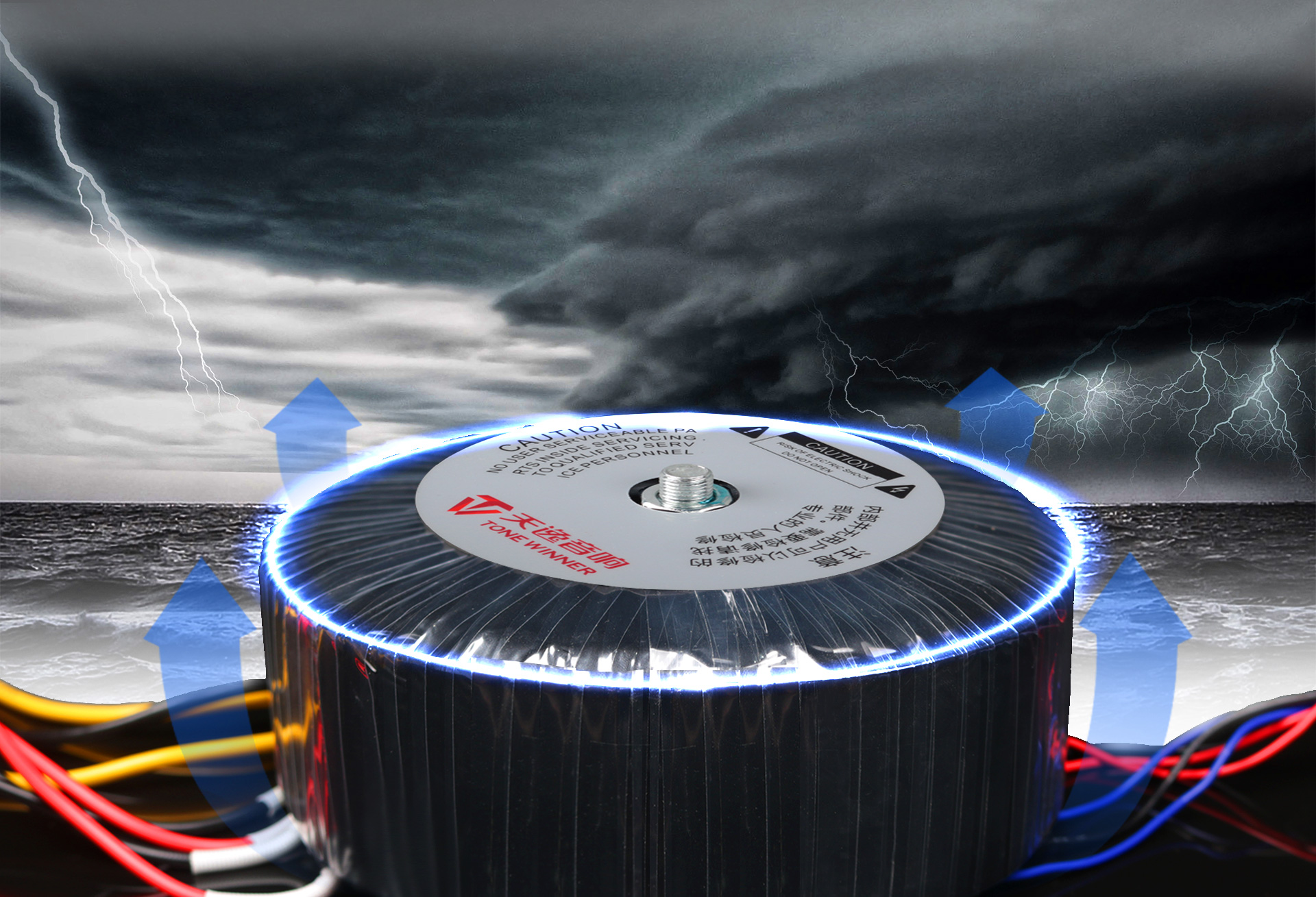

450W High-Capacity Toroidal Transformer



It offers high power and improves the frequency response for AT-2180

7-Channel Independent Outputs Multiple Speaker Configuration Options

130W x 7 (8Ω, RMS) powerful output

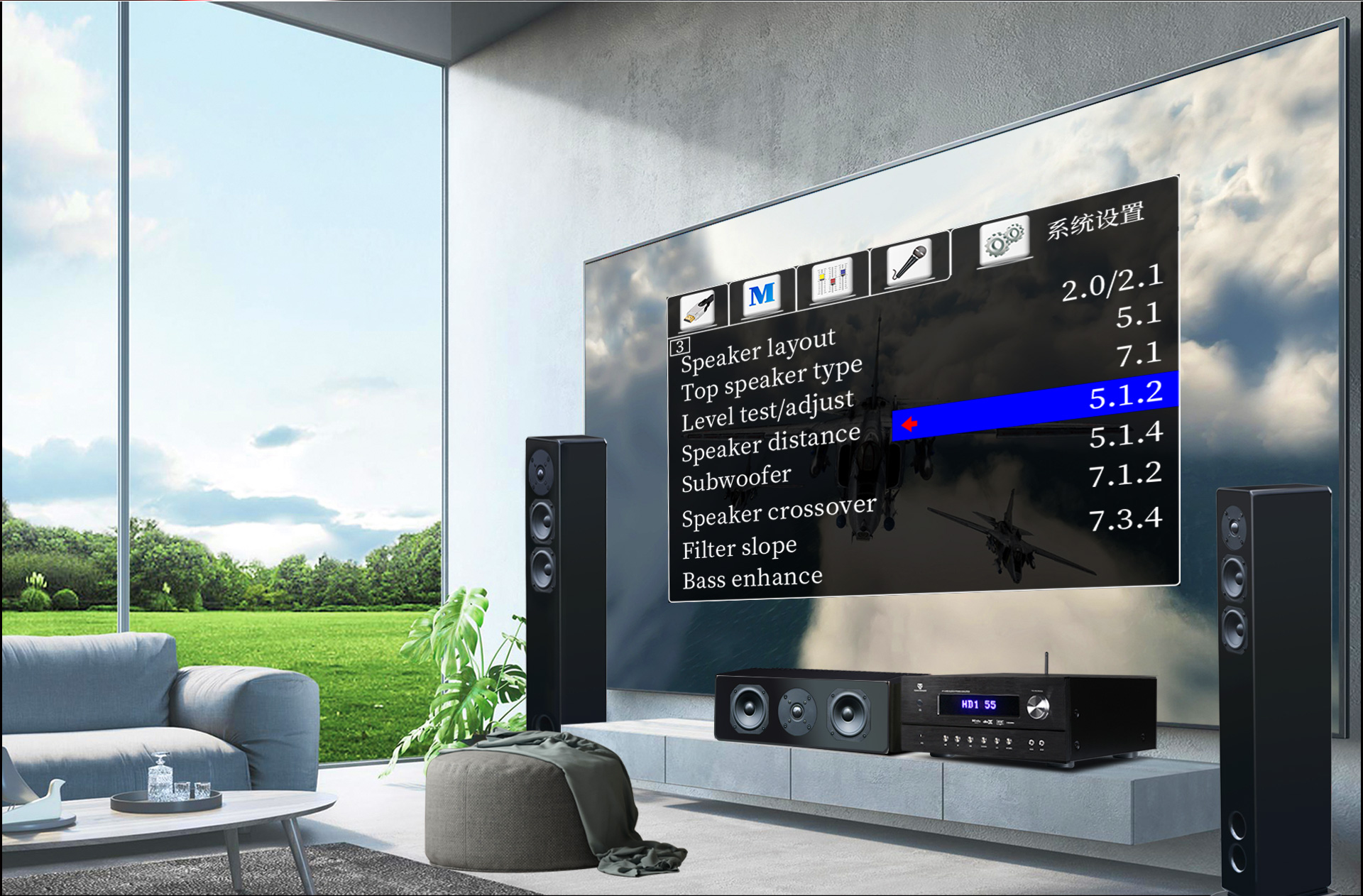

Layout configurations:2.0 / 2.1 / 5.1 / 7.1/5.1.2 / 5.1.4 / 7.1.2 / 7.3.4

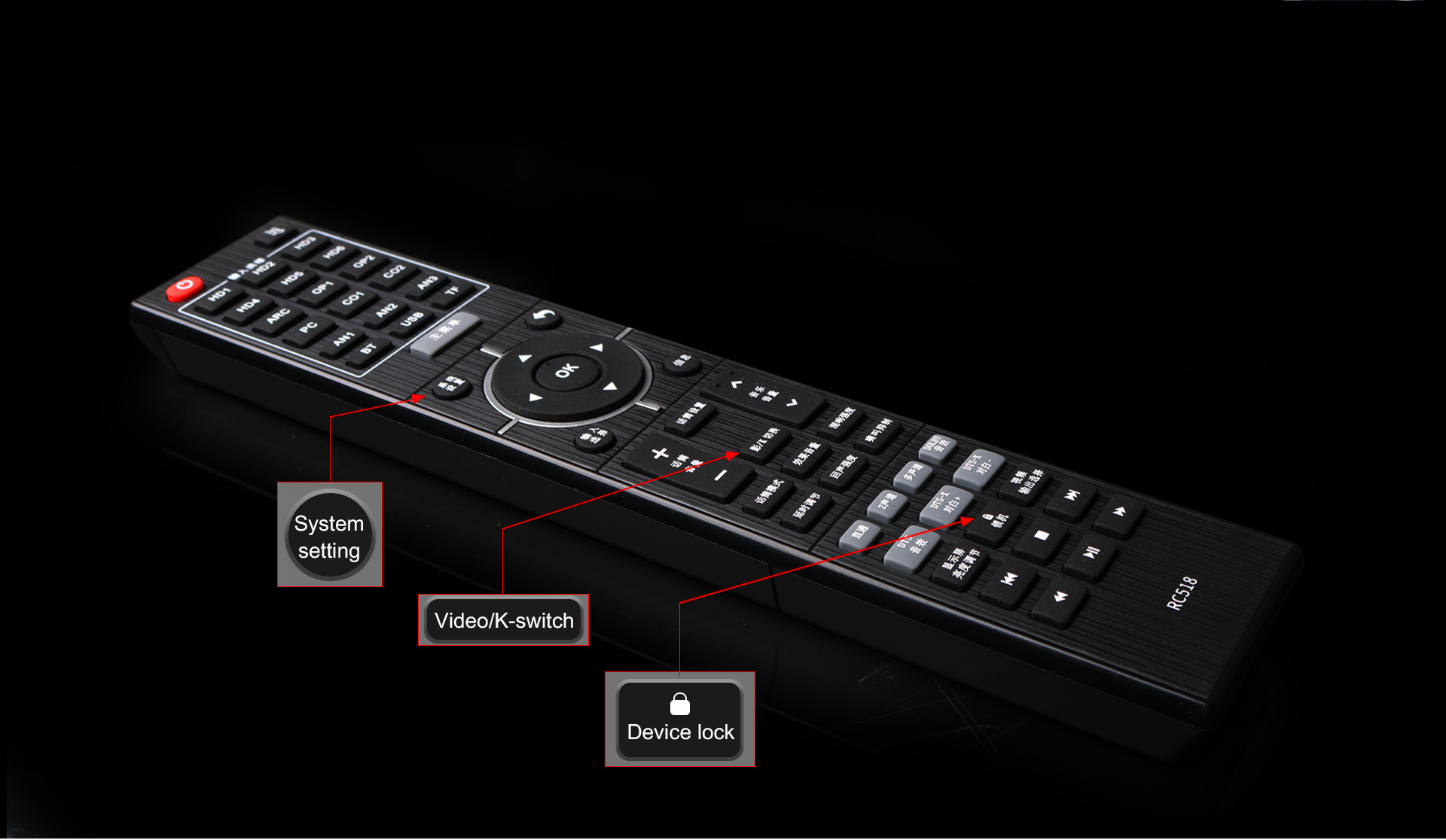

Multi-function remote control

One-touch video/K-switch, one-touch factory reset, one-touch device lock

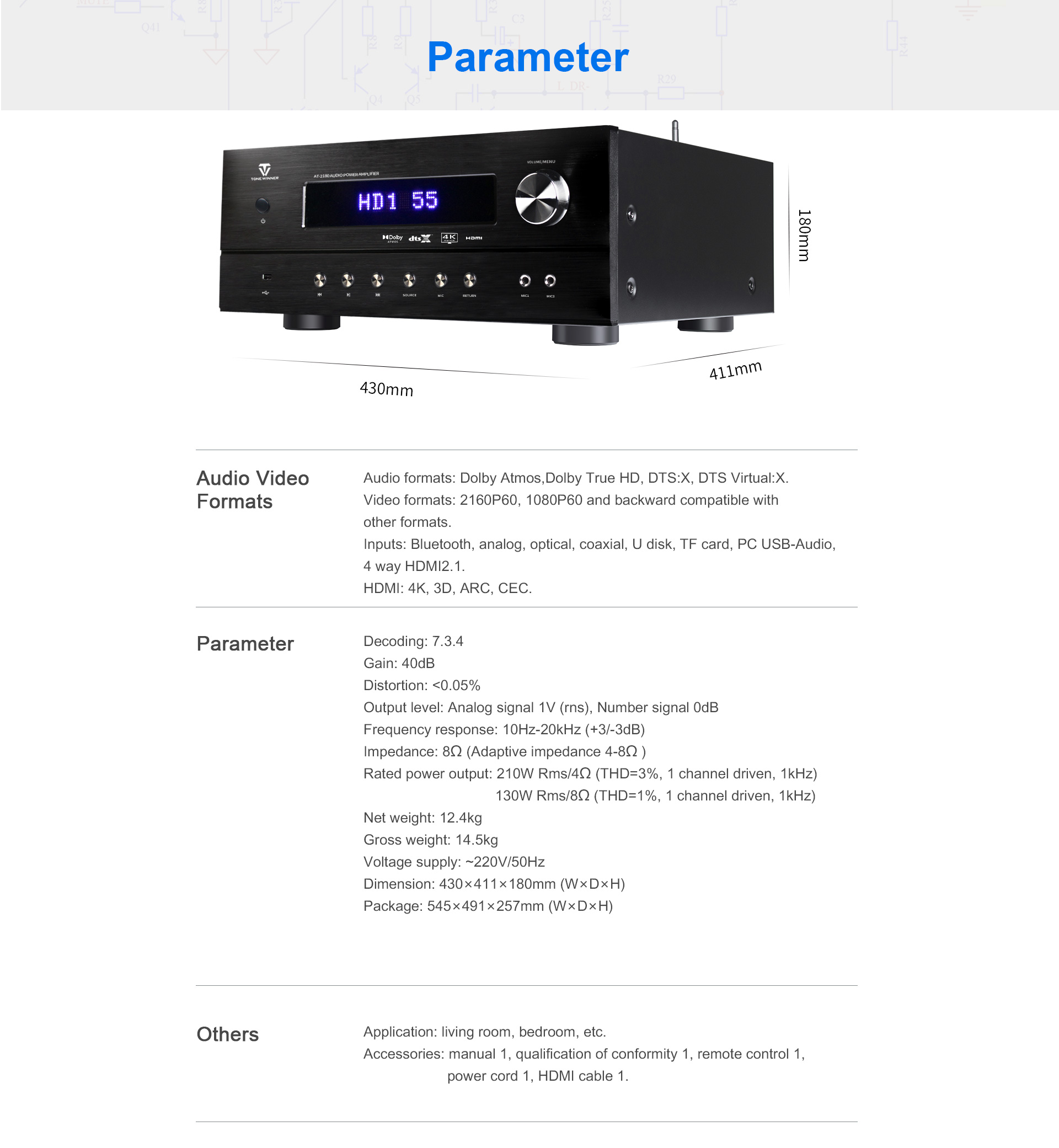

Dolby Atmos AV Receiver





Dolby Atmos AV Receiver







Model AT-2180 Decording output 7.3.4
Input level 1Vrms (analog direct) Frequency response 10Hz-20kHz(+3/-3 dB)
Gain ≥40dB Distortion <0.05%
Impedance 8 Ω (adapt 4-8Ω) Output power

130 RMS/8Ω(THD=1%, per channel, 1kHz);

210 RMS/4Ω(THD=3%, per channel, 1kHz)

Net weight 12.4 kg Gross weight

14.5 kg

Voltage supply  ~220V/50Hz Dimension

430×411×160mm

Package size 545×491×257mm Accessory

user manual, remote control, HDMI cable certification, battery, power cord
