Tonewinner YX-02P
5.1.4 Dolby Atmos Home Theater Karaoke System
Tonewinner YX-02P is an all-in-one home theater system that combines Dolby Atmos surround sound, professional KTV, Hi-Fi music, and gaming experiences. It features a 5.1.4 speaker array, supporting both Dolby Atmos and DTS:X immersive audio formats.Additionally, it supports 4K video, delivering an unparalleled immersive experience. The system offers professional-grade 5.1.4 channel surround sound for karaoke, smartphone app control, USB/TF card compatibility, lossless Bluetooth transmission, and eARC audio return.
Model
YX-02PTonewinner YX-02P
5.1.4 Dolby Atmos Home Theater Karaoke System
Combines Dolby Atmos surround sound, professional KTV, Hi-Fi music, and gaming experiences
Dolby Atmos
DTS:X Dual Decoding
3D Spatial Sound Technology
The audio signal is no longer constrained by the fixed placement of speakers. Through real-time decoding, every channel's corresponding sound data is precisely calculated.
Enjoy a 720° immersive audio experience, allowing you to feel as if you're at the cinema without leaving home.
Top 5 Global Audio Auto-Testing Systems
Lifetime Free Access
· Fully Chinese interface, simple and intuitive to operate.
· Professional-grade calibration results, precise and reliable.
· Automatic compensation for room acoustic characteristics (EO correction).
· Automatic optimization of parameters such as distance, delay, and sound pressure to meet cinematic standards.
· Proprietary algorithms and powerful DSP processing capabilities ensure instant measurement and calibration.Receiver
4K Ultra HD, HDR Dynamic Video Processing
Stunning Visuals, Vivid Picture Quality
eARC enhanced audio return
HDMI 4 IN 1 OUT
Professional DSP Digital Processing System
5.1.4-Channel Immersive Experience
5.1.4 Karaoke sound effects create an all-encompassing,
three-dimensional entertainment space with rich and clear sound layers.
Experience a personal concert with panoramic surround sound, delivering a unique and immersive experience like no other.
20 preset singing styles to give voice a "beauty filter."
With ADI professional digital reverb, Tonewinner’s exclusive DSP algorithms, and EQ auto-tracking technology, it offers outstanding sound quality.
Whether you're a karaoke pro or just starting out, singing your best has never been so effortless.
9-Level Dynamic Feedback Suppression
With it, sing confidently and enjoy to the fullest! r
Plug and Play with USB Drive and TF Card
The most romantic moments are always unfolding
Supports 128GB USB drives and TF cards, compatible with APE, FLAC, WAV
High-Speed Bluetooth for Instant Connection
Not just for listening, but also for singing.
ToneWinner exclusive app
High-end configuration with impressive capabilities
Compact size with sophisticated acoustic structure.

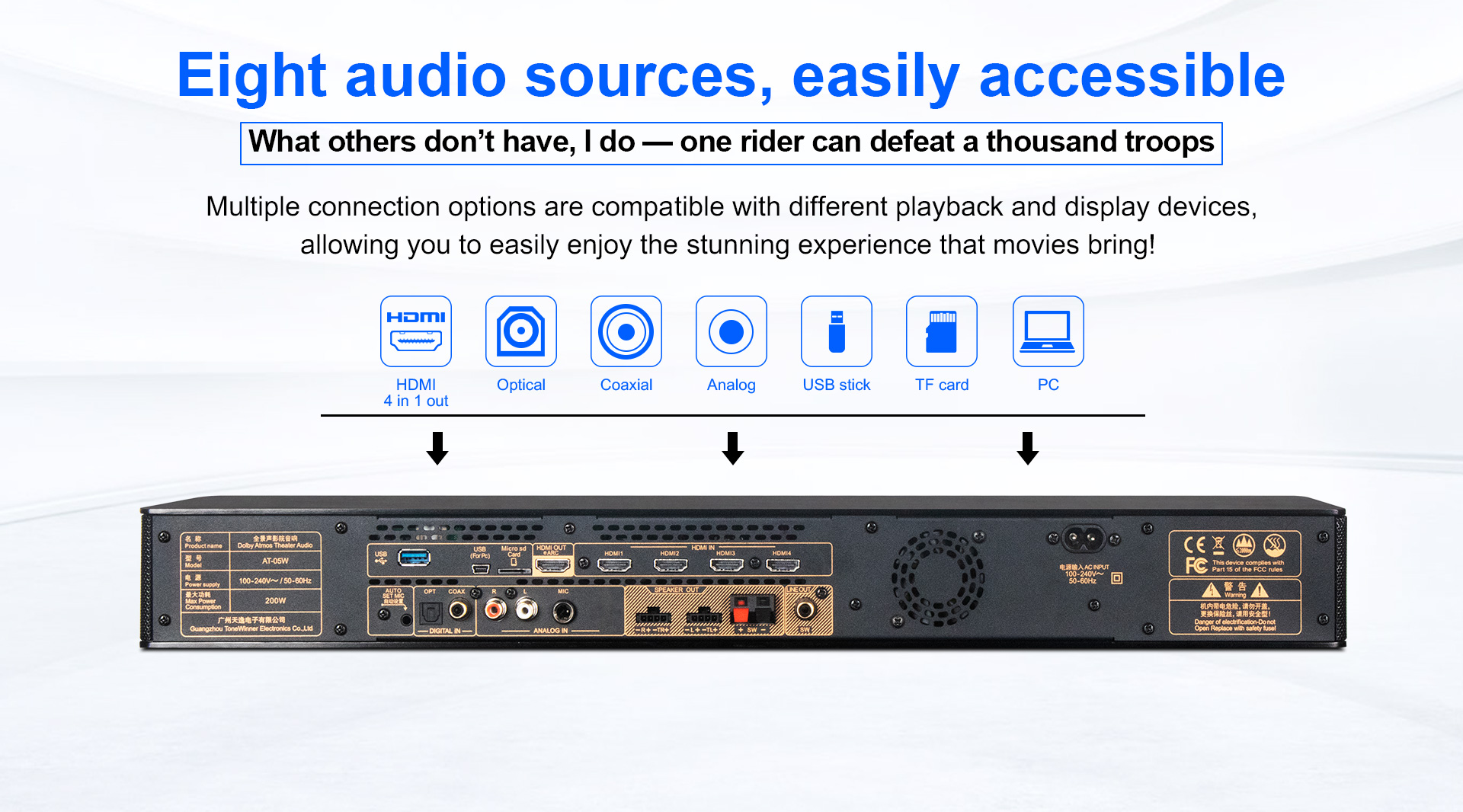

Eight audio sources, easily accessible
Multiple connection options
Precise directional sound technology
The main speaker and surround speakers are equipped with four full-range speakers
at the top to create a reflective overhead channel.
5.1.4 speaker layout matrix 10pcs physical drivers
Each speaker is set at a precise angle to drive the units, to create a sound field with no dead spots.
8-inch passive subwoofer
adds extra depth to the sound
Powerful output with ample power reserve,
creating a thrilling atmosphere for large-scale
scenes in a home theater system.
Wireless Surround Unlimited Freedom
5.2G + 5.8G dual-band quick connect, automatic frequency search
Patent Structure Design
With three-segmented contact connections.
Meticulously crafted by ToneWinner Audio Lab
Expertly tuned by professional audio design masters with over 30 years of experience
HTB Design One-Stop Home Theater Solution
Home Theater in a Box: Includes amplifier, speakers, subwoofer, cables, stands, and bases.
Compact and Versatile Remote Control
| Part No.: |
AT-05W(center speaker with amplifier) |
| Power output: |
L/R/C/SL/SR/TL/TR channels: 322W RMS/8Ω(THD=1%,1ch driven, 1kHz) SW channel:375WRMS/2Ω(THD=1%,1chdriven, 100Hz) |
| S/N: |
≥90dB (A weighted) |
| Distortion: |
≤0.5% (1kHz,normal working status) |
| Power voltage: |
100-240V~/50-60Hz |
| Dimension: |
550x138x66.3mm ( W x D x H) |
| Net weight: |
2.8 kg |
| Part No.: |
SW-05 (subwoofer) |
|
Driver size |
8” x 1 |
|
Rated power: |
100W |
|
Frequency response: |
50Hz-4kHz |
|
Impedance: |
2Ω |
|
Sensitivity: |
85dB |
|
Dimension: |
260x310x293mm( W x D x H) |
|
Net weight: |
6.5kg |
|
Part No.: |
AS-05F (center) |
|
Power: |
10~40W(Top) |
|
Frequency response: |
120Hz-20kHz |
|
Impedance: |
8Ω |
| Driver size: |
2.25" x 1 + 3" x 2 |
| Dimension: |
313x313x1160mm ( W x D x H) |
| Net weight: |
4kg |

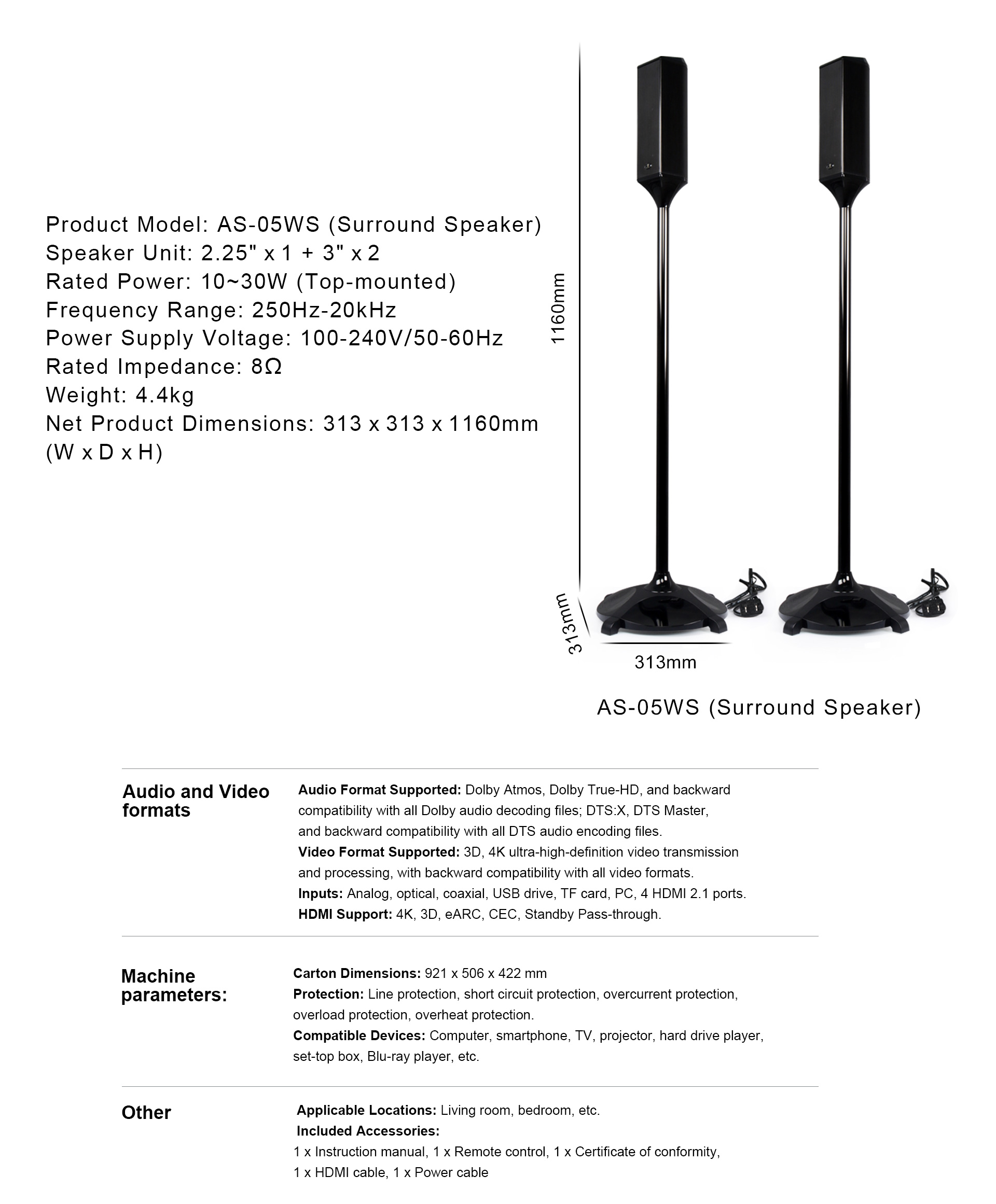

| Part No.: |
AS-05WS (back surround) |
| Power: |
10~30W(Top) |
| Frequency response: |
250Hz-20kHz |
| Driver size: |
2.25” x 1 + 3" x 2 |
| Power voltage: |
100-240V~/50-60Hz |
| Dimension: |
313x313x1160mm ( W x D x H) |
| Net weight: |
4.4kg |
